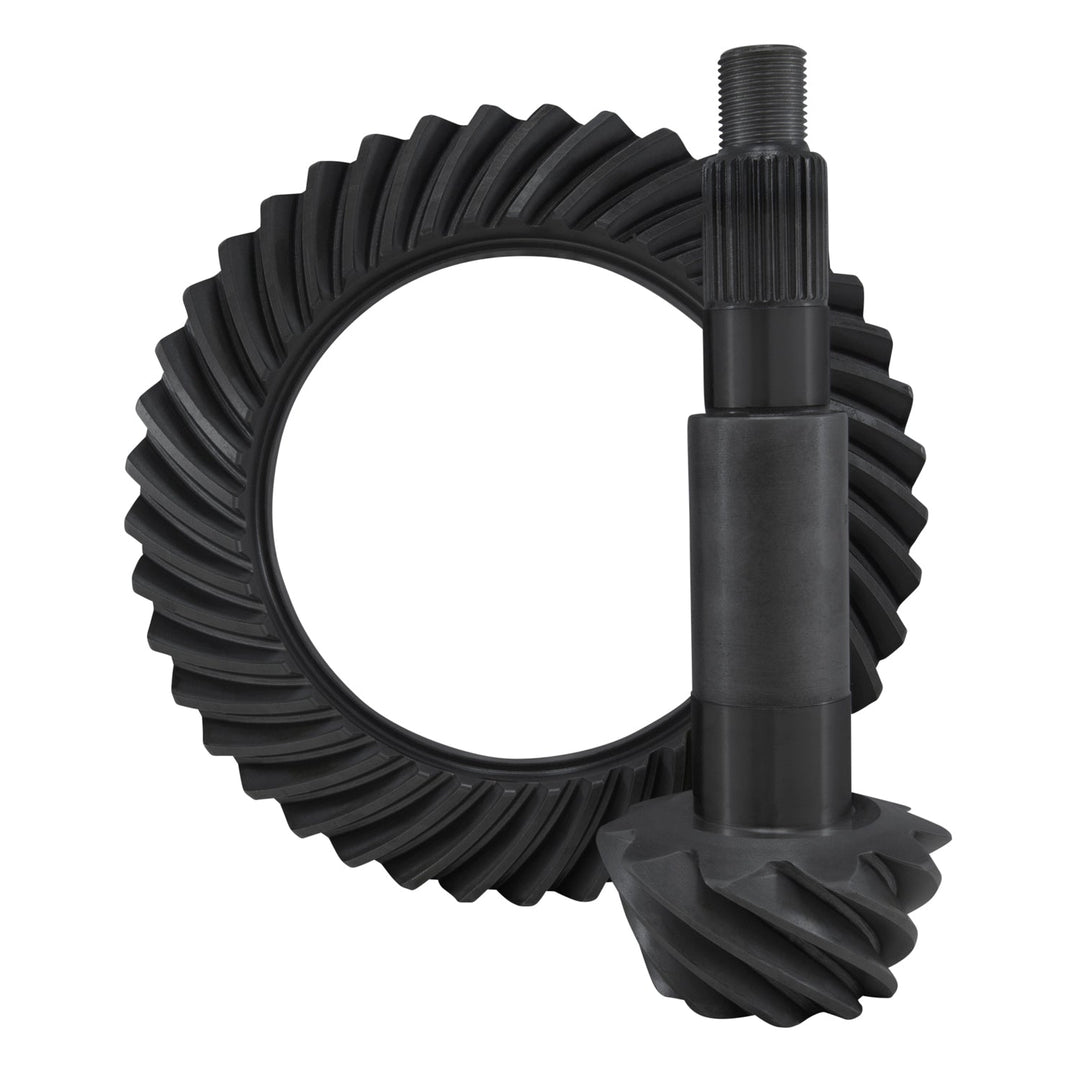

Yukon high performance replacement ring & pinion gear set, Dana 60, 4.11 ratio

This is the Yukon 4.11 ring and pinion set, YG D60-411, a high performance replacement gear set for the standard rotation Dana Spicer 60.

Fitment

• Axle: Dana Spicer 60, standard rotation
• Ratio: 4.11
• Pinion: 29 spline
• Ring gear: 9.75 inch, 12 bolts

4.11 is a moderate ratio for a Dana 60 and sits between 3.73 and the deeper 4.56 and up sets in this run.

Check before you order

• Rotation: this is the standard rotation set. Yukon sells separate reverse rotation Dana 60 sets, so make sure you are not replacing a reverse rotation axle.
• Carrier: The Dana 60 carrier break is listed by retailers as 4.10/4.56. Yukon's page for this ratio does not name a carrier range, so check your carrier before buying.
• Yukon's page does not list specific vehicles for this part, so match it by axle, rotation, ring gear size (9.75 inch) and pinion spline count (29).

What's included

This is the gear set alone. Bearings, seals, tools and any install kit are sold separately.

Installation

Ring and pinion setup takes correct pinion depth, backlash and contact pattern checks, plus the right bearings and shims. If you have not done it before, a shop that sets up gears is the safer route.

Warranty

Yukon lists a standard one-year warranty on its ring and pinion sets and promotes a separate Y.E.S. protection plan. Check Yukon for the current terms.

California Prop 65: this product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. More information is at www.P65Warnings.ca.gov.
