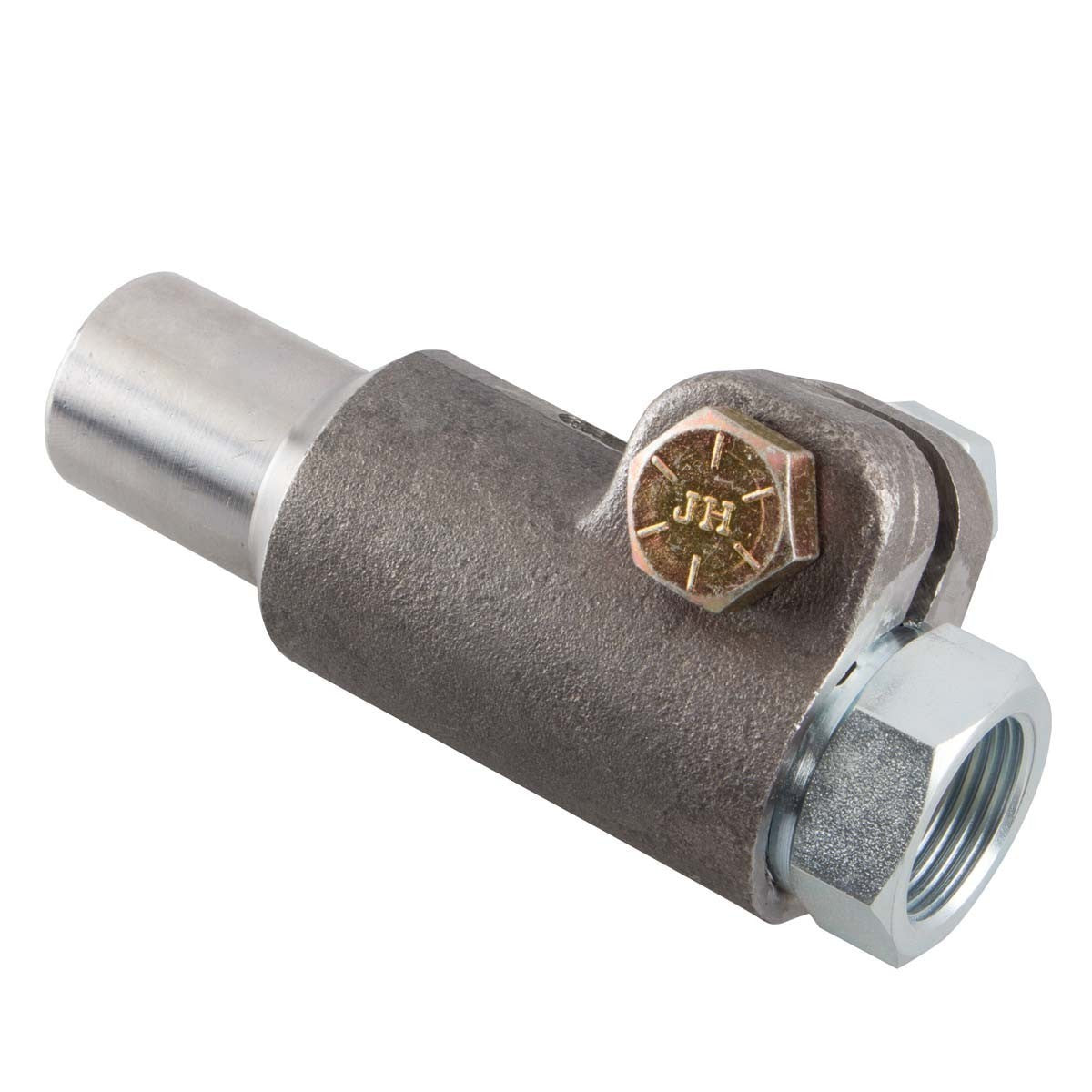

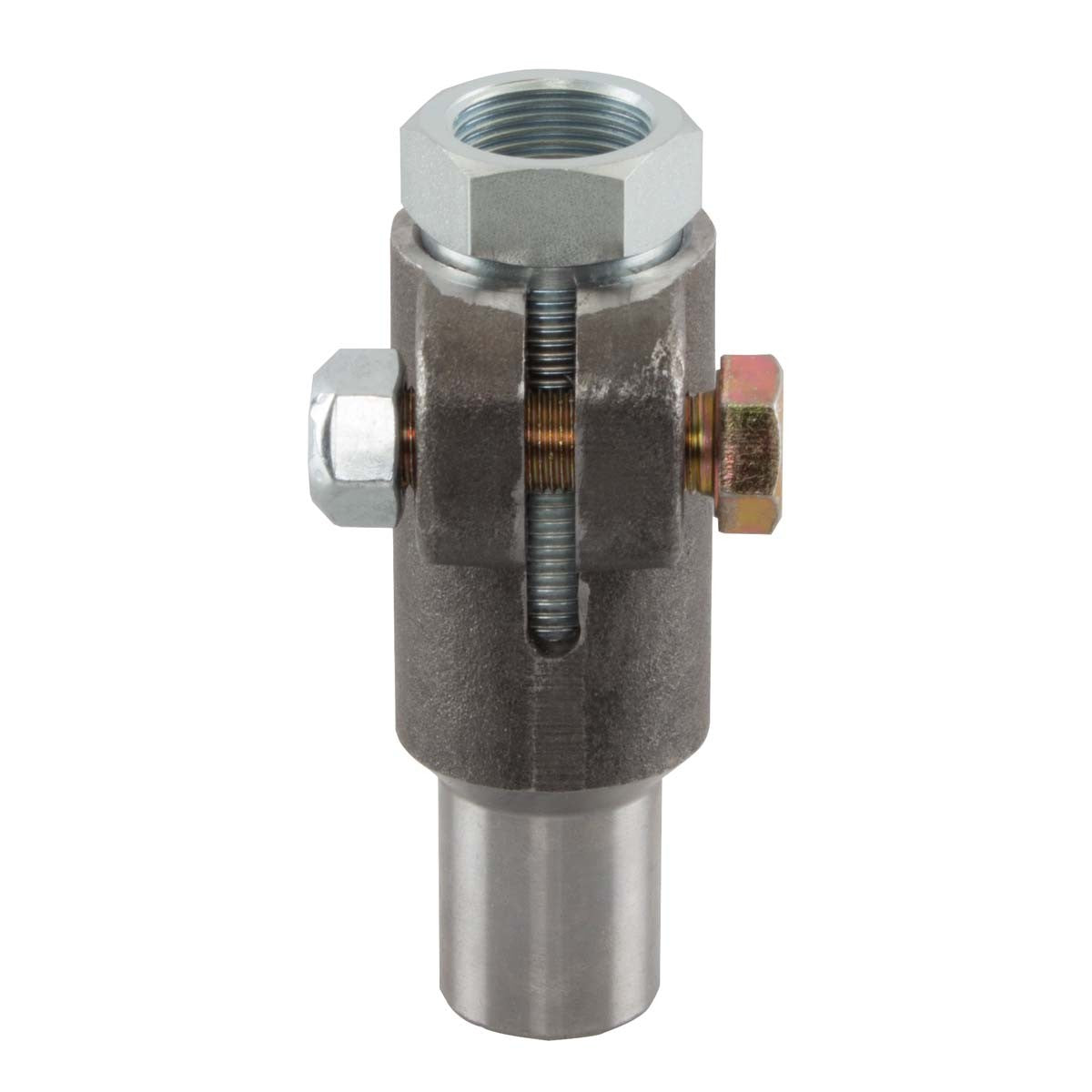

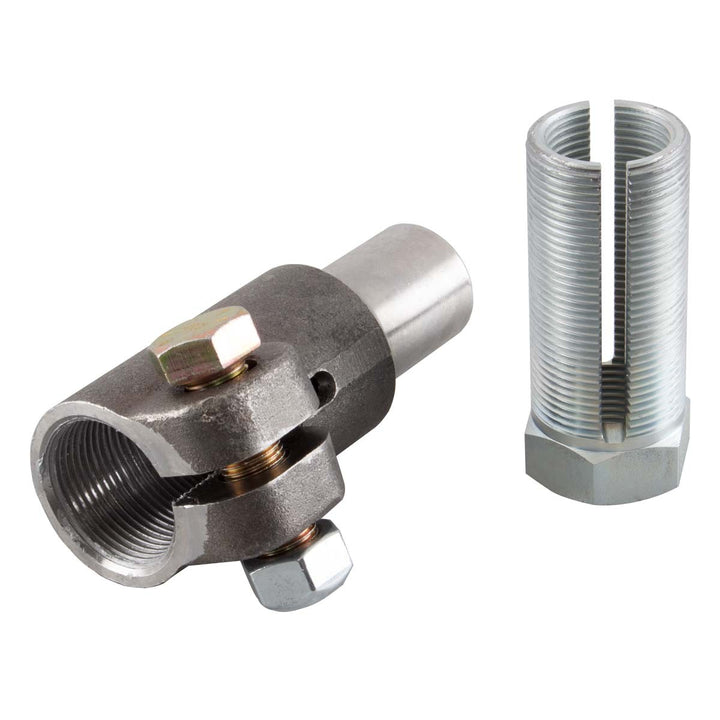

Weld-In Forged Tube Adapters with Double Adjuster - 7/8" - 14 UNF-2B LH thread, 1.125" tube ID 3620-0703 Synergy MFG

Our Synergy Weld-In Forged Tube Adapters with Double Adjusters are the answer to your fabrication frustrations! Forget about spendy tap sets and annoying jam nuts. We use these exact ends on our highest quality steering components allowing us to use the heavy duty rod ends of our choice. These are engineered to take on the most aggressive driving, making them an awesome choice for fabricating your own steering or suspension components. These forgings are a complete kit, loaded with a double adjuster sleeve and all the hardware you need for install!

Benefits:

• Synergy Pinch Bolt Assembly eliminates the need for jam nuts, preventing suspension or steering components from coming loose
• Our Double Adjuster Assembly allows adjustment of rod ends without having to remove the bar from the vehicle
• Tube adapter seals off the link from water or other debris entering the inside of the tube
• Zinc Plated Double Adjuster Sleeves prevent corrosion and rust
• Ideal for fabricating bent suspension links or adjustable bars with one rod end

Features:

• Tube adapters are forged from high strength SAE AISI 1045 steel
• Double adjusters are machined from ultra-tough 1144 stress-proof steel
• Durable Zinc plated Double Adjuster Sleeves
• Versatile weld-on application
• Grade 8 hardware

Includes:

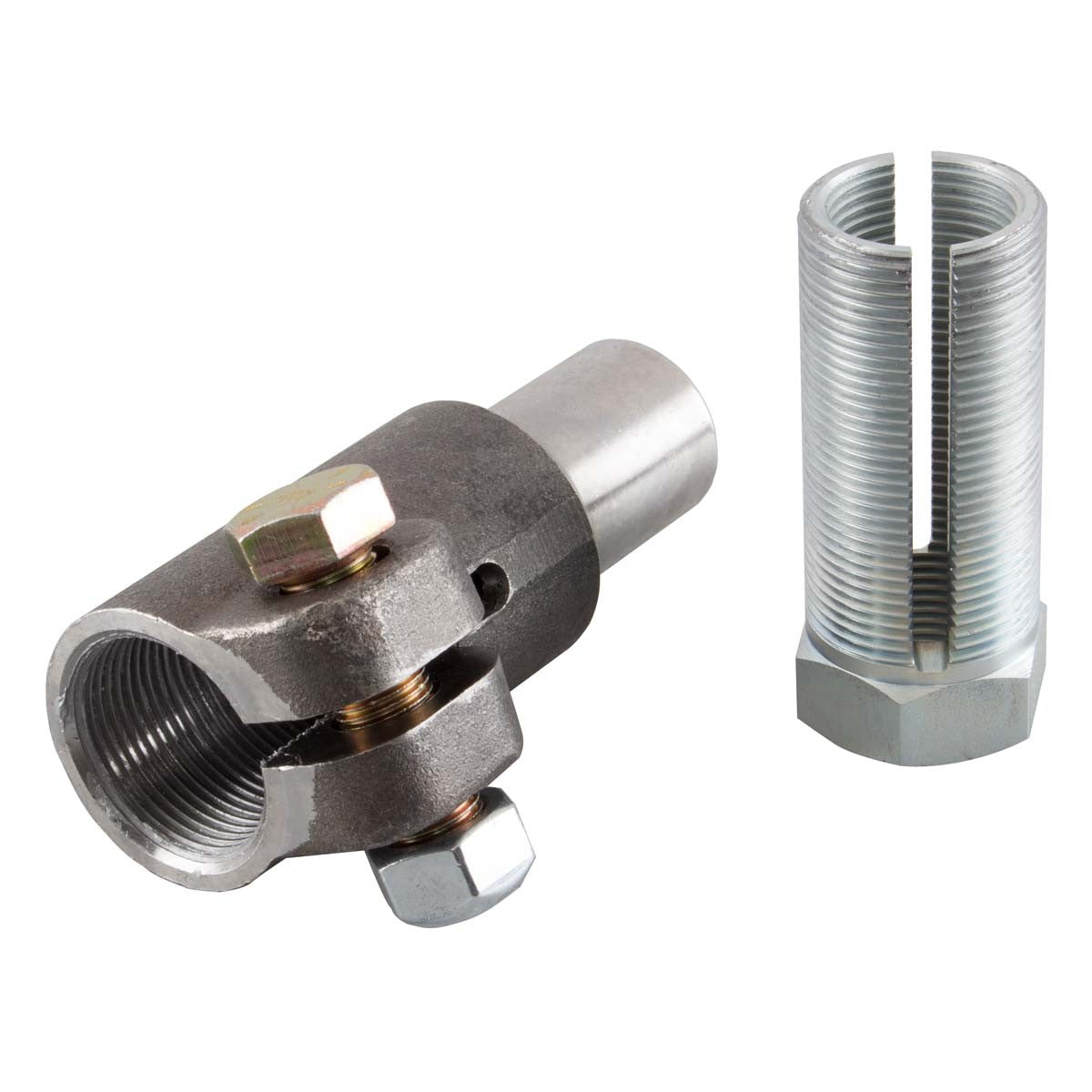

• (1) Forged Pinch Bolt Tube Adapter

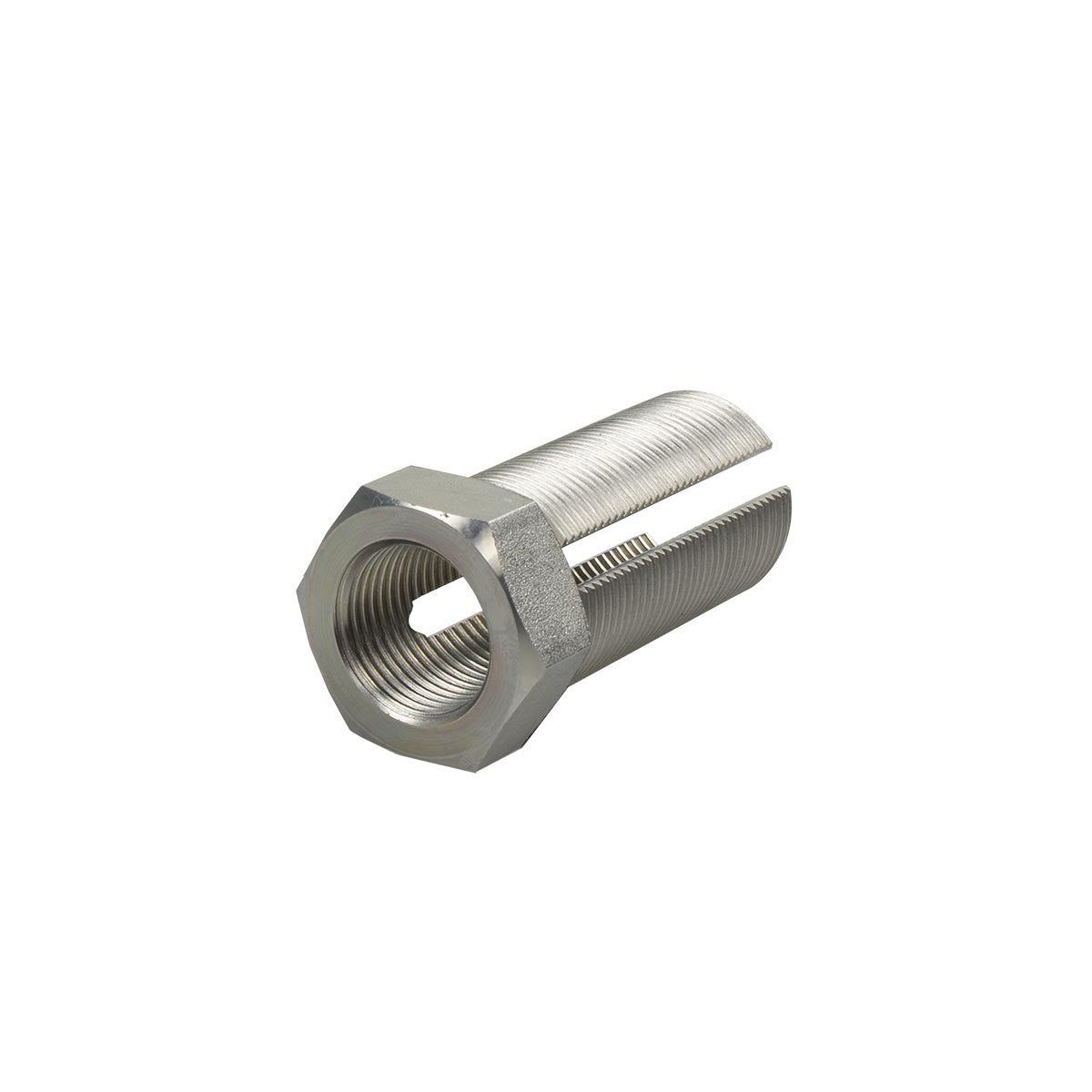

• (1) Zinc Plated Double Adjuster Sleeve
• (1) Pinch Bolt Hardware Kit

Notes:

• All Synergy Double Adjusters utilize an internal left hand thread compatible with all Synergy left hand thread forged ends with Dual Durometer Bushings, Johnny Joints, or heim joints
• Replacement hardware available under part PINCHBOLT-HDW-DOUBLE
• We recommend all welding be done by an experienced welder / fabricator

(Condensed by fetch tool.)

Fits: Weld-in tube adapters by tube ID/thread; see option labels

Includes:

• (1) Forged Pinch Bolt Tube Adapter; (1) Zinc Plated Double Adjuster Sleeve; (1) Pinch Bolt Hardware Kit

Specifications:

• Synergy MFG part number: 3620-0703
• Option: 7/8" - 14 UNF-2B LH thread, 1.125" tube ID
• Dimensions / size: Tube ID 1.00 / 1.125 / 1.375 / 1.50 in by variant
