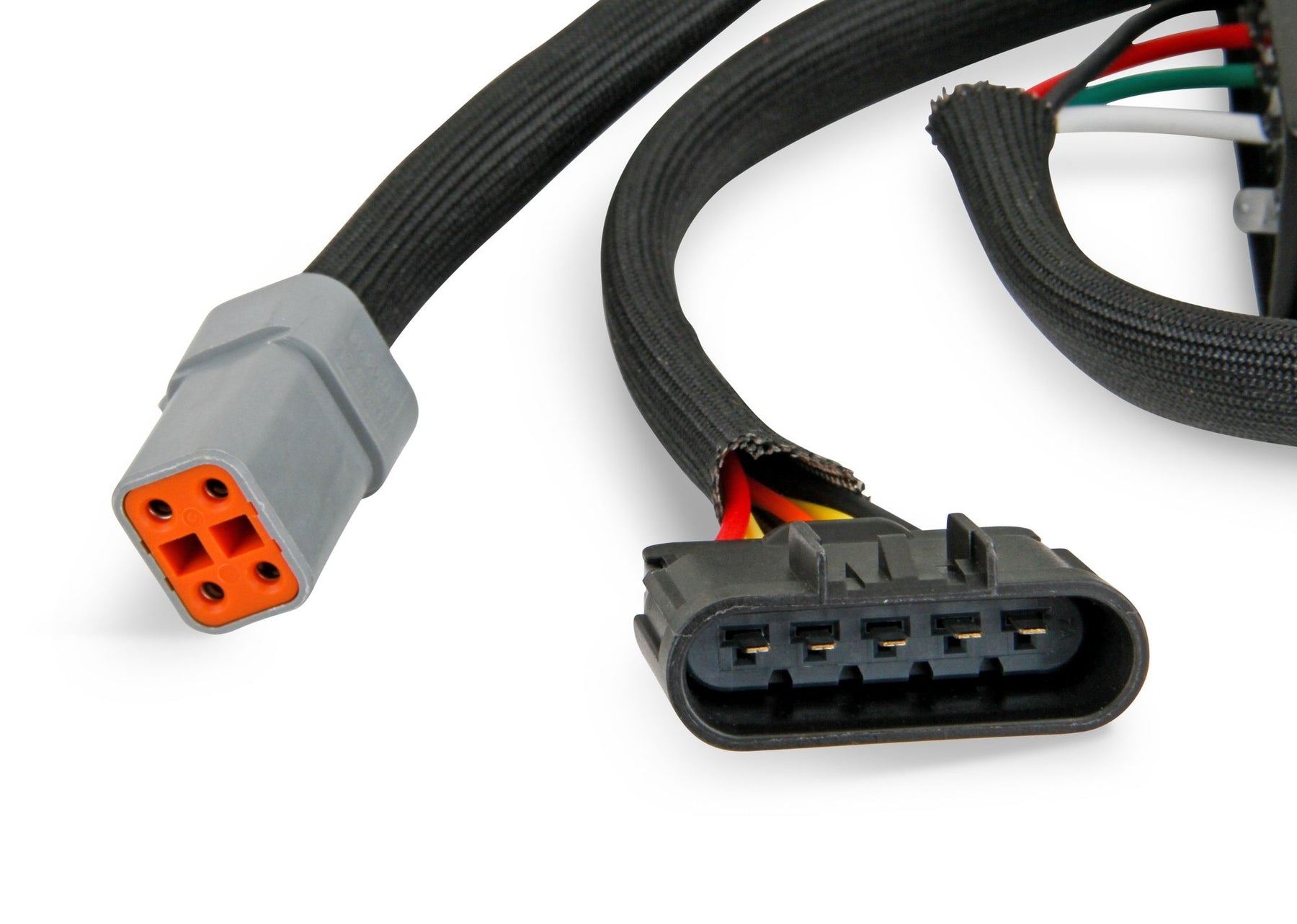

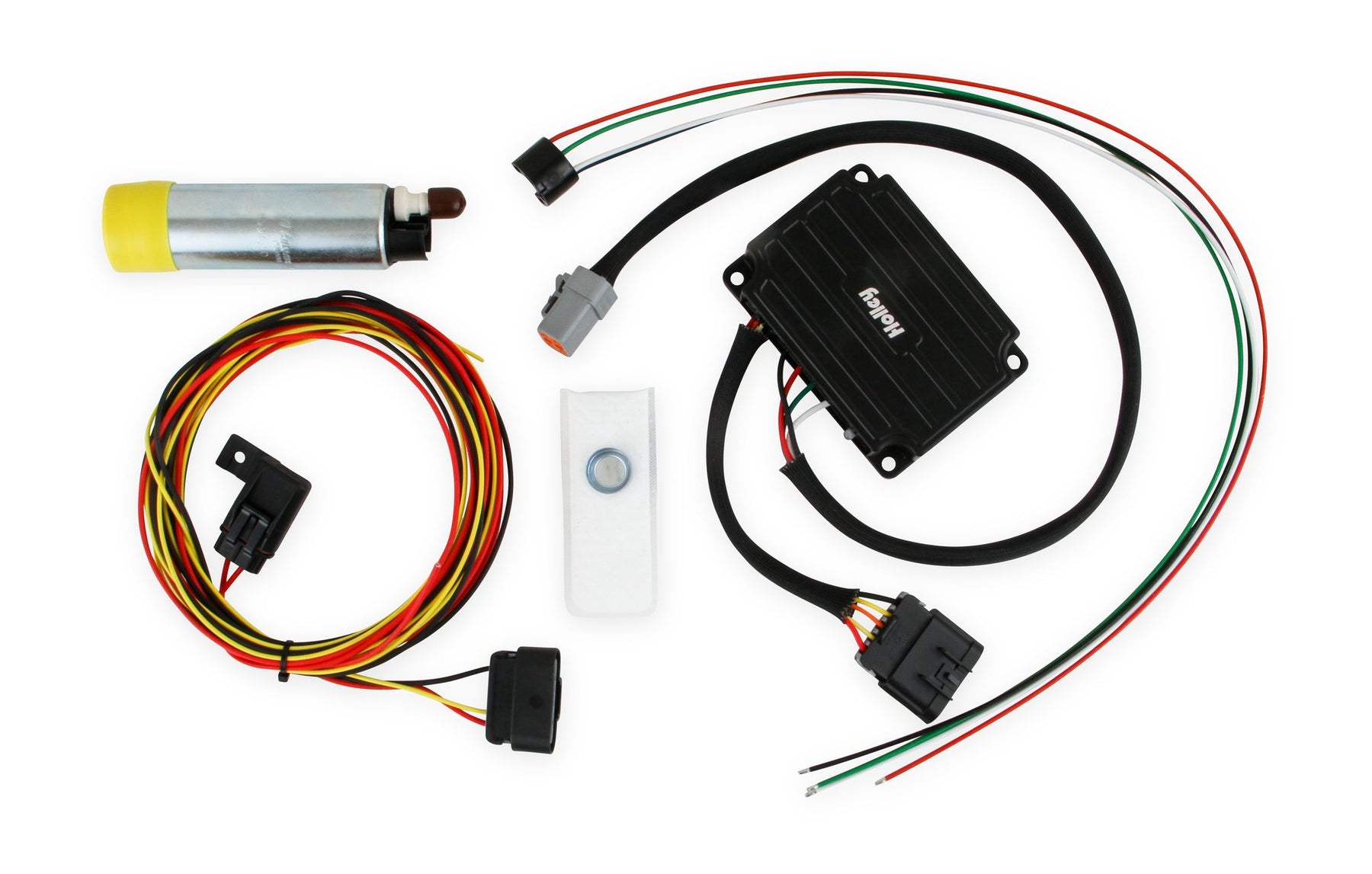

Holley has raised the bar again with the introduction of the VR1 Brushless Fuel Pump Quick Kits. The kits will allow you to build your own fuel system tailored to your combination. The 12-767 kit includes a fuel pump, harness, and a 2 -step controller. The 12-768 includes the same plus an additional 26-163 Bulkhead harness to help you build your system.

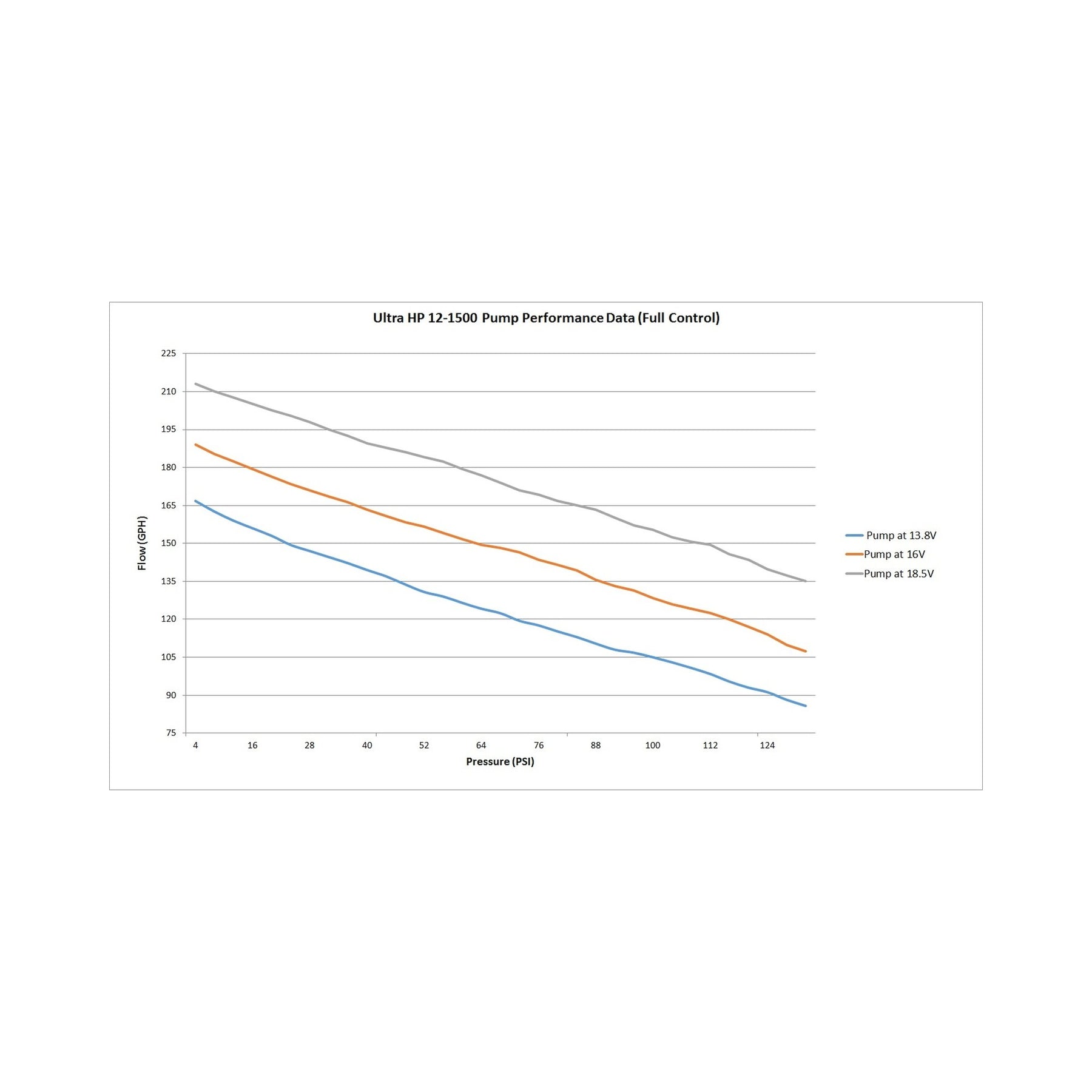

Featuring brushless pump technology and a twin screw rotor design, the VR1 fuel pumps are capable of high pressures and flows while maintaining a low amperage draw and quiet performance. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85* (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 335 GPH flow**.

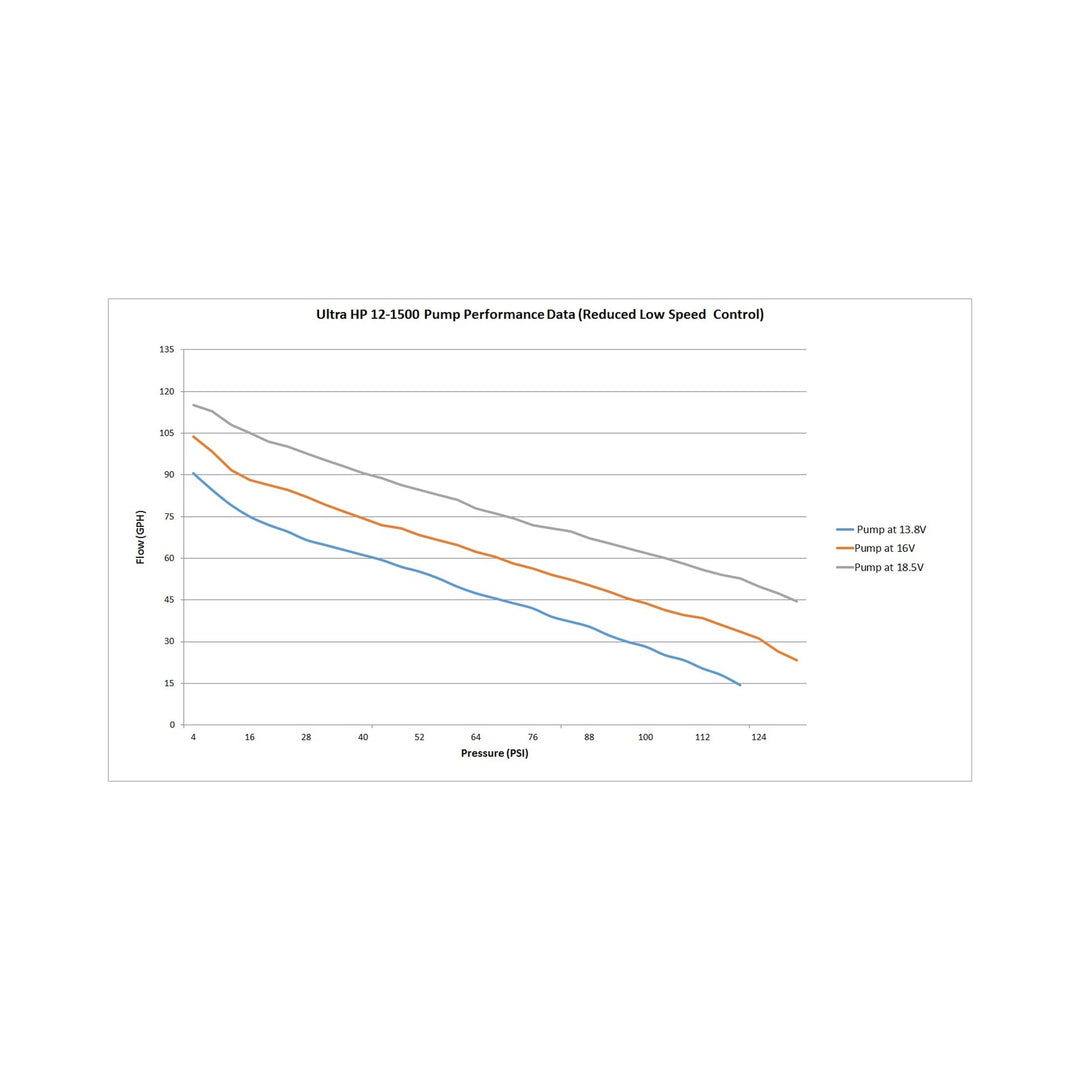

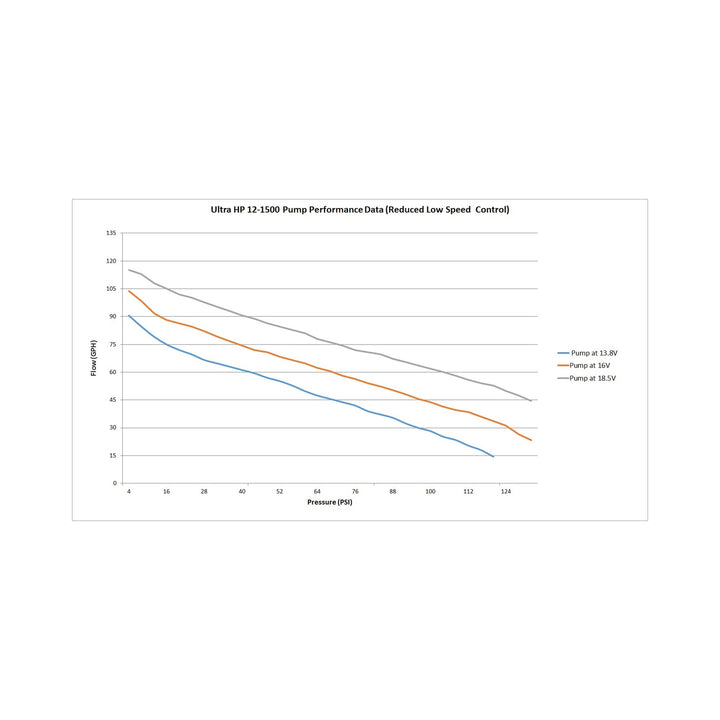

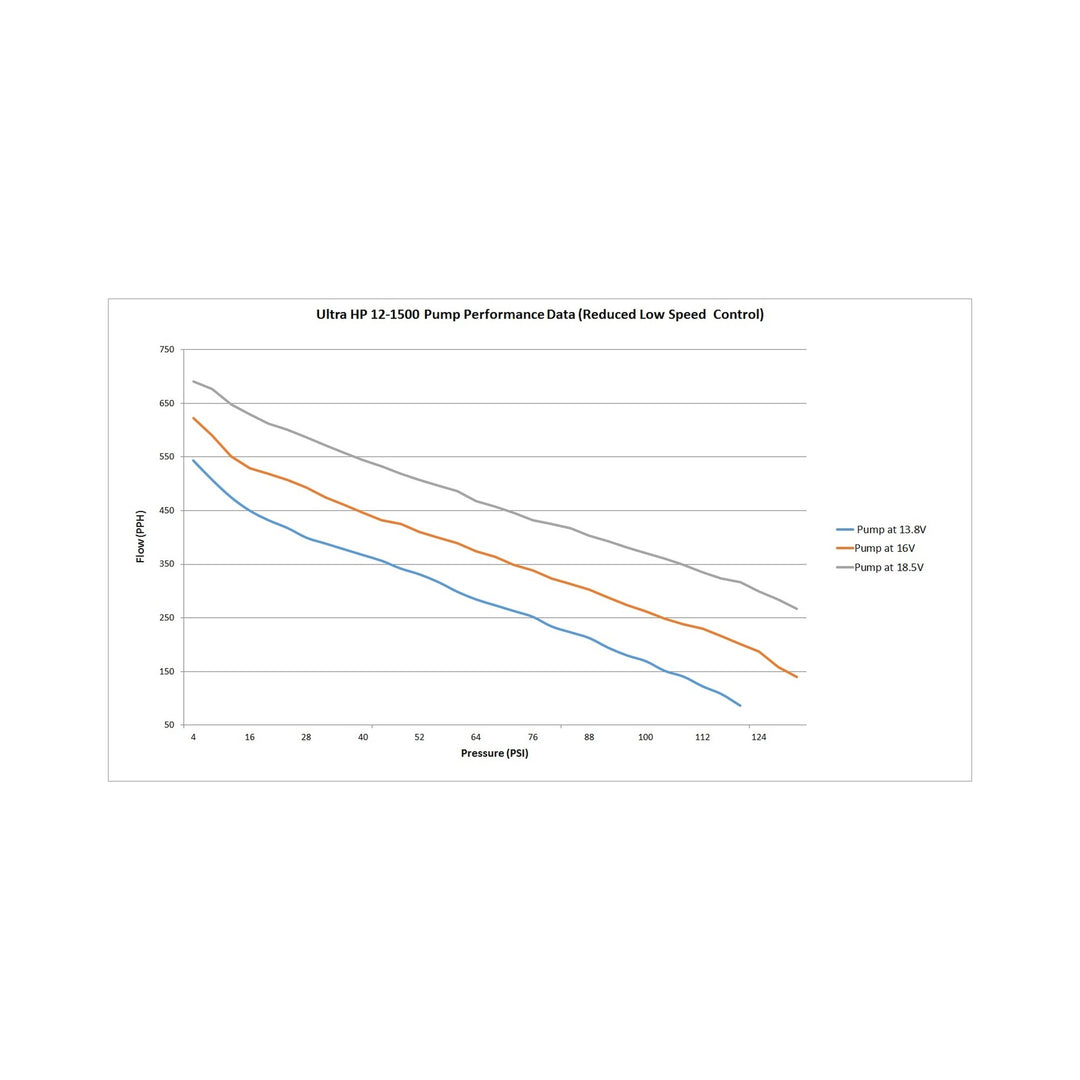

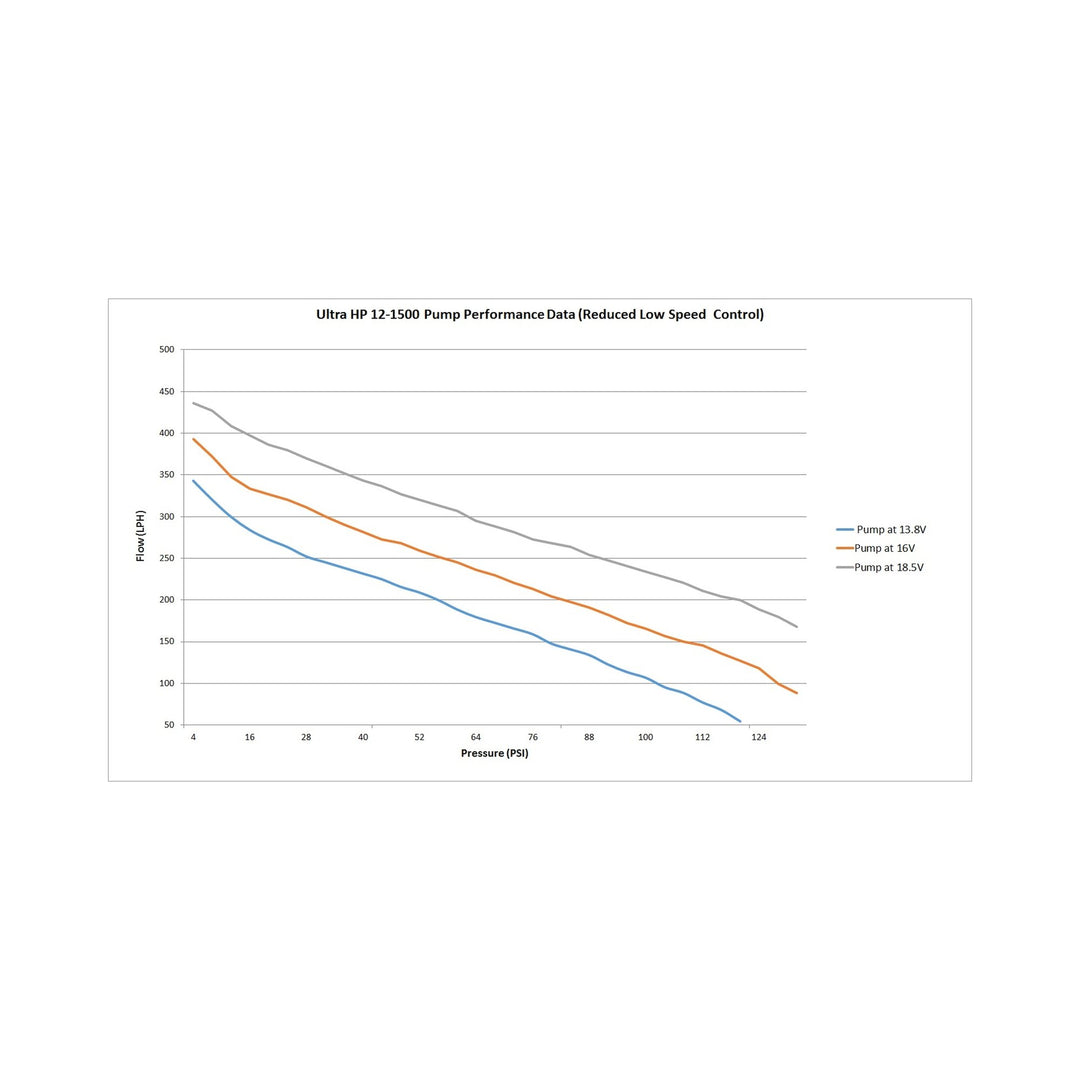

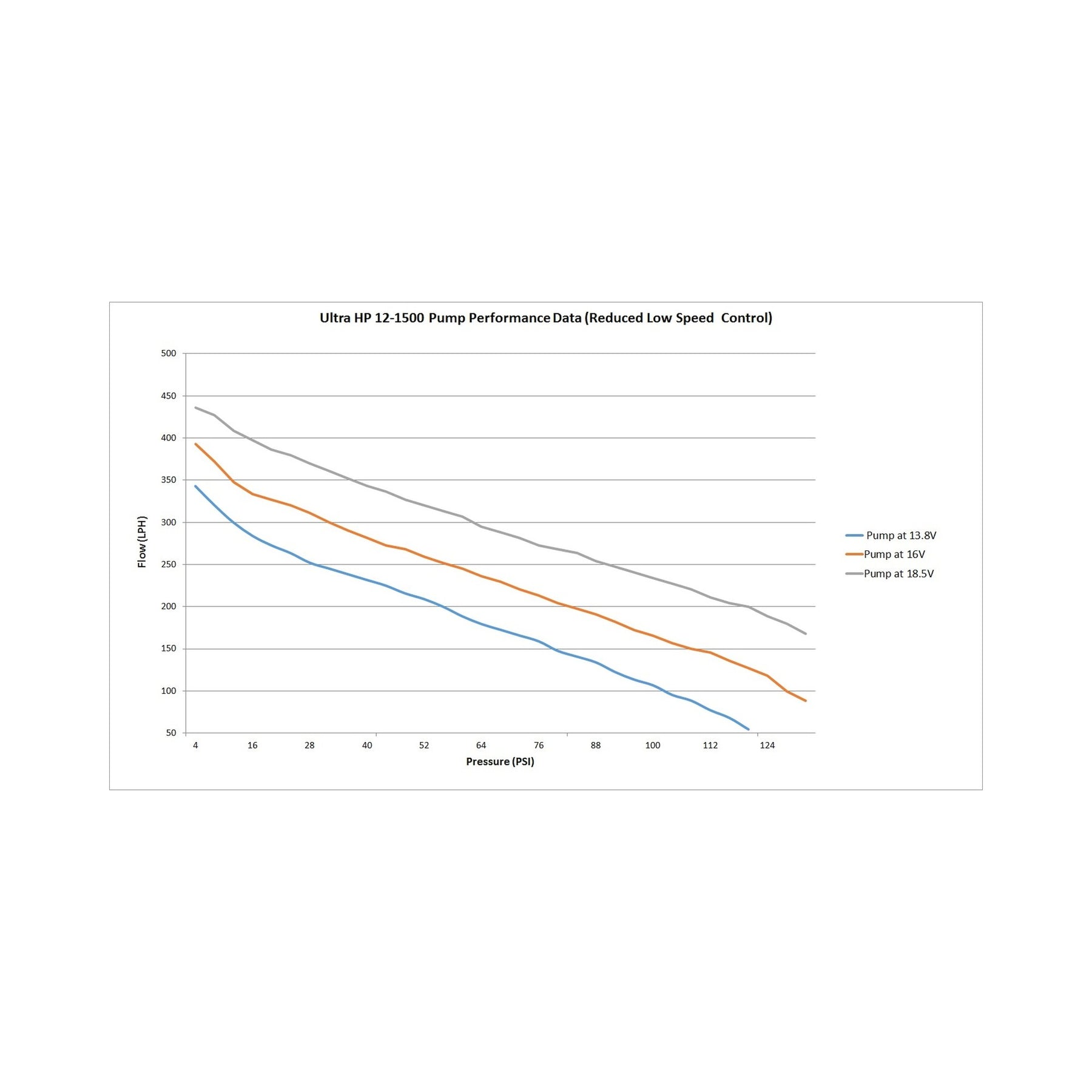

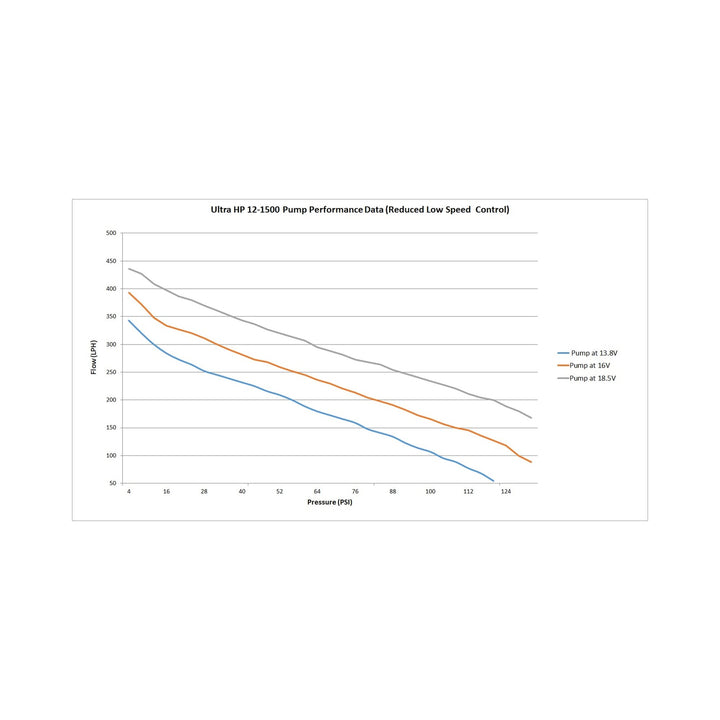

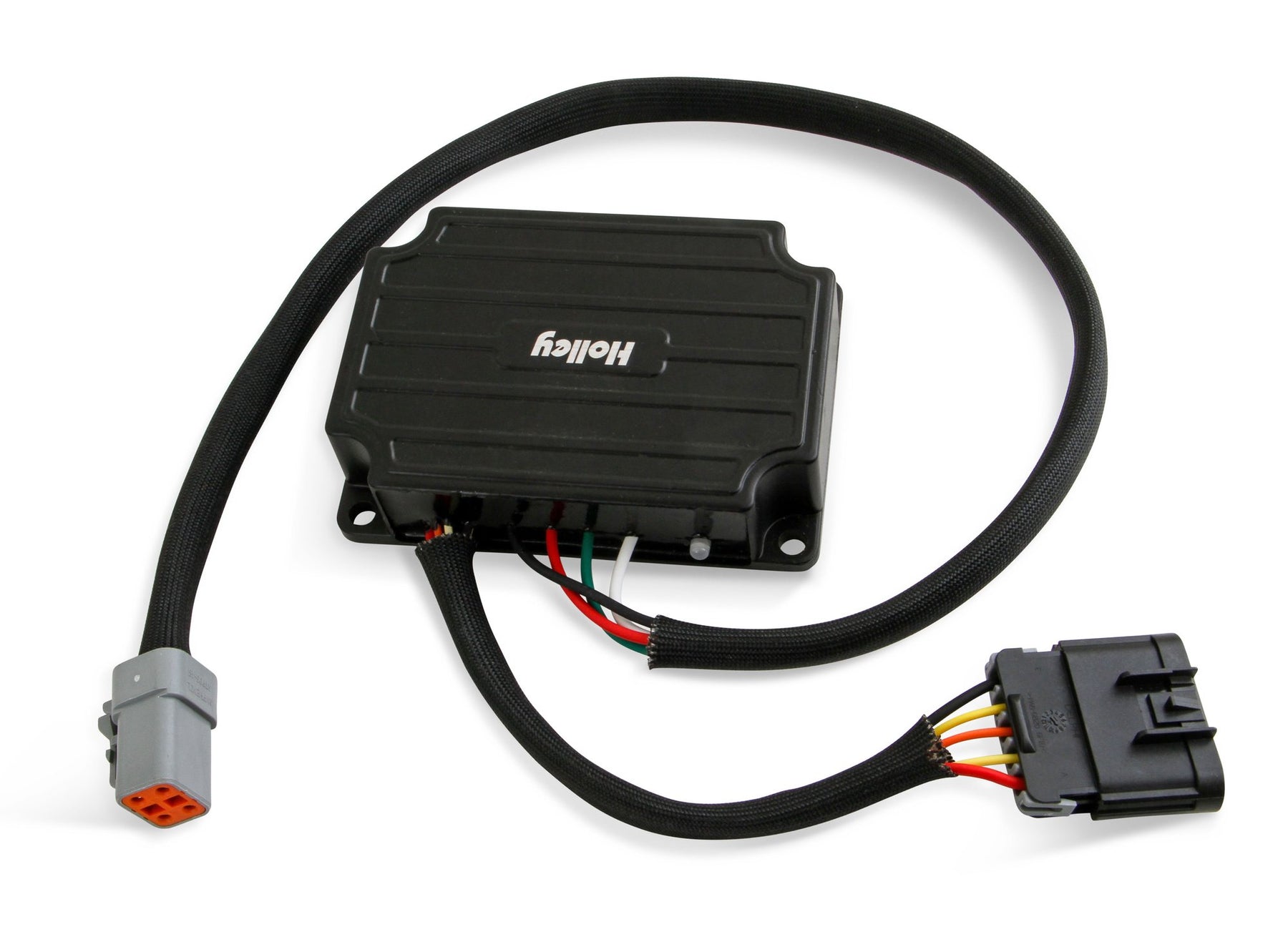

The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility.
Fueled by TI Automotive
**At 13.8V
- Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
- Unlike other pumps, the VR Series are built for continuous duty if needed.
- High flow and high pressure with low amperage draw
- Designed to be submerged in your fuel cell for a clean installation
- Maximum amp draw of the VR1 is 19 AMPS and 38 AMPS for the VR2
- Holley also offers a complete line of fuel filters and fuel pressure regulators that are designed to work as a system with these pumps
Specifications
-
Application: Automotive
-
Average Flow Rating: 170 GPH
-
Brand: Holley
-
Category: Air and Fuel Delivery
-
Color: Silver
-
Emission Code: 5
-
Finish: Anodized
-
Free Flow GPH: 170
-
Free Flow LPH: 644
-
Free Flow Rating Voltage: 13.8
-
Fuel Delivery Type: Fuel Injection
-
Fuel System: Carbureted
-
Fuel Type: Gasoline
-
Gasket Or Seal Included: No
-
Grade Type: Performance
-
Inlet Fitting Thread Size: 10
-
Inlet Type: ORB
-
Internal Or External: Internal
-
Material: Steel
-
Maximum Amperage Draw: 19
-
Maximum Flow Rating: 170
-
Maximum Pressure: 130 PS
-
Mounting Hardware Included: No
-
Negative Ground: Yes
-
Outlet Fitting Thread Size: 10
-
Outlet Quantity: 1
-
Outlet Type: ORB
-
Part Type: Electric Fuel Pump
-
Product Type: Brushless Fuel Pump
-
Pump Body Color: Silver
-
Regulator Included: No
-
Strainer Included: Yes
-
Sub Category: Fuel Pumps and Related Components
-
Terminal Quantity: 2
-
Universal Or Specific Fit: Universal
-
Voltage: 12-18.5 2H
-
Warranty: Manufacturer's Limited 90 Day Warranty
-
Wiring Harness Included: Yes
-
Part Number: 12-767
