Jeep TJ & (XJ 84-01) Atlas 2 Speed Cable Shifter units built before 4/30/12
This shifter fits the transfer cases before April 30 2012; the design of the cable connections to the Atlas was updated after this date. The easy way to tell whether you need this kit or you need P/N 303020 is by looking at the shift rails coming out of the Atlas transfer case, if they have a hole drilled on the end of them, then you need the other kit. If the shift rail is solid on the end then you have the correct kit.
Note this kit can be used on all versions of shift rails.

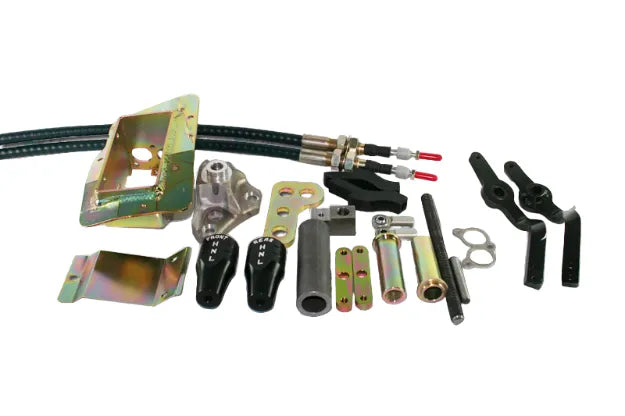

What's Included
- Retainer- Shifter Barrel (Part# 303303)
- Barrel- Atlas Shifter Cable (Part# 303305)
- Bushing- Igus 3/8 (Part# 303312)
- Rod End- Female 1/4 -28 (Part# 303313)
- Block- Cable Adapter 42RLE Atlas (Part# 303318)
- Nut- Retaining Cable 42RLE Atlas (Part# 303319)
- Housing- Atlas TJ Cable Shifter (Part# 303330)
- Lever- Atlas TJ Cable Shift Rt (Part# 303331)
- Lever- Atlas TJ Cable Shift Lt (Part# 303332)
- Mount- Atlas Cable Shifter TJ Pivot (Part# 303333)
- Cover- TJ Cable Shifter Housing (Part# 303334)
- Lever- Cable Shifter (Part# 303335)
- Knob- Cable Front (Part# 303336)
- Knob- Cable Rear (Part# 303337)
- BOLT- 1/4 -28 x.75 F.H.C.S. (Part# 303339)
- Bolt- 1/4 -28 X 5/8 B.H.C.S. (Part# 303341)
- Access plug (Part# 303343)
- Pivot Dowel Pin (Ground) 2.25 (Part# 303344)
- Sealant-Butyl Tape (Part# 303345)
- Bolt- 1/4 -28 X 5/8 S.H.C.S. plain (Part# 303346)
- Bolt- 1/4 -20 X 5/8 Button Head Socket Cap Screw (Part# 340615)
- Bolt 3/8-16 X 1 3/4 Lhscs (Part# 303351)
- Cotter Pin- 3/32 x 3/4 (Part# 302455)
- Clevis Pin- 1/4 x 1 (Part# 302454)
- Use 42R726 (Part# 303311)
- Flange Bolt- 5/16 -18 x 1/2 SERRATED (Part# 302450)
- JL Atlas Case Cable Mount Assy. (Part# 302400)
- JL Atlas Case Cable Locking Tab (Part# 302401)
- Open (Part# 302451)
