Jeep TJ & (XJ 84-01) Atlas 2 & 4 Speed Cable Shifter units built after 5/1/12
This shifter fits the transfer cases built after May 1 2012; the design of the cable connections to the Atlas was updated for an easier installation. The easy way to tell whether you need this kit or you need P/N 303020A is by looking at the shift rails coming out of the Atlas transfer case, if they have a hole drilled on the end of them, then this is the correct kit.

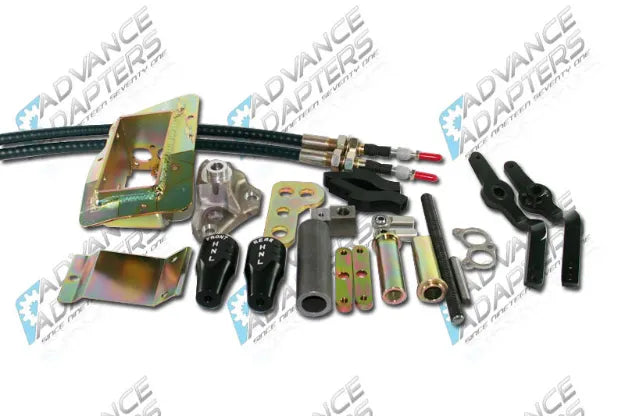

What's Included
- Base- Twin Stick Mount 42RLE (Part# 302051-RLE)
- Stud Bolt 1/2 -13 X 7 B7 (Part# 302080)
- Serrated-Flange Hex Locknut 1/2 - 13 zinc (Part# 303120)
- Nut-1/2-13 HX Jam Black Zinc (Part# 303121)
- Retainer- Shifter Barrel (Part# 303303)
- Barrel- Atlas Shifter Cable (Part# 303305)
- Bracket- Atlas Shift Cable (Part# 303307)
- Bushing- Igus 3/8 (Part# 303312)
- Rod End- Female 1/4 -28 (Part# 303313)
- Nut- Atlas Cable Retainer Outer (Part# 303316)
- Nut- Cable Shifter- Jam 1/4-28 (Part# 303317)
- Block- Cable Adapter 42RLE Atlas (Part# 303318)
- Nut- Retaining Cable 42RLE Atlas (Part# 303319)
- Tube- Atlas Shifter Extension 4.25 (Part# 303325)
- Housing- Atlas TJ Cable Shifter (Part# 303330)
- Lever- Atlas TJ Cable Shift Rt (Part# 303331)
- Lever- Atlas TJ Cable Shift Lt (Part# 303332)
- Mount- Atlas Cable Shifter TJ Pivot (Part# 303333)
- Cover- TJ Cable Shifter Housing (Part# 303334)
- Lever- Cable Shifter (Part# 303335)
- Knob- Cable Front (Part# 303336)
- Knob- Cable Rear (Part# 303337)
- BOLT- 1/4 -28 x.75 F.H.C.S. (Part# 303339)
- Access plug (Part# 303343)
- Pivot Dowel Pin (Ground) 2.25 (Part# 303344)
- Sealant-Butyl Tape (Part# 303345)
- Bolt- 1/4 -28 X 5/8 S.H.C.S. plain (Part# 303346)
- Bolt- 1/4 -20 X 5/8 Button Head Socket Cap Screw (Part# 340615)
- Bolt 3/8-16 X 1 3/4 Lhscs (Part# 303351)
- Bolt 3/8 -16 X 1.00" SHCS Zinc (Part# 723731)
- Bolt- 1/4 -28 X 5/8 B.H.C.S. (Part# 303341)
- Cotter Pin- 3/32 x 3/4 (Part# 302455)
- Clevis Pin- 1/4 x 1 (Part# 302454)
- Heat Shield- Fireproof Sleeve 24 (Part# 42R726)
- Cable-Shifter 48" Length 1" Travel (Purple) (Part# 303309-2)
