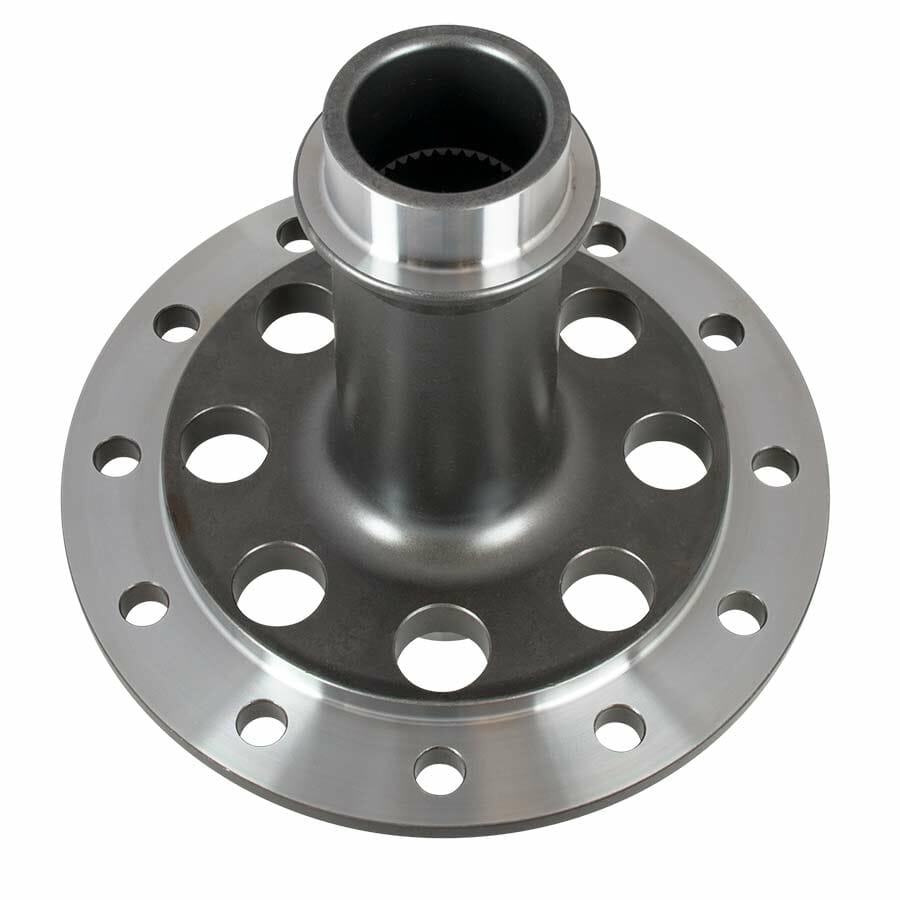

Strange Engineering Pro Series Lightweight Steel Spool — Dana 60 / 40 Spline / 3 Series Gear Sets

The Strange Engineering Pro Series Lightweight Steel Spool for Dana 60 is machined from 8620 forged steel and lightened to reduce rotating weight, making it one of the strongest and lightest steel spool options available for the Dana 60 and Strange S60 rear end platforms. Designed for 40 spline axles with 3 series carrier gear sets. Weighs 12.05 lbs.

Fits OEM Dana 60 and Strange S60 axle housings. Requires a gear set designed for a 3 series carrier and 3.150" or 3.350" ID aftermarket housing ends.

Key features include a broached 40 spline bore with 45° pressure angle, critical dimensions left oversize prior to heat treatment, finish machining after heat treat to bring all surfaces within specification, and a design and machining process completed entirely by Strange Engineering. Forged in the USA.

For spool bearings, use D1580 for OEM Dana 60 or D1592 for Strange S60. For installation kits, use D3513 for OEM Dana 60 or D3512 for Strange S60. For 5 series gear sets, see D1546. Aluminum spool option available as D1545.

Strange Pro Series Lightweight Steel Spools carry a Limited Lifetime Warranty.

Part Number: D1544 | Skinny Pedal Racing is an Authorized Strange Engineering Dealer
