Updating your racing fuel system to EFI is so simple!

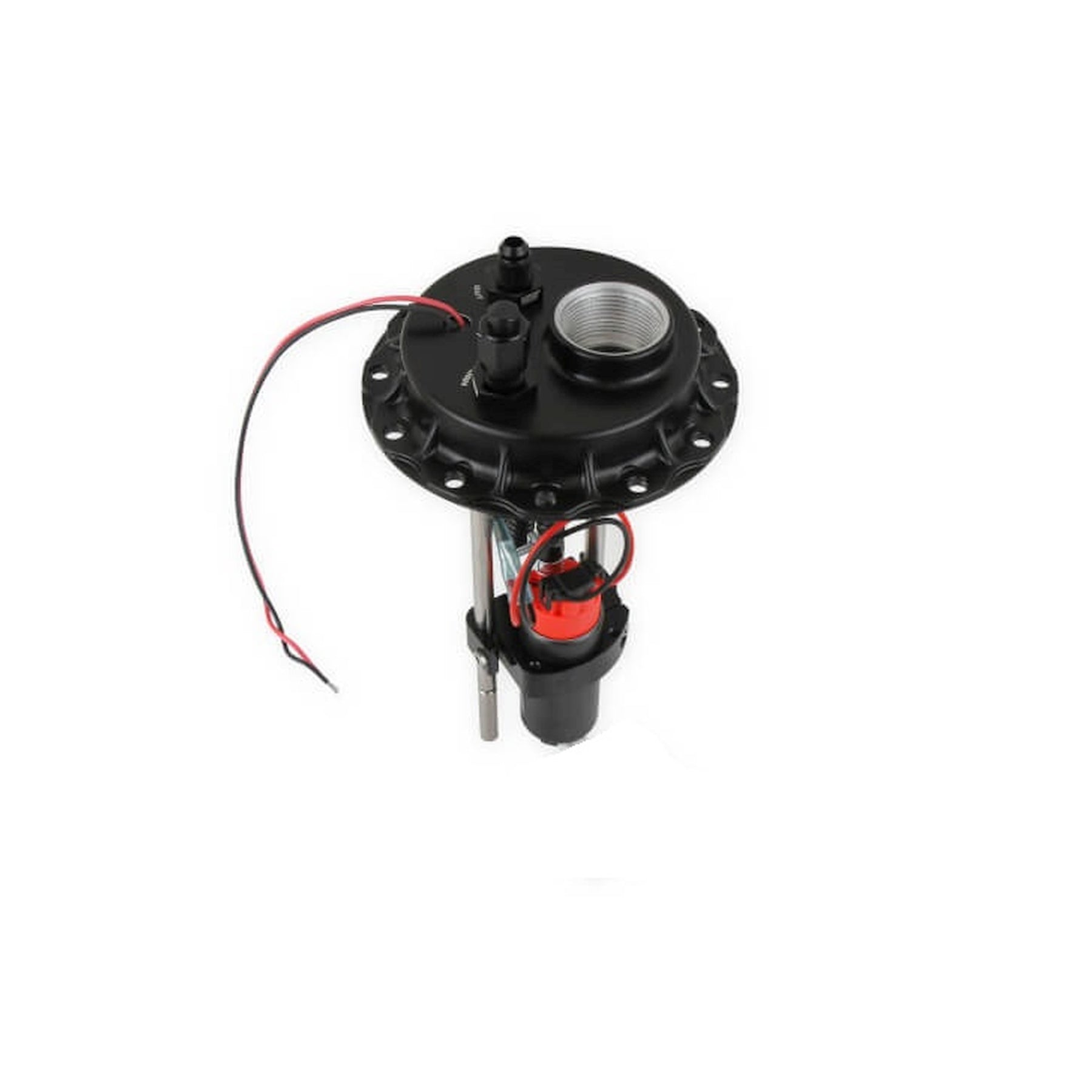

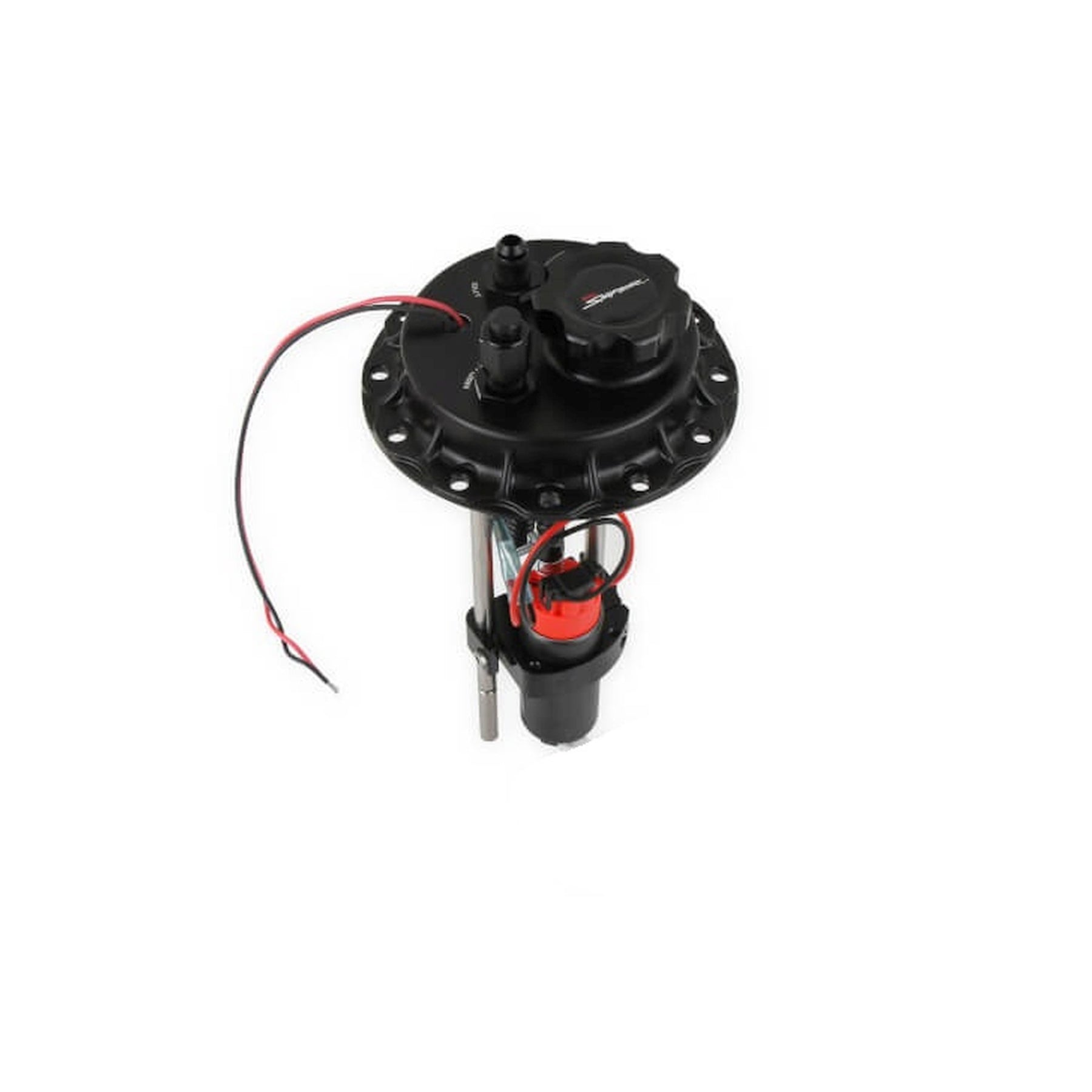

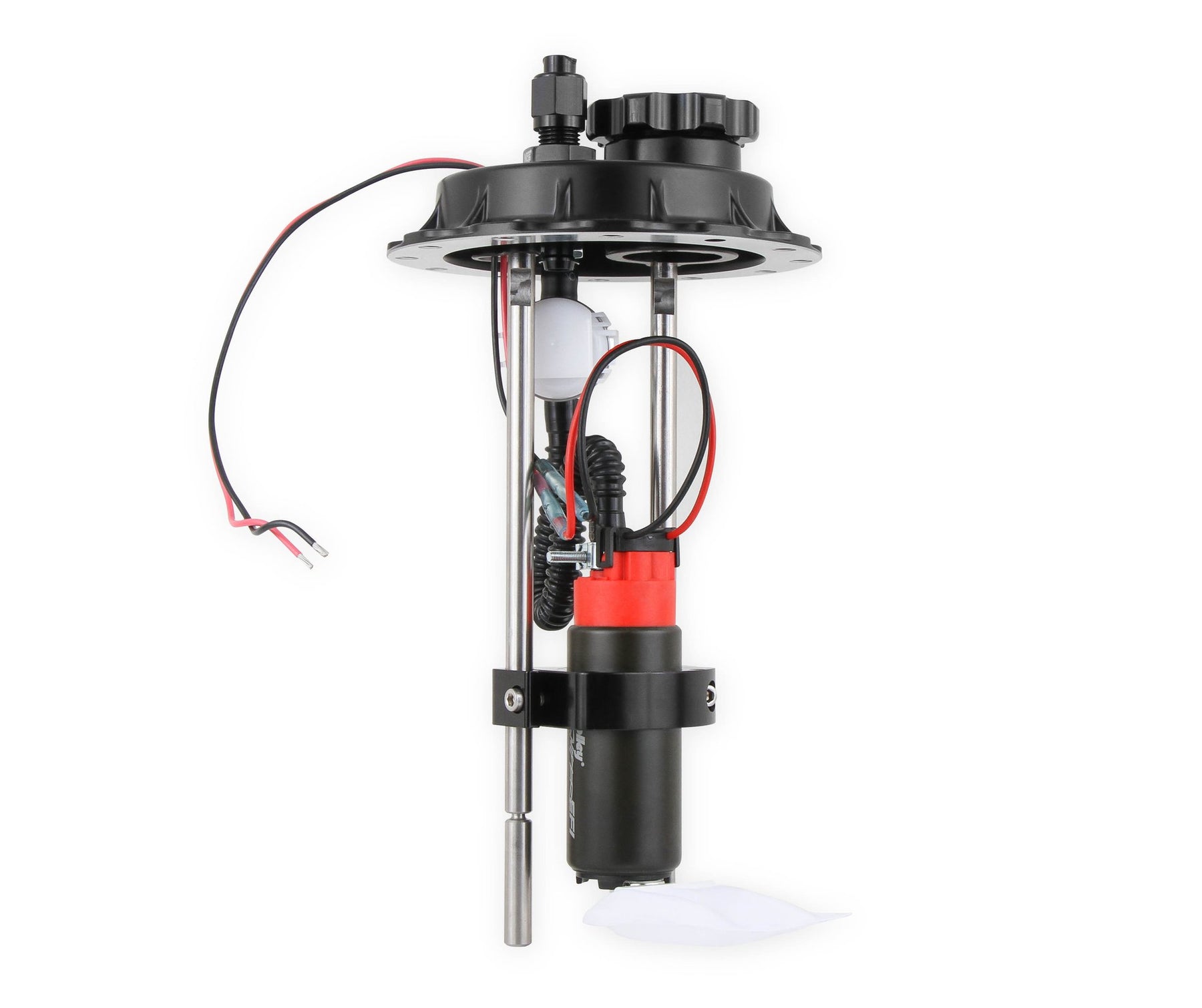

Sniper is introducing their latest Diecast Fuel Cell EFI Pump Modules. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The diecast aluminum top flange includes an 6AN inlet port, a 6AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The EFI modules are available with single 340 LPH fuel pumps in both return and returnless system designs.

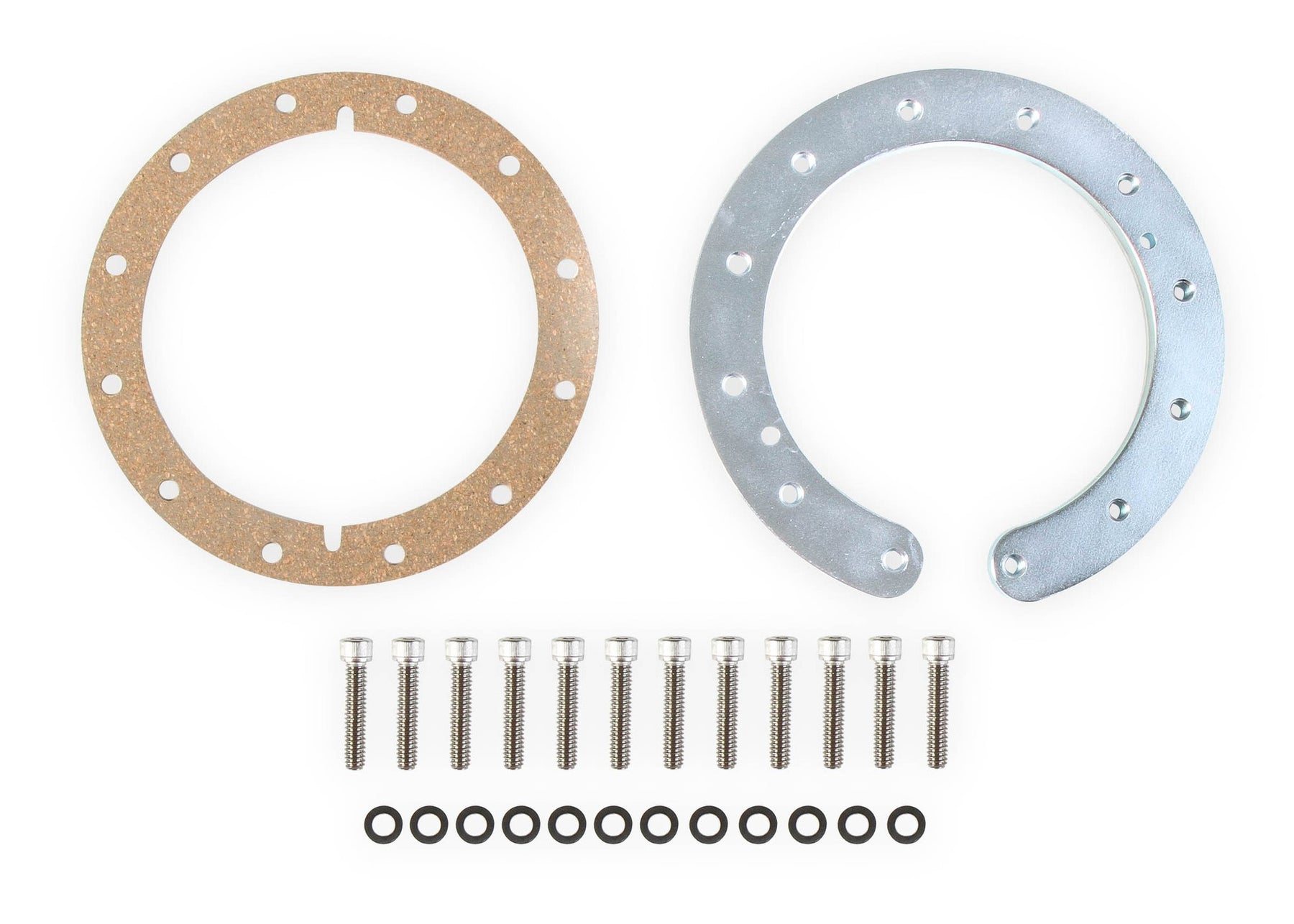

The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line.
***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells.
***Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
- Update your fuel cell to EFI the easy way - drop right into your existing 12 bolt flange fuel cell!

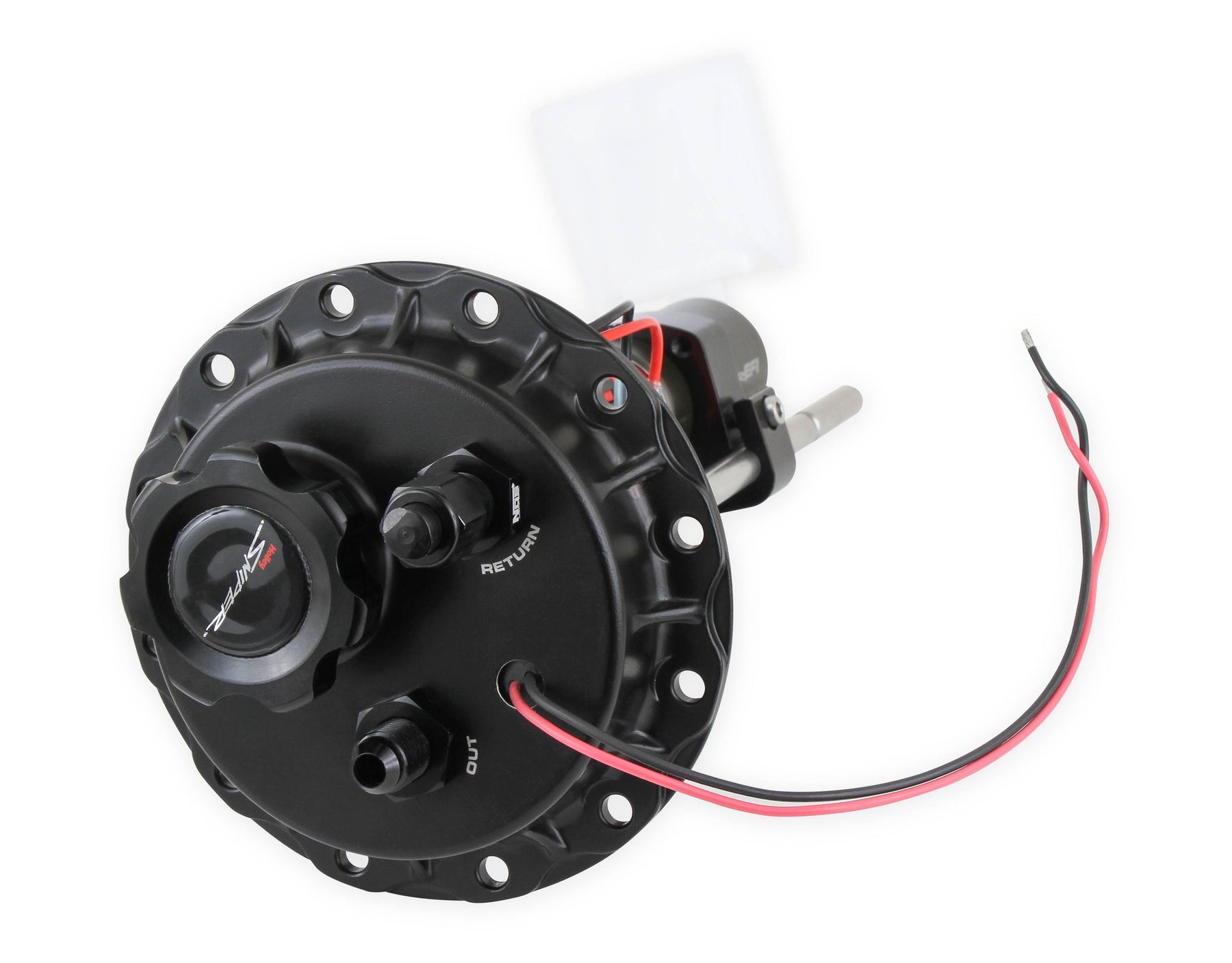

- Die-cast aluminum top flange housing with 6AN inlet and 6AN outlet port and a fuel filler cap

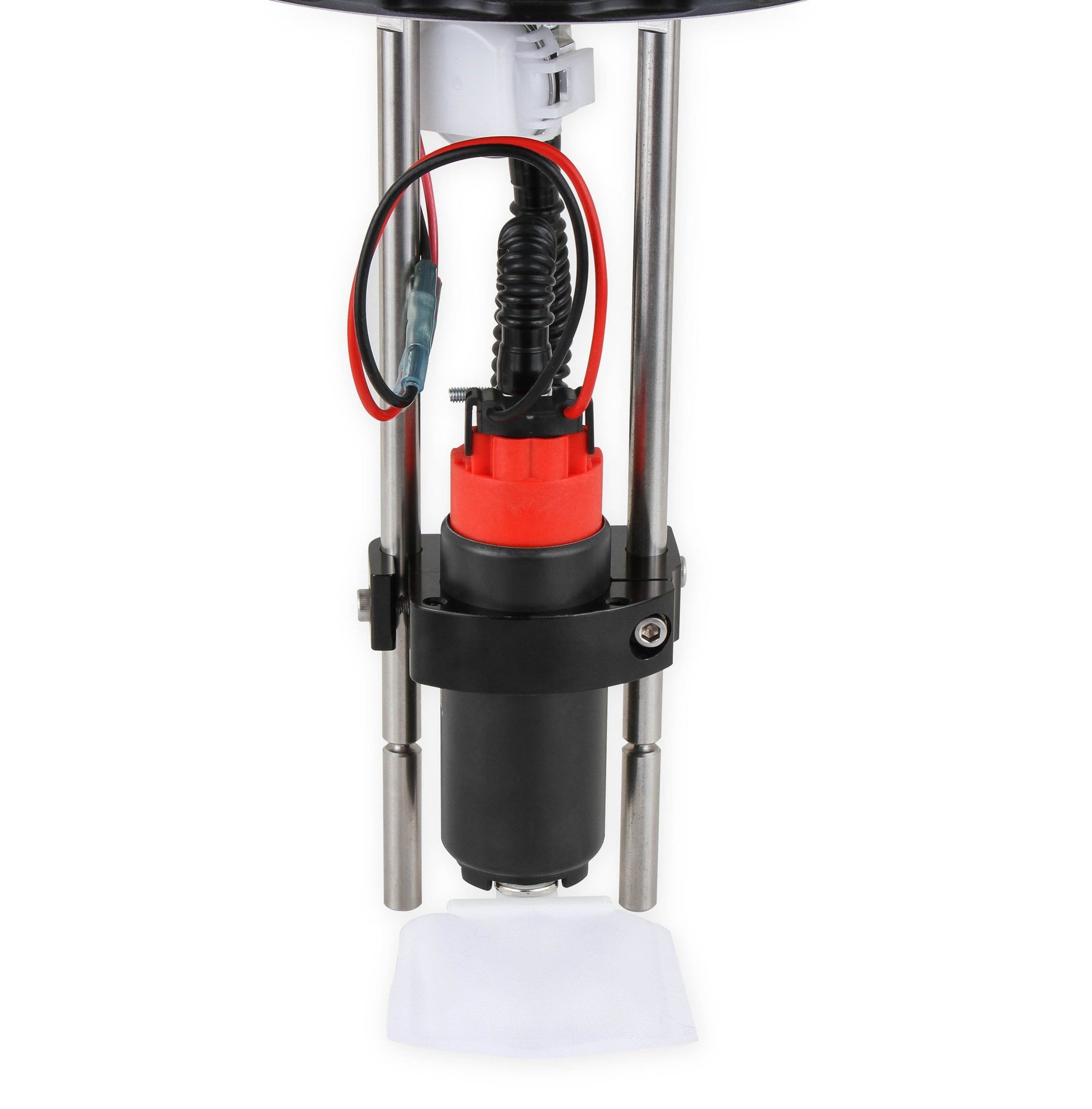

- Pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
- 340 LPH @ 60 PSI at 13.5 Volts / 16.9 amp Draw
- E85 Compatible

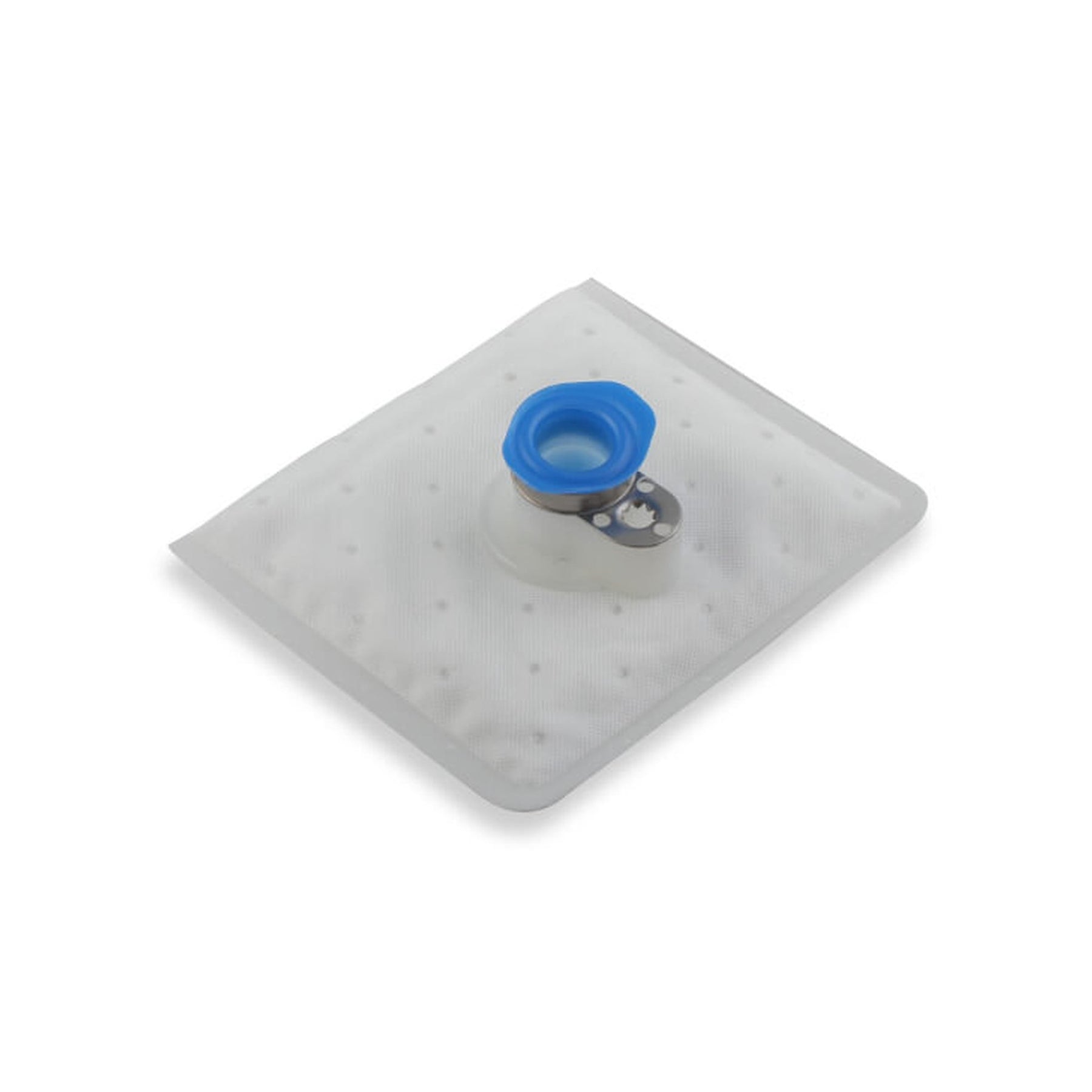

- Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
- 11mm pump inlet filter is upgradeable with any of Holley's patent-pending HydraMat!
- Can be used with carbureted or EFI applications (carbureted applications will require a regulator)
Specifications
-
Application: Universal
-
Brand: Holley Sniper EFI
-
Category: Air and Fuel Delivery
-
Emission Code: 5
-
Flange Style: 12 Bolt
-
Free Flow GPH: 90
-
Free Flow LPH: 340
-
Fuel Sending Unit Included: No
-
Fuel Tank Pressure Sensor Included: No
-
Fuel Type: Gasoline
-
Gasket Or Seal Included: Yes
-
Inlet Size: 6 AN
-
Max PSI: 80
-
Outlet Size: 6 AN
-
Part Type: Fuel Pump Module Assembly
-
Product Type: Fuel Pump
-
Returnless: Yes
-
Single or Dual Pump: Single
-
Strainer Included: Yes
-
Sub Category: Fuel Pumps and Related Components
-
Universal Or Specific Fit: Universal
-
Warranty: Manufacturer's Limited 90 Day Warranty
-
Part Number: 19-385
