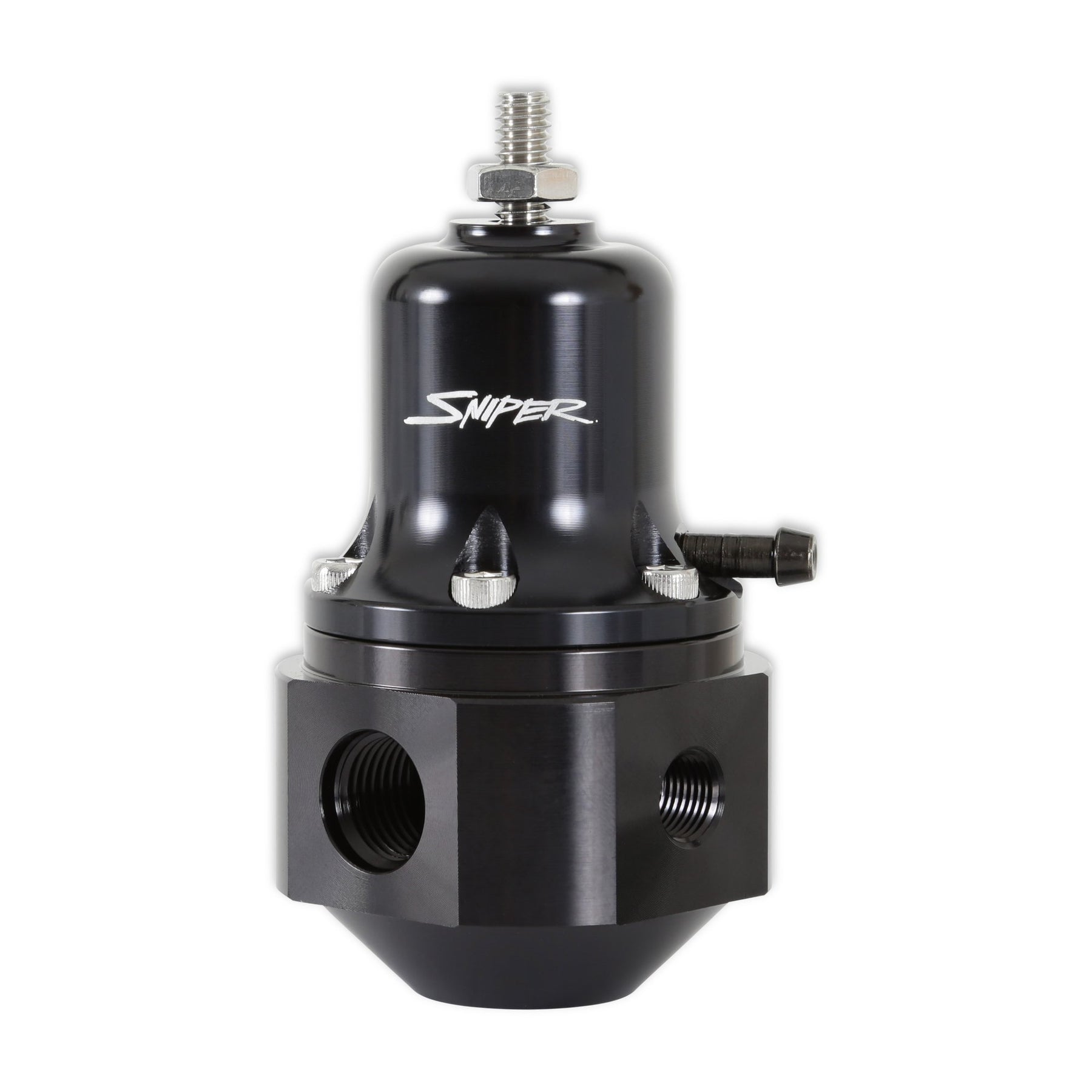

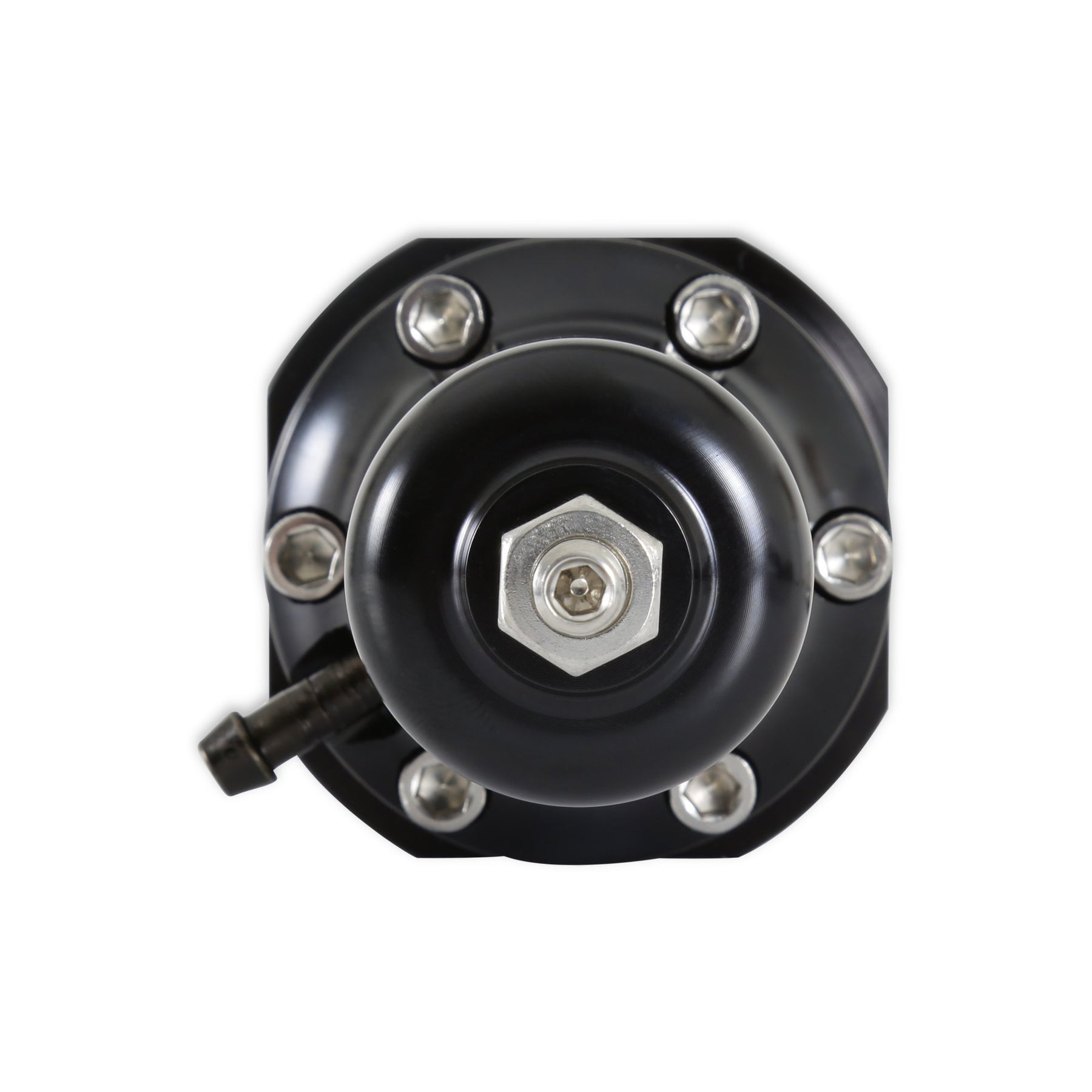

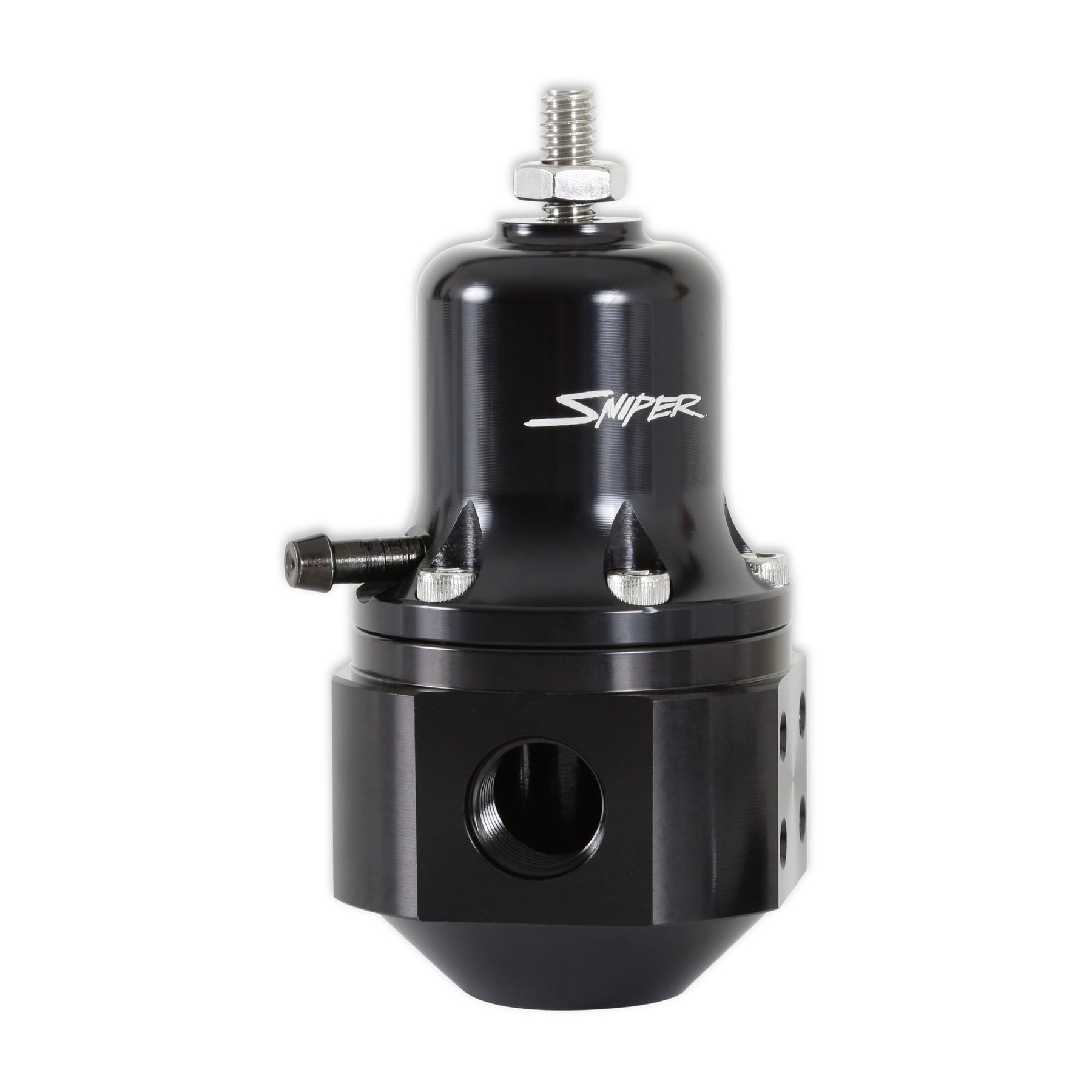

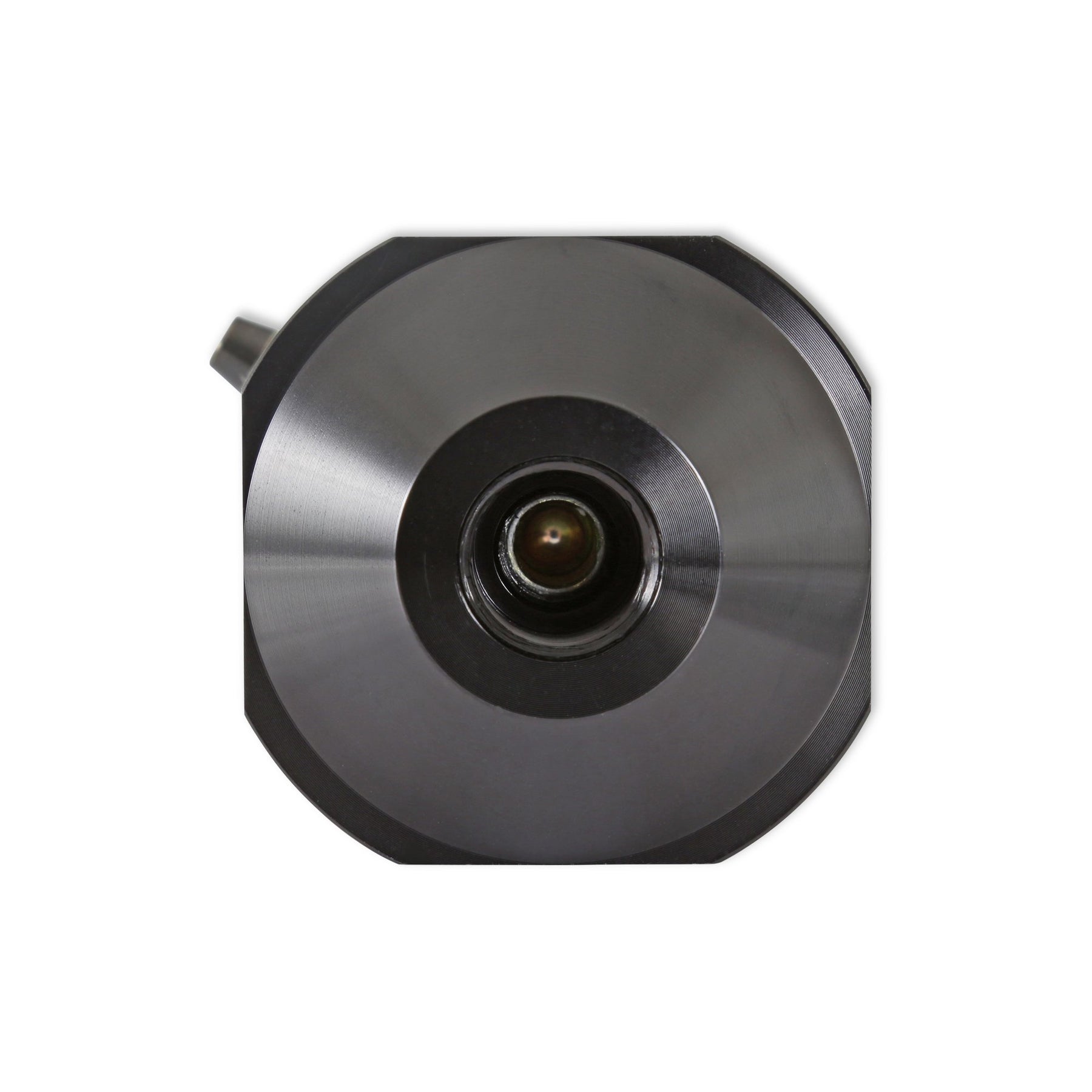

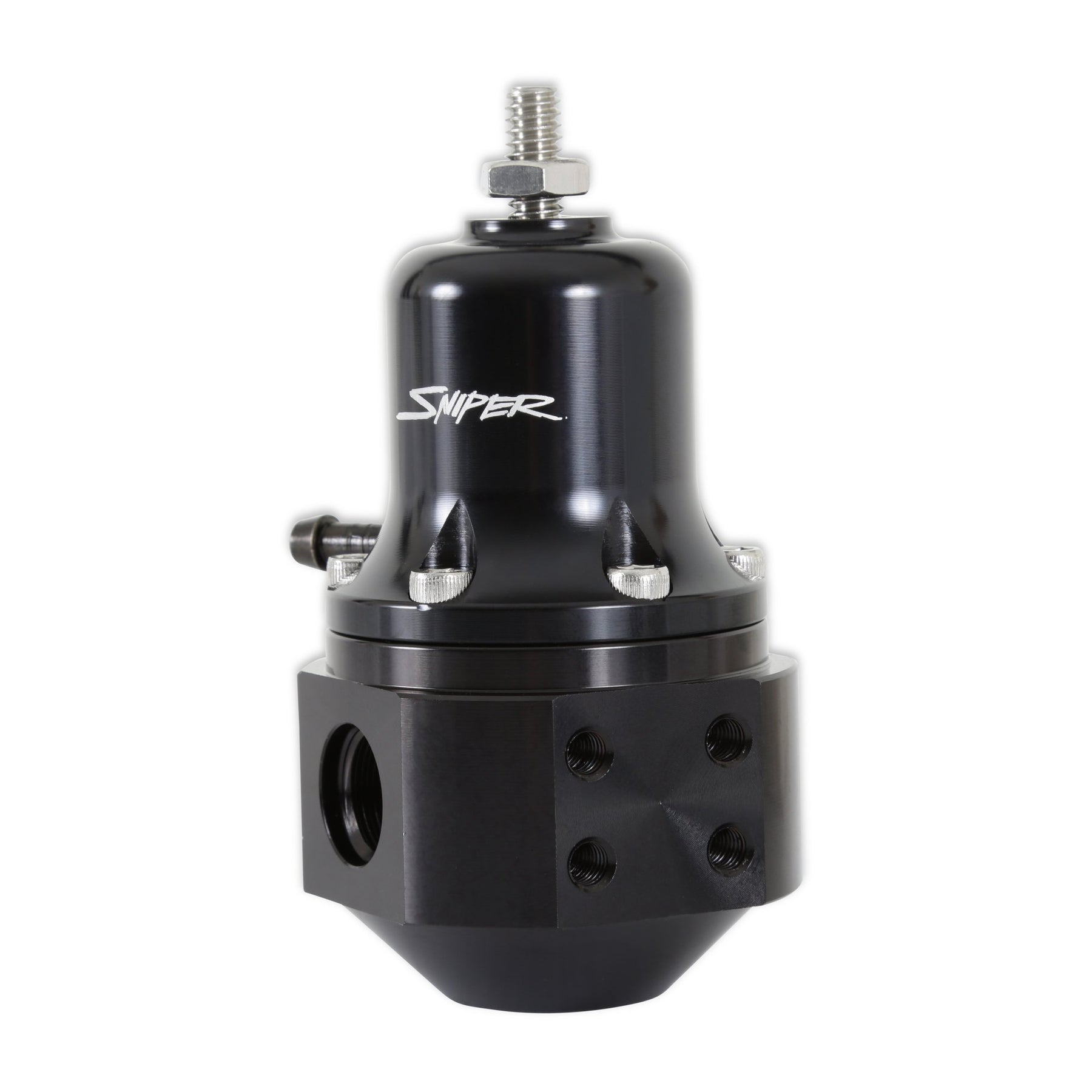

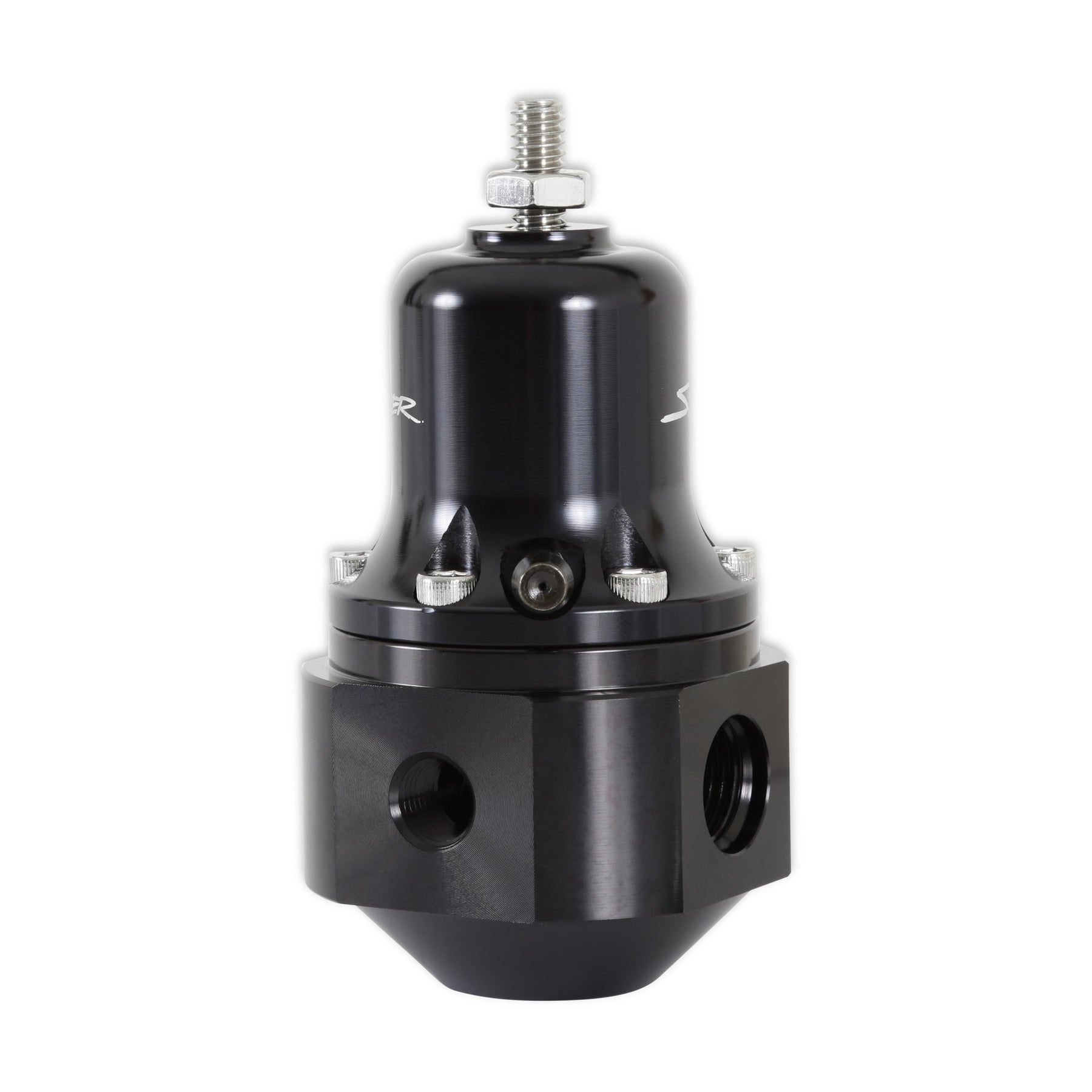

Sniper EFI Fuel Regulator 6AN

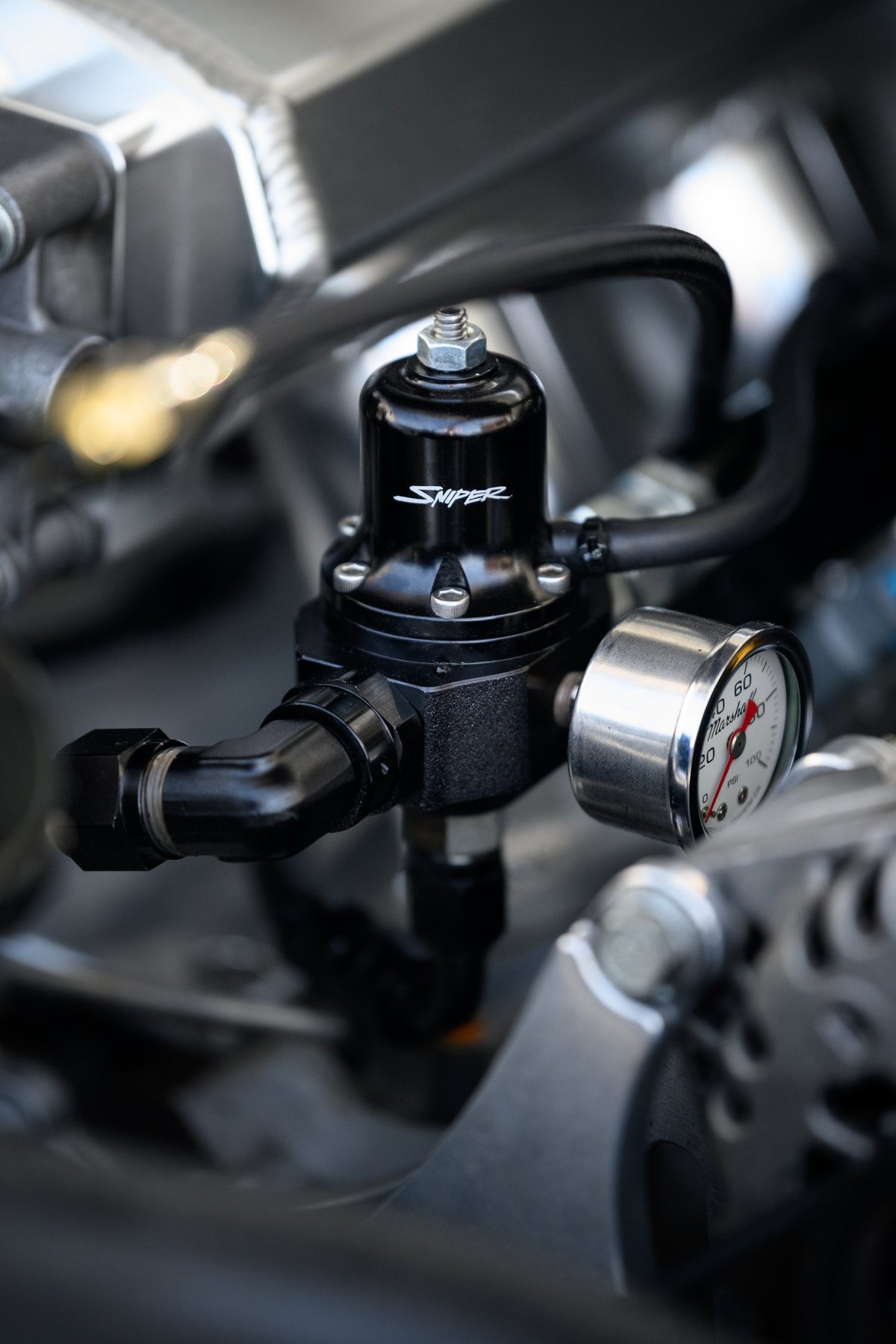

Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.

• Longer spring for wider range of adjustment (40-130 psi)
• Features an oversized bypass orifice and corrugated diaphragm for superior flow
• Constructed of billet aluminum with a black anodized base and top for good looks
• Offered in -6 and -8 ORB configurations
• Used in systems with a return line back to tank

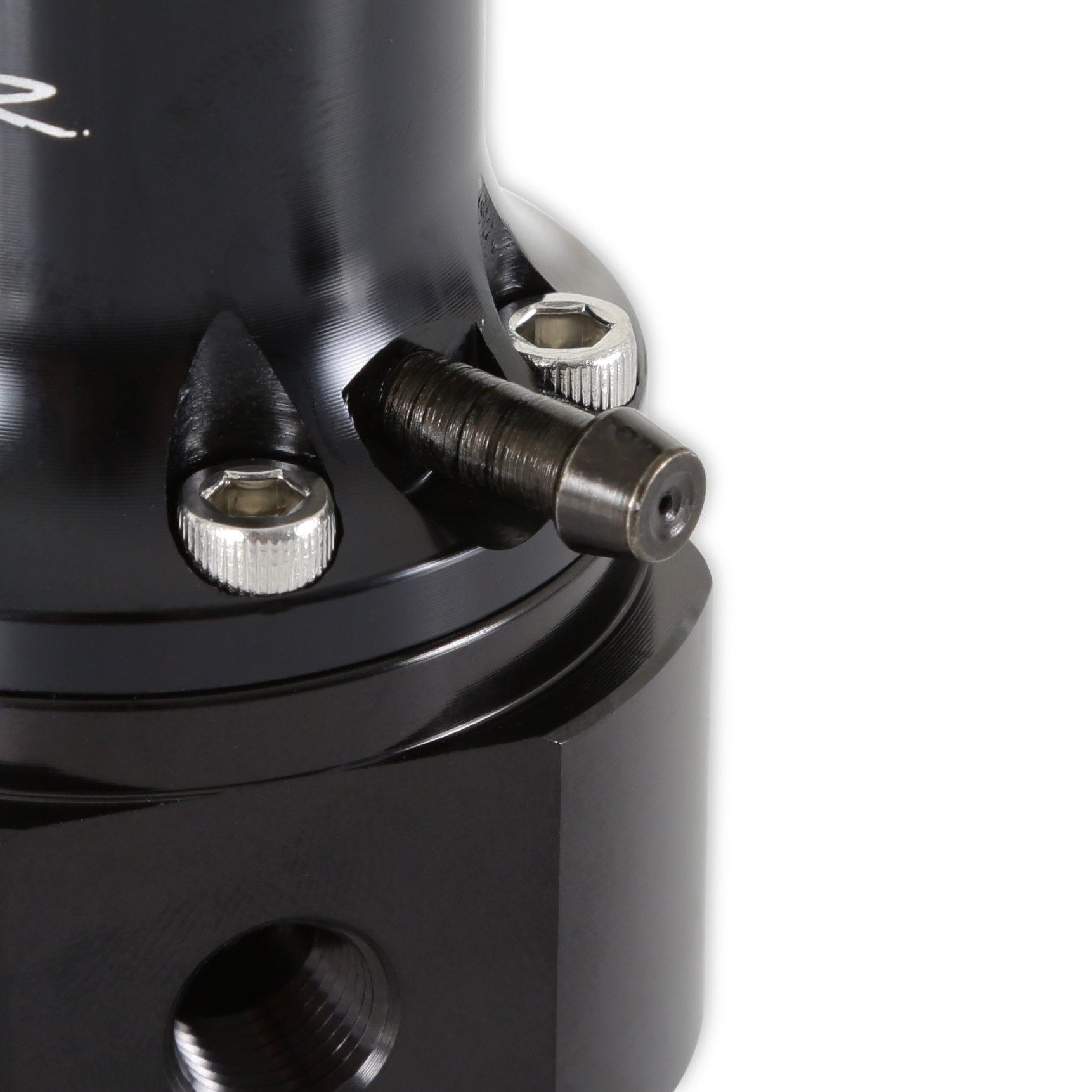

• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port
• Alcohol fuel and race gas compatible

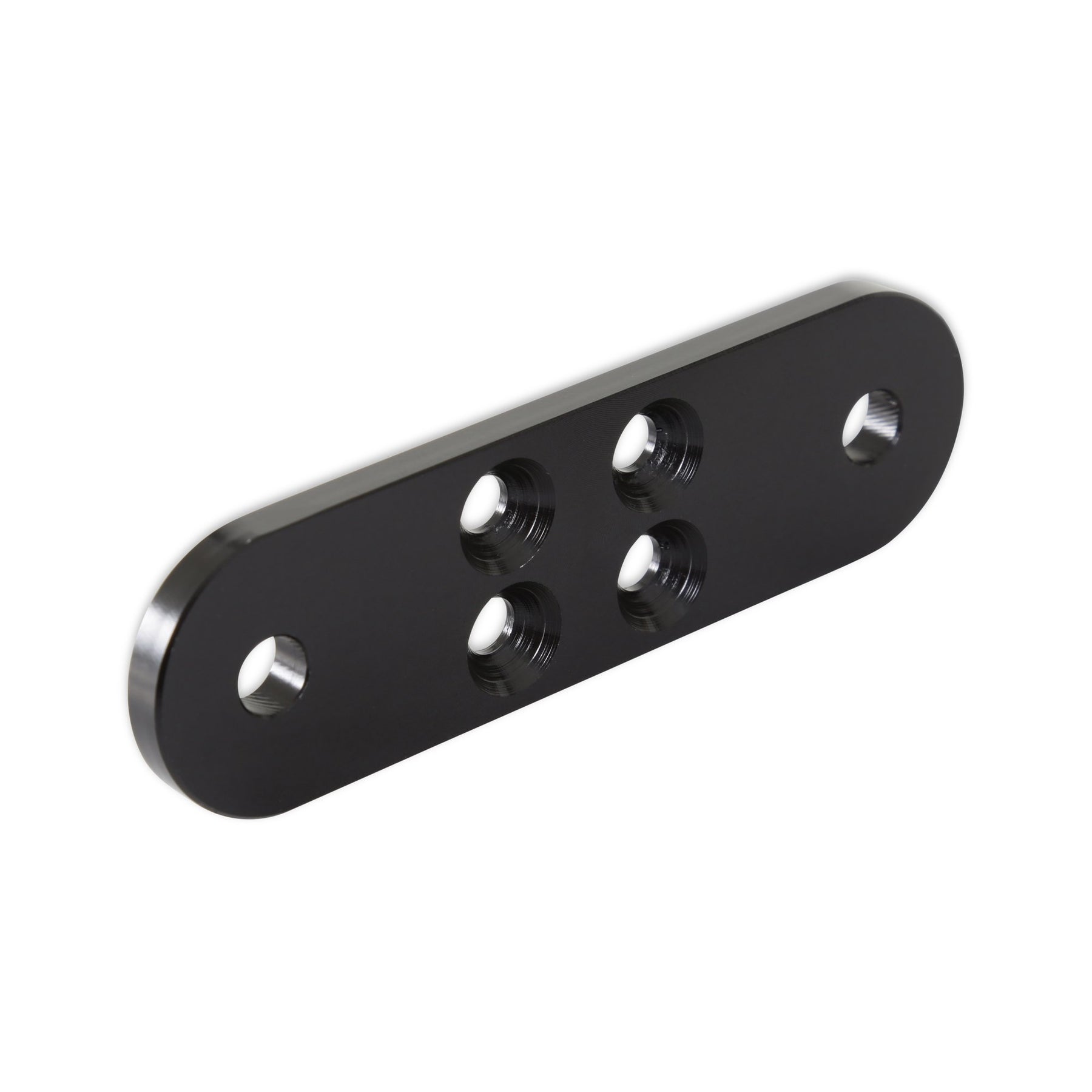

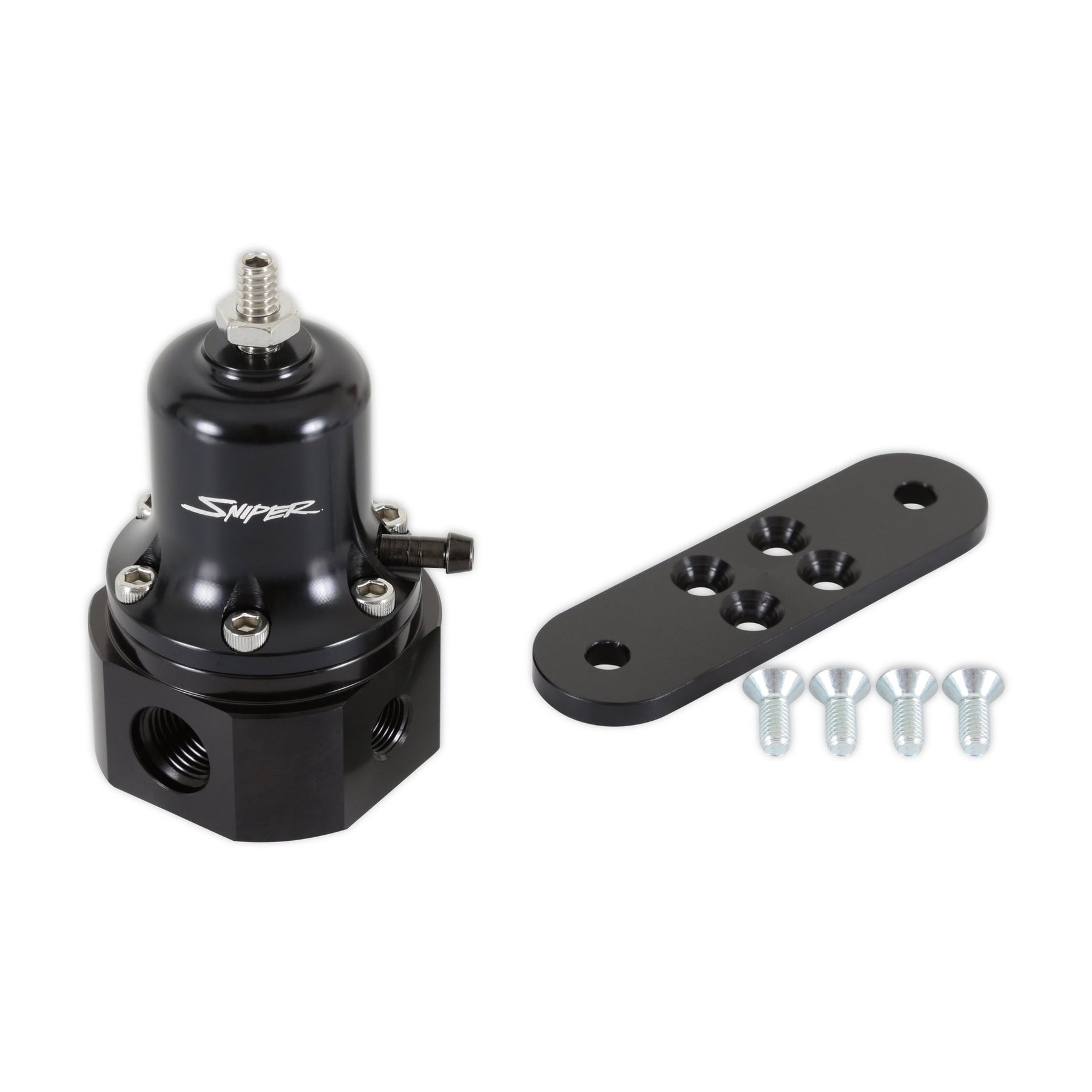

• Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference

Specifications

• Adjustable: Yes
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Emission Code: 5
• Fuel Type: Gasoline/Alcohol
• Gauge Included: No
• Gauge Port Included: Yes
• Grade Type: Performance
• Inlet Gender: Female
• Inlet Port Diameter: 9/16-18 IN
• Inlet Type: ORB
• Maximum Pressure: 130 PS
• Minimum Pressure: 40 PS
• Mounting Bracket Included: Yes
• Outlet Gender: Female
• Outlet Port Diameter: 9/16-18 IN
• Outlet Type: ORB
• Part Type: Fuel Pressure Regulator
• Port Quantity: 3
• Pressure Rating: 40-130 PS
• Product Type: Fuel Pressure Regulator
• Rebuildable: Yes
• Style: Return Style
• Sub Category: Carburetion
• Vacuum Port Quantity: 1
• Warranty: Manufacturer's Limited 1 Year Warranty
• Part Number: 19-392
