Sniper EFI Fuel Pump Module - 340 LPH

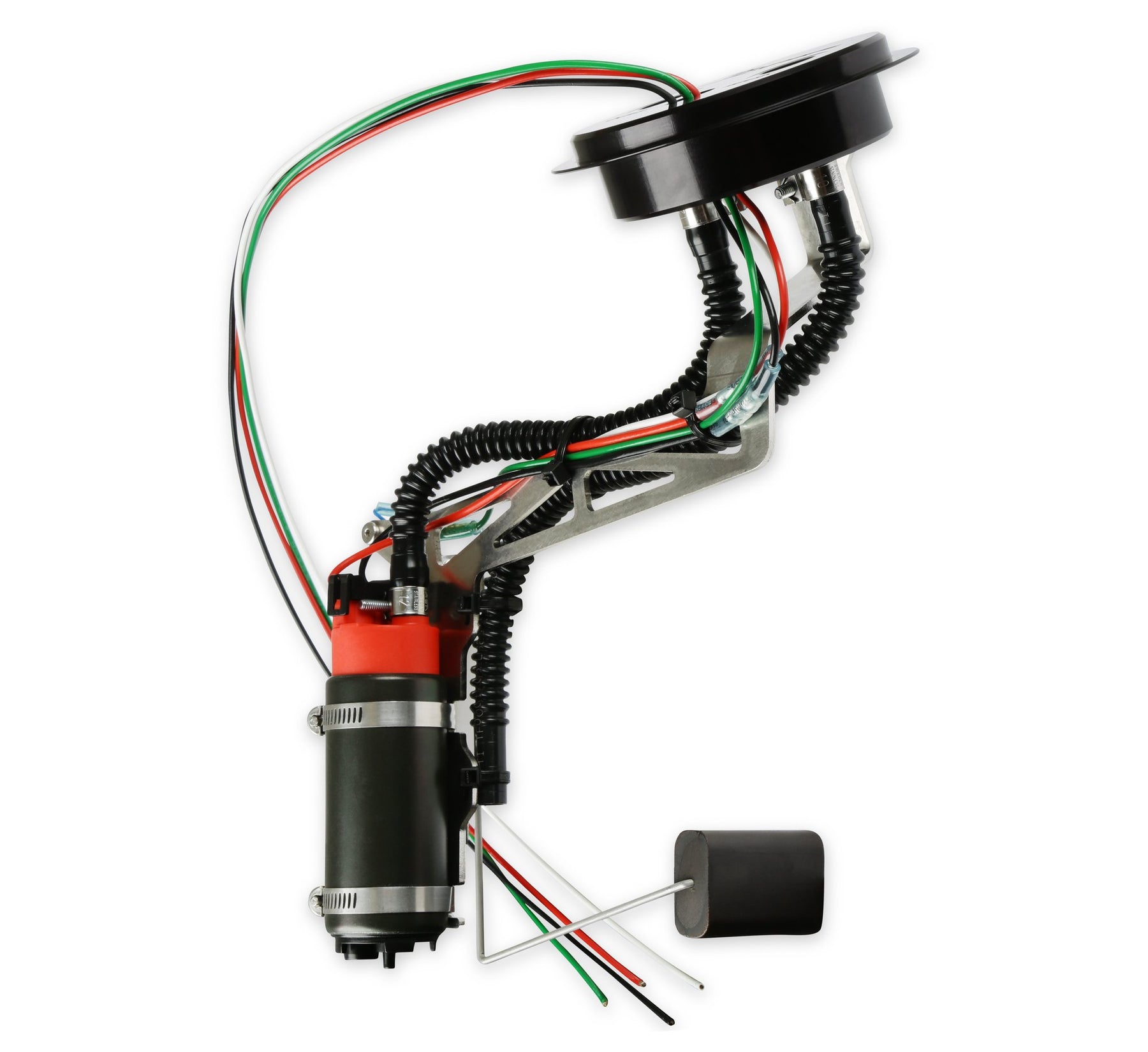

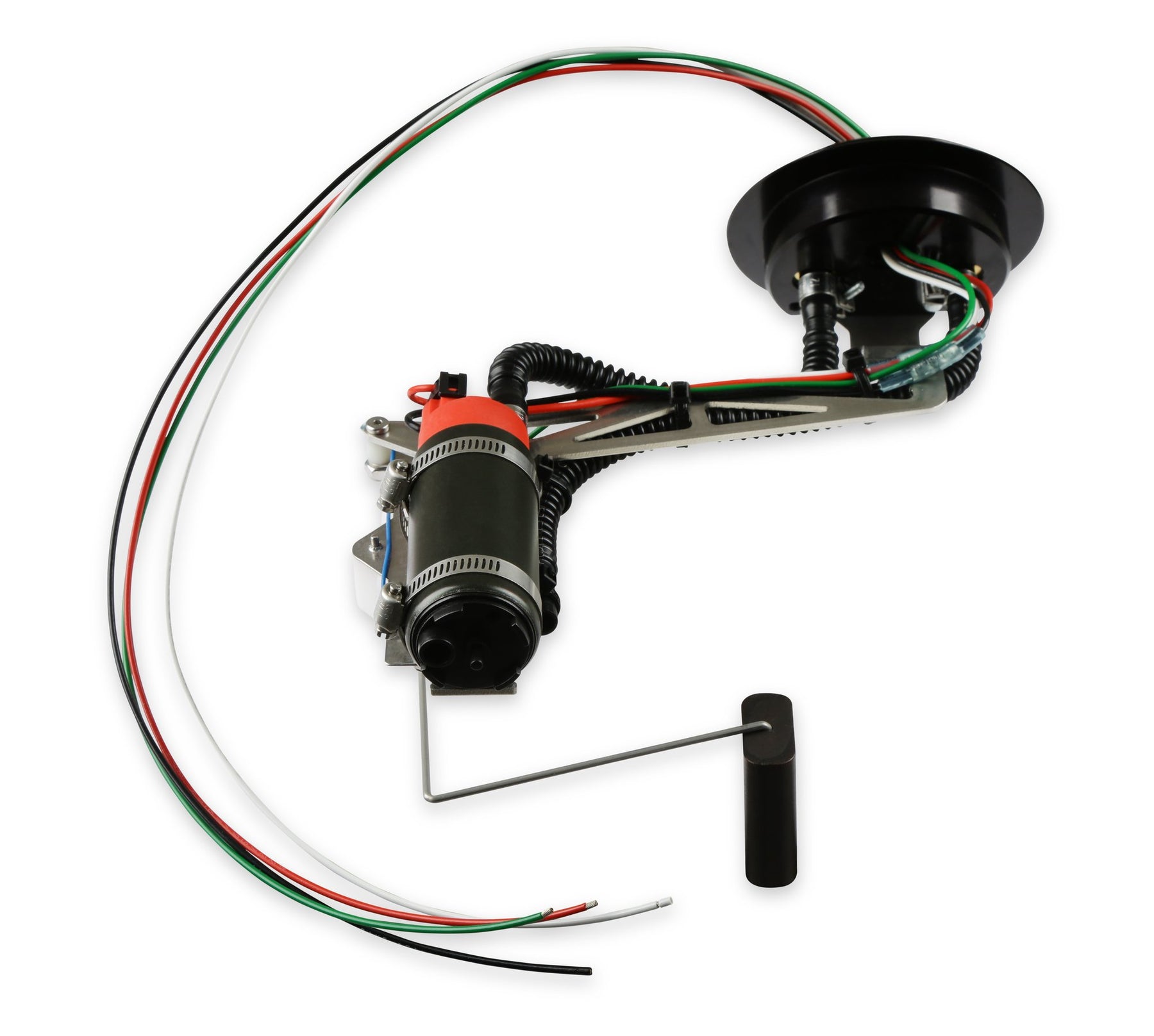

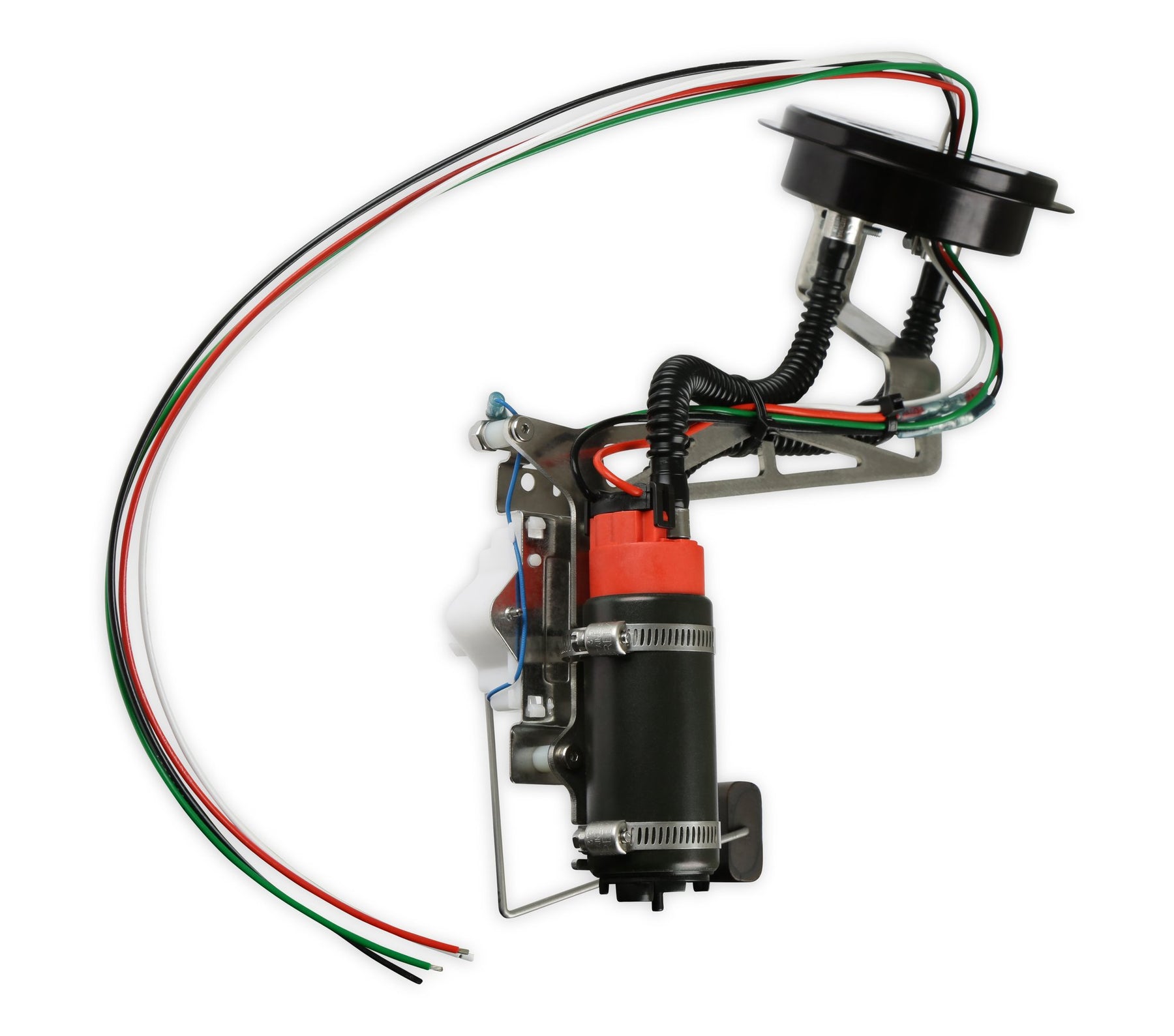

This direct fit fuel pump module will drop directly into any 1990-1997 Ford Truck Long Bed EFI fuel tanks. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

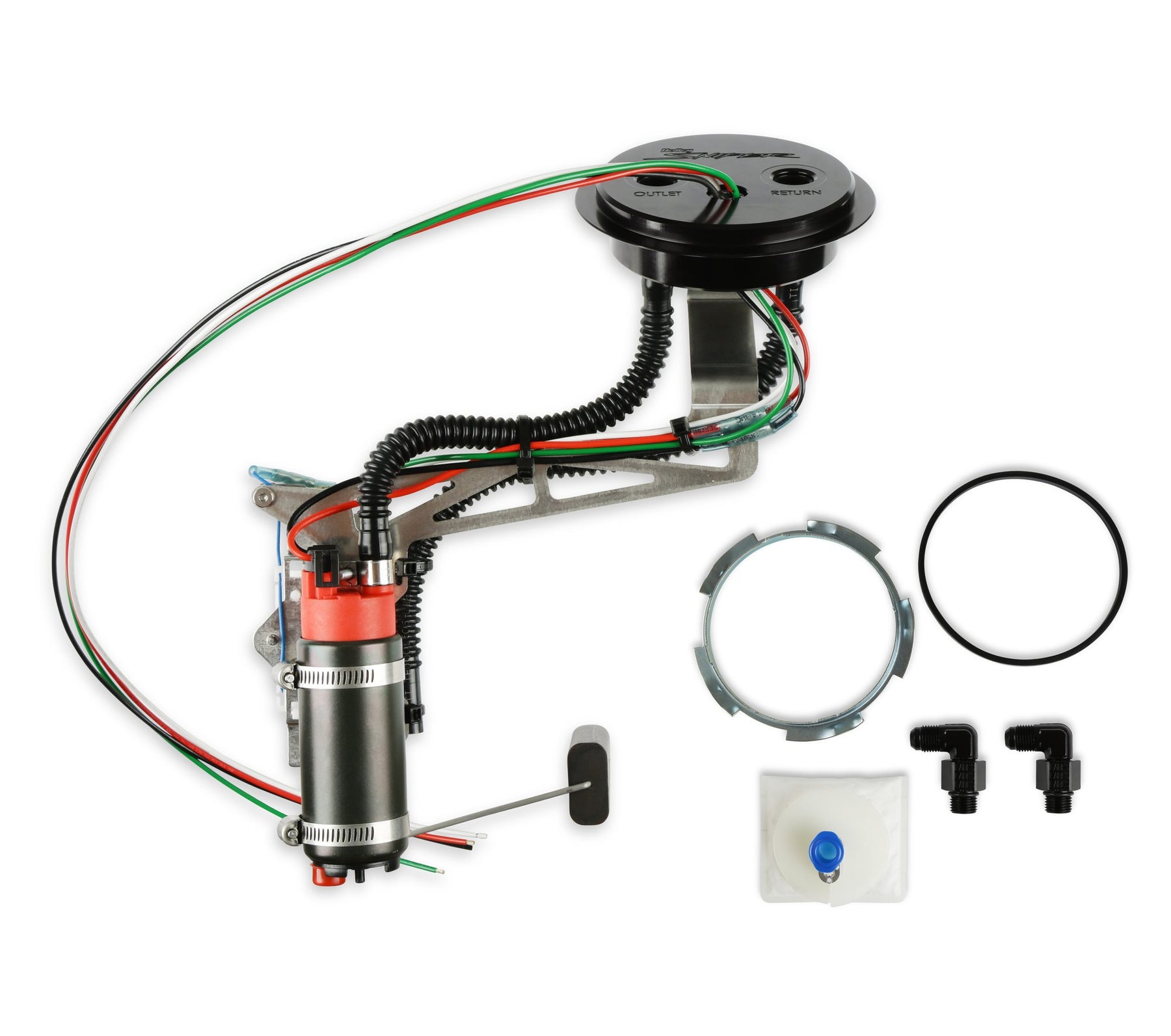

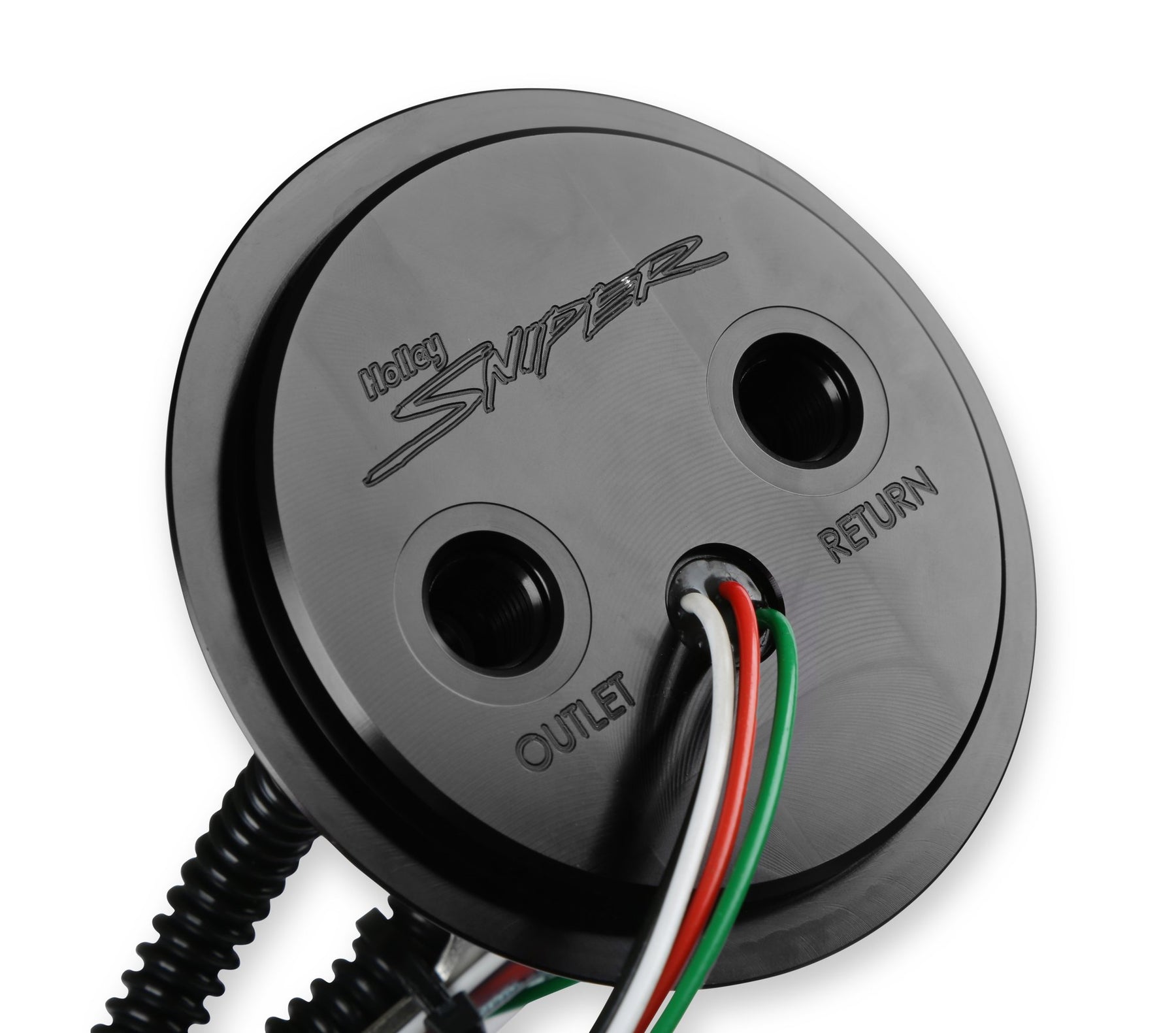

The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.

• The 6061-T6 Aluminum fuel pump module is a high-pressure unit that flows 340 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 700 EFI horsepower.
• Includes a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application
• 6AN o-ring outlet and return ports for easy plumbing connections
• Filter sock, flange O-ring, and fuel tank lock ring included to complete your installation
• Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your need
• Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
• The flange is bright dip black anodized for corrosion protection from undercar moisture.

Specifications

• Application: 1990-1997 Ford Truck Long Bed
• Average Flow Rating: 340 LPH
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Emission Code: 5
• Free Flow LPH: 340
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: No
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: Gasoline/E85 Compatible
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• In Tank or External: In Tank
• Inlet Quantity: One
• Inlet Size: 6 AN
• Lock Ring Included: Yes
• Material: 6061-T6 Aluminum
• Negative Ground: Yes
• Outlet Quantity: One
• Outlet Size: 6 AN
• Part Type: Fuel Pump Module Assembly
• Product Type: Fuel Pump Module
• Pump Type: Electric
• Regulator Included: No
• Resistance Ohms Empty: 22.5 82
• Resistance Ohms Full: 145 82
• Strainer Included: Yes
• Sub Category: Fuel Pumps and Related Components
• Universal Or Specific Fit: Specific
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Harness Included: Yes
• Part Number: 12-357
