Sniper EFI Fuel Pump Module - 340 LPH

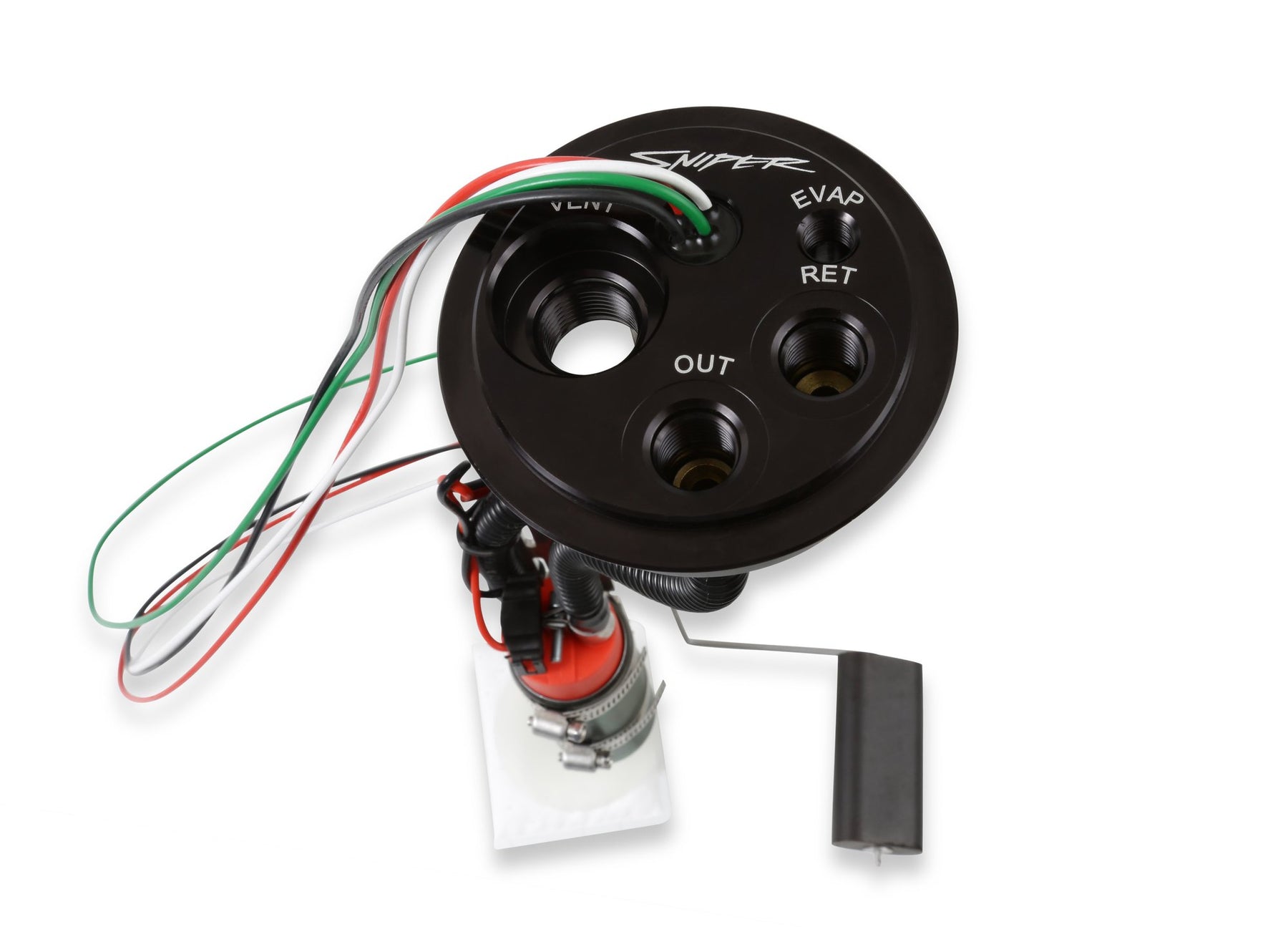

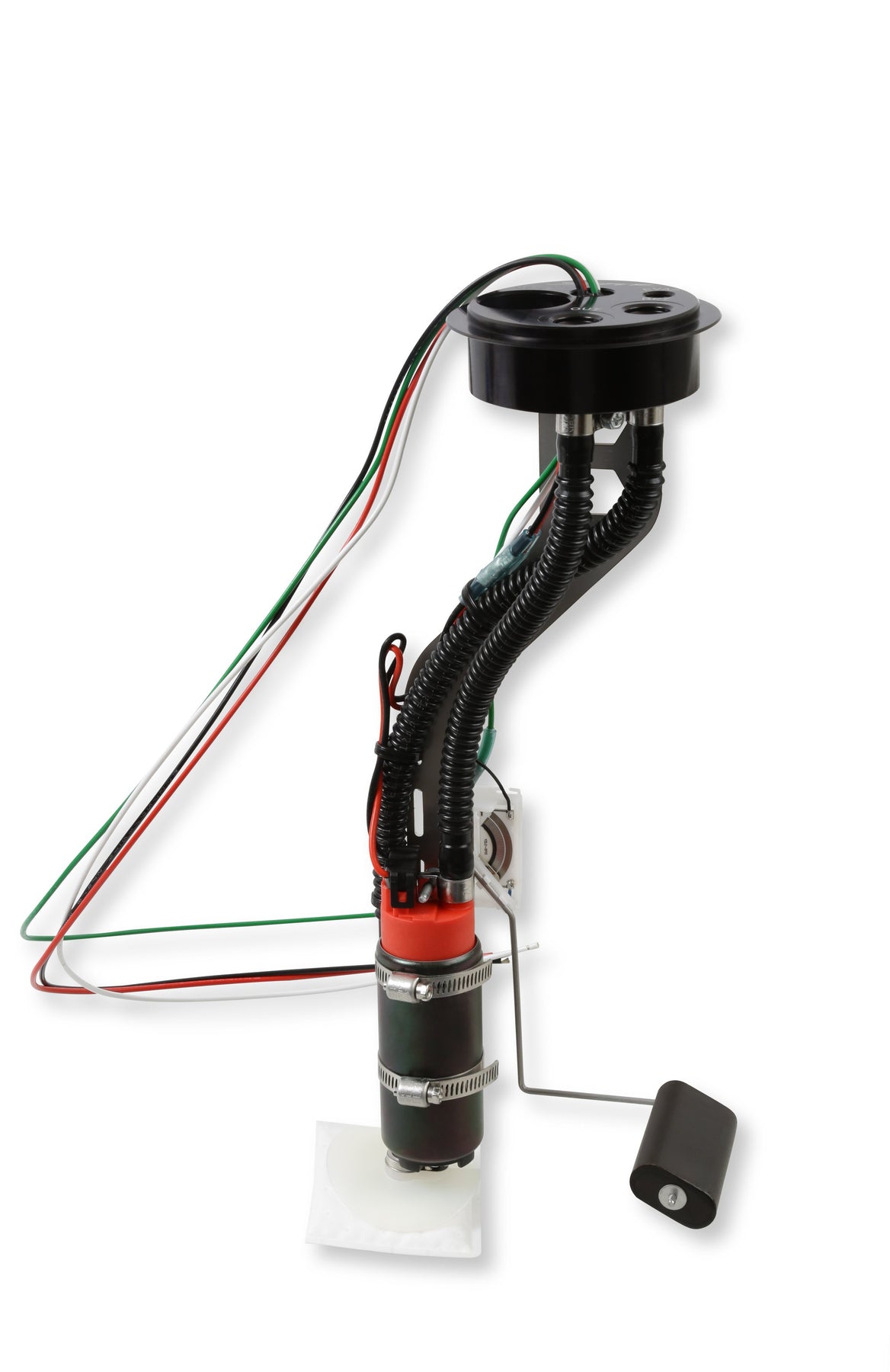

This direct fit fuel pump module will drop directly into any 1988-1998 GM C/K Series truck EFI fuel tank. The module has been designed with a 340 LPH (liters per hour) Sniper EFI fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw). The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.

For the 1988-1998 GM C/K Trucks, we also have a 525 LPH module (12-354) that supports up to 1200 EFI or 1450 Carb HP.

Bypass fuel pressure regulator required; 12-879 or 12-880 regulators recommended.

• 6061-T6 Aluminum fuel pump flange, bright-dip black anodized for corrosion protection
• 340 LPH Sniper EFI Fuel Pump Module
• 60 PSI at 13.5 Volts / 10.4 AMP Draw
• Drops into stock 1988-1998 GM C/K Truck fuel tanks
• Fuel sending unit designed to work with the factory gauges
• 6AN O-Ring Boss outlet and return ports for easy plumbing connections
• 8AN O-Ring Boss vent port
• 1/8" NPT evap port

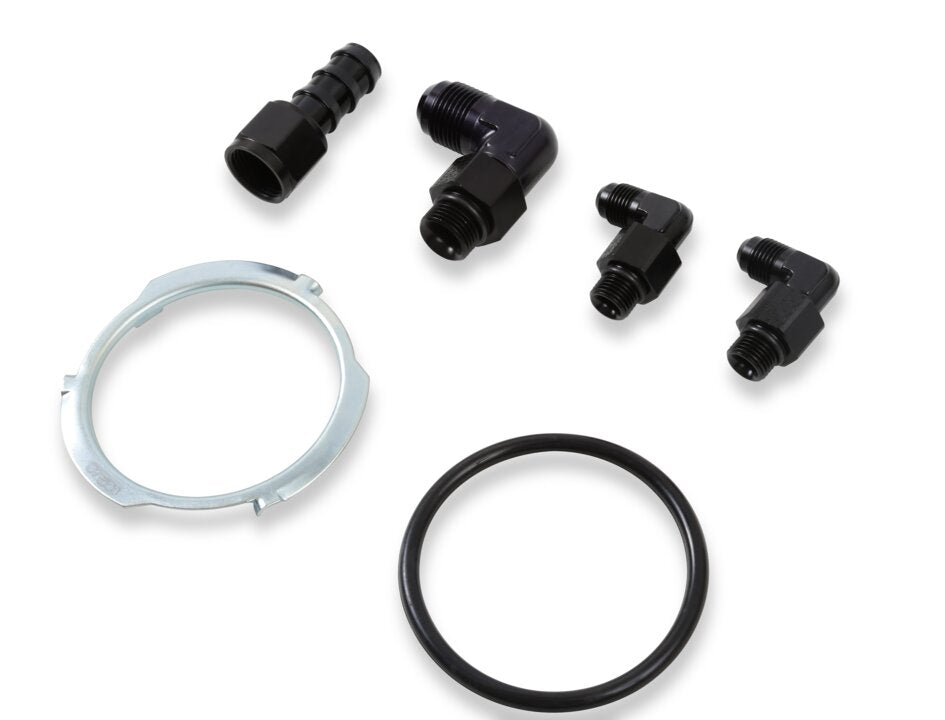

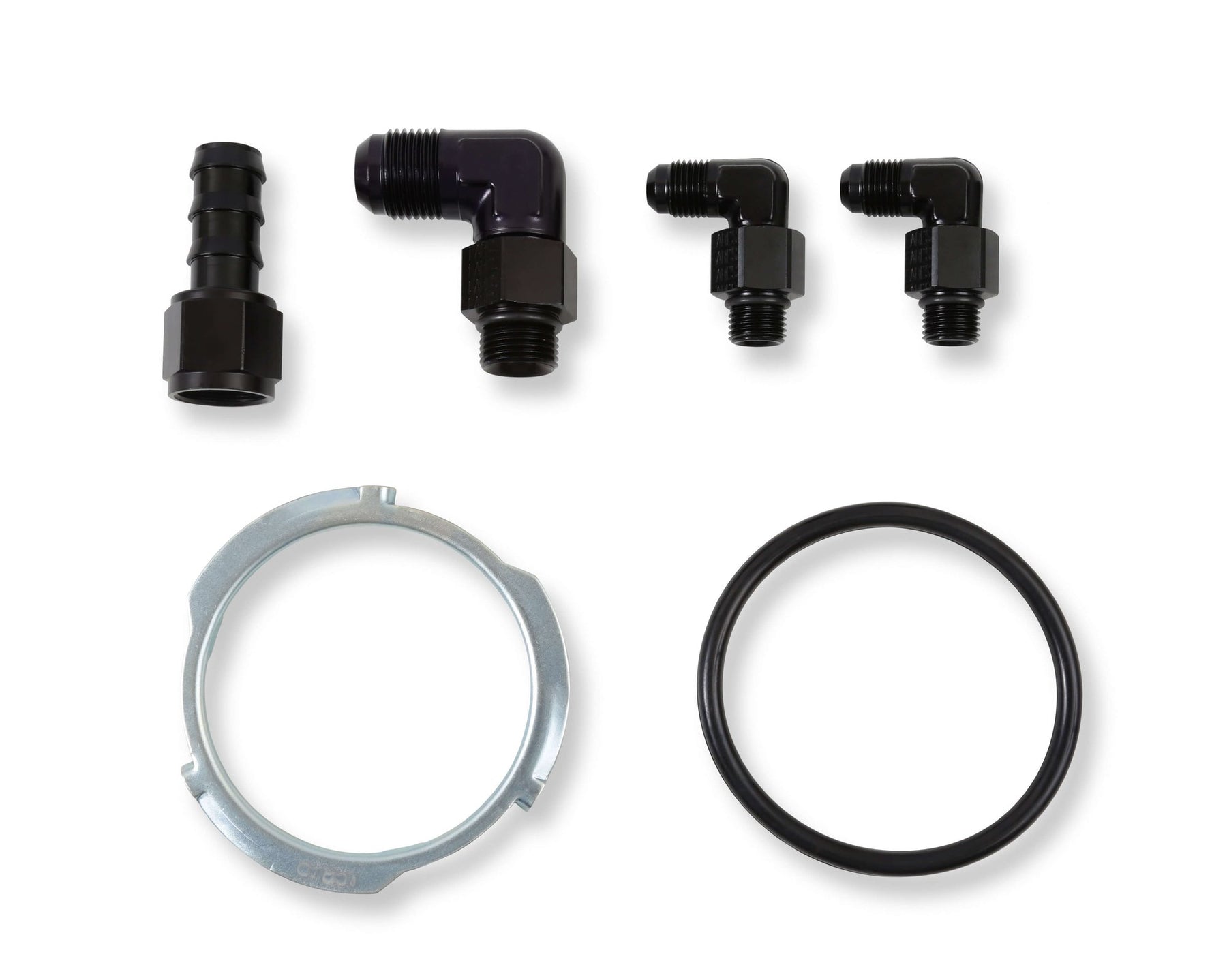

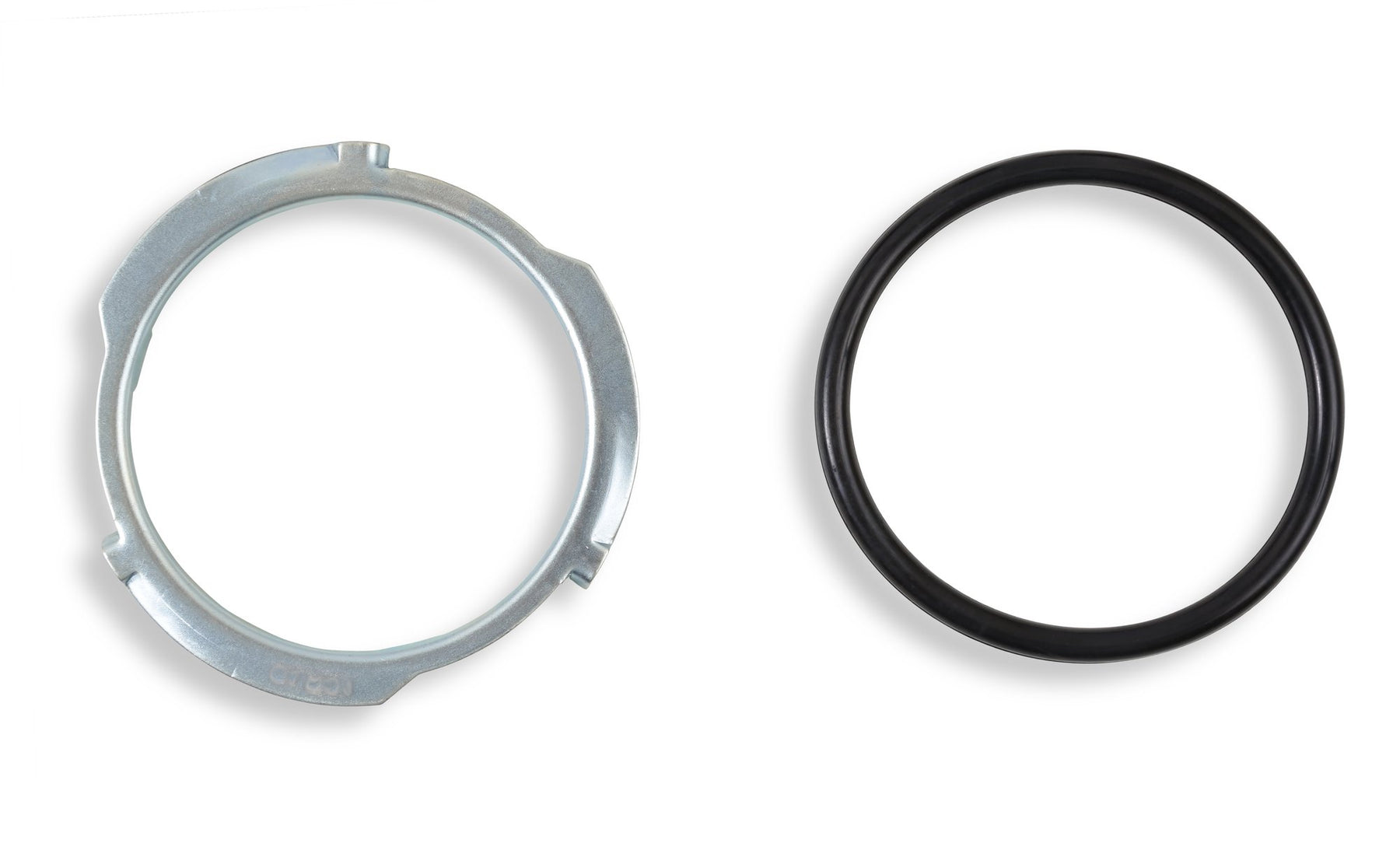

• Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation
• Can be used with both carbureted and EFI fuel systems
• Supports up to 700 EFI or 900 Carb HP (estimates are based on gasoline)
• Bypass fuel pressure regulator required; 12-879 or 12-880 regulators recommended.

Specifications

• Application: 1988-1998 GM C/K Trucks
• Average Flow Rating: 340 LPH
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Color: Black
• Emission Code: 5
• Free Flow LPH: 340
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: Gasoline/E85 Compatible
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• In Tank or External: In Tank
• Inlet Size: 6 AN
• Lock Ring Included: Yes
• Material: 6061-T6 Aluminum
• Negative Ground: Yes
• Outlet Size: 6 AN
• Part Type: Fuel Pump Module Assembly
• Product Type: Fuel Pump Module
• Pump Type: Electric
• Regulator Included: No
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Strainer Included: Yes
• Sub Category: Fuel Pumps and Related Components
• Universal Or Specific Fit: Specific
• Warranty: Manufacturer's Limited 90 Day Warranty

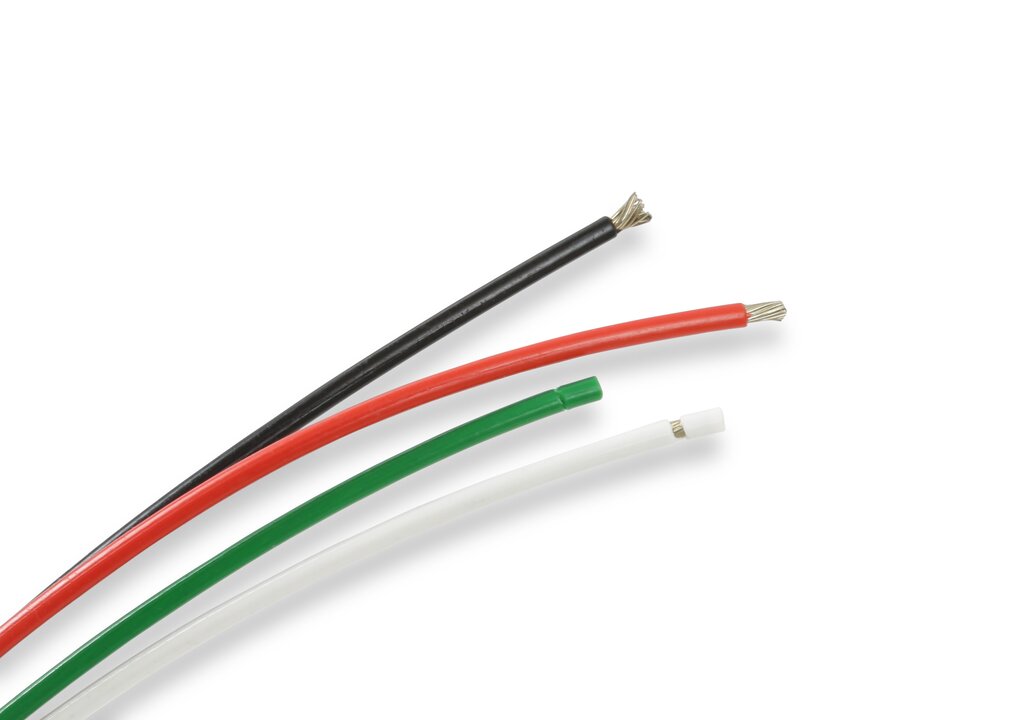

• Wire Harness Included: Yes
• Part Number: 12-353
