Description
This Kit is the Complete Savvy Mid Arm kit
Savvy Mid Arm Kit is based on our race winning overall King of the Hammers Everyman Challenge LJ. The kit was design to offer maximum clearance in the rocks while still maintaining an OEM feel geometry. Fast in the desert and nimble in rocks! The kit includes new frame brackets, front and rear axle truss and aluminum links.
The front is a 3 link with tracbar and the rear is a 4 link triangulation (no rear tracbar.)
Cutting, grinding and welding to both the axles and frame are required.
1″ Body Lift Required for Installation of this Kit

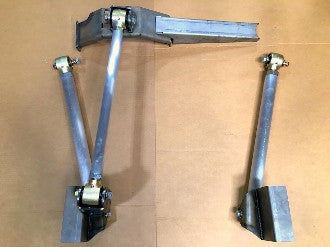

Included in this upgrade:
Front

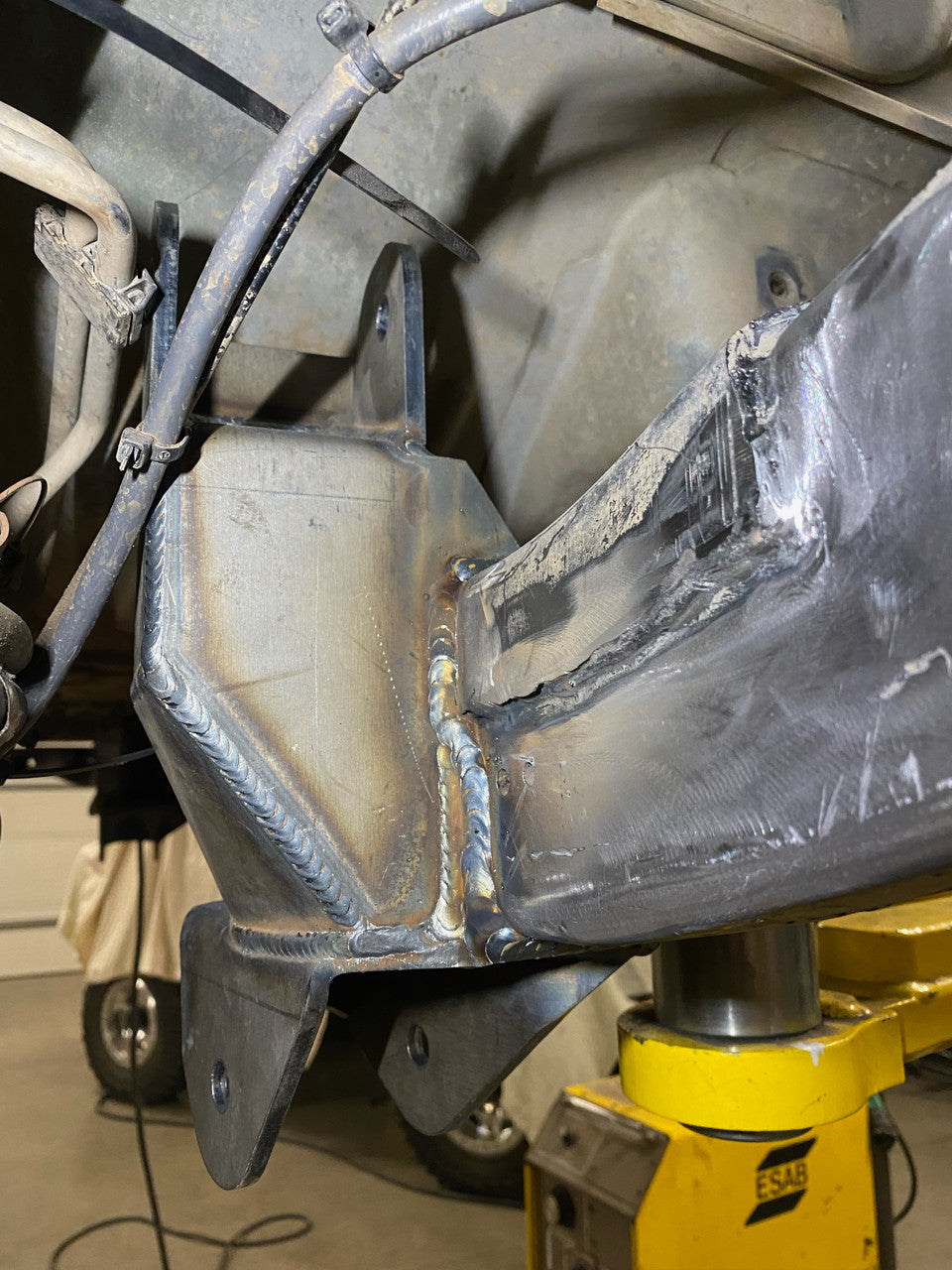

2 – Front frame brackets
1 – D30 or D44 axle truss
2 – 2″ Aluminum Lower Control Arms with 2.5″ -1.25″ Johnny Joints (new included)
1 – 1.5″ Aluminum Upper Control Arm with 2.5” – 1″ Johnny Joints (new included)
1 – Front Bump Stops
1 – Set of Front 4″ Coil Springs
1 – Front Antirock
1 – Front Tracbar
Rear
2 – Rear frame brackets
1 – D44 axle truss
2 – 2″ 7075 Aluminum Lower Control Arms with 2.5″ – 1.25 Johnny Joints (new included)
2 – 1.5″ Aluminum Upper Control Arm with 2.5”- 1.”Johnny Joints (new included)
1 – Rear Bump Stops
1 – Set of Rear 4″ Coil Springs
