If you want a straightforward 2.5 inch lift on your 4-door Wrangler JLU (gas) without a pile of adjustable arms to set up, this is the Adventure mid-arm system. Longer set-length arms fix front caster, the track bars center the axles, and the triple-rate coils keep the ride from turning into a buckboard. Rock Krawler lists it as upgradable to its long-arm system if you want more later.

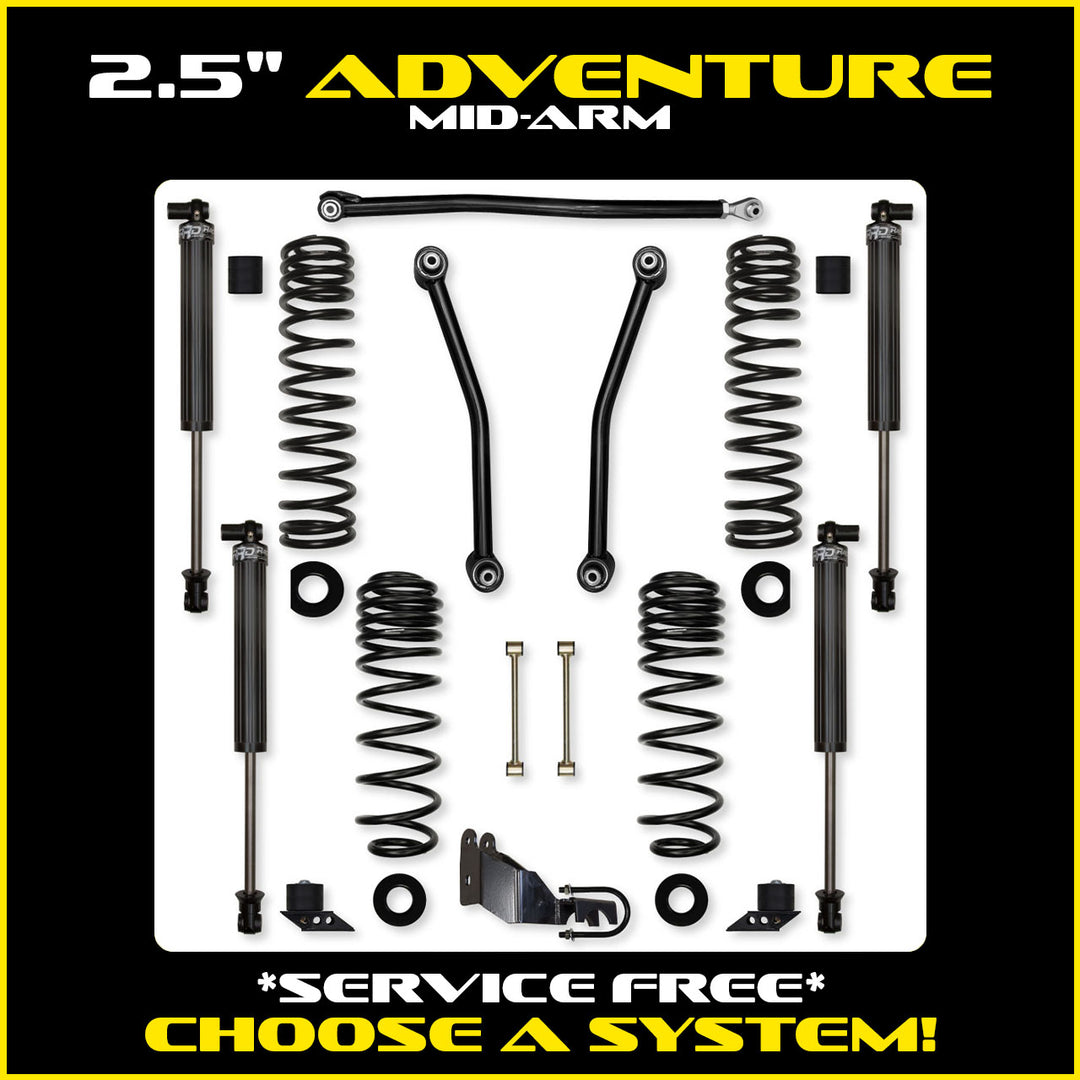

What's in the kit
- (4) triple-rate coil springs
- (2) front set-length lower control arms
- (2) front spring pads
- (1) adjustable front track bar
- (2) rear spring pads
- (2) set-length rear sway bar links
- (1) bolt-on rear track bar relocation bracket (supplied depending on the shock package)
- Bump stops (included with every shock option; sold separately if you buy the kit with no shocks)
Why this system
- Set-length arms with Adventure Series joints: Non-adjustable control arms with Adventure Series joints at both ends, rated for 35 degrees of misalignment. They are longer than stock, which lets you correct front caster.
- Triple-rate coils: Four coils tuned for the application. Rock Krawler says they ride better on the street than the factory linear-rate springs, and they carry enough free length to stay seated when the axle droops, as long as you run a proper length shock.
- Spring correction pads: These take the coil bow out of the factory setup and help with vehicle lean.
- Track bar geometry: The front track bar and the rear track bar correction center both axles, and the rear roll center improves.
- Level stance: Rock Krawler's stated goal is a Jeep that sits level on all four corners.
- Upgrade path: These kits are upgradable to Rock Krawler's long-arm system later, so you are not boxed in.
- Warranty: Rock Krawler lists lifetime warranty coverage on the kit.
Pick your package
- Base System (No Shocks): The complete kit with no shocks. Bump stops are not included on this option (Rock Krawler sells them separately). Pick it if you already have shocks picked out. Whatever you run, it needs to be a proper length so the coil stays seated.
- Bilstein 5100 Shocks: The kit plus a set of maintenance-free Bilstein 5100 shocks, which Rock Krawler describes as a good pairing with its multi-rate coils. Bump stops are included.
- Stage 1 - RRD 2.25 IFP Shocks: The kit plus Rock Krawler's in-house RRD 2.25 inch IFP shocks. The body is hard-anodized aluminum with the cooling surface of a 2.5 inch shock, the shaft is 3/4 inch 17-4 PH stainless, and the valving is billet aluminum with dual DU shaft bearings. They are serviceable, rebuildable and revalvable. Bump stops are included.
Fitment and what else you will need
- Vehicle: 2018 to present Jeep Wrangler JLU 4-door, 4WD. Rock Krawler lists the 2.0L turbo 4-cylinder, the 3.6L Pentastar V6 and the 3.6L Pentastar with eTorque, all 4WD gas.
- Tires and wheels: Sport and Sahara, 37/38 inch tires with 3.5 inch backspacing (37 inch on full OEM fenders, 38 inch on trimmed or high-lined fenders). Rubicon, 37 inch tires with 4.5 inch backspacing or 40 inch tires with 3.5 inch (37/38 inch on full OEM fenders, 40 inch on trimmed or high-lined fenders). A 3 inch bump stop height is recommended for all of them.
- Lift height basis: Rock Krawler measures lift on a Rubicon with a front bumper and winch, a rear bumper and a full-size spare. If you delete the spare, drop the rear coil lift height by 1 inch. If the rear is heavily built up (overland gear), raise it by 1 inch.
- Driveshaft: Rock Krawler recommends a new front driveshaft if you off-road regularly.
