Revolution Gear GM 14-Bolt 10.5 Inch 1998-05 Ring and Pinion Mini Install Kit
25-2023B
GM 14-Bolt 10.5 Inch 1998-05 Ring and Pinion Mini Install Kit from Revolution Gear and Axle.

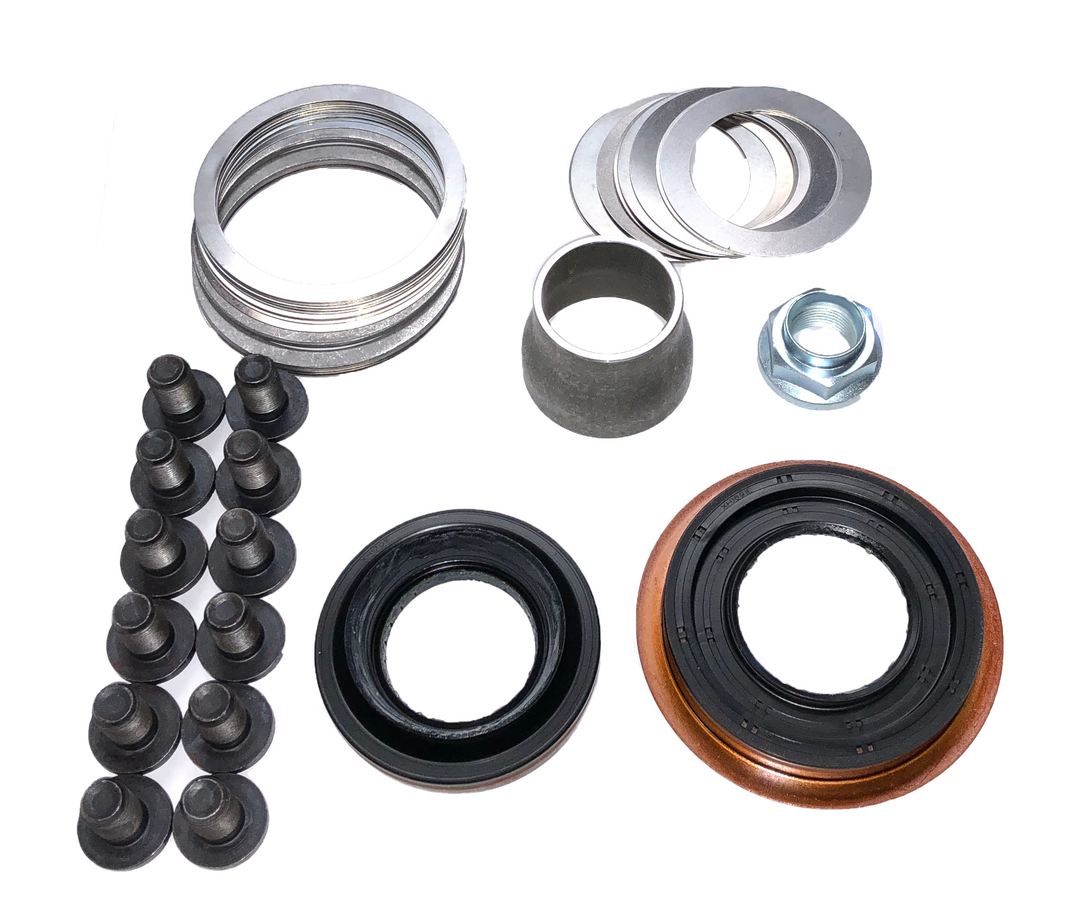

Revolution Gear and Axle Ring and Pinion Mini Install Kits offer a low-cost option when working on your differential. Mini Kits contain the basic components needed to overhaul your differential ring and pinion gear set, bearings are not included. Our Kits include: Pinion seal, Pinion Shims, Carrier Shims, Pinion Nut, Gasket or Sealant, Preload Shims or Crush Sleeve and Ring Gear Bolts. Ring and pinion mini install kits are a great option when you can re-use new or lightly used bearings.
Ring and Pinion Mini Install Kit Specifications
- Compatibility: Fits 1998-05 GM 14-Bolt 10.5 inch rear axle differential
- Differential: GM 10.5 Inch
- Pinion Bearings Included: No
- Carrier Bearings Included: No
- Axle Seals Included: No
- Ring Gear Bolts Included: Yes
- Pinion Shims Included: Yes
- Carrier Shims Included: Yes
- Pinion Seal Included: Yes
- Crush Sleeve Included: Yes
- Cover Gasket or Gasket Maker Silicone Included: Yes
Specifications
- Revolution part number: 25-2023B
- Axle / differential: GM 10.5 Inch
- Warranty: 1 Year Limited
- Shipping weight: 3 lb
- Package dimensions: 11 x 12 x 2.5 in
Vehicle fitment
- Chevrolet: C20 1975-1980, C30 1975-1977
- GMC: K25/K2500 Pickup 1967-1974
