Dana 80 Rear Axle Ring and Pinion Mini Install Kit from Revolution Gear and Axle.

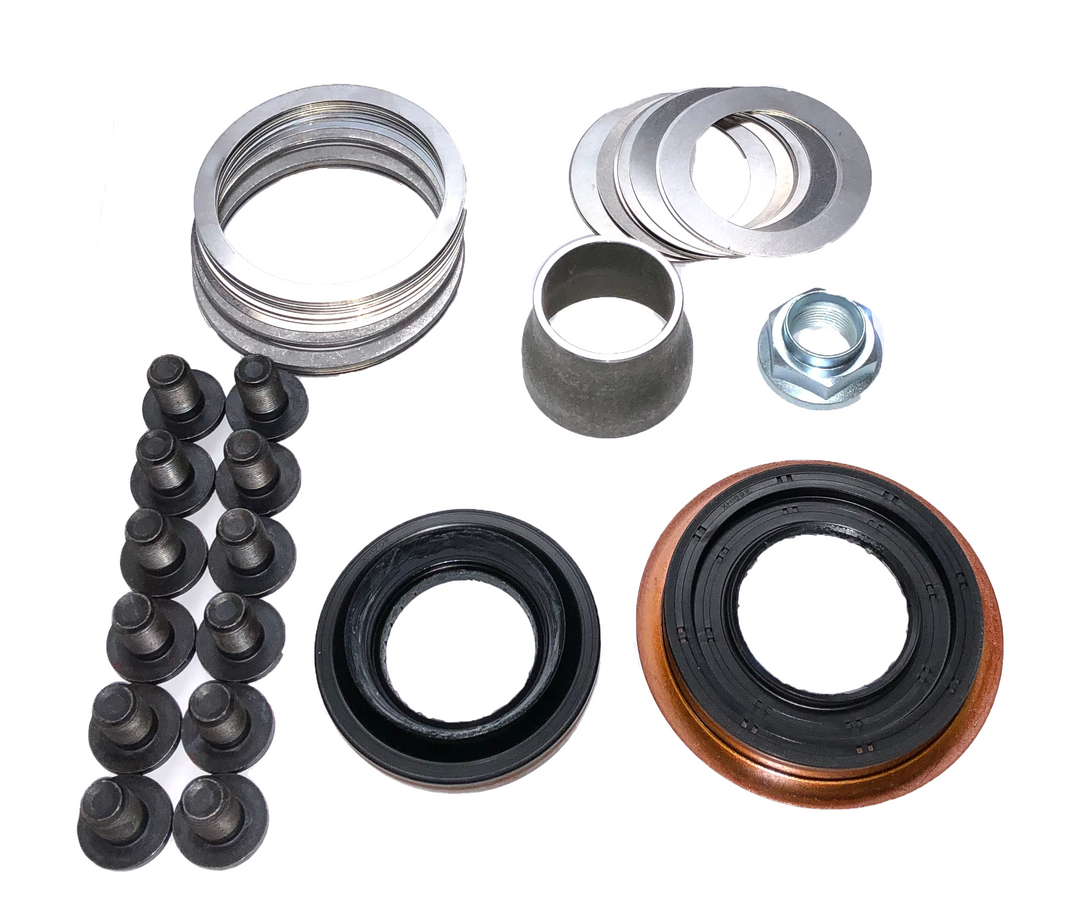

Revolution Gear and Axle Ring and Pinion Mini Install Kits offer a low-cost option when working on your differential. Mini Kits contain the basic components needed to overhaul your differential ring and pinion gear set, bearings are not included. Our Kits include: Pinion seal, Pinion Shims, Carrier Shims, Pinion Nut, Gasket or Sealant, Preload Shims or Crush Sleeve and Ring Gear Bolts. Ring and pinion mini install kits are a great option when you can re-use new or lightly used bearings.
Ring and Pinion Mini Install Kit Specifications
- Compatibility: Fits Dana 80 Rear Axle
- Differential: Dana 80
- Pinion Bearings Included: No
- Carrier Bearings Included: No
- Axle Seals Included: No
- Ring Gear Bolts Included: Yes
- Pinion Shims Included: Yes
- Carrier Shims Included: Yes
- Pinion Seal Included: Yes
- Crush Sleeve Included: Yes
- Cover Gasket or Gasket Maker Silicone Included: Yes
Specifications
- Revolution part number: 25-2080
- Axle / differential: Dana 80
- Warranty: 1 Year Limited
- Shipping weight: 3 lb
- Package dimensions: 11 x 12 x 2.5 in
Vehicle fitment
- Dodge: Ram 2500 1994-2002, Ram 3500 1994-2002
- Ford: F-350 1989-1997, F-350 Super Duty 1999-2015, F-450 Super Duty 1999-2005
