Revolution Gear 1976-83 CJ Model 20 Narrow Trac 4140 Chromoly Discovery Series Rear Axle Kit
DC-M20-Early
1976-83 CJ Model 20 Narrow Trac 4140 Chromoly Discovery Series Rear Axle Kit from Revolution Gear and Axle.

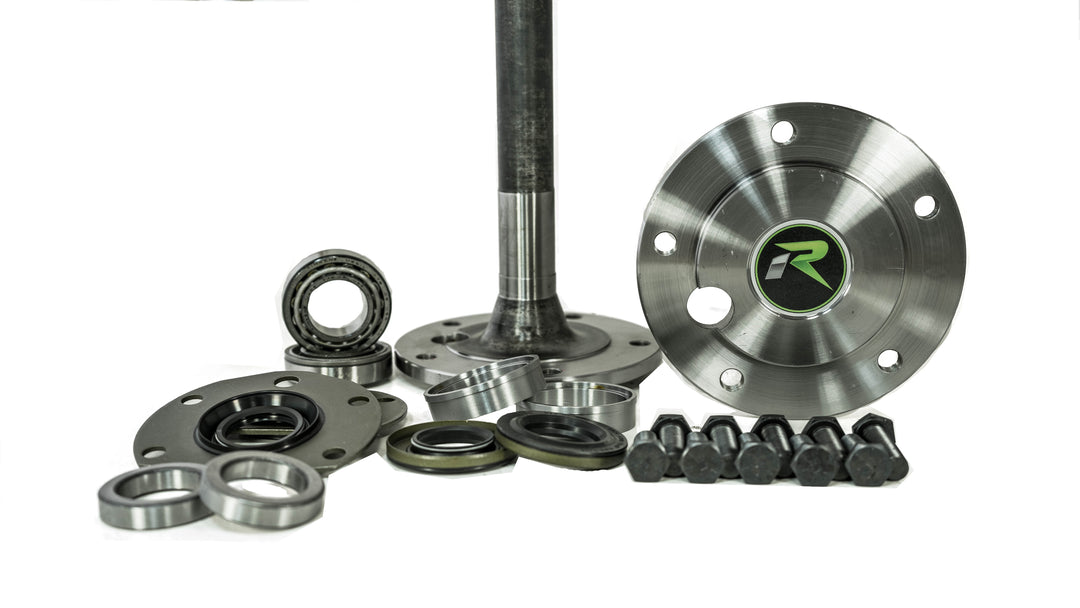

Revolution Gear and Axle Discovery Series 1-Piece Narrow Trac 4140 Chromoly Rear Axle Kit, fits 1976-83 CJ-5 and 1976-81 CJ-7. Rear axles feature 5x5.5 Bolt Pattern. This Revolution Gear and Axle Rear Axle Kit ships with bearings, seals and retainers pressed together and ready to install. And includes Qty10 Wheel Studs (Not Installed).
Revolution Gear and Axle Discovery Series Axles are backed by a 10 Year Warranty covering manufacturing defects and axle breakage, bent axles and twisted splines. This warranty is non-transferable. Parts subject to normal wear are not covered under warranty; this includes bearings and seals. Revolution Gear and Axle reserves the right to either axle replacement or credit after the first warranty claim. Note: Wheel studs are included in this kit but are not installed into the axles for safer transport. Install wheel studs using Red Loctite and torque to 90Ft-Lbs.
Specifications
- Revolution part number: DC-M20-Early
- Axle / differential: AMC 20
- Material: 4140 steel
- Warranty: 10 Year Limited
- Country of origin: India
- Shipping weight: 38 lb
- Package dimensions: 36 x 9 x 9 in
Vehicle fitment
- Jeep: CJ5 1976-1981, CJ7 1976-1981, Scrambler 1981
