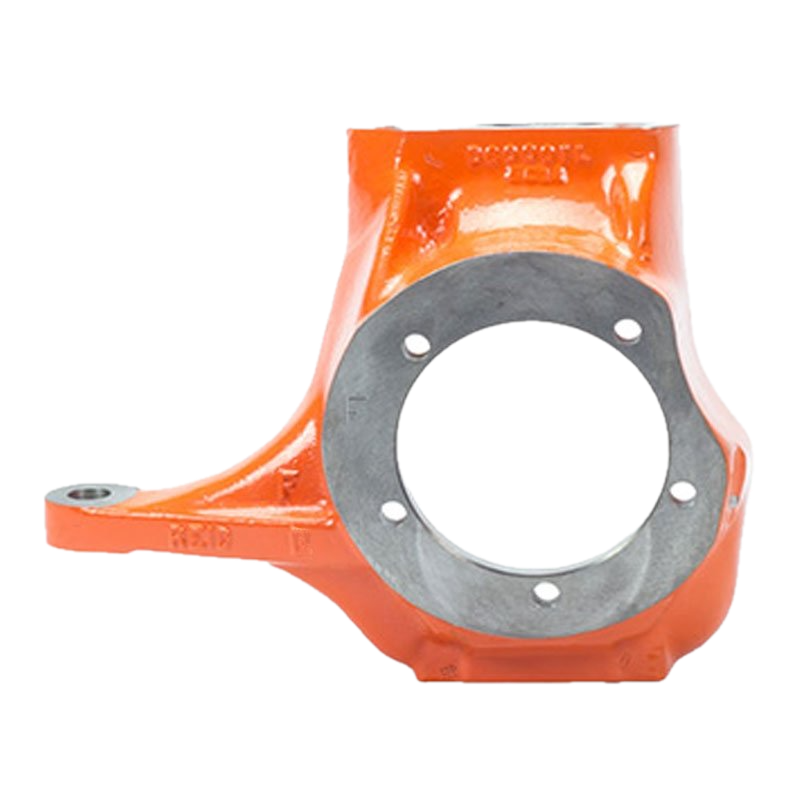

The Reid Racing D60001FL is the left (driver's side) Dana 60 steering knuckle for Ford applications. Ford versions are based on the stronger Chevy casting — they accept factory Ford spindles and brakes but use the lower Chevy-style steering arm and Chevy tie rod taper. Some steering modifications may be needed on Ford applications.
- Sold individually — left (driver's side) knuckle only. Order D60001FR for the right (passenger's side).
- The strongest Dana 60 knuckles on the market.
- Based on the stronger Chevy casting — accepts factory Ford spindles and brakes.
- Uses lower Chevy-style steering arm and Chevy tie rod taper (some Ford steering modifications may be needed).
- 100% interchangeable with a Ford kingpin knuckle except uses stronger Chevy tie rod ends.
- 5th bolt hole for high-steer arms (4-bolt arms still fit).
- Accepts one-ton Ford brakes with no modifications required.
- Cast-in steering stop eliminates bent stop bolts.
- Tie rod holes can be drilled to accept 3/4" rod ends.
- Cast from high-strength ductile iron, beefed up with extra material and ribbing.
- Fully machined and ready for installation.
- Powder coated bright Orange® for long-lasting looks.
- 100% Made in the USA.
Part Number: D60001FL | Orientation: Left (Driver's Side) | Skinny Pedal Racing is an Authorized Reid Racing Dealer
