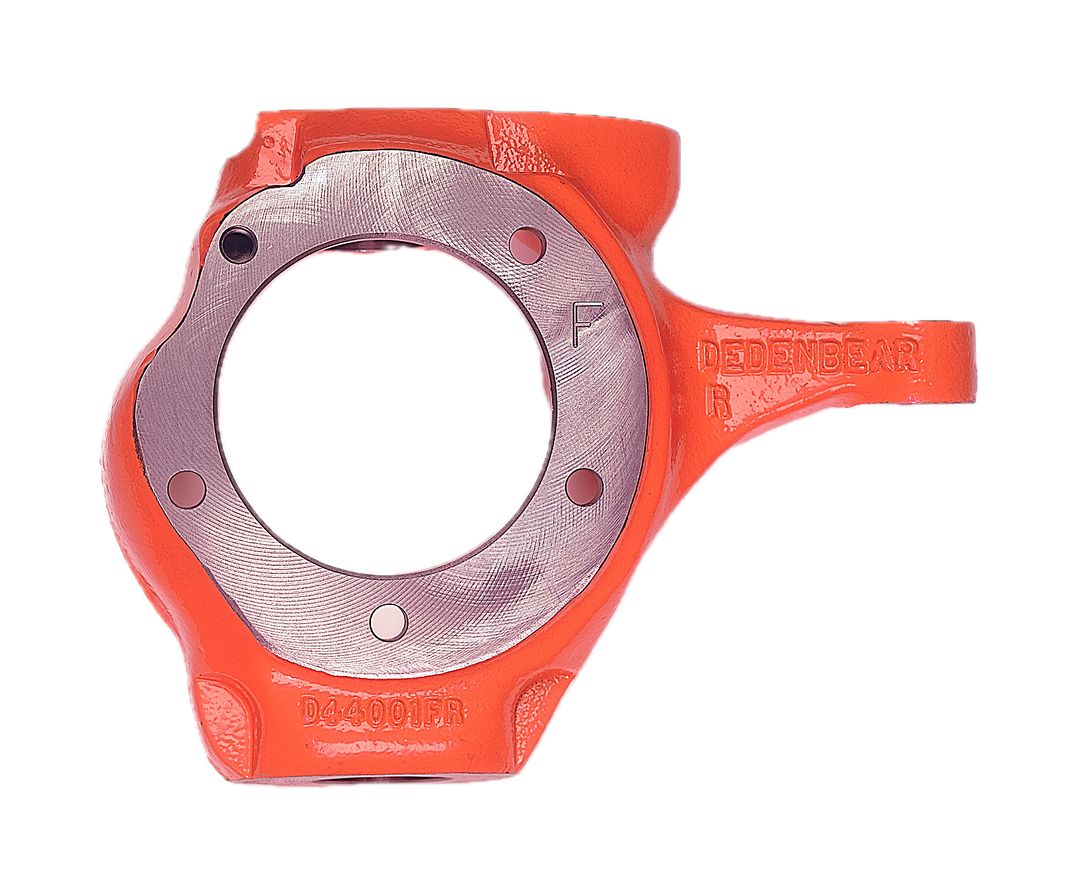

The Reid Racing D44001FR is the right (passenger's side) heavy-duty flat-top steering knuckle for Ford Dana 44 front axles. These are the only aftermarket knuckle available for a Ford Dana 44 — based on the Ford Bronco disc brake knuckle and machined to fit both 1/2-ton and 3/4-ton Ford brake hardware.
- Sold individually — right (passenger's side) knuckle only. Order D44001FL for the left (driver's side).
- The only aftermarket knuckle available for a Ford Dana 44.
- Ford versions are based on the Bronco disc brake knuckle and fit 1/2-ton and 3/4-ton Ford brakes.
- Will not fit Wilwood D8-4 Truck Front Brake Kit.
- Flat tops machined and drilled for high-steer arms.
- 4th bolt hole for high-steer arms increases clamping force and shear strength (3-hole high-steer arms still fit).
- 3/8" thickness added to flat top for high-steer tie rod to leaf spring clearance.
- Cast-in DUAL steering stops eliminate bent stop bolts that can cause U-joint and axle failures.
- Tapered tie rod holes accept factory tie rod ends. Tie rod holes can be drilled to accept 3/4" heim ends.
- Tie rod hole tapered from top to bottom.
- Machined to clear CTM U-joints without removing grease fittings.
- Cast from high-strength ductile iron, beefed up with extra material and ribbing.
- Fully machined and ready for installation.
- Powder coated bright Orange® for long-lasting looks.
- 100% Made in the USA.
Part Number: D44001FR | Orientation: Right (Passenger's Side) | Skinny Pedal Racing is an Authorized Reid Racing Dealer
