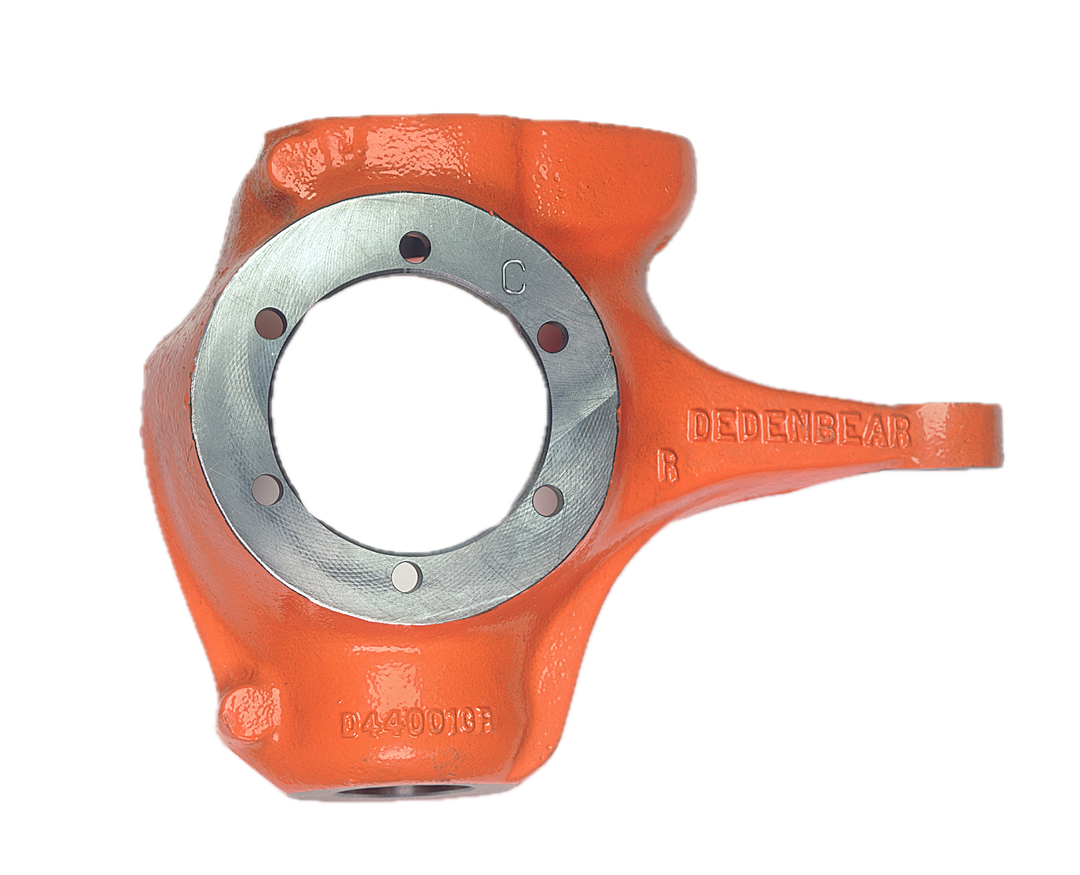

Reid Racing D44001CR Chevy/GM Dana 44 Heavy Duty Flat Top Right Steering Knuckle

The Reid Racing D44001CR is the right (passenger's side) heavy-duty flat-top steering knuckle for Chevy and Jeep Dana 44, Dana 30, and 10-bolt front axles. Cast from high-strength ductile iron with extra material and ribbing throughout. A direct bolt-on replacement that adds high-steer capability and eliminates bent stop bolt failures common with OEM hardware.

• Sold individually — right (passenger's side) knuckle only. Order D44001CL for the left (driver's side).
• Chevy/Jeep spindle bolt pattern accepts "outers" from all open-knuckle Chevy and Jeep Dana 44, Dana 30, and 10-bolt front ends through 1986.
• Interchangeable with all factory and aftermarket Dana 44 components.
• Will fit 10-bolt and early Dana 30 axles with minor modification.
• Flat tops machined and drilled for high-steer arms.
• 4th bolt hole for high-steer arms increases clamping force and shear strength (3-hole high-steer arms still fit).
• 3/8" thickness added to flat top for high-steer tie rod to leaf spring clearance.
• Cast-in DUAL steering stops eliminate bent stop bolts that can cause U-joint and axle failures.
• Tapered tie rod holes accept factory tie rod ends. Tie rod holes can be drilled to accept 3/4" heim ends.
• Machined to clear CTM U-joints without removing grease fittings.
• Fully machined and ready for installation.
• Powder coated bright Orange® for long-lasting looks.
• 100% Made in the USA.

Part Number: D44001CR | Orientation: Right (Passenger's Side) | Skinny Pedal Racing is an Authorized Reid Racing Dealer
