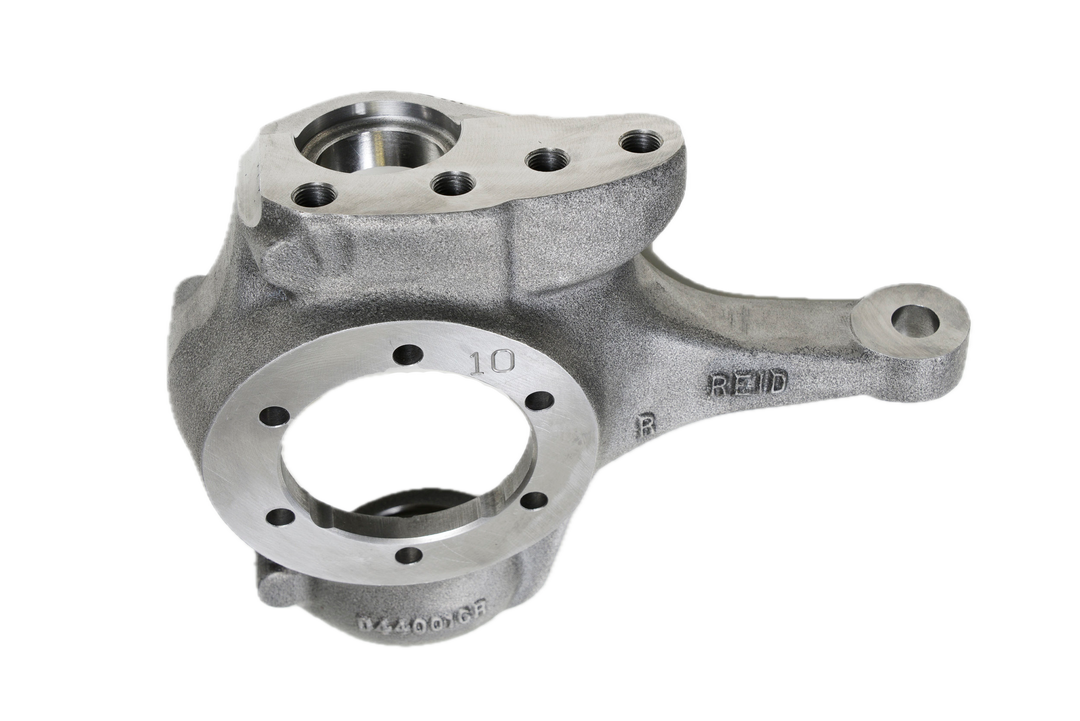

The Reid Racing C10002R is the right (passenger's side) Chevy stock replacement knuckle for 10-bolt front axles — available without orange powdercoating. Identical in construction to the regular Chevy Dana 44 & 10-bolt passenger-side knuckle (D44001CR), but left bare for crossover steering applications where the OEM non-powdercoated driver's-side knuckle is retained and a color match is preferred.
- Only available as a right (passenger's side) knuckle.
- Identical to the regular Chevy Dana 44 & 10-bolt passenger-side knuckle, but without orange powdercoating.
- Ideal for crossover steering applications where the OEM non-powdercoated driver's-side knuckle is retained.
- Chevy/Jeep spindle bolt pattern accepts "outers" from all open-knuckle Chevy half-ton and 3/4-ton front ends.
- Machined with a "bottom up" taper to match OEM Chevy 10-bolt tie rod location.
- Cast from high-strength ductile iron, beefed up with extra material and ribbing.
- Flat tops machined and drilled for high-steer arms.
- 4th bolt hole for high-steer arms increases clamping force and shear strength.
- 3/8" thickness added to flat top for high-steer tie rod to leaf spring clearance.
- Cast-in DUAL steering stops eliminate bent stop bolts that can cause U-joint and axle failures.
- Tapered tie rod holes accept factory tie rod ends. Tie rod holes can be drilled to accept 3/4" heim ends.
- Interchangeable with all factory and aftermarket Dana 44 and 10-bolt components.
- Machined to clear CTM U-joints without removing grease fittings.
- Fully machined and ready for installation.
- 100% Made in the USA.
Part Number: C10002R | Orientation: Right (Passenger's Side) Only | Skinny Pedal Racing is an Authorized Reid Racing Dealer
