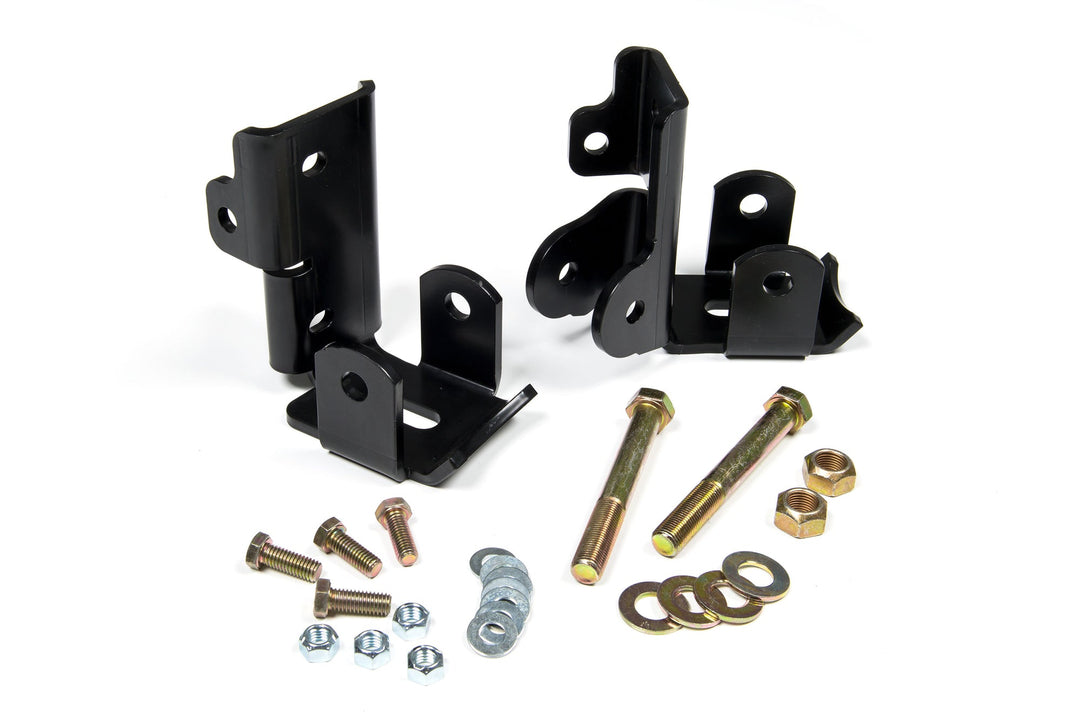

Rear Shock Relocation Kit Wrangler JK – JKS Manufacturing part number JKSOGS945.
Relocate the shock mounts on the Jeep Wrangler JK for better clearance and enhanced reliability with a JKS rear shock relocation kit. The new mounting brackets are made of 1/4 inch steel and include a dual-shear shock mount and new sway bar link mount.
An integrated control arm mount skid plate adds protection.
Installation is bolt-on and requires the removal of the factory axle shock mounts, sway bar link mounts and trimming of the control arm mount. A 2 inch improvement in ground clearance is an added benefit.
The shock mounts are moved up 2-1/4 inch from the factory position and the sway bar mount moves up 1-3/4 inch. Designed for bolt-on Installation.
Features a black, powdercoat finish. Shock Mount Width: 1.60 inch; Shock Bolt Diameter: 12mm; Brackets Made From 3/16 inch Steel; Minor Drilling Required.
Features:
- Relocates the shocks higher on the axle.
- Integrated rear control arm skid plate.
- Brackets are powdercoated in classic JKS black.
- This kit relocates the rear shocks higher on the axle which allows trimming of the low-hanging factory mounts to maximize ground clearance.
Specifications
- JKS part number: JKSOGS945
- Location: Rear
- Material: Steel
- Finish: Powdercoat
- Sold as: Pair
- Warranty: Limited Lifetime
- Country of origin: USA
