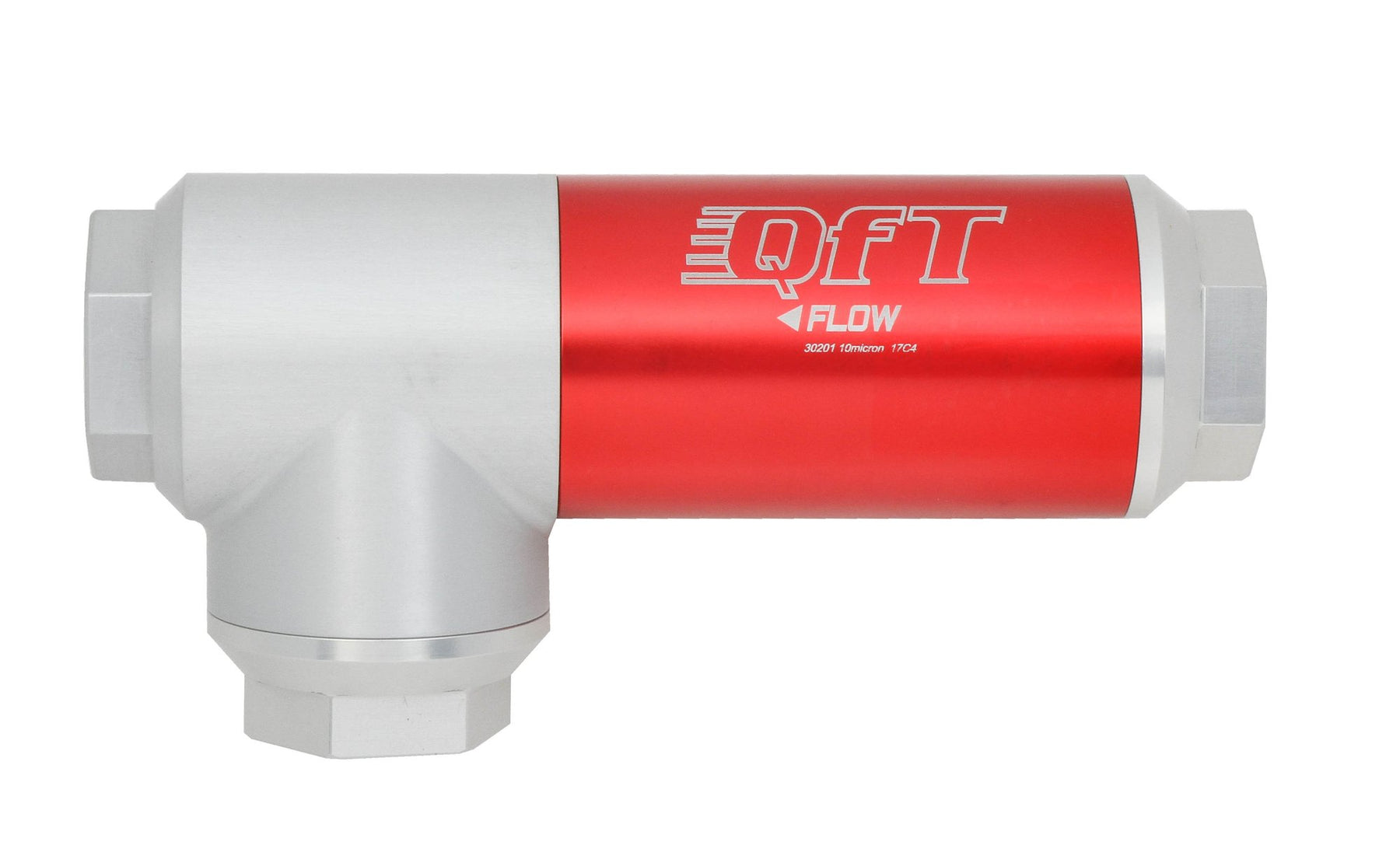

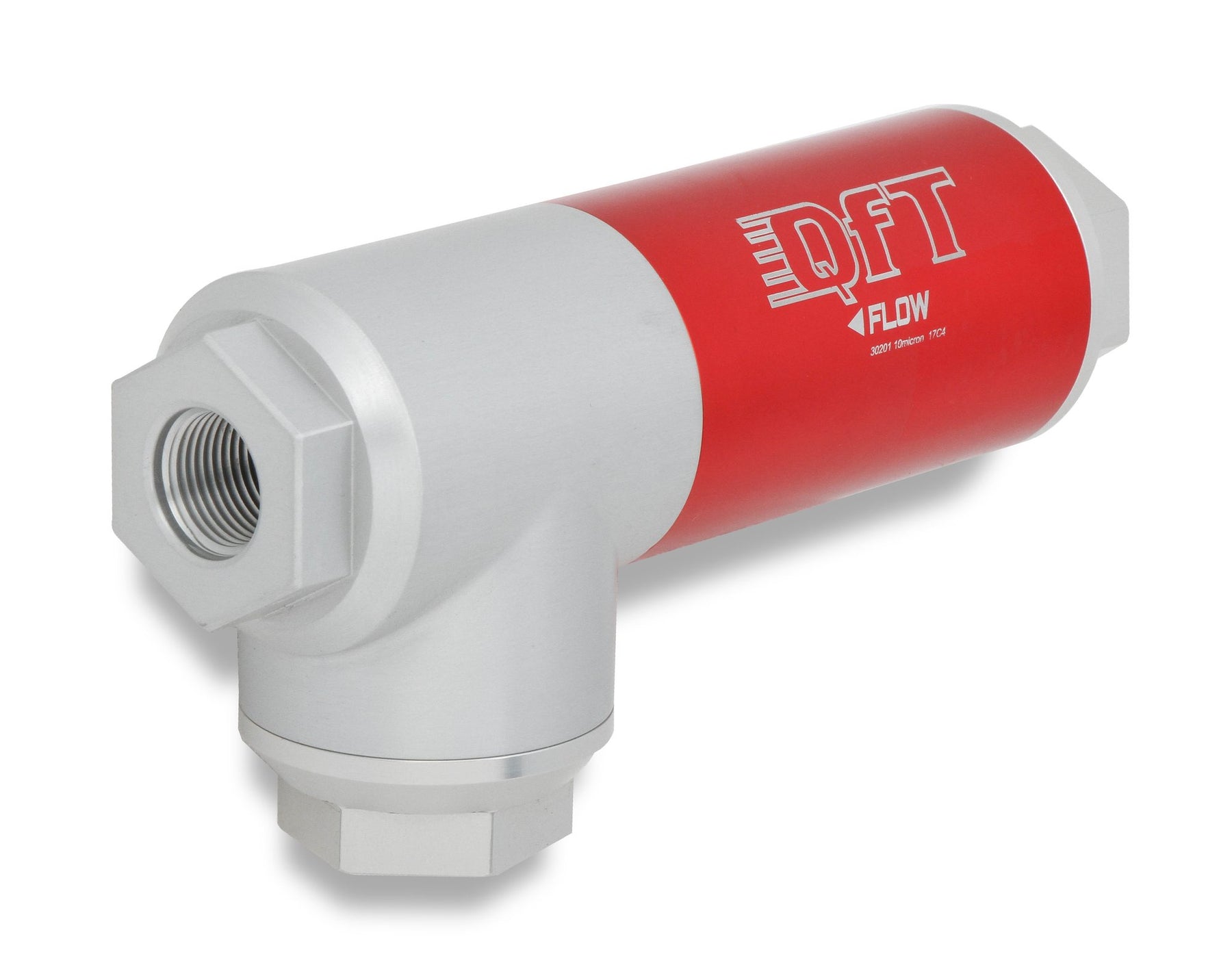

Quick Fuel EFI Filter Regulator -8AN

When converting your fuel system to a return style EFI setup, the biggest challenge can be plumbing the fuel lines. The new Quick Fuel EFI Filter Regulator assembly simplifies your installation by combining the fuel filter and regulator in one assembly that can be mounted in the rear of the vehicle. Thus making your return line much shorter.

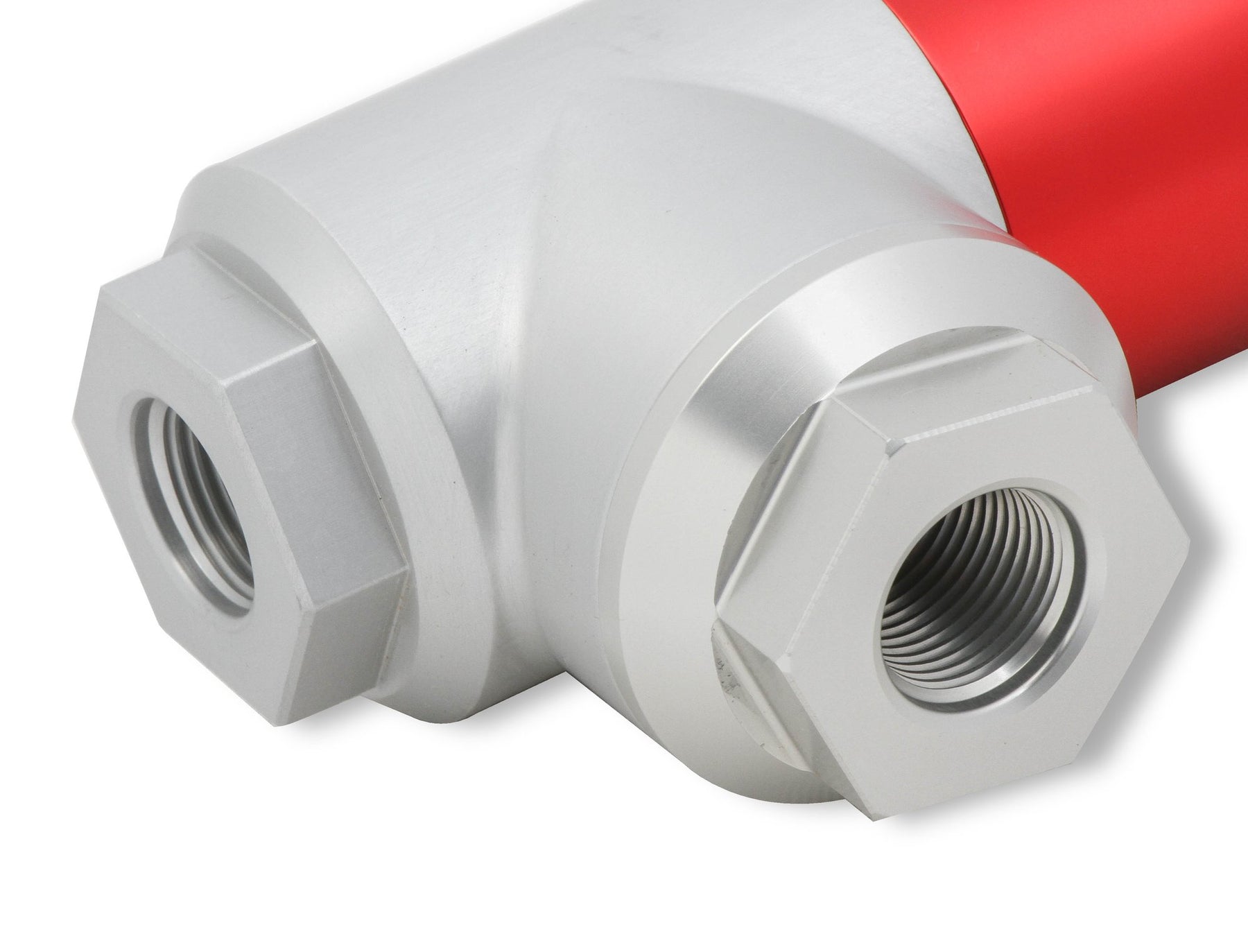

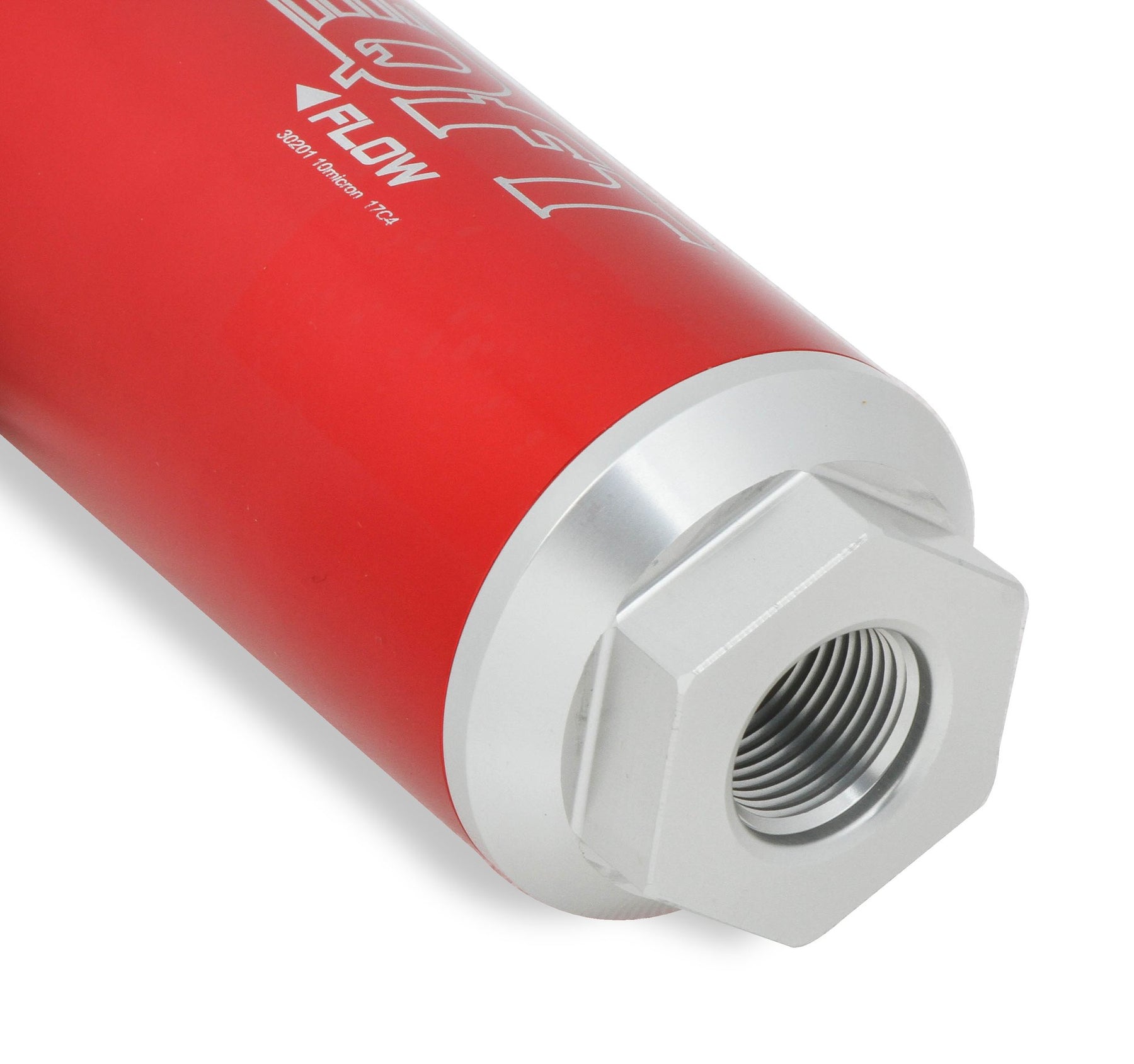

The aluminum assembly contains a 175 GPH 10 Micron filter and a regulator preset at 59.5 psi. The filter regulator comes with -8AN o-ring port sizes to match most EFI fuel systems.

Add billet mounting clamps; 12-574 and 12-574S

• Designed to help minimize the fuel line plumbing needed when installing an electronic fuel injection conversion

Specifications

• Brand: Quick Fuel Technology
• Category: Air and Fuel Delivery
• Emission Code: 5
• End 1 Gender: Female
• End 2 Gender: Female
• Flow Rate: 175 GPH
• Fuel System: EFI/Carb
• Fuel Type: Gasoline
• Gasket Or Seal Included: Yes
• GPH: 175
• Grade Type: Performance
• Housing Material: Aluminum
• Inlet Type: 8 AN ORB
• Micron: 10
• Micron Rating: 10
• Outlet Type: 8 AN ORB
• Part Type: Fuel Filter
• Product Type: Fuel Pressure Regulator
• Sub Category: Filters
• Universal Or Specific Fit: Universal
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 30-201QFT
