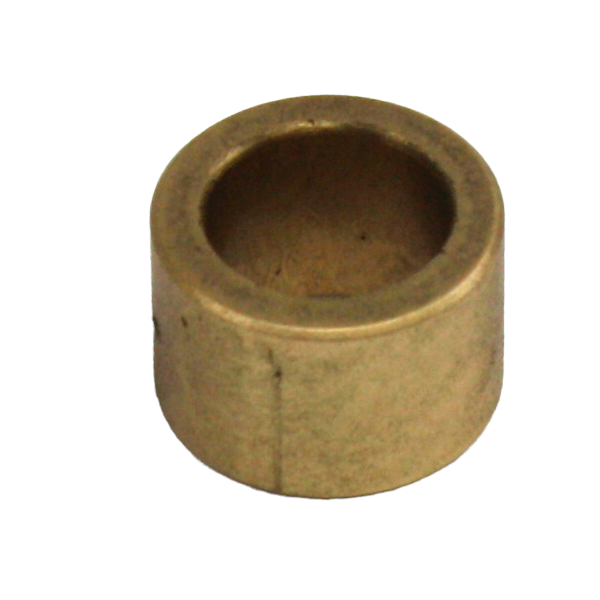

A custom pilot bushing for adapting a Chevy V8 to a transmission with a .750 inch pilot tip, which the factory .590 inch Chevy bushing cannot handle.
Features
- Oilite bronze and iron material holds oil to keep the input shaft lubricated
- Dimensions: 1.09 inch OD, .750 inch ID, .750 inch long
- Can also be used with the Buick 231 V6
Fitment
- Chevy V8 to T15, T18, AX15, NV3550 and NV4500 transmissions
- Supplied in Advance Adapters kits 712510, 712516, 712550, 712567, 712591 and 712591V
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
