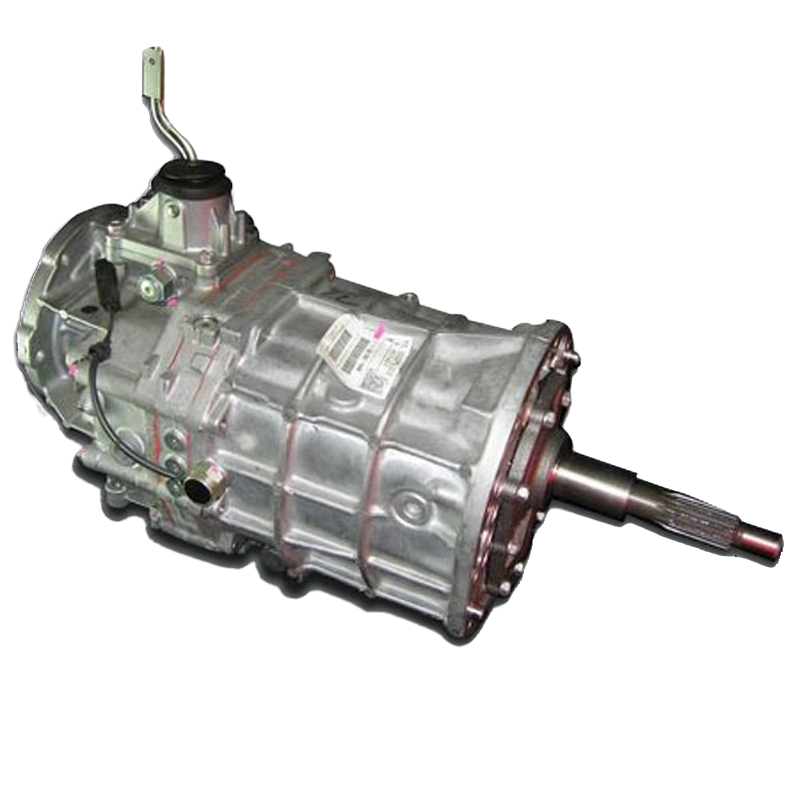

New Aisin AX15 4WD Transmission, .750 Tip, 23 Spline, 13 Degree Tailhousing - 26-AX15

New Aisin AX15 manual transmissions are hard to find. Advance Adapters sources them with a 0.75 inch tip to match 1992-99 factory Jeep transmissions, a 23 spline output shaft and a 13 degree tailhousing.

Features

• Brand new Aisin Warner AX15
• 0.75 inch input tip, 23 spline output shaft
• 13 degree tailhousing rotation
• Exact replacement for 1997-2000 Jeep TJ Wrangler

Fitment

• 1997-2000 Jeep TJ Wrangler (exact replacement)
• Other Jeep and conversion retrofits

Good to know

• If installed in a Cherokee XJ, the tailhousing rotation will be wrong
• Torque specs are not listed in any service manual, but Advance Adapters considers it similar enough to the NV3550 for replacement and conversion
• Gear oil: GL-4 oil is a direct replacement for the obsolete GL-3, available as Advance Adapters part 29-2341
• Please allow at least two weeks for transmission shipments
• Call Advance Adapters at 800-350-2223 with fitment questions

Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
