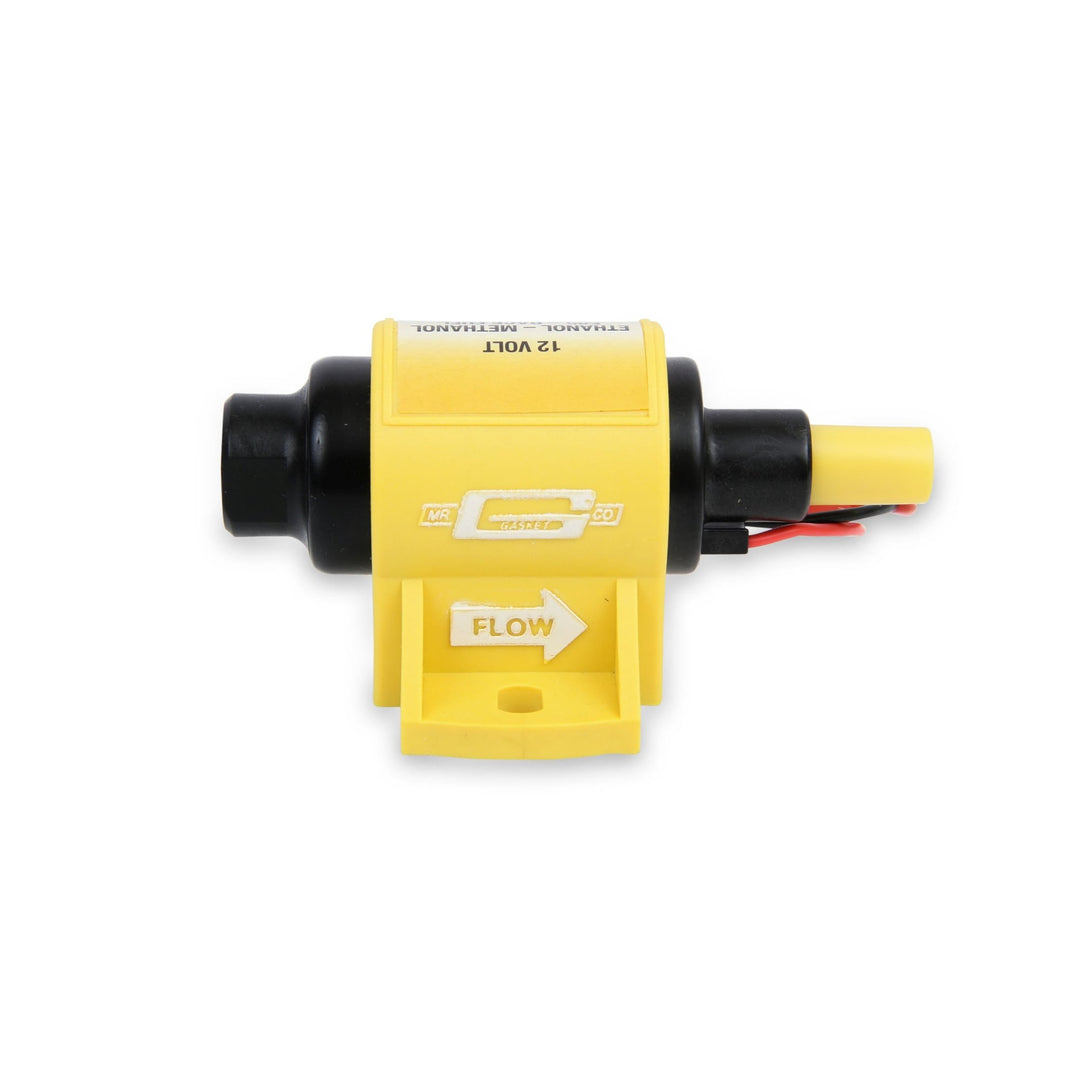

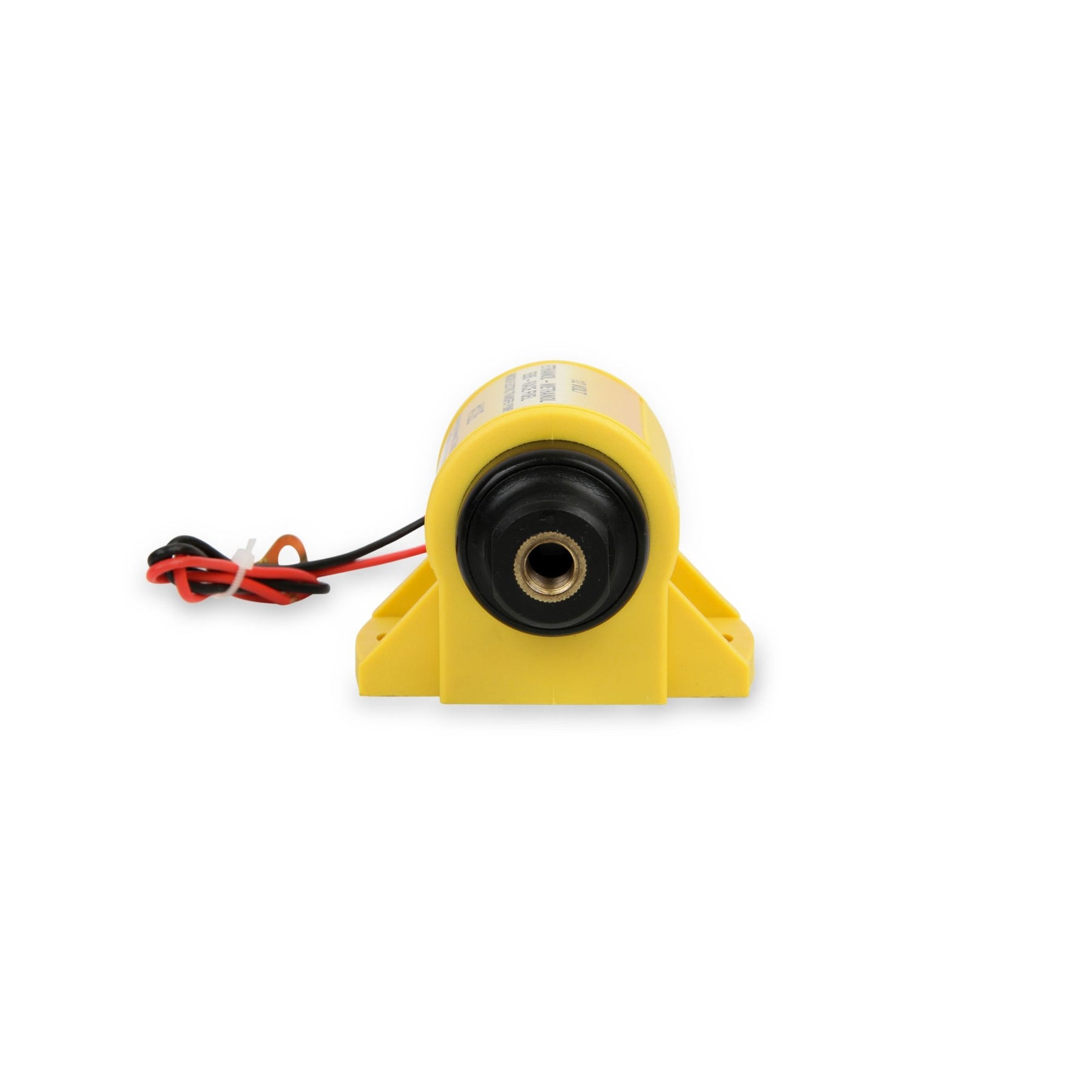

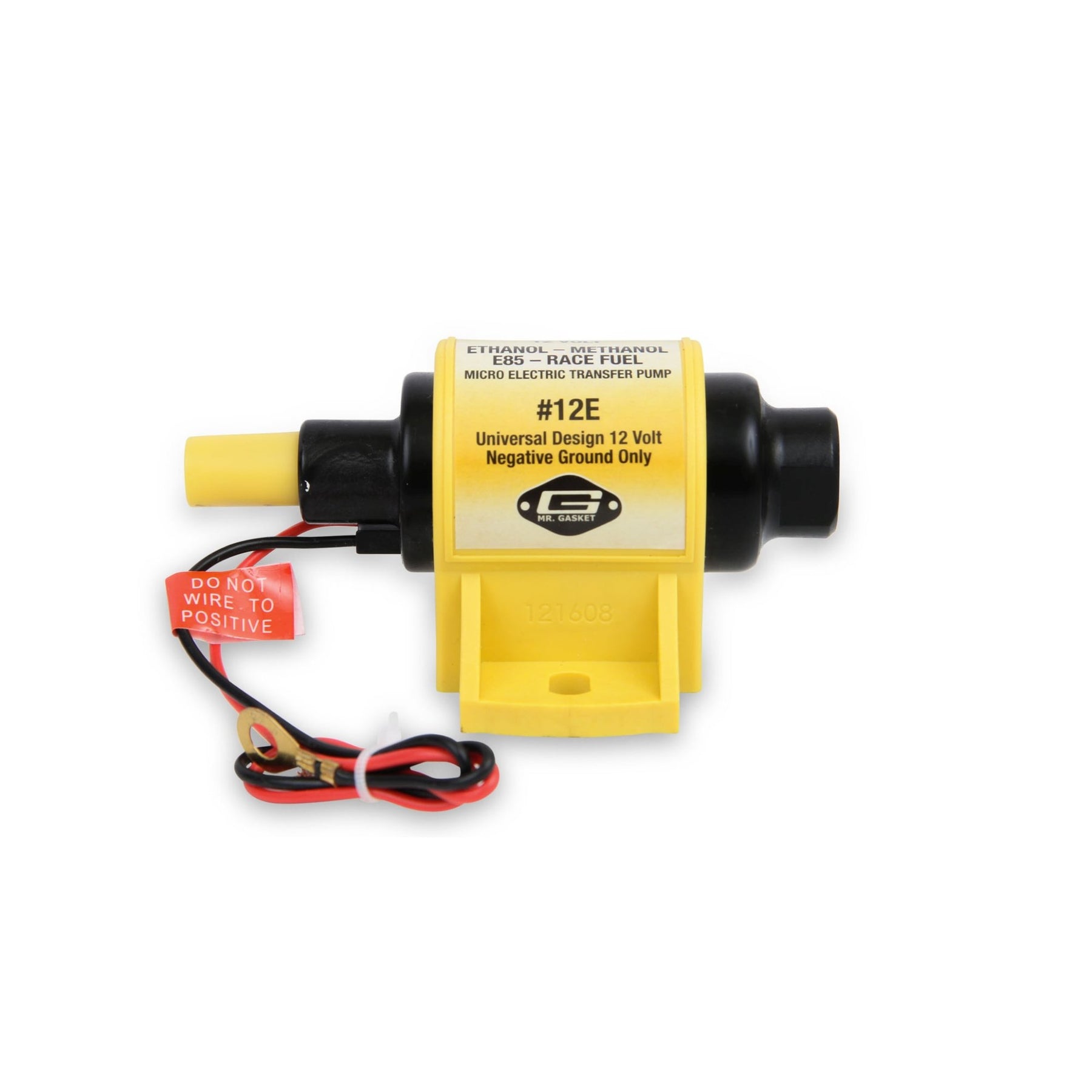

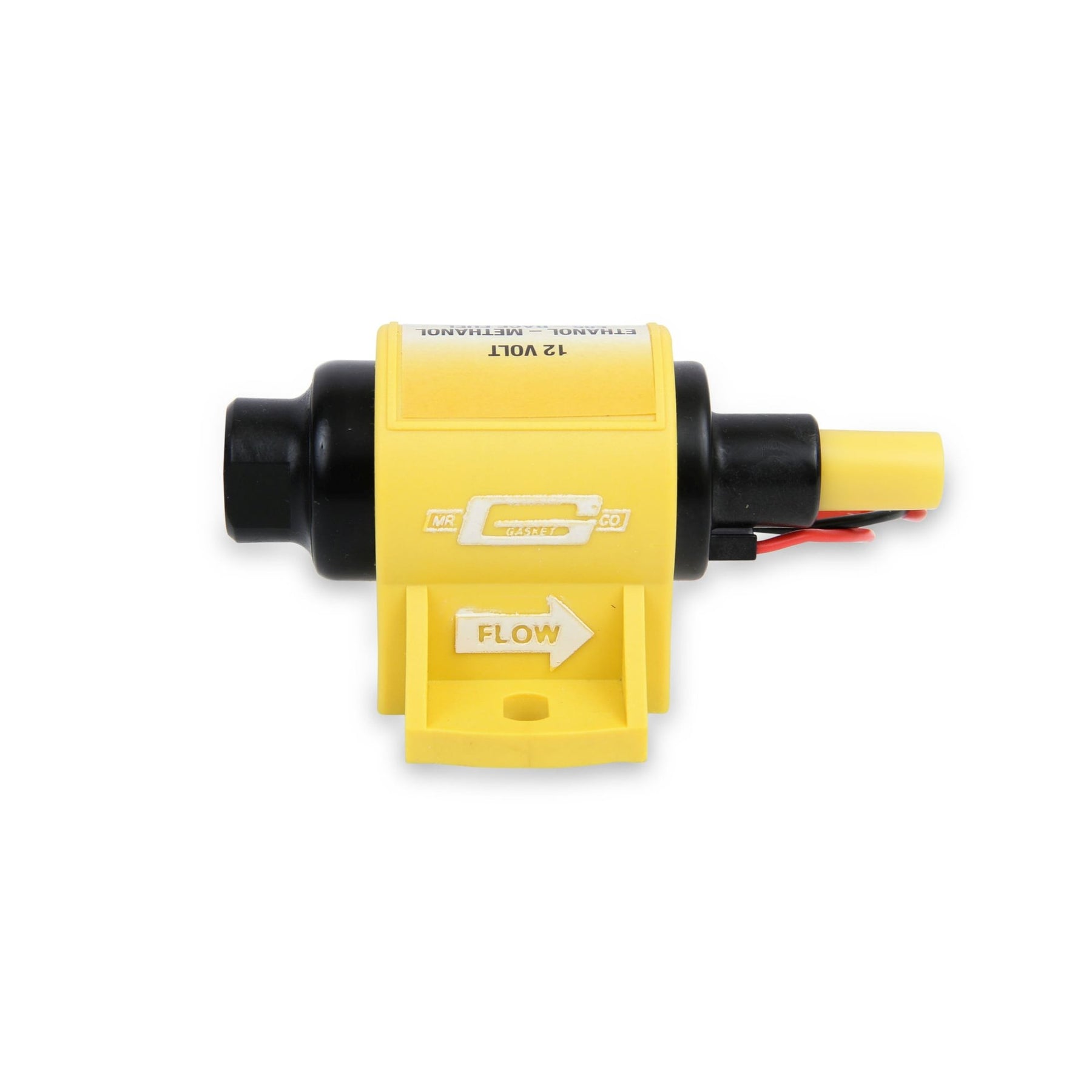

Mr. Gasket Micro Electric Fuel Pump

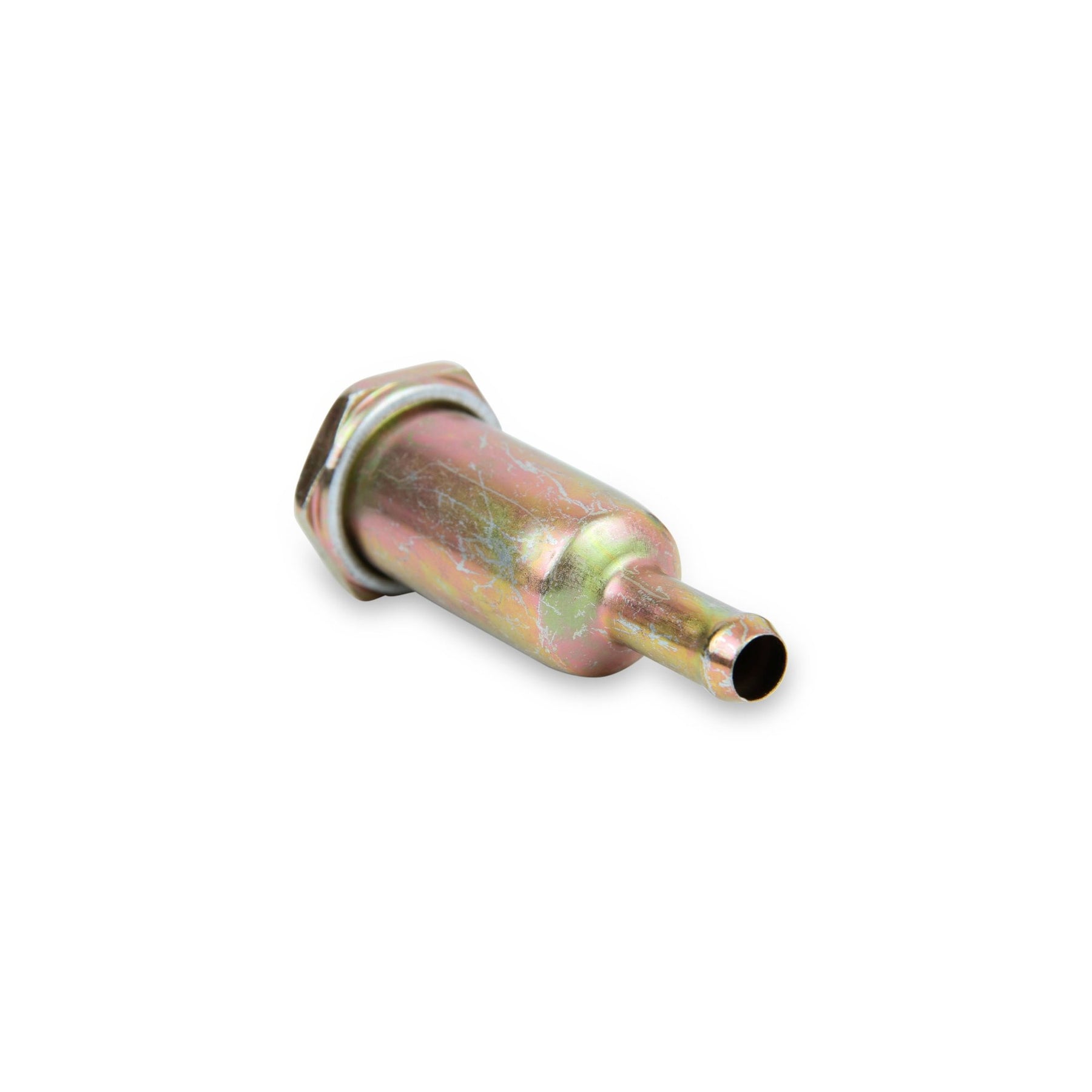

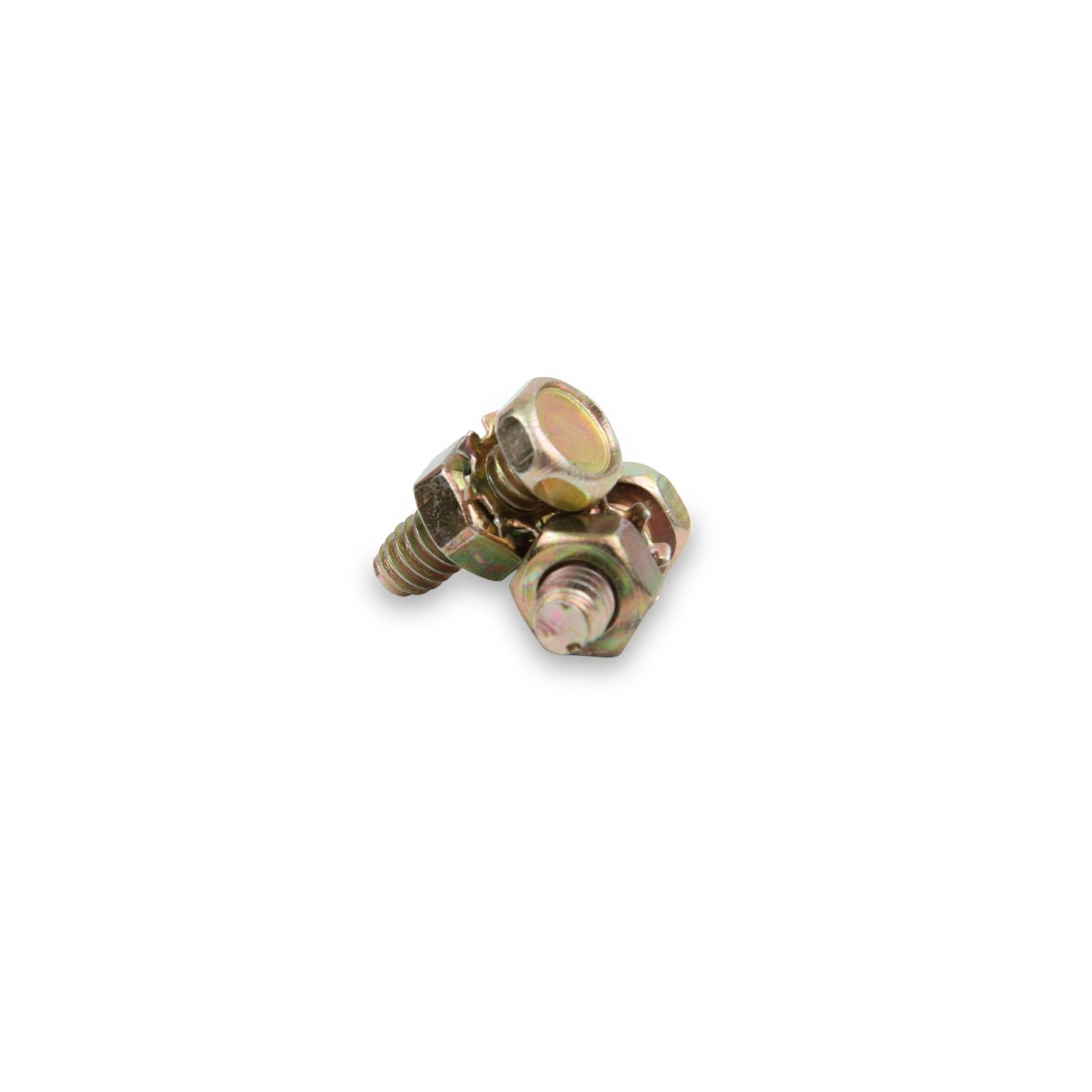

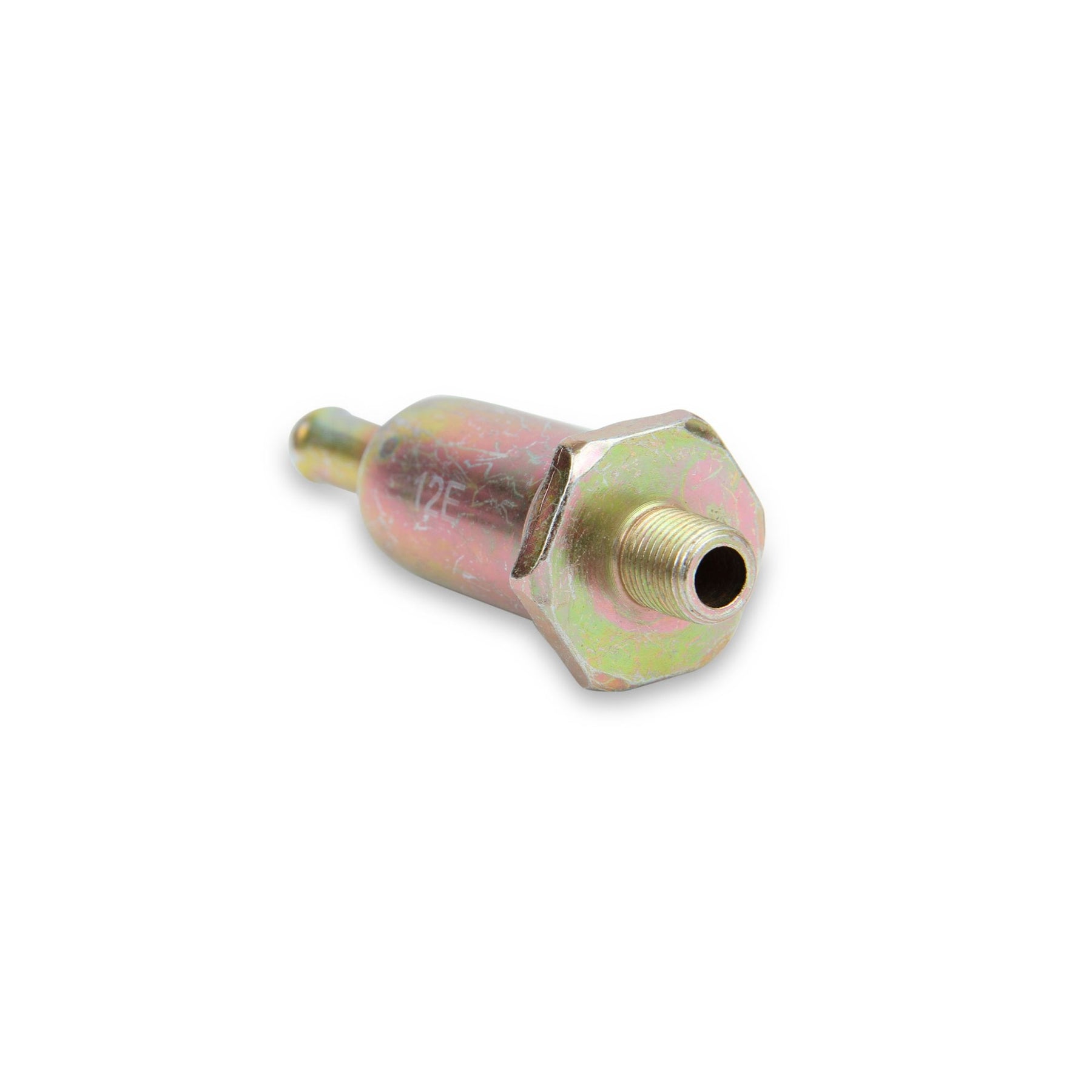

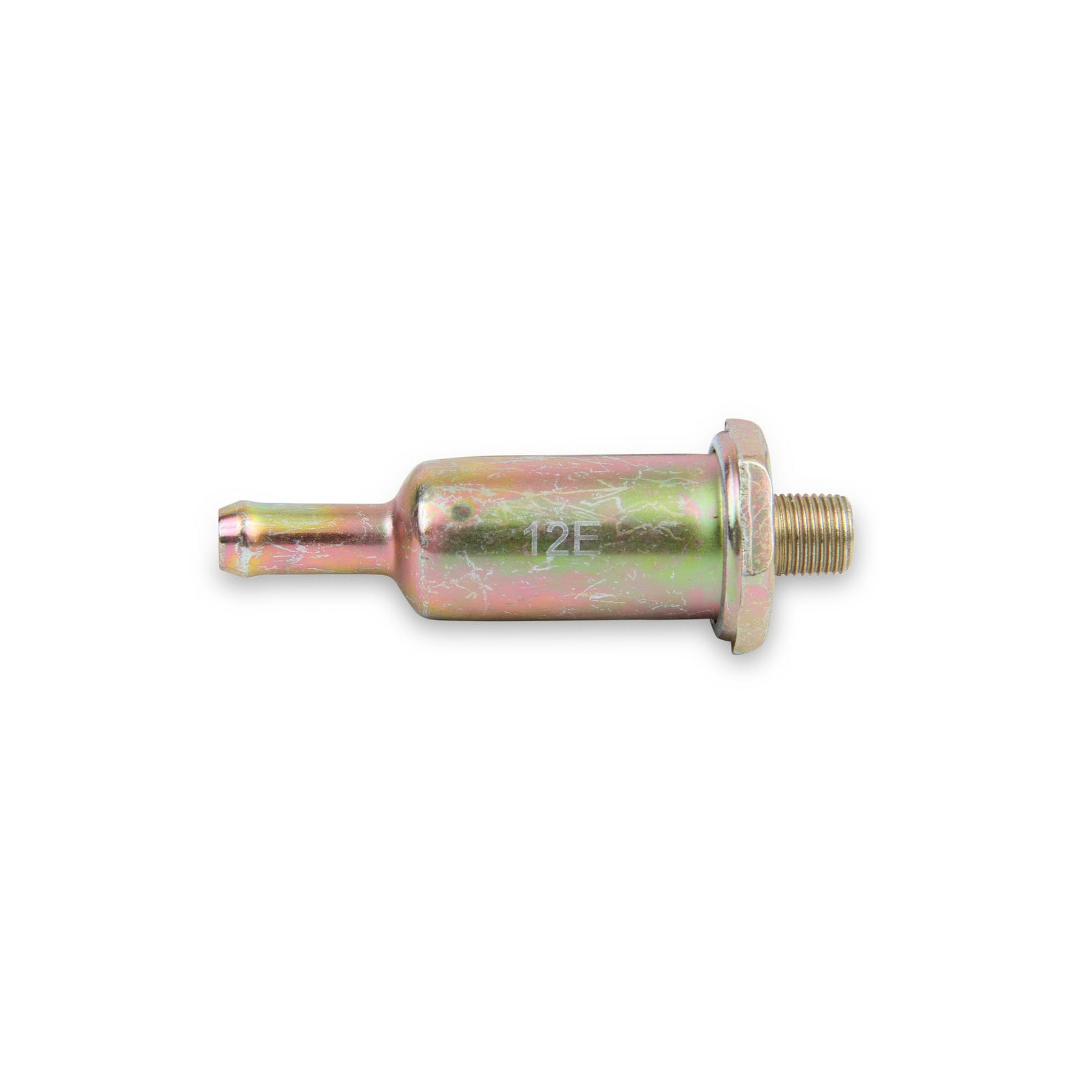

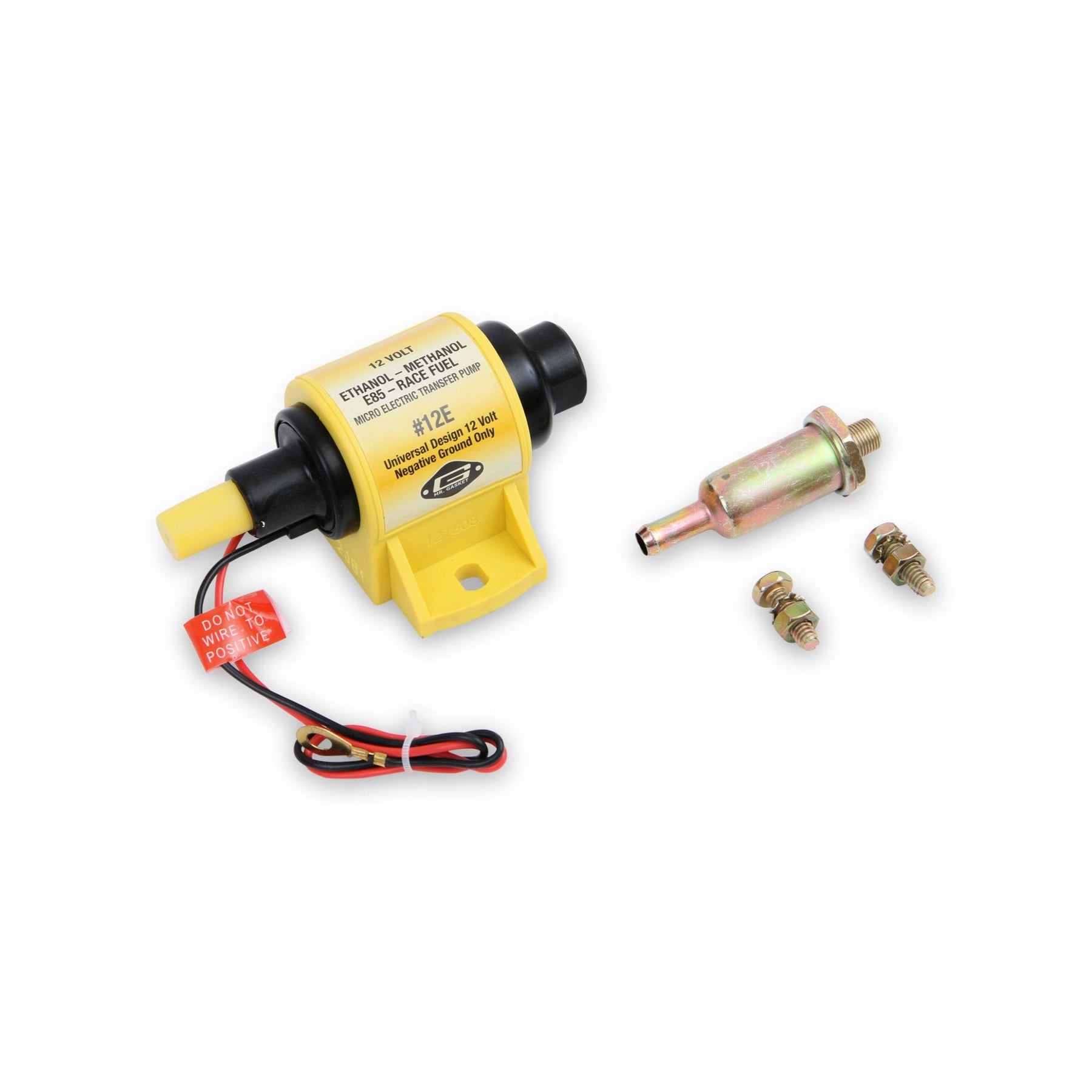

Gravity fed type pump with simple two-wire design. Works on 12 volt negative ground systems only. Includes fittings and mounting hardware along with a 100-micron in-line filter and easy to follow DIY instructions. Pumps require approximately one amp average draw at maximum delivery. At 4-7 psi (pounds per square inch), it pumps 35 gph (gallons per hour) of methanol, E85, or race gas. Universal design for most 4, 6 & 8 cylinder carburetor applications. Please see part #12S for gasoline applications, part #12D for diesel applications or part #42S for import applications.

• Solid-state Worry Free Electronics
• Internal Pressure Regulating
• Universal Design Allows For Easy Installation
• No Diaphragms Or Mechanical Parts To Wear Out
• They Make An Excellent Fuel Transfer or Booster Pump
• Hose Barbs Fit 5/16" Fuel Hose
• Self-priming, 2 wire design
• Eliminates vapor lock and flooding

Specifications

• Application: Automotive
• Average Flow Rating: 35
• Brand: Mr. Gasket
• Category: Air and Fuel Delivery
• Color: Black
• Emission Code: 5
• Finish: Plastic
• Free Flow GPH: 35
• Free Flow LPH: 132
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel Type: Ethanol
• : Methanol
• Gasket Or Seal Included: No
• Grade Type: Performance
• Hose Size: 5/16
• Inlet Fitting Thread Size: 5/16"
• Inlet Type: Barb
• Material: Polymer
• Maximum Pressure: 7
• Mounting Hardware Included: Yes
• Outlet Fitting Thread Size: 5/16"
• Outlet Type: Barb
• Product Type: Fuel Pump
• Strainer Included: No
• Terminal Quantity: 2
• Universal Or Specific Fit: Universal
• Warranty: Manufacturer's Limited 90 Day Warranty
• Weight: 1
• Wiring Harness Included: No
• Part Number: 12E
