Motobilt Traps 17" DIY Beadlock Kit MB4033

Motobilt Traps 17" DIY Beadlock Kit MB4033 – Motobilt part number MB4033.

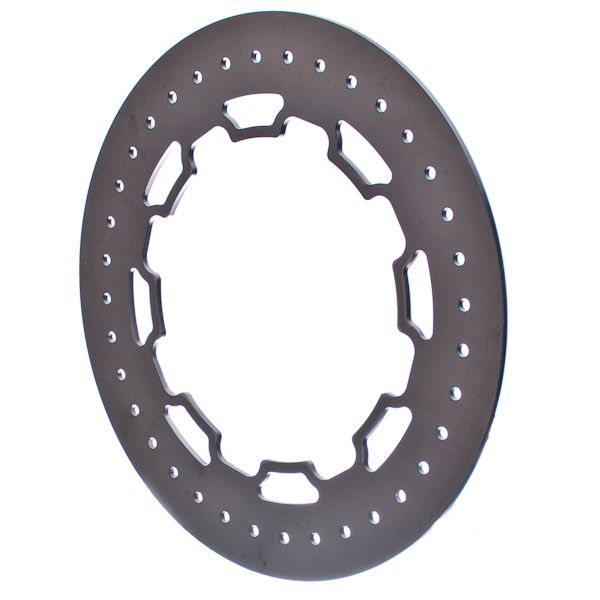

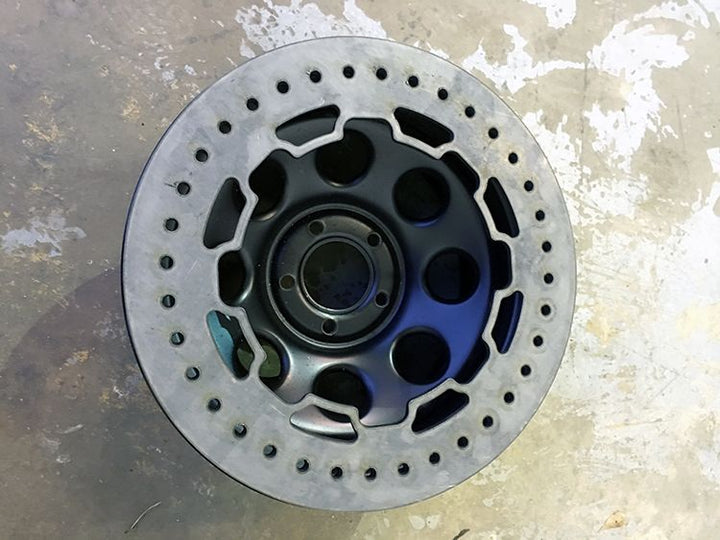

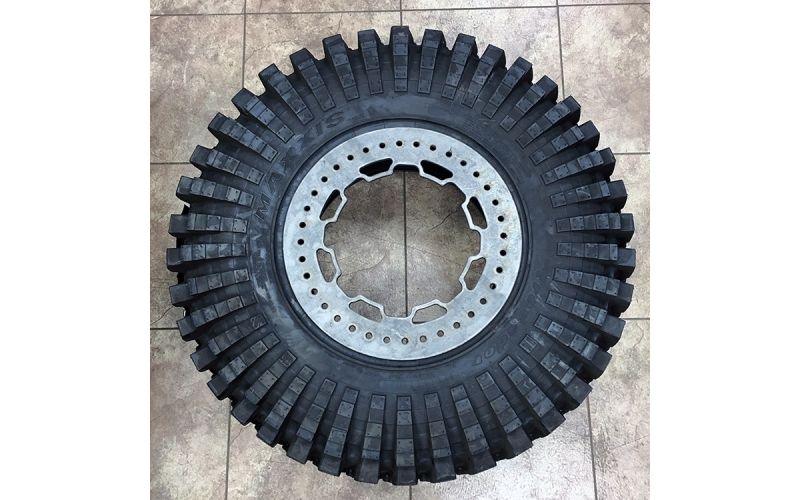

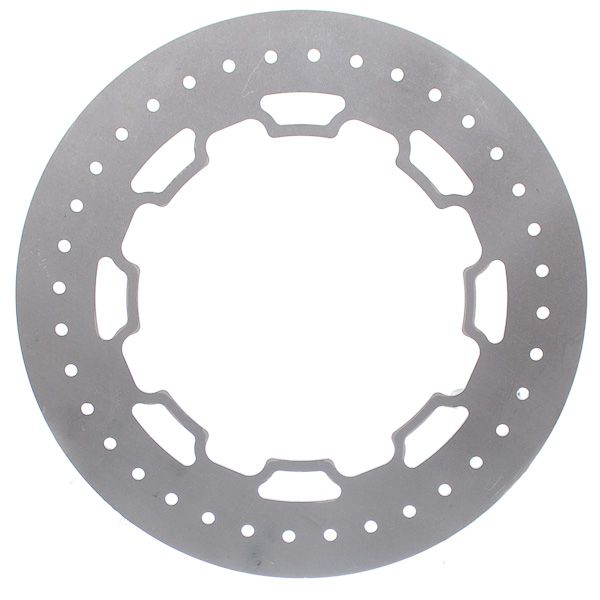

Motobilt DIY Beadlock are cut from 3/16 inch high strength steel on both the inner and outer rings. The inner ring sits in the lip of the wheel insted of on top for better centering. The 17 inch beadlock kit requires 36 bolts, nuts, and flat washers (hardware not included). Motobilt DIY bead lock are intended for offroad use only. Installation should be performed by a qualified welder. Shipped raw steel.

• Traps 17 inch DIY beadlock kit
• 3/16 inch high strength steel on both the inner and outer rings
• 17 inch beadlock kit requires 36 bolts, nuts, and flat washers
• Hardware not included
• Ships raw steel
• Sold as each

Note:

• Motobilt DIY bead lock kits are intended for offroad use only
• Installation should be performed by a qualified welder
• Anti-coning rings are 1/8 inch x 1/2 inch rolled steel and fit just inside the bolt circle sold separately

Specifications

• Material: Steel
• Finish: Bare steel
• Thickness: 3/16 Inch
• Style: Traps
• Location: Front, Rear
• Hardware included: No
• Sold as: Each

Product information

• Motobilt part number: MB4033
• Country of origin: USA
• Package size: 20 x 20 x 4 in
• Shipping weight: 75 lb
