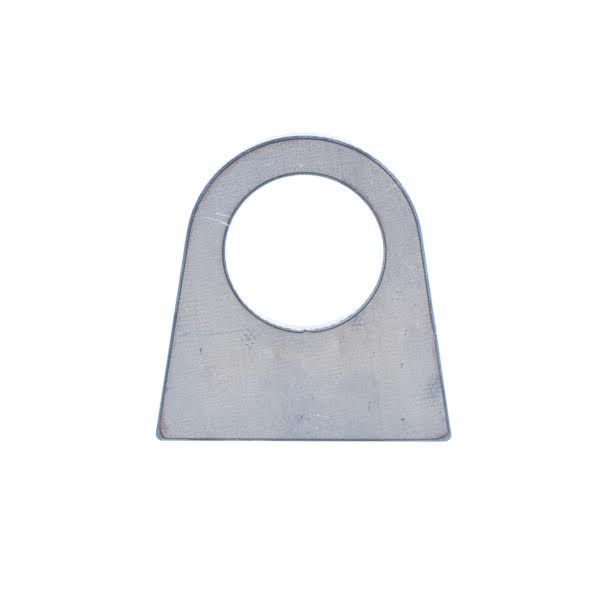

Motobilt Straight Tab for Poly Bushing MB2090 – Motobilt part number MB2090.
The Motobilt MB2090 is a straight tab for mounting spring eye bushings. This tab is CNC cut from 1/4 inch steel plate. Made to fit 1.75 inch OD round tube. Using two of these tabs will allow you to mount a leaf spring bushing on just about anything.
The tab is 3.5 inch wide at the base. From the center of the hole to the bottom of the tab is 2.0625 inch. This extra length allows you much flexibility in mounting. You can cut the tab down, put a bend in it, cut it at an angle, or even notch it to fit your application.
Features:
- Straight Tab for Mounting Spring Eye Bushings
- CNC cut from 1/4 inch steel plate
- Fit 1.75 inch OD round tube
- 3.5 inch wide at the base
- Center of the hole to the bottom of the tab is 2.0625 inch
- Sold as each
Some uses are:
- Shackle mount
- Motor mount
- Crossmember mount
- Control arm mount
- Roll cage mount
- The possibilities are endless!
Note:
- Require at least 2 typically for a mount
- Tube and bushing are not included
Specifications
- Material: Steel
- Finish: Bare steel
- Thickness: 1/4 Inch
- Hardware included: No
- Sold as: Each
Product information
- Motobilt part number: MB2090
- Country of origin: USA
- Package size: 51 x 13 x 27 in
- Shipping weight: 60 lb
