Motobilt Straight Long Shackle 4" MB1527-40

Motobilt Straight Long Shackle 4" MB1527-40 – Motobilt part number MB1527-40.

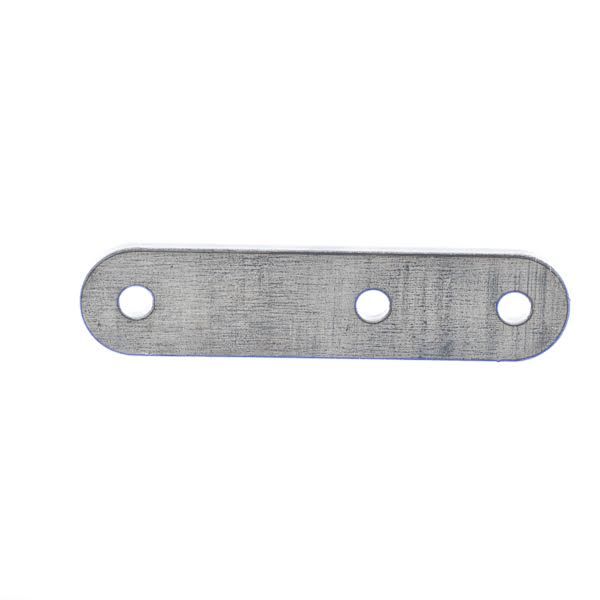

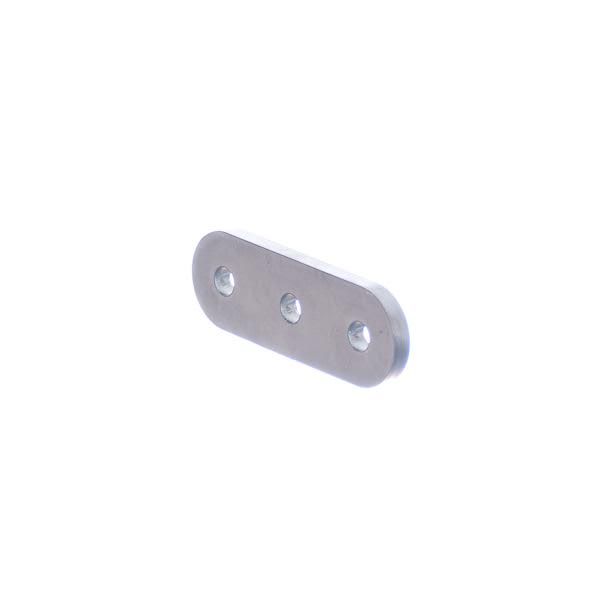

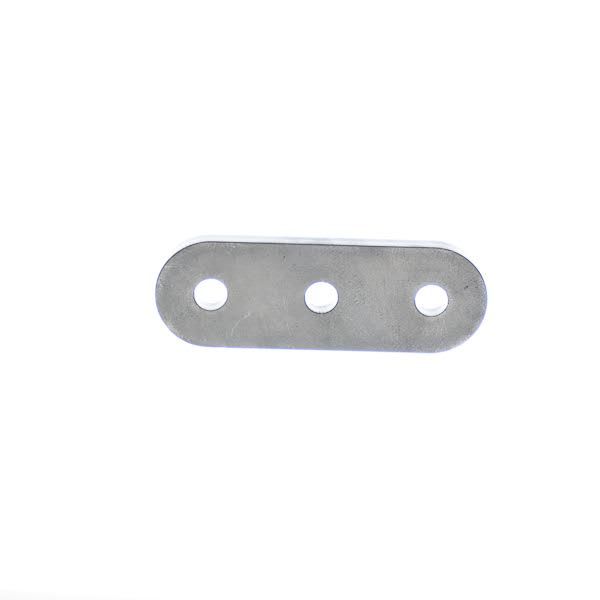

The Motobilt shackle plates are made out of 3/8 inch thick steel plate that is cnc laser cut. Each shackle plate uses 1/2 inch holes and a 3rd middle hole that can be used as a tie plate. A small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications. Measurements are the span from centers on each hole.
Features:

• Straight long shackle 4 inch
• 3/8 inch thick steel plate
• Shackle plate uses 1/2 inch holes and a 3rd middle hole
• Sold as each

Note:

• Small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications
• Measurements are the span from centers on each hole

Specifications

• Material: Steel
• Thickness: 3/8 Inch
• Location: Front, Rear
• Hole diameter: 1/2 Inch
• Sold as: Each

Product information

• Motobilt part number: MB1527-40
• Country of origin: USA
• Package size: 7 x 5 x 3 in
• Shipping weight: 2 lb
