Motobilt Steering Column Mount MB2105

Motobilt Steering Column Mount MB2105 – Motobilt part number MB2105.

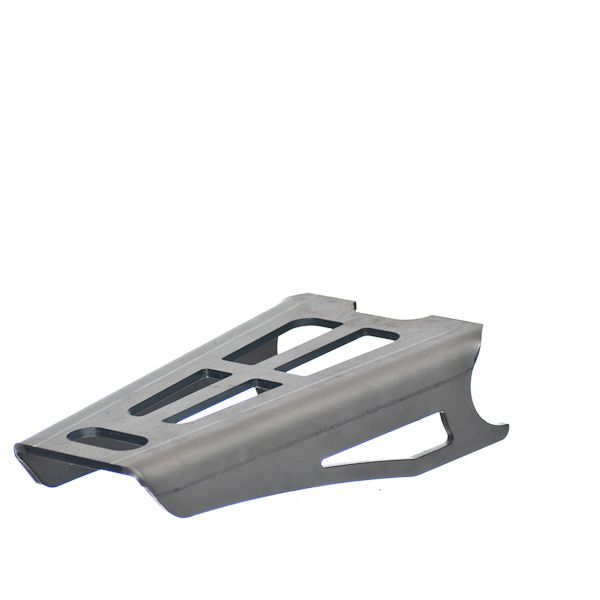

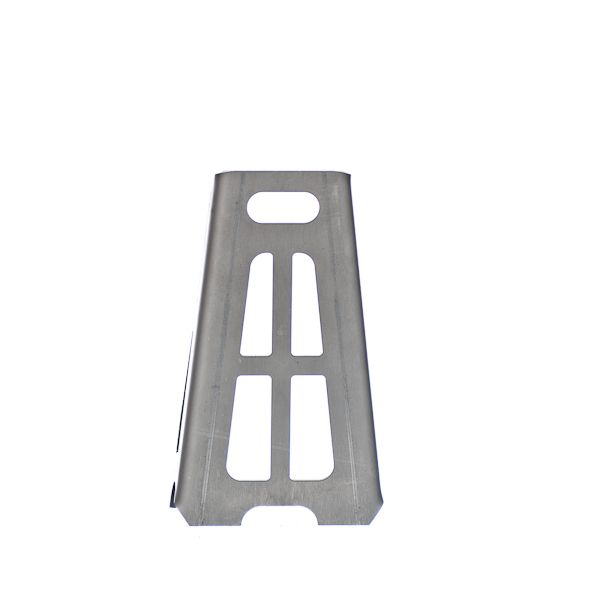

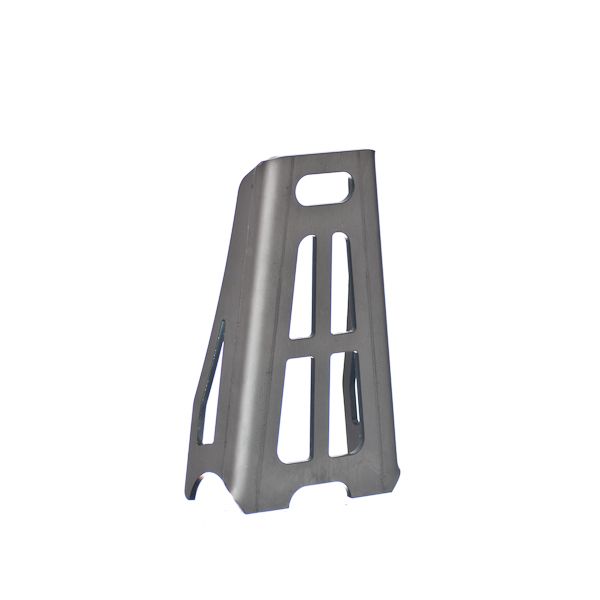

The Motobilt Steering Column Mount for use with a heim joint is laser cut and bent out of 3/16 inch steel. We chose 3/16 inch thick steel because it is more heavy duty than others on the market. The Motobilt Steering Column mount is designed to hold up to rock bouncers and rock crawlers where you might be putting extra force on the steering column. Designed to mount to 1.75 inch tube and uses a 3/4 inch x 3/4 inch heim joint with a 3/4 inch piece of DOM tubing to create the steering column. The center of the tube to the heim joint mounting location is 8 inch in width. Where the mount attaches to the tubing is approximately 5.25 inch wide. Ships bare metal with no hardware.
Features:

• Steering Column Mount
• Laser cut 3/16 inch steel
• Designed to mount to 1.75 inch tube
• Uses a 3/4 inch x 3/4 inch heim joint with a 3/4 inch piece of DOM tubing
• Center of the tube to the heim joint mounting location is 8 inch in width
• No hardware
• Sold as each

Note:

• Ships bare steel

Specifications

• Material: Steel
• Thickness: 3/16 Inch
• Location: Front
• Hardware included: No
• Sold as: Each

Product information

• Motobilt part number: MB2105
• Country of origin: USA
• Package size: 10 x 8 x 6 in
• Shipping weight: 7 lb
