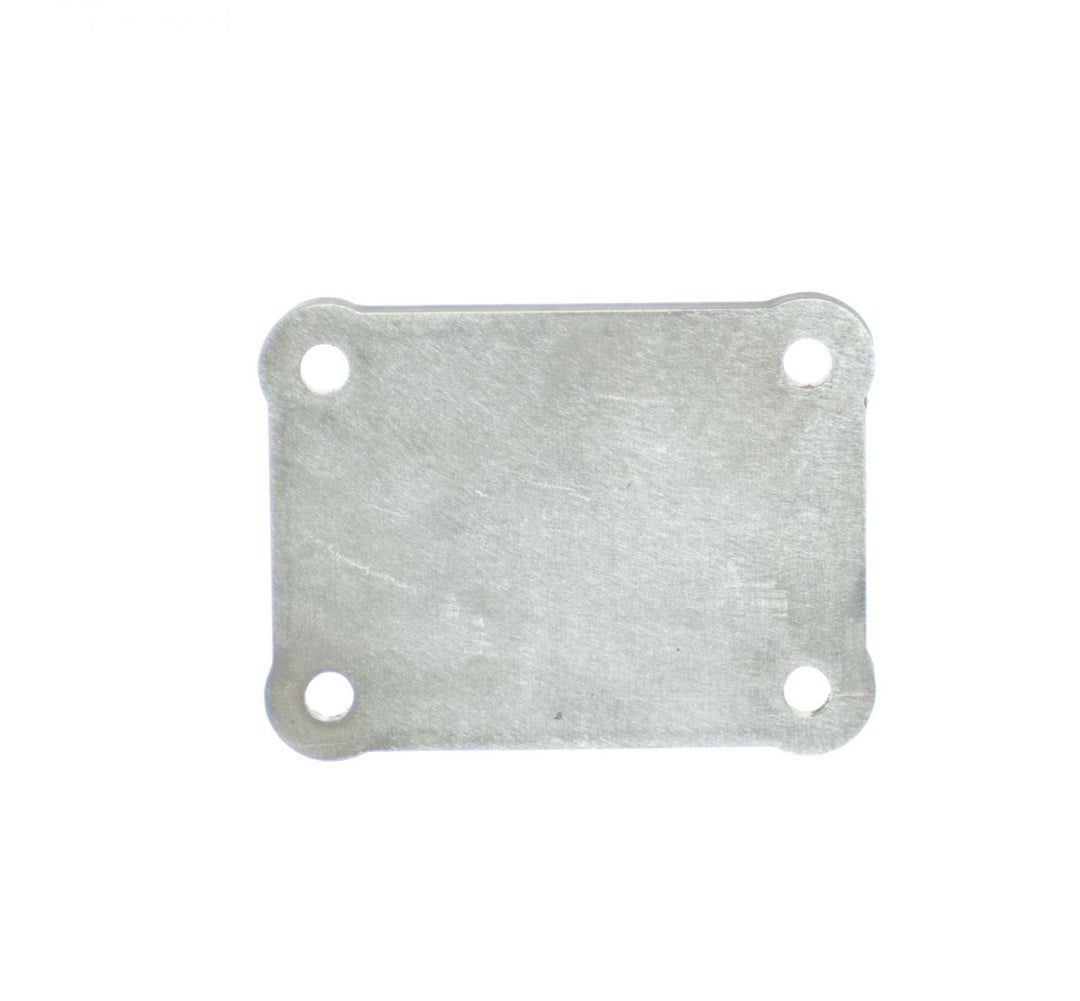

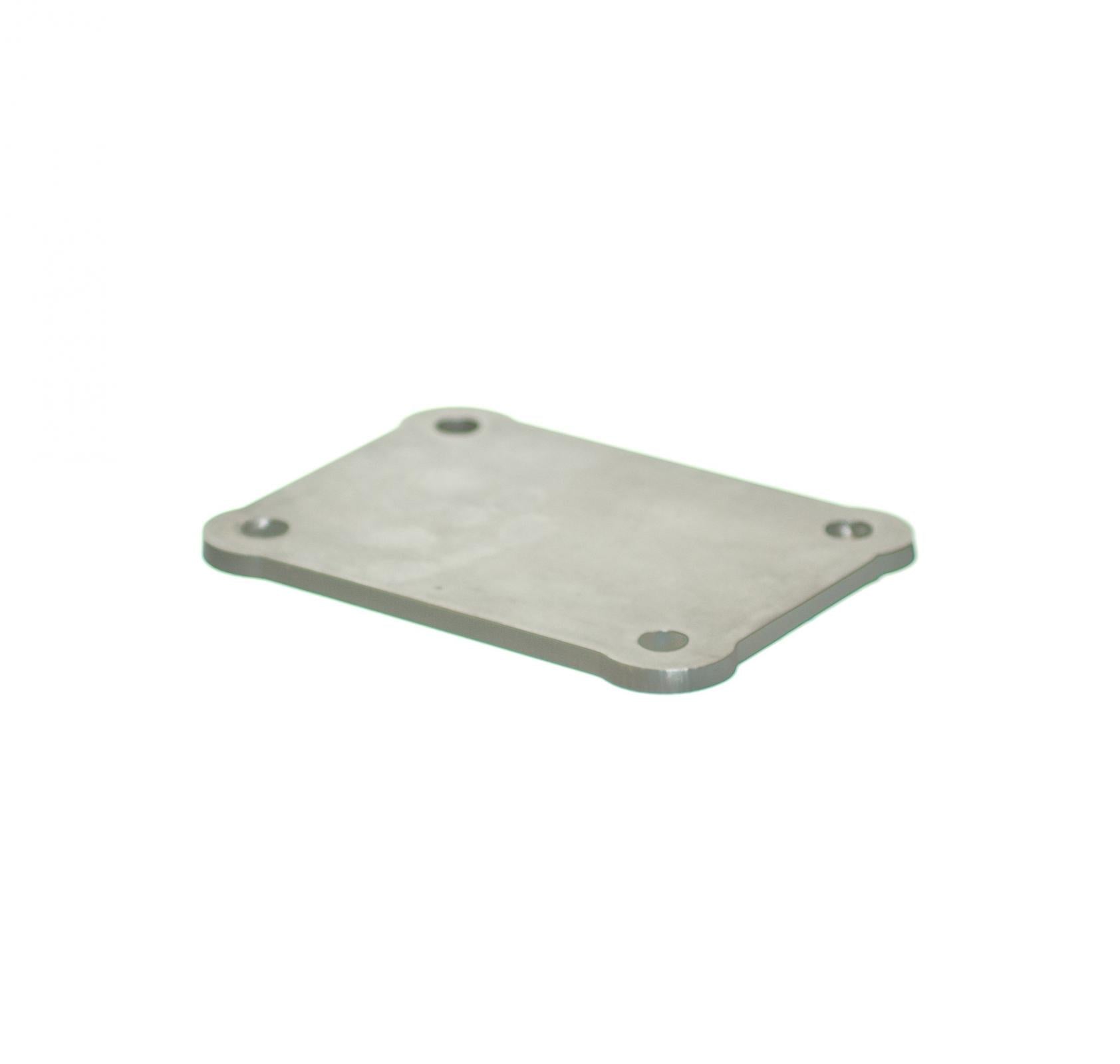

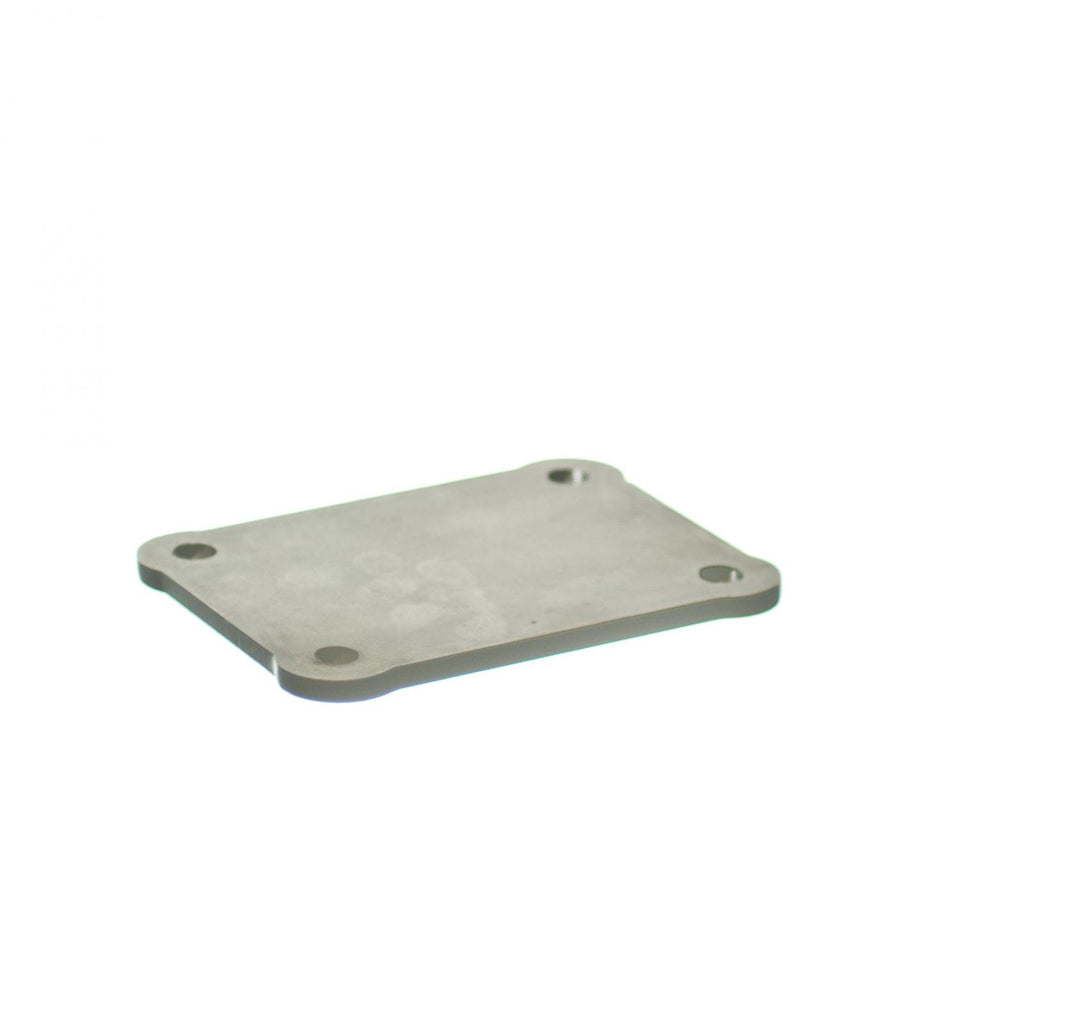

Motobilt Roll Cage Foot 4 x 5" Steel Each MB2007

Motobilt Roll Cage Foot 4 x 5" Steel Each MB2007 – Motobilt part number MB2007.

The Motobilt Roll Cage Foot is sold as a single plate. It is CNC Laser cut from high strength 3/16 inch thick steel plate. The outside dimensions are 4 inch x 5 inch. The bolt hole pattern is 3 inch x 4 inch. The bolt hole diameter is 3/8 inch. This is considered a universal tab for mounting roll cages and other parts. When mounting a roll cage it is recommended to use two plates per mounting point. One on top and bottom of the sheet metal tub. The bottom plate can then securely mounted to the chassis.
Features:

• Roll Cage Foot
• CNC Laser cut from high strength 3/16 inch thick steel plate
• Outside dimensions are 4 inch x 5 inch
• Bolt hole pattern is 3 inch x 4 inch
• Bolt hole diameter is 3/8 inch
• Sold as each

Note:

• This is considered a universal tab for mounting roll cages and other parts
• When mounting a roll cage it is recommended to use two plates per mounting point

Specifications

• Material: Steel
• Thickness: 3/16 Inch
• Location: Rear
• Hole diameter: 3/8 Inch
• Sold as: Each

Product information

• Motobilt part number: MB2007
• Country of origin: USA
• Package size: 6 x 6 x 3 in
• Shipping weight: 2.5 lb
