Motobilt Micro Rear Bumper with Light Bar Cut Out for 2007-2018 Jeep JK MB1039

Motobilt Micro Rear Bumper with Light Bar Cut Out for 2007-2018 Jeep JK MB1039 – Motobilt part number MB1039.

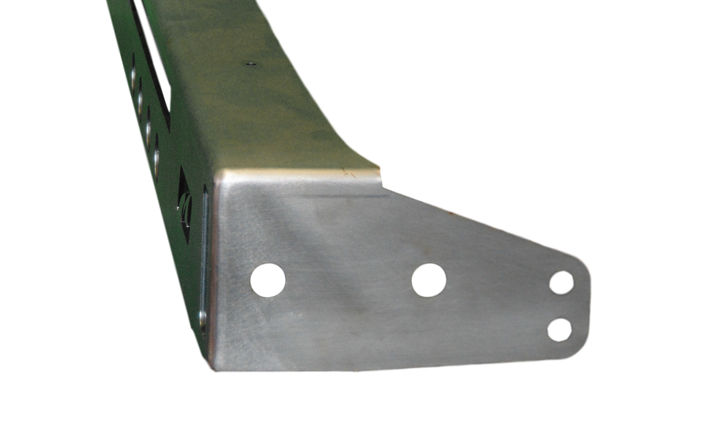

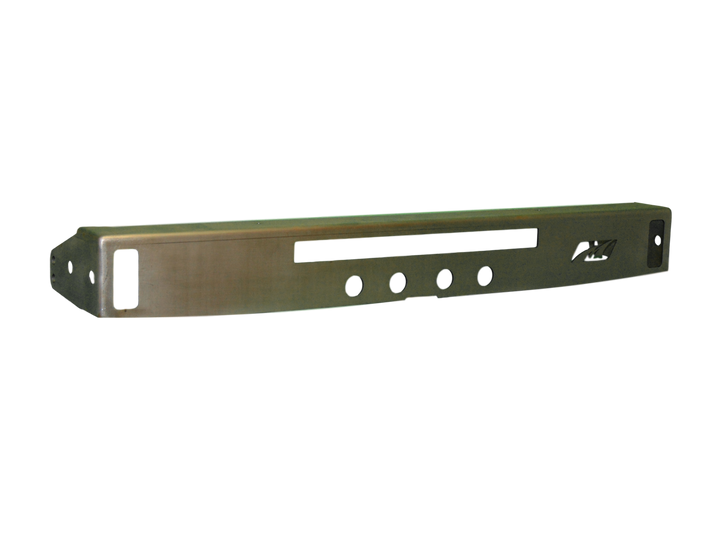

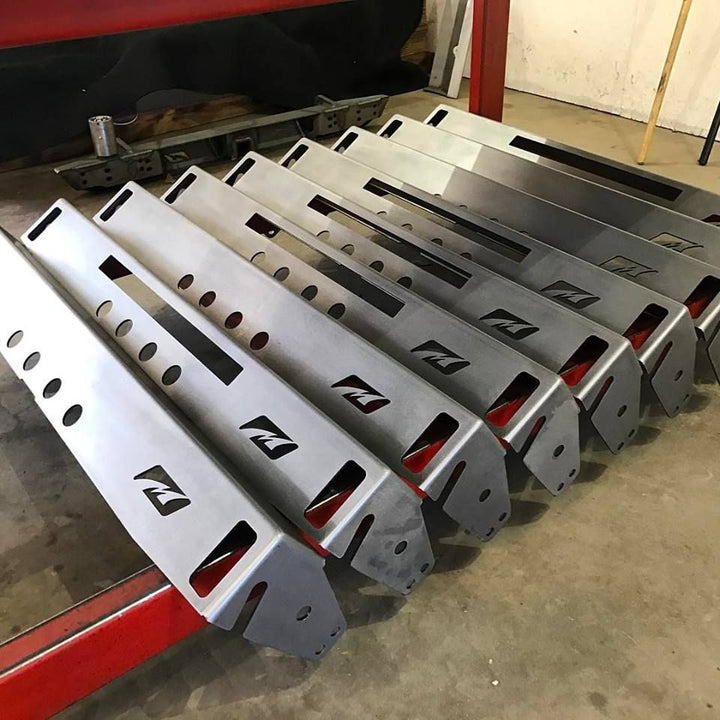

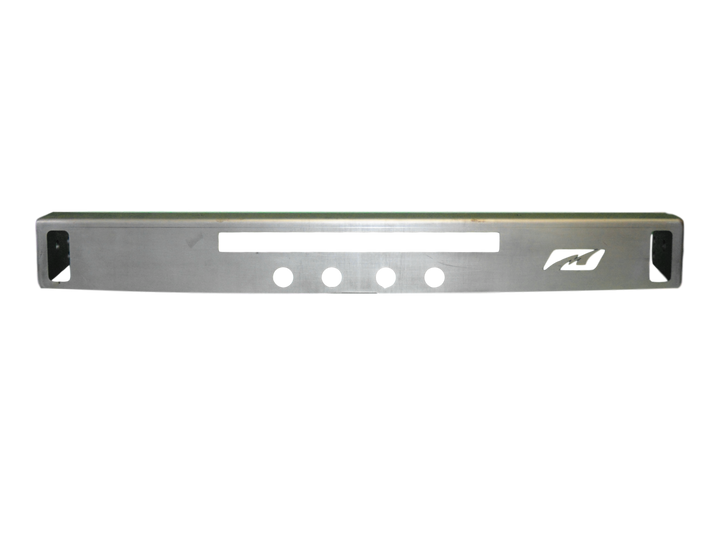

The Motobilt Jeep JK Micro rear bumper is CNC cut and formed out of 3/16 inch plate. Four holes in bumper are to clear the hit bolts because it fits tightly to the frame. Micro bumper has a cut out for a 20 inch single row light bar designed for a light bar measuring 21.5 inch wide at the mounting surface.

Bumper does clear factory style receiver hitch. You will have to slightly trim off the frame on the back. Only minimal trimming required in a way where if you want to change bumpers in the future, it will not hinder other bumper fitment. Ships bare metal so you can paint or powdercoat the color of your choice.
Features:

• Jeep JK micro rear bumper with LED light bar mount
• CNC cut and formed out of 3/16 inch plate
• Cut out for a 20 inch single row light bar
• Rear d-ring mounts available
• 20 inch LED light bar available
• Hardware not included
• Sold as each

Note:

• Ships bare metal, paint or powdercoat needed before use
• Motobilt Jeep JK Micro Rear Bumper Cover is designed to be used with Motobilt Jeep JK Rear D-Ring mounts
• Purchase PN MB2072 if you require D Ring mounts

Disclaimer:

• Bumper laws vary from state to state. Please ensure rear bumper requirements in your area. Offroad use only. Not designed to be run with a spare tire.

Specifications

• Material: Steel
• Finish: Bare steel
• Thickness: 3/16 Inch
• Location: Rear
• Hardware included: No
• Sold as: Each

Product information

• Motobilt part number: MB1039
• Country of origin: USA
• Package size: 48 x 12 x 12 in
• Shipping weight: 32 lb

Resources

• Product video
