Motobilt Lower Link Mounts 10 Degree Offset 3/4" Bolt Hole Pair MB1536-10-750

Motobilt Lower Link Mounts 10 Degree Offset 3/4" Bolt Hole Pair MB1536-10-750 – Motobilt part number MB1536-10-750.

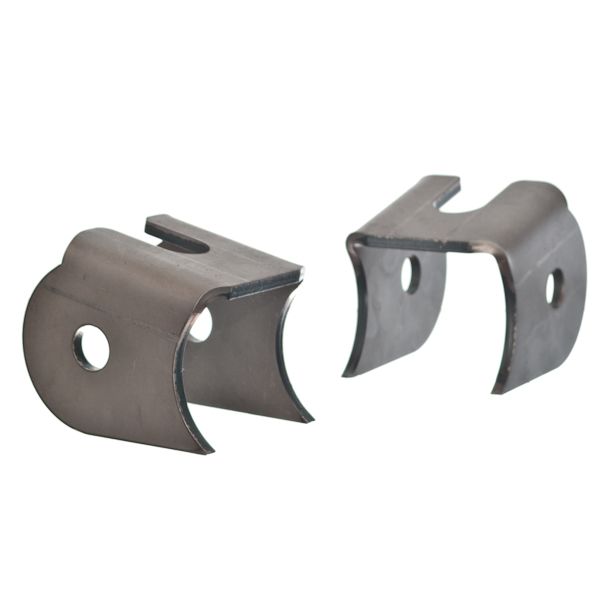

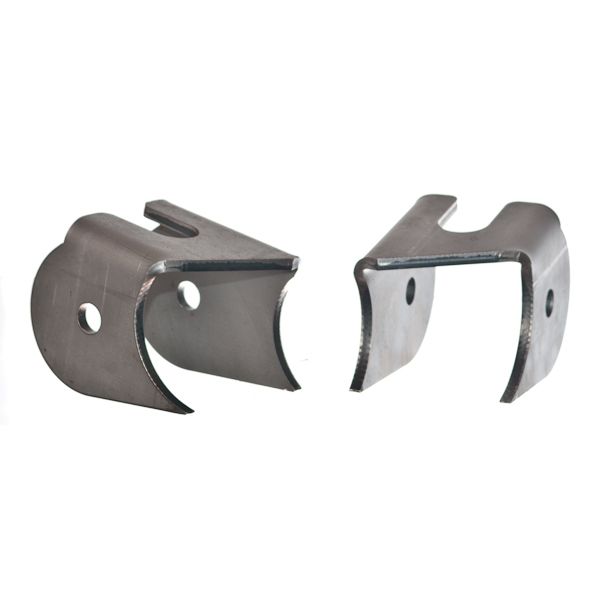

The Motobilt lower link mounts are a secure way to mount your suspension links. They are made from 3/16 inch thick steel plate that is laser cut and then cnc bent. These are designed to fit a 3 inch axle tube diameter. The Motobilt lower link mounts for your axle are sold as a pair which is enough to do one axles lower links. They come raw steel and will need to be professionally welded to your axle.

• Lower link mounts 10 degree of offset with 3/4 inch bolt hole
• Laser cut 3/16 inch thick steel plate
• Designed to fit a 3 inch axle tube diameter
• Sold as pair

Note:

• Ships raw steel
• Need to be professionally welded to your axle

Specifications

• Material: Steel
• Finish: Bare steel
• Thickness: 3/16 Inch
• Location: Front, Rear
• Axle tube: 3 Inch
• Hole diameter: 3/4 Inch
• Sold as: Pair

Product information

• Motobilt part number: MB1536-10-750
• Country of origin: USA
• Package size: 6 x 6 x 6 in
• Shipping weight: 5 lb
