Motobilt Lower Coilover Mount Kit MB1537

Motobilt Lower Coilover Mount Kit MB1537 – Motobilt part number MB1537.

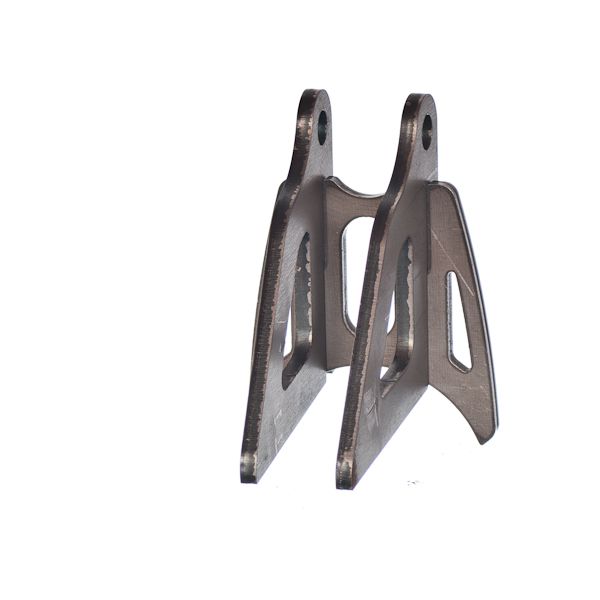

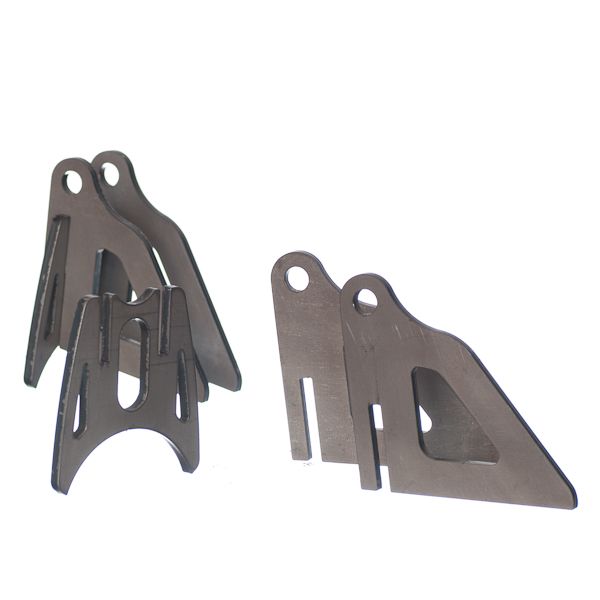

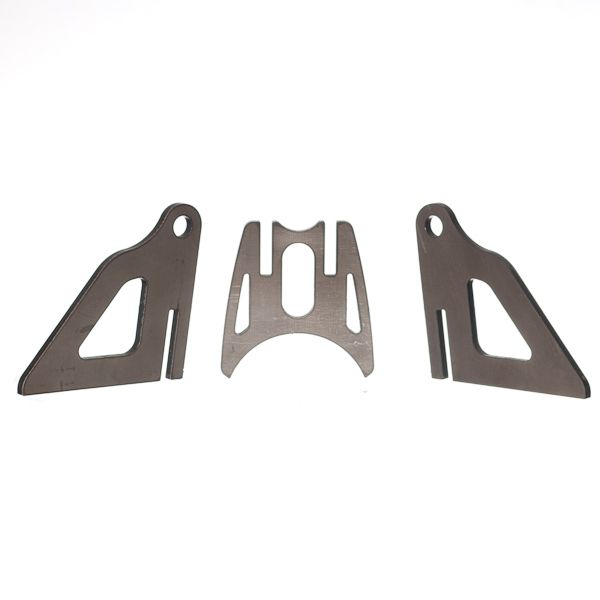

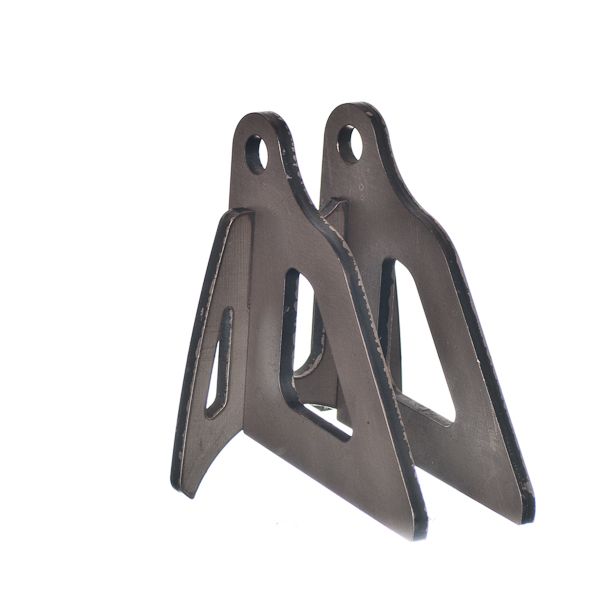

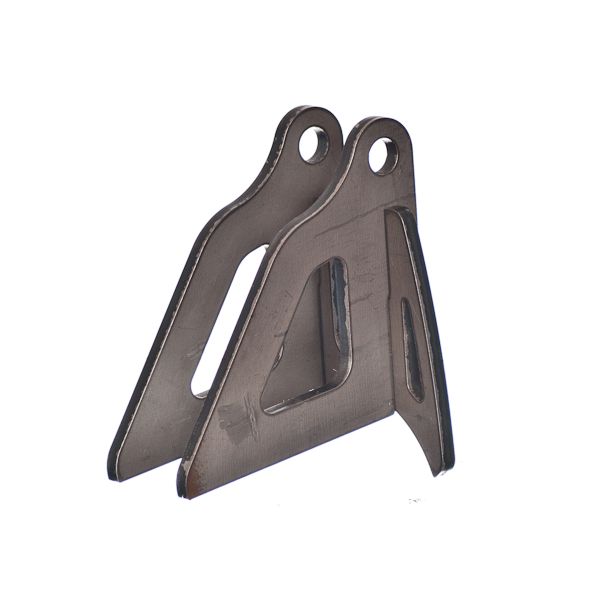

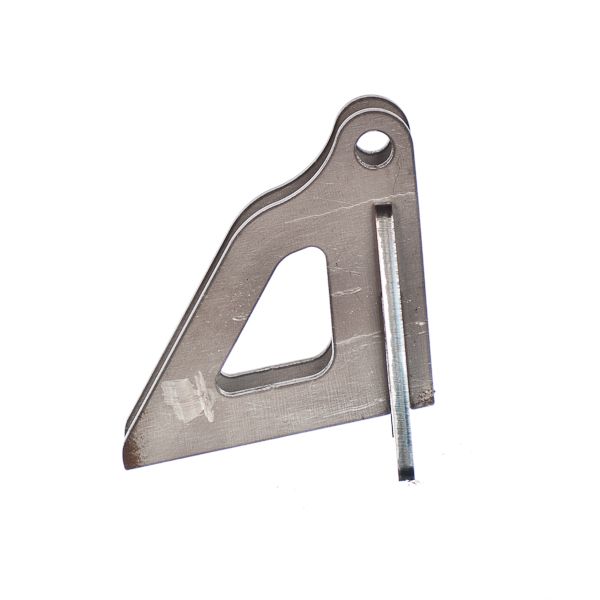

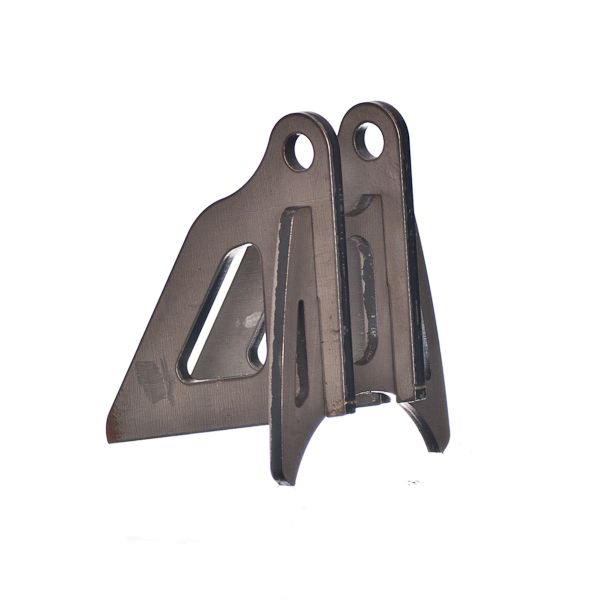

The Motobilt lower coilover bracket kit is designed for any axle with a tube diameter up to 3.5 inch. We laser cut the brackets in house at Motobilt HQ from 1/4 inch thick steel plate.. The mounting hole is 1/2 inch but can easily be drilled to a larger diameter. The over all height of the bracket front the top of the axle tube is just over 4.25 inch.

• Lower coilover bracket kit
• Laser cut 1/4 inch thick steel plate
• Mounting hole is 1/2 inch
• Over all height of the bracket front the top of the axle tube is just over 4.25 inch
• Includes 6 parts in all that are keyed off of one another to self align. Once they are you can weld them into position
• Sold as kit

Note:

• The kit is enough to do two lower coilover mounts
• Ships bare metal

Specifications

• Material: Steel
• Finish: Bare steel
• Thickness: 1/4 Inch
• Location: Front, Rear
• Axle tube: 3.5 Inch
• Hole diameter: 1/2 Inch
• Sold as: Kit

Product information

• Motobilt part number: MB1537
• Country of origin: USA
• Package size: 6 x 6 x 6 in
• Shipping weight: 10 lb
