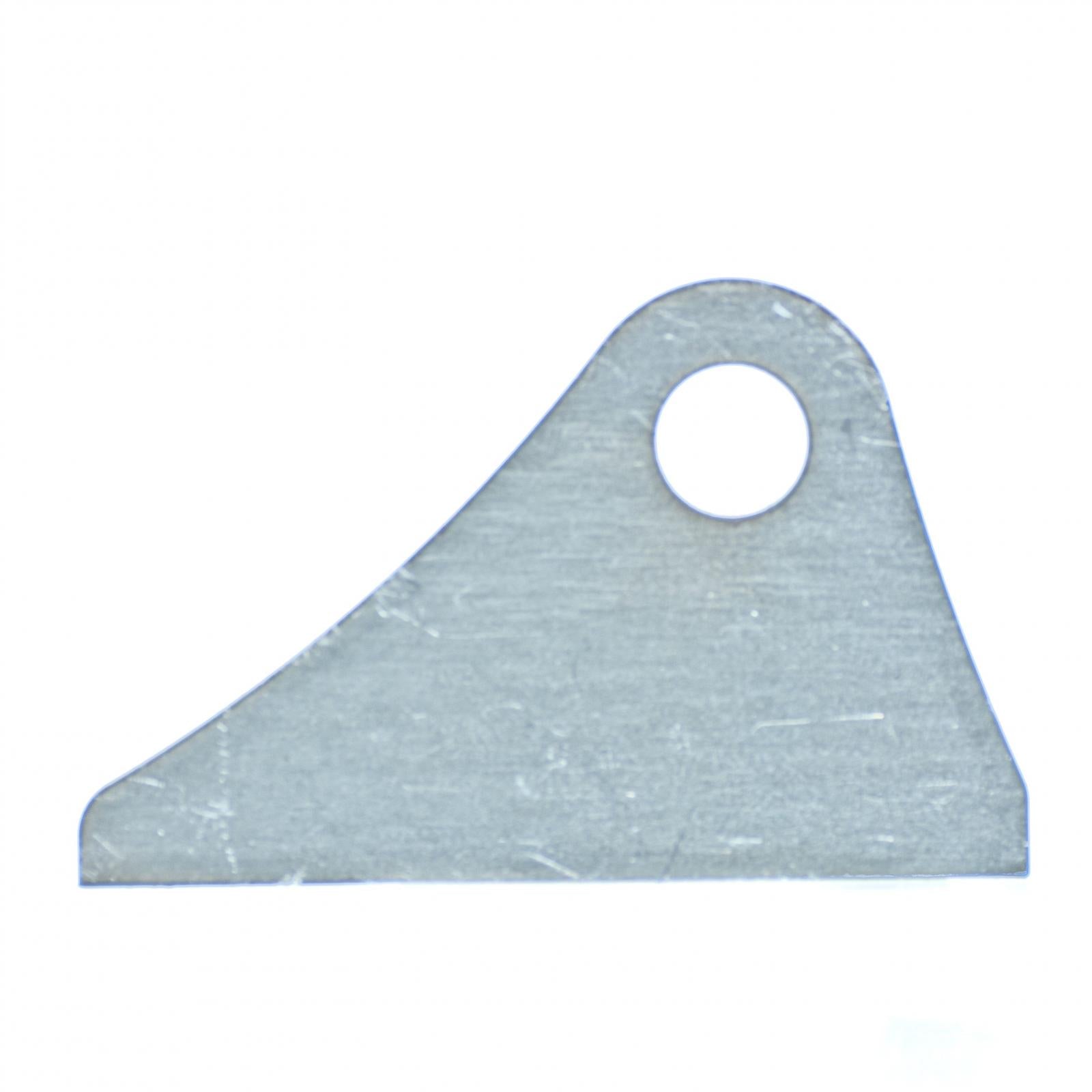

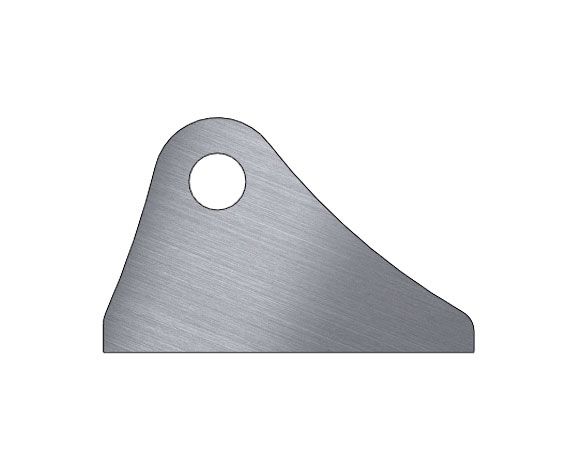

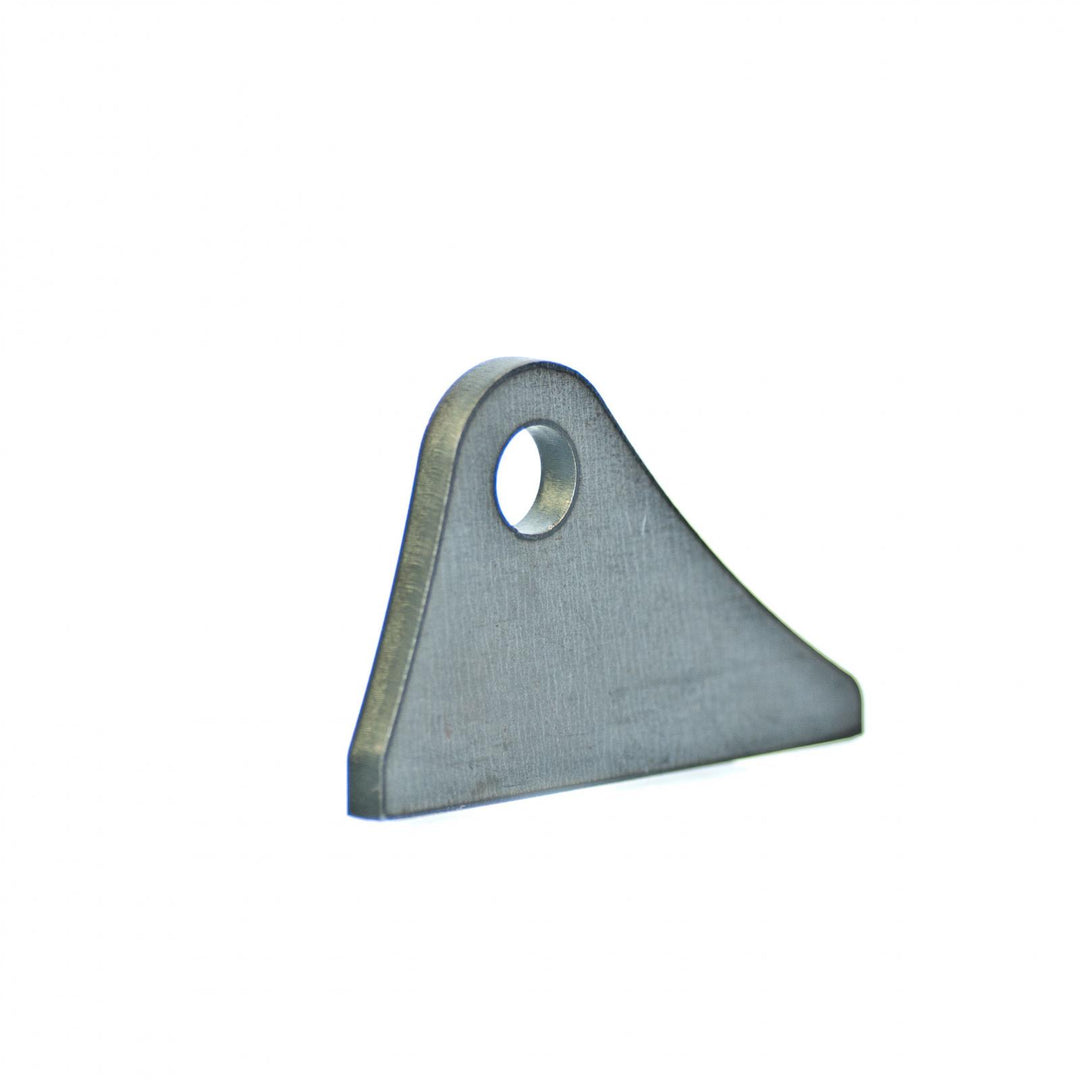

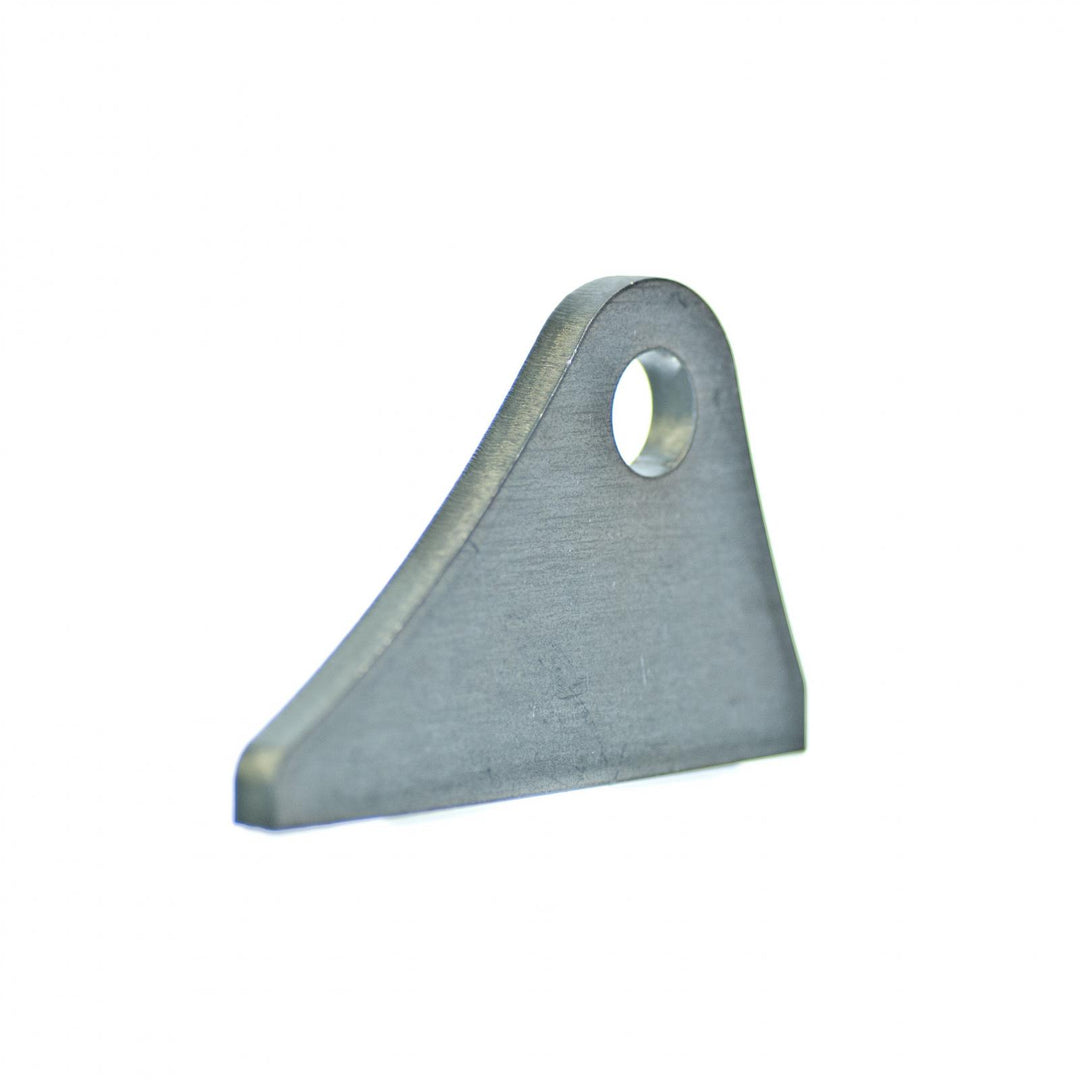

Motobilt Flat Mounting Coilover Tab Offset Hole MB2004

Motobilt Flat Mounting Coilover Tab Offset Hole MB2004 – Motobilt part number MB2004.

The Motobilt Flat Mounting Coilover Tab can be used in a number of applications. The tab is CNC laser cut from 1/4 inch high strength steel plate. The tab measures 3.25 inch wide at the flat bottom base; The 1/2 inch hole is 1.5 inch up from the flat bottom base. The tab is meant to mount parallel to the axle tube to reduce binding at the coilover mounting point.
Features;

• Flat Mounting Coilover Tab
• CNC laser cut from 1/4 inch steel plate
• 1/2 inch shock mounting hole
• 3.25 inch wide at the base
• 1.5 inch tall to center of mounting hole
• Sold as each

Note:

• Can be used for standard shocks and coilover shocks

Specifications

• Material: Steel
• Thickness: 1/4 Inch
• Location: Front, Rear
• Hole diameter: 1/2 Inch
• Sold as: Each

Product information

• Motobilt part number: MB2004
• Country of origin: USA
• Package size: 6 x 6 x 3 in
• Shipping weight: 0.3 lb
