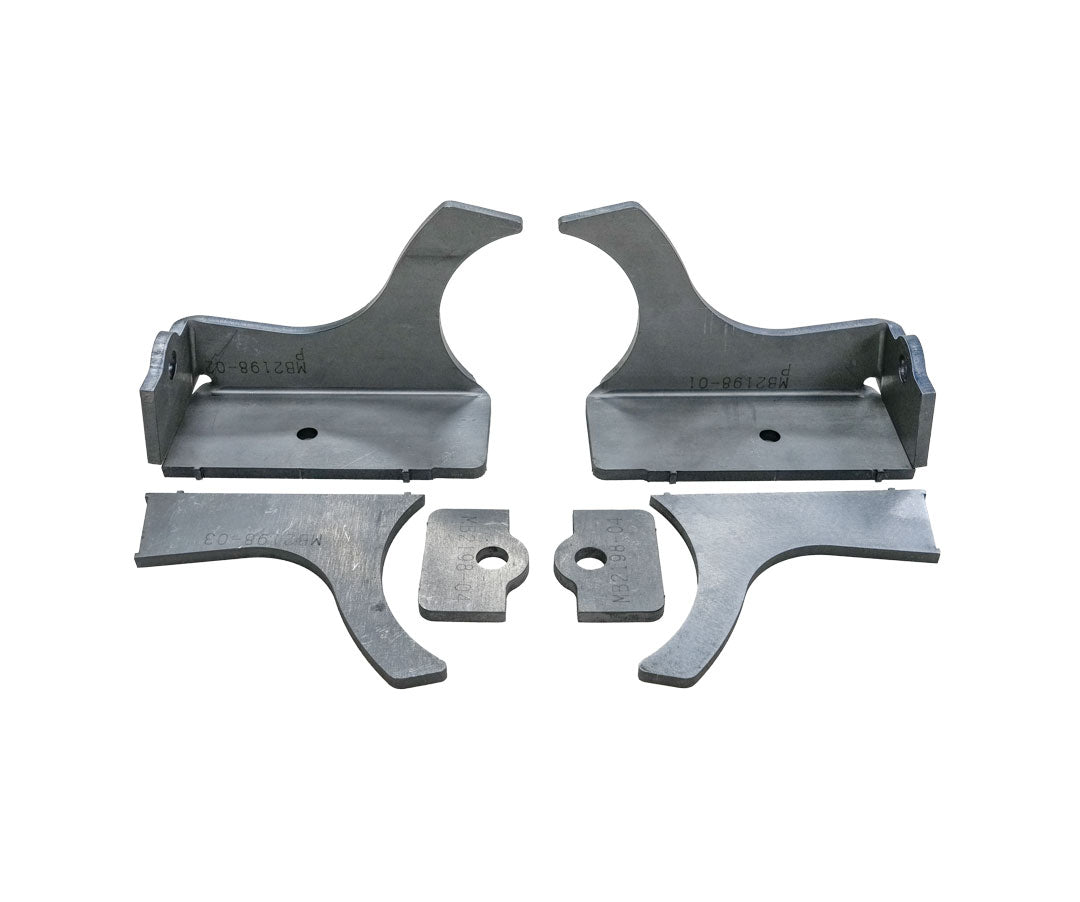

Motobilt Dana 60 Coilover Strut Drop Bracket MB2198 – Motobilt part number MB2198.

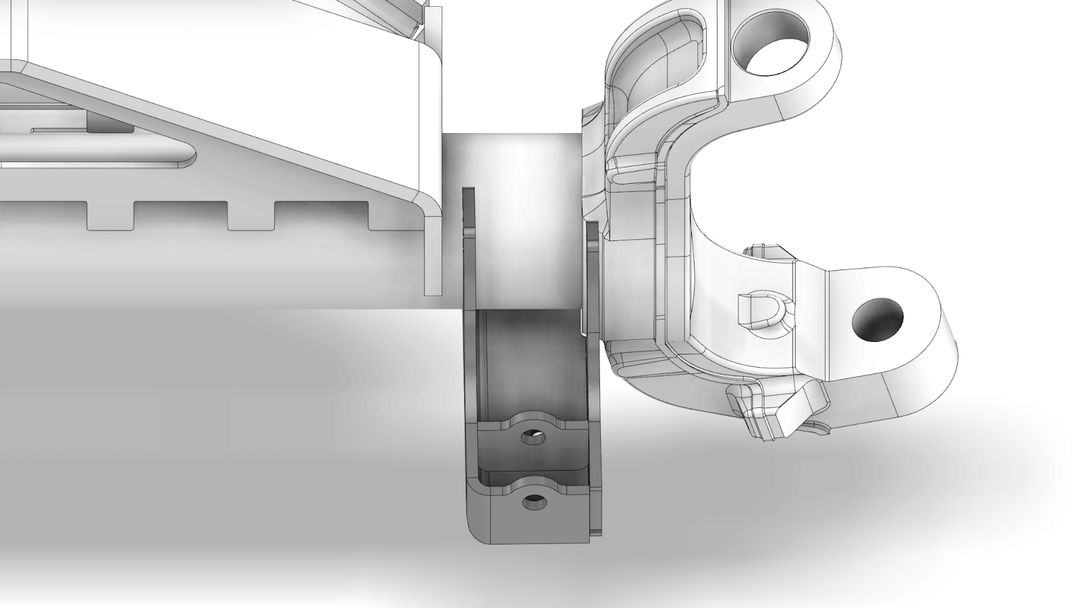

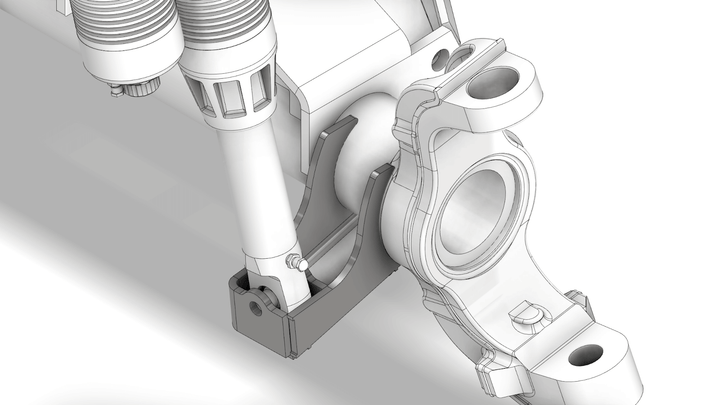

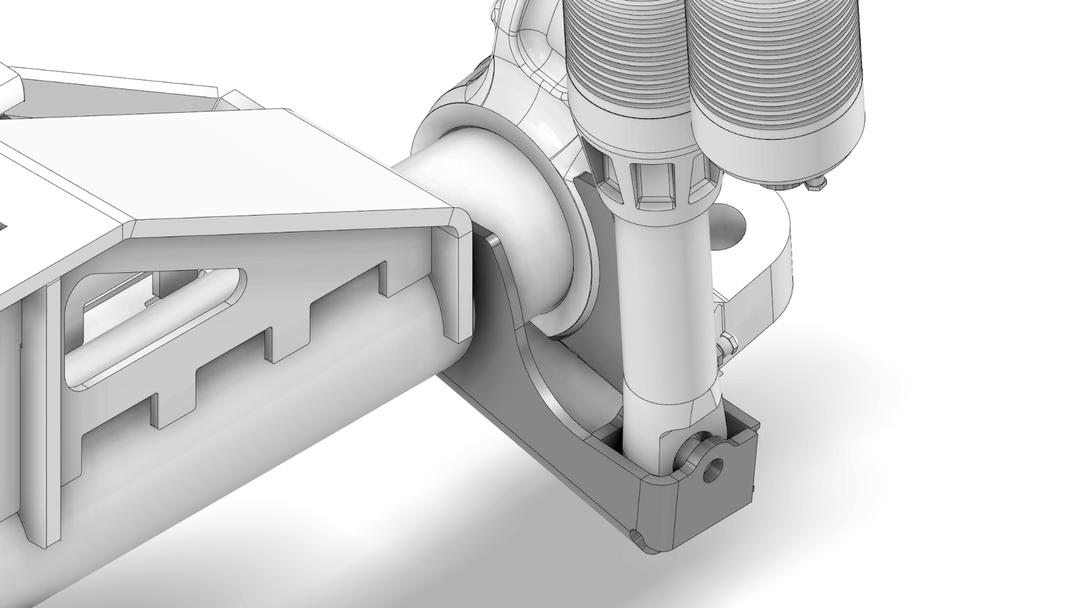

Engineered for strength and precision, the Motobilt Dana 60 Coilover/Strut Drop Bracket is built to handle the toughest off-road abuse. Designed for builders and fabricators looking to mount coilovers on a Dana 60 front-steer axle, this bracket positions your shocks perfectly for improved suspension geometry and clearance.
Precision-cut and formed from 1/4 inch thick American steel, the MB2198 delivers the rigidity and durability serious off-road builds demand. It's designed to fit 3.75 inch plus axle tubes and knuckles, providing a secure foundation for your coilover/strut suspension setup. This setup requires welding to the lower Axle C which allows the coil over to be moved as far outward as possible.
These work great with Motobilt shock towers and 14 inch travel shocks/struts. Whether you're building a rock crawler, trail rig, or custom off-road buggy, this bracket offers the reliability and craftsmanship Motobilt is known for.
Highlights:
- Made in the USA
- 1/4 inch Steel Construction
- Adjustable shock mounting width and 1/2 inch bolt hole
- When using the Motobilt front JK or JL shock towers this allows for a 14 inch travel coil over or ORI strut.
- Designed to fit 3.75 inch plus Axle Tube and Knuckles
Fits:
Notes:
- Ships raw steel and will require welding during installation.
- Professional fabrication and suspension setup recommended.
Specifications:
- Dimensions (H/W/D): 3.3 inch x 41.5 inch x 10.5 inch
- Weight: 5.8 lbs
Specifications
- Material: Steel
- Finish: Bare steel
- Thickness: 1/4 Inch
- Differential: Dana 60
- Hardware included: No
- Sold as: Pair
Product information
- Motobilt part number: MB2198
- Country of origin: USA
- Package size: 9 x 9 x 7 in
- Shipping weight: 3 lb
