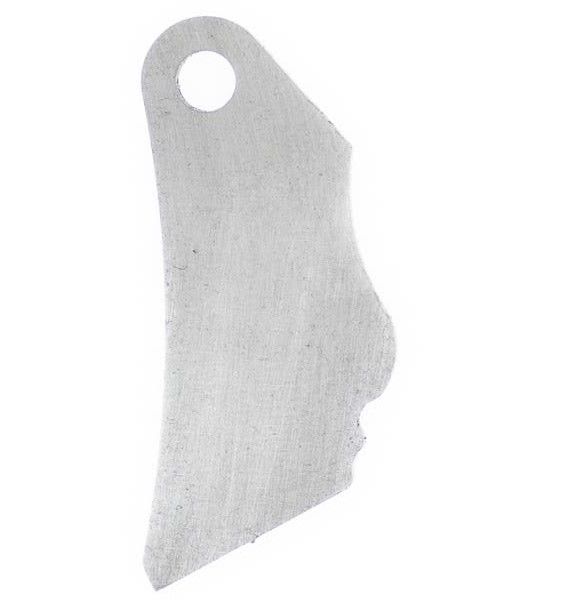

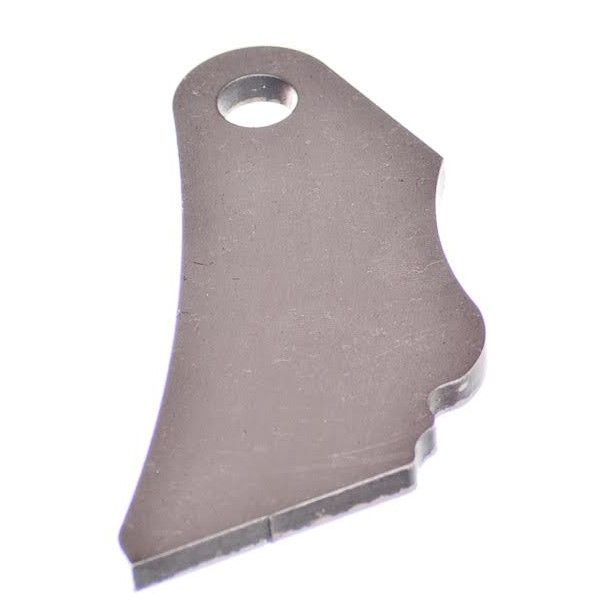

Motobilt Dana 44 Inner C Coilover Tab MB2071

Motobilt Dana 44 Inner C Coilover Tab MB2071 – Motobilt part number MB2071.

Dana 44 Inner C Coilover tabs. The tabs are CNC cut from 1/4 inch high strength steel plate. The will work perfectly with most Dana 44 front axles including Chevy, Ford, Jeep. Mounting a coilover to a Dana 44 front axle is made easy with these tabs. The tabs are designed to weld to the axle tube and inner c providing two purposes. Gusset the inner C and provide an elevated mounting point for the coilover.

The coilover shock mounting point is elevated so the shock will clear the upper ball joint nut when the axle is articulated. The bolt hole is 1/2 inch to fit most coilover shocks and standard shocks. The tabs are CNC cut from 1/4 inch high strength steel plate. The mounts are sold individually.

• Dana 44 Inner C Coilover tabs
• CNC 1/4 inch high strength steel plate
• The bolt hole is 1/2 inch to fit most coilover shocks and standard shocks
• Sold as each

Specifications

• Material: Steel
• Thickness: 1/4 Inch
• Location: Front
• Differential: Dana 44
• Hole diameter: 1/2 Inch
• Sold as: Each

Product information

• Motobilt part number: MB2071
• Country of origin: USA
• Package size: 6 x 3 x 1 in
• Shipping weight: 0.5 lb
