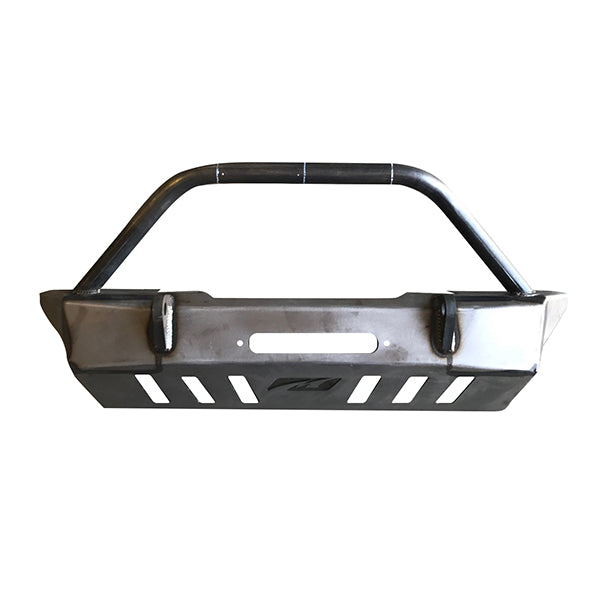

Motobilt Crusher Front Bumper with Stinger for 2007-2018 Jeep JK MB1011-S

Motobilt Crusher Front Bumper with Stinger for 2007-2018 Jeep JK MB1011-S – Motobilt part number MB1011-S.

The Motobilt Jeep Wrangler JK Crusher recessed winch bumper with stinger will provide you the ultimate in protection and recovery. The bumper allows you to secure your winch down low in between the frame rails. The stinger bar is made out of 1.75 inch x .120 inch wall DOM tube and is braced with laser cut gussets. The high clearance design includes a built in skid plate also. The bumper is made from 3/16 inch thick steel plate that is laser cut at Motobilt HQ then cnc bent. The bumper uses 3/4 inch thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out. This setup provides for superior strength.
Features:

• Jeep Wrangler JK front Crusher recessed winch bumper with stinger
• Measures in at just 46.5 inch at its widest point
• 3/16 inch thick steel plate
• 3/4 inch thick laser cut d-ring mounts that pass through the bumper and our welded both inside and out
• The stinger bar is made out of 1.75 inch x .120 inch wall DOM tube and braced with laser cut gussets
• Includes all the necessary mounting hardware
• Sold as each

Note:

• If installing a winch, MB1002 fairlead mount will also need to purchased
• Will Not work with Teraflex S/T Dual rate front sway bar
• The outer edge of the crash bar will need to be trimmed to fit where the lower portion of the bumper mounts
• Ships bare steel and will need to be painted or powdercoated once you receive it
• 2012 and newer models will need a vacuum relocation pump PN MB2060

Specifications

• Material: Steel
• Finish: Bare steel
• Thickness: 3/16 Inch
• Series: Crusher
• Style: Full Width
• Location: Front
• Tube size: 1.75 Inch x .120 Inch
• Hardware included: Yes
• Sold as: Each

Product information

• Motobilt part number: MB1011-S
• Country of origin: USA
• Package size: 48 x 16 x 12 in
• Shipping weight: 70 lb
