Motobilt Coilover Shock Tab for 1-3/4" Tube MB2003

Motobilt Coilover Shock Tab for 1-3/4" Tube MB2003 – Motobilt part number MB2003.

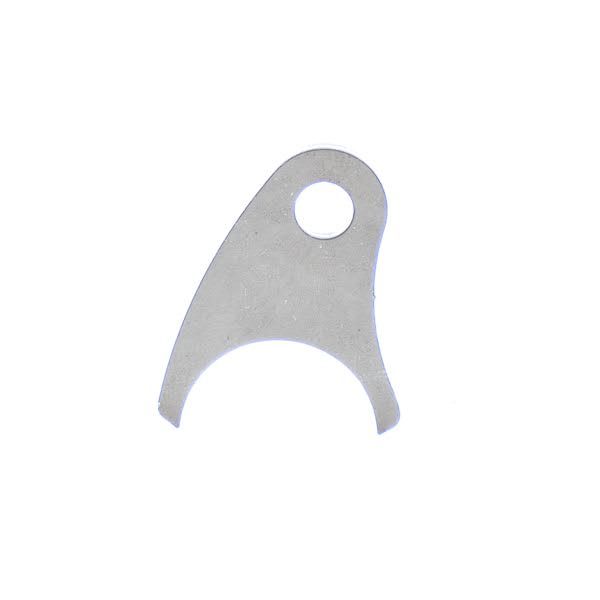

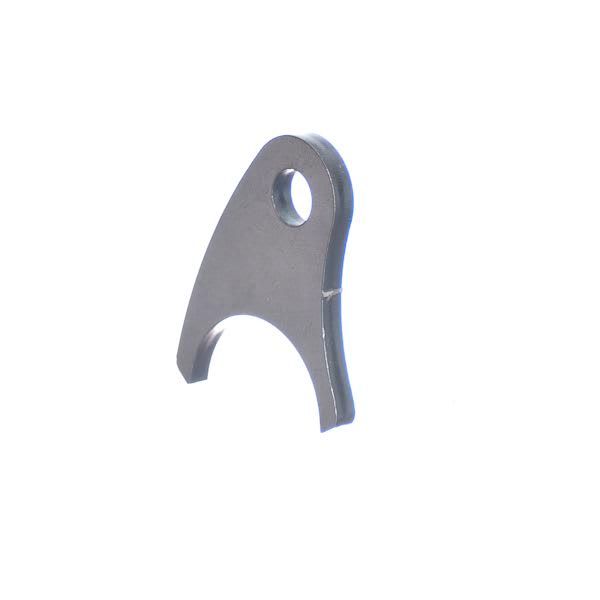

The Coilover shock tab for 1.75 inch round tube is cnc laser cut from 1/4 inch high strength steel plate. The bolt hole is 1/2 inch diameter to fit the standard coilover shock bolt size. The area around the bolt hole has clearance to allow room for the shock body not to contact the tab. The tab can be installed on 1.75 inch round tube and has to be welded in place by a qualified welder.
Features:

• Coilover shock tab
• CNC Laser Cut from 1/4 inch Steel Plate
• 1/2 inch Bolt Hole
• 1.25 inch from center of bolt hole to edge of the 1.75 inch radius mounting surface
• Designed for mounting coilover shocks
• Price is per Tab
• Sold as each

Note:

• Needs welded in place by a qualified welder

Specifications

• Material: Steel
• Thickness: 1/4 Inch
• Location: Front, Rear
• Hole diameter: 1/2 Inch
• Sold as: Each

Product information

• Motobilt part number: MB2003
• Country of origin: USA
• Package size: 6 x 6 x 3 in
• Shipping weight: 0.3 lb
