Motobilt Anti-Coning Ring for 15" DIY Beadlocks MB-ACR15 – Motobilt part number MB-ACR15.

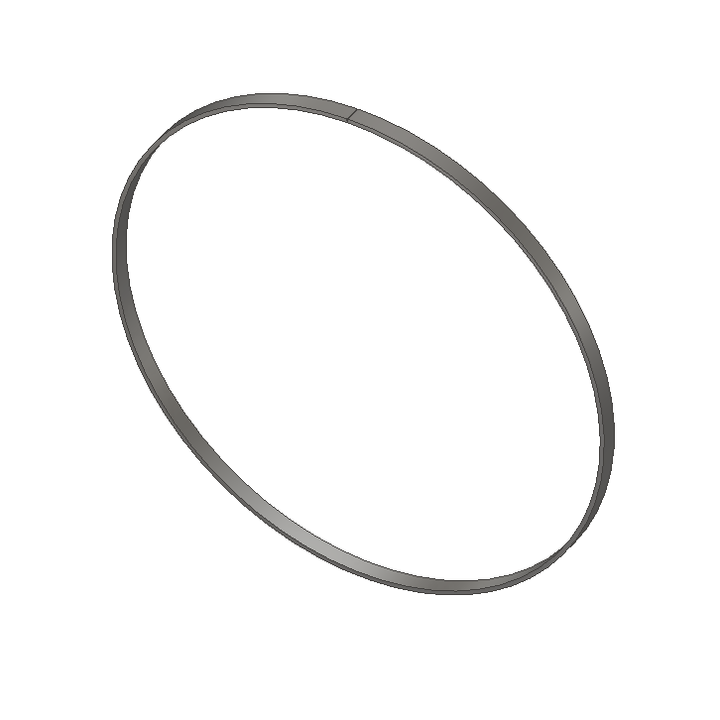

Anti Coning Rings are a rolled piece of steel that is used to create a stand-off between the steel wheel and the DIY inner bead lock ring plate. If you weld the DIY inner bead lock ring plate directly to the steel wheel, the heat from the welding process may cause the DIY inner bead lock ring plate to deform inwards, effectively creating a cone shape to the inner plate.
This will cause issues when you attempt to bolt on the outer DIY bead lock plate and may not allow all holes to line up.

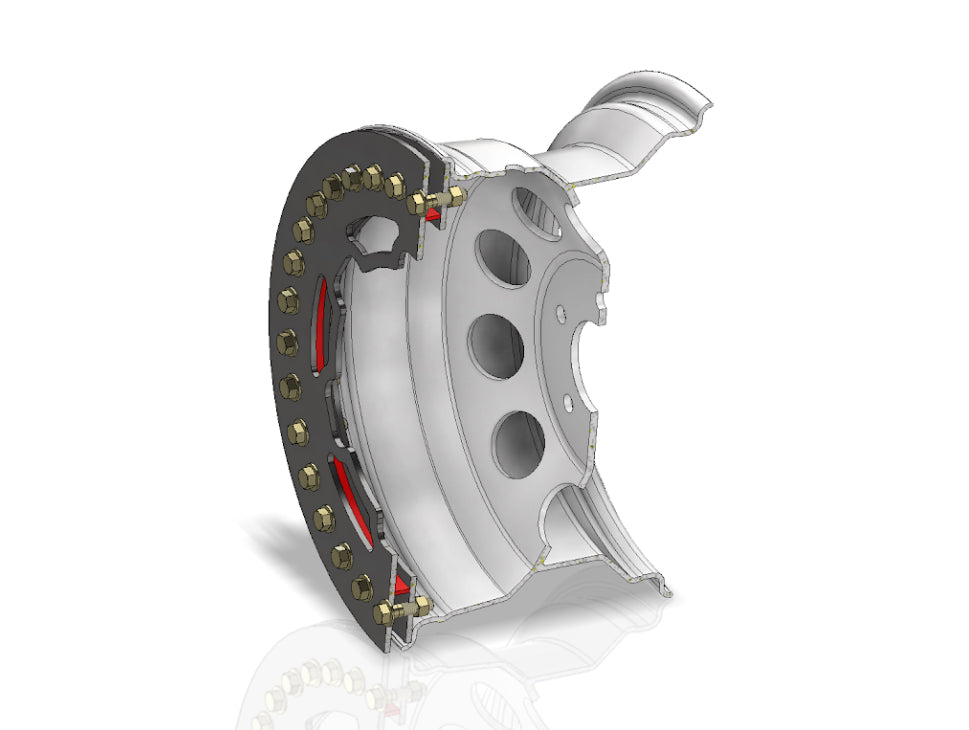

Our Anti Coning Rings first get welded to the inside face of DIY Inner Bead Lock plate (sold separately), then the Anti Coning Ring gets welded to the steel wheel. This two step process aides in preventing the deformation (coning) of the mounting plate and ensures all of the holes will align for an easy installation of your tire.
Anti Coning Plates are sold individually, shipped as raw steel and require welding.
Note: Fits 15 inch steel wheels
Specifications
- Material: Steel
- Finish: Raw
- Size: 15.0 Inch
- Sold as: Each
Product information
- Motobilt part number: MB-ACR15
- Country of origin: USA
- Package size: 18 x 14 x 4 in
- Shipping weight: 20 lb
