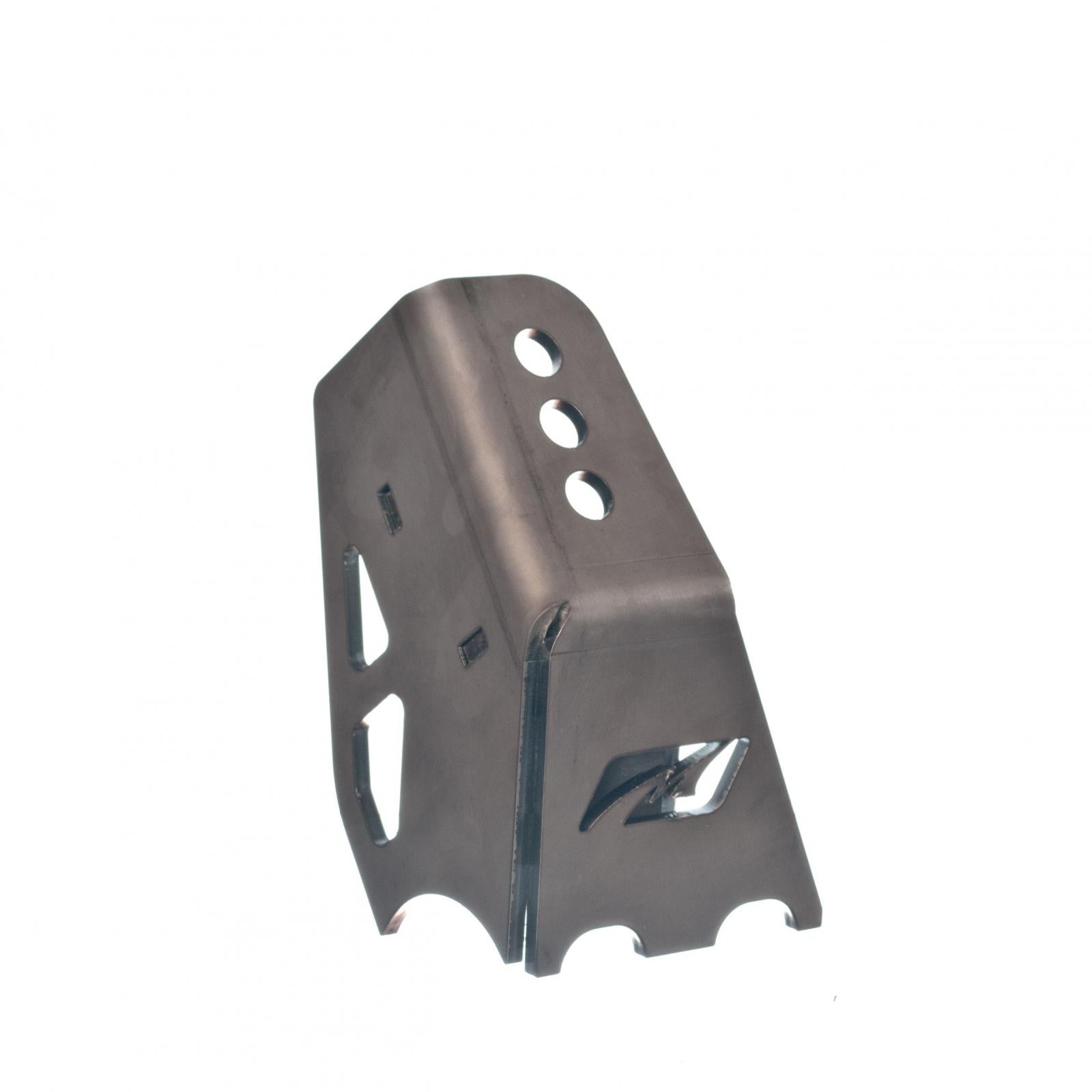

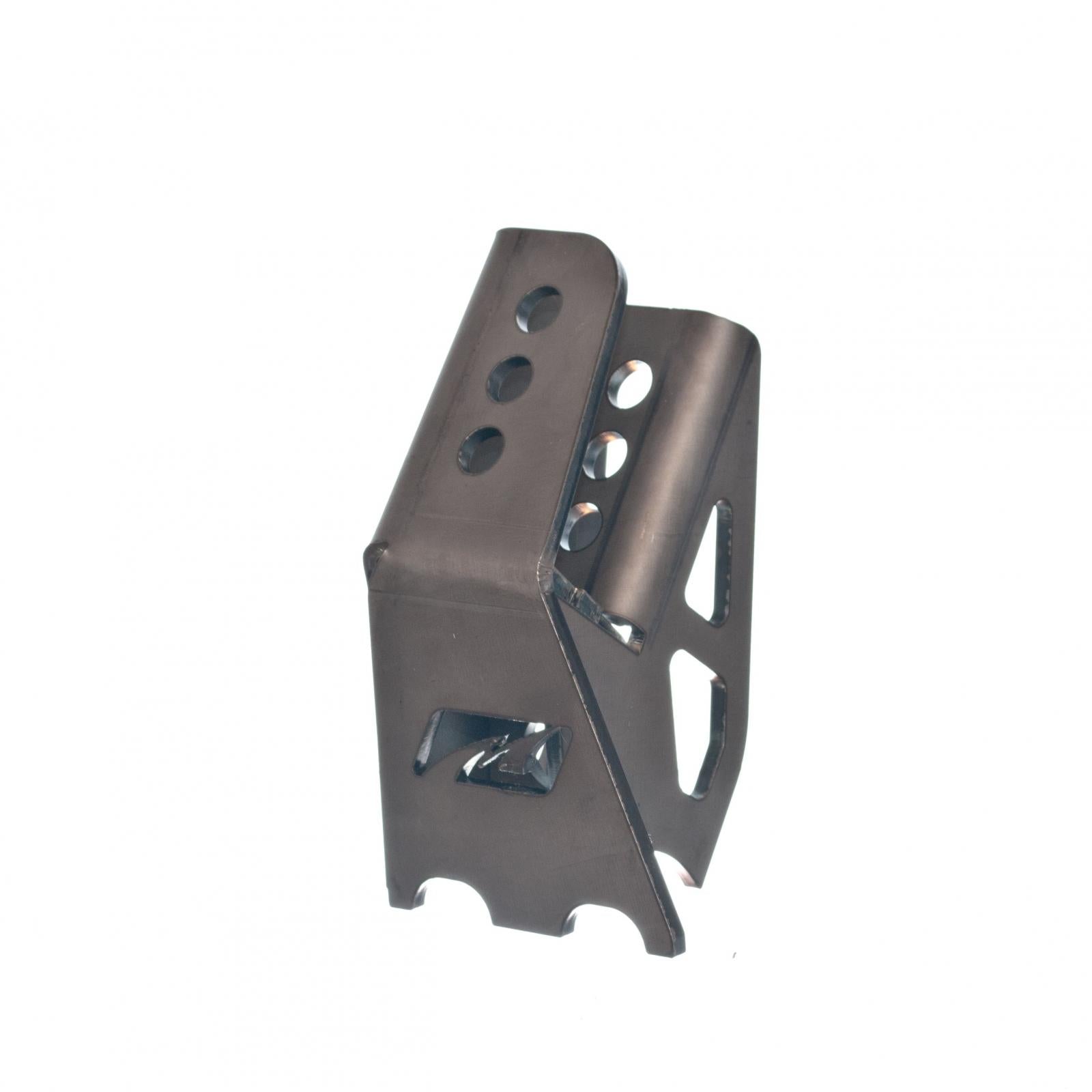

Motobilt Adjustable Track Bar Bracket 3" Axle Tube Diameter MB1542-175-300

Motobilt Adjustable Track Bar Bracket 3" Axle Tube Diameter MB1542-175-300 – Motobilt part number MB1542-175-300.

The Motobilt adjustable track bar bracket is built to take the any abuse you can dish out. This bracket is laser cut from 1/4 inch thick steel plate and CNC formed. The bracket consists of 3 pieces that will need to be welded for install. The brackets utilize 3 different holes that measure 5/8 inch in diamter. The bracket is also offset so that it will clear your other suspension components. This track bar bracket axle tube diameter is 3 inch.
Features:

• Adjustable track bar bracket 3 inch axle tube diameter 1.75 inch mounting width
• Laser cut from 1/4 inch thick steel plate
• Bracket utilize 3 different holes that measure 5/8 inch in diameter
• Bracket is also offset so that it will clear your other suspension components
• Sold as each

Note:

• The bracket consists of 3 pieces that will need to be welded for install

Specifications

• Material: Steel
• Thickness: 1/4 Inch
• Location: Rear
• Axle tube: 3 Inch
• Hole diameter: 5/8 Inch
• Sold as: Each

Product information

• Motobilt part number: MB1542-175-300
• Country of origin: USA
• Package size: 10 x 8 x 6 in
• Shipping weight: 5 lb
