Motobilt 5" Straight Leaf Spring Shackle MB1527-50

Motobilt 5" Straight Leaf Spring Shackle MB1527-50 – Motobilt part number MB1527-50.

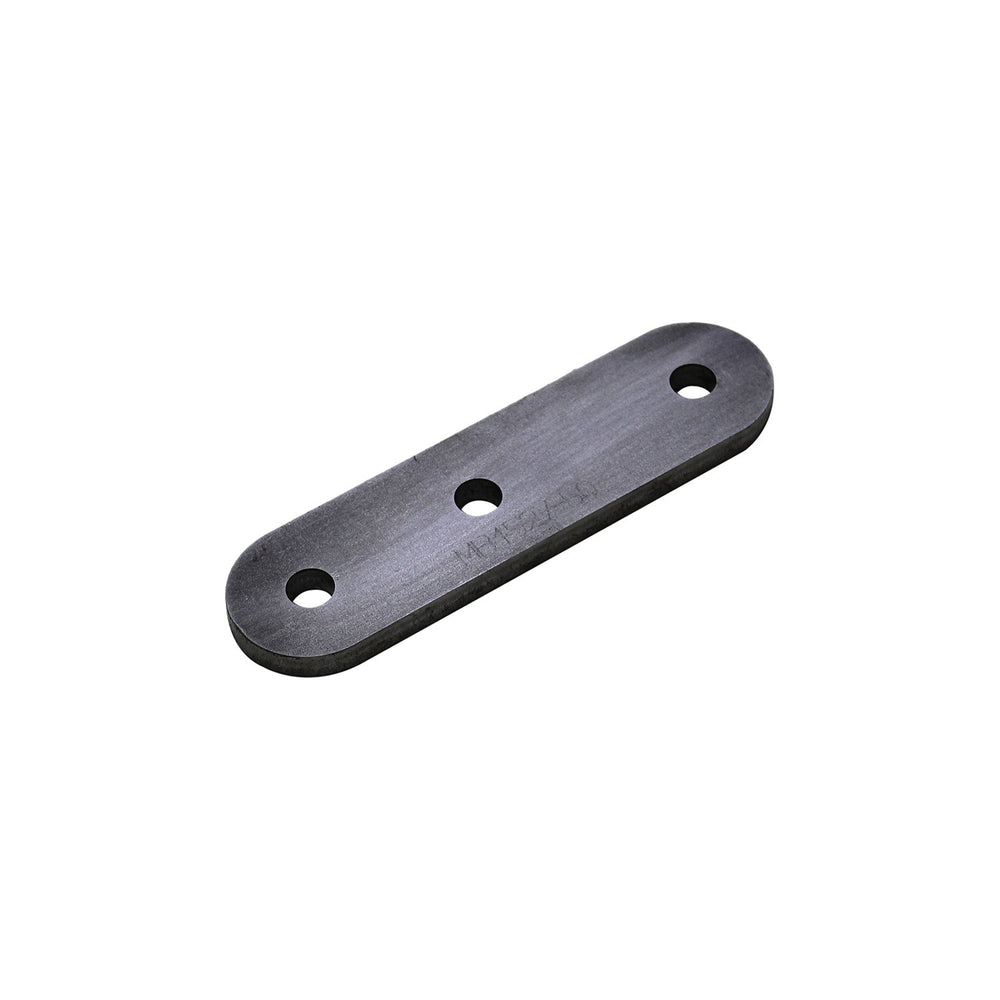

The Motobilt shackle plates are made out of 3/8 inch thick steel plate that is cnc laser cut. Each shackle plate uses 1/2 inch holes and a 3rd middle hole that can be used as a tie plate.

A small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications. Measurements are the span from centers on each hole.
Features:

• 5 Inch Straight Leaf Spring Shackle
• Straight long shackle 5 inch
• 3/8 inch thick steel plate
• Shackle plate uses 1/2 inch holes and a 3rd middle hole
• Sold as a pair (2 plates)

Note:

• Small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications
• Measurements are the span from centers on each hole

Specifications

• Material: Steel
• Finish: Raw
• Thickness: 3/8 Inch
• Size: 5.0 Inch
• Hardware included: No
• Sold as: Pair

Product information

• Motobilt part number: MB1527-50
• Country of origin: USA
• Package size: 11 x 7 x 1 in
• Shipping weight: 1 lb
