Motobilt 4 Link Bracket with Flat Bottom 3/4" MB2005-3/4

Motobilt 4 Link Bracket with Flat Bottom 3/4" MB2005-3/4 – Motobilt part number MB2005-3/4.

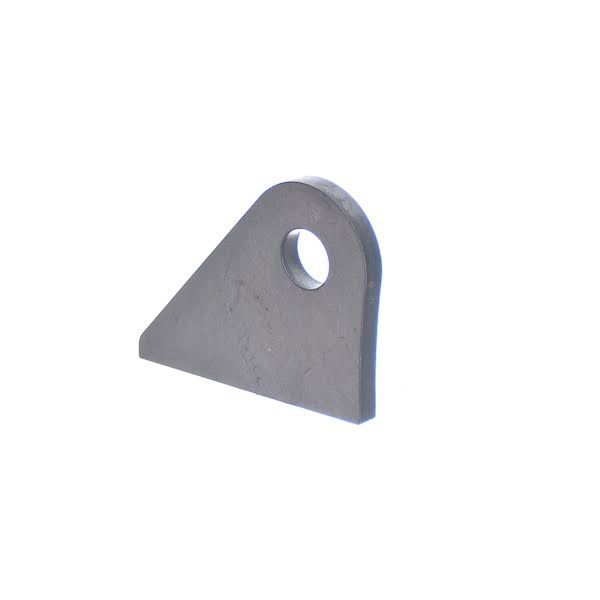

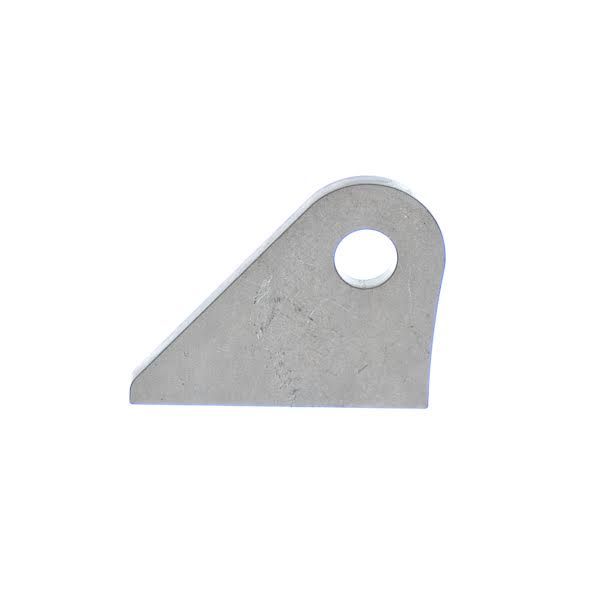

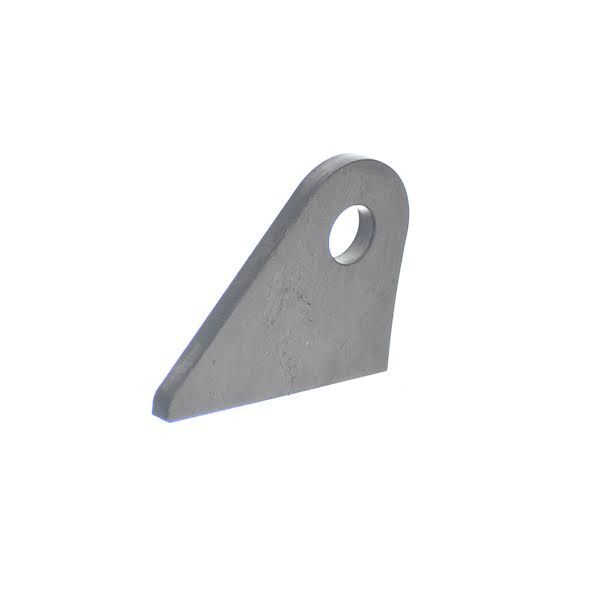

The Motobilt Flat Bottom 4 Link Tab is CAD designed and CNC laser cut from high strength steel 5/16 inch plate. The tab cab be used to mount a number of different suspension links. The tab features a 3/4 inch hole. We commonly use this tab in combination with axle trusses.
Features:

• 4 link Tab with a flat mounting surface
• 3.75 inch Flat base to weld weld on
• Hole cut 2 inches up from the base
• The material thickness of this tab is 5/16 inch
• Sold as each

Specifications

• Material: Steel
• Thickness: 5/16 Inch
• Location: Front, Rear
• Hole diameter: 3/4 Inch
• Sold as: Each

Product information

• Motobilt part number: MB2005-3/4
• Country of origin: USA
• Package size: 7 x 7 x 5 in
• Shipping weight: 3 lb
