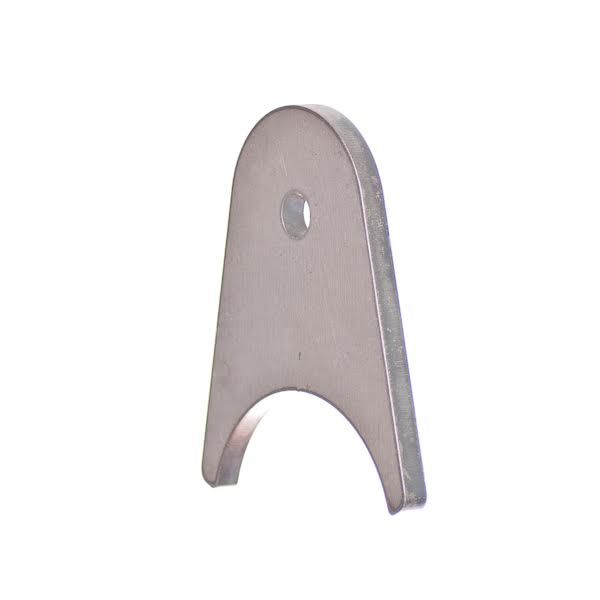

Motobilt 4 Link Axle Tab Steel 3.25 Axle Tube 5/8" Hole Diameter MB2054-325-625

Motobilt 4 Link Axle Tab Steel 3.25 Axle Tube 5/8" Hole Diameter MB2054-325-625 – Motobilt part number MB2054-325-625.

The Motobilt 4 link axle tabs are laser cut out of 5/16 inch thick P and O steel plate. These brackets are built with pure strength in mind! We offer these brackets for just about every axle and link combination out there. In the case of the Motobilt 4 link axle tabs we thought of everything! You get to choose your axle tube diameter and you get to choose your bolt hole size! These link brackets measure 2 inch from center of hole to the axle tube.

4 Link axle tab

• MB2054-325-625
• Axle Tube diameter 3.25 Inch
• 5/8 inch hole

Common axle tube diameters:

• Dana 30 2.500 inch
• Dana 35 2.500 inch
• Dana 44 1/2 ton 3.000 inch
• GM 10-bolt 3.000 inch
• GM 12-bolt 3.000 inch
• GM 14-bolt 3.500 inch
• Ford 8.8 3.250 inch
• Ford 9-inch 3.000 inch
• Dana 60 rear 3.125 inch
• Dana 44 front 3/4 ton 2.750 inch
• Dana 60 front 3.125 inch
• Dana 70 rear 3.625 inch

Specifications

• Material: Steel
• Thickness: 5/16 Inch
• Location: Front, Rear
• Differential: Ford 8.8 Inch
• Axle tube: 3.25 Inch
• Hole diameter: 5/8 Inch
• Sold as: Each

Product information

• Motobilt part number: MB2054-325-625
• Country of origin: USA
• Package size: 6 x 6 x 3 in
• Shipping weight: 1.5 lb
