JK Atlas Cable Shifter ** (New kit ) **
This shifter has been designed around stock JK console. The console needs to be taken apart and the stock shifter removed for the installation of the new cable linkage.
The shifter does not need any adjustments to the cables, it is designed to save time on the installation and give your Jeep a clean look.
When installing an Atlas into a JK you will need a computer interface for the drivetrain low range switch. P/N 300377A.
Pre-configured Atlas JK's include this component
Note: if you have a Advance Adapters Rubicrawler installed in your JK you will need the shifter kit 303036.

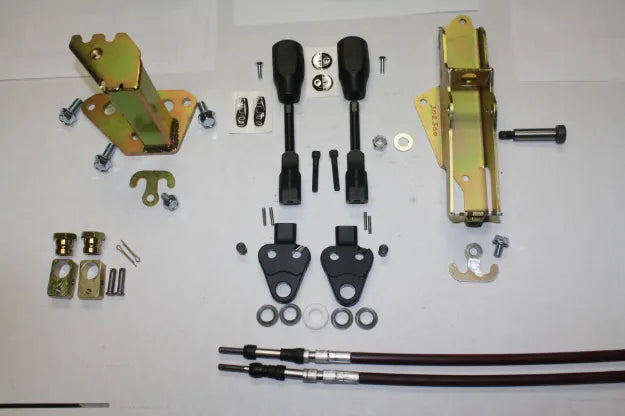

What's Included
- Atlas Logo For New Knobs (Part# 302061)
- Shifter Sticker- STD Atlas Shifter L-N-H (Part# 302062)
- JL Atlas Case Cable Mount Assy. (Part# 302400)
- JL Atlas Case Cable Locking Tab (Part# 302401)
- Mount-JK Shifter Base (Part# 302500)
- Barrel Nut- Cable End 1/4-28 (Part# 302423)
- Knob- Inj Mold (Slip On) JK/JL (Part# 302424)
- Bolt- Shoulder 1/2 x 1 3/4 (3/8-16) (Part# 302427)
- Flange Bolt- 5/16 -18 x 1/2 SERRATED (Part# 302450)
- Open (Part# 302451)
- Torx Flat Head Screw- JL Shift Knob (Part# 302452)
- Clevis Pin- 1/4 x 1 (Part# 302454)
- Cotter Pin- 3/32 x 3/4 (Part# 302455)
- Cable- JK Shifter (40" long) (Part# 302465)
- Block- Cable Adapter 42RLE Atlas (Part# 303318)
- Nut- Retaining Cable 42RLE Atlas (Part# 303319)
- 1/2 X 1/4 Igus Bushing (Part# 42R508)
- Washer 3/8 SAE Flat Plt (Part# 723735)
- Nut 3/8 -16 Nylock G5 Plt (Part# 723703)
- Molded Shifter Knob For Atlas no threads JL (Part# 302425)
- Roll Pin-Slotted.125 X.750 420 Ss (Part# 302426)
- 1/4 X 20 X 1-1/2 S.H.C.S. (Part# 722543)
- Heat Shield- Fireproof Sleeve 24 (Part# 42R726)
