JK 2 Door Coil Spring 8 Inch Stretch Kit 07-18 Wrangler JK Synergy MFG

Synergy Jeep JK 2 Door Coil Spring 8 Inch Stretch Kit

The Synergy 8 Inch Coil Spring Stretch Kit for 2 door JK's is a version of our 8 inch stretch kit that doesn't require converting to coilover shocks.
The additions to the kit are coil spring relocation brackets and shock relocation brackets for use with our standard 8 inch rear stretch brackets for 2 Door JK's. This allows the Synergy 8 inch stretch kit to be used with standard coil springs. Allowing for standard coil springs takes much of the guesswork and tuning out of properly setting up a stretched JK. This also allows for more shock options, as it is easier to fit larger 2.5 inch shocks or even bypass shocks.

Details:

• Adjustable rear upper and lower long arms designed to maximize ground clearance
• Lower control arms are manufactured from high quality crush resistant 2 inch X .250 Wall 1026 DOM tubing
• Upper control arms are made from high quality crush resistant 1 1/2 inch X .188 Wall 1026 DOM tubing
• Synergy double adjuster sleeve and pinch bolt assembly allows for adjustment of control arm link length without removal
• Features Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality

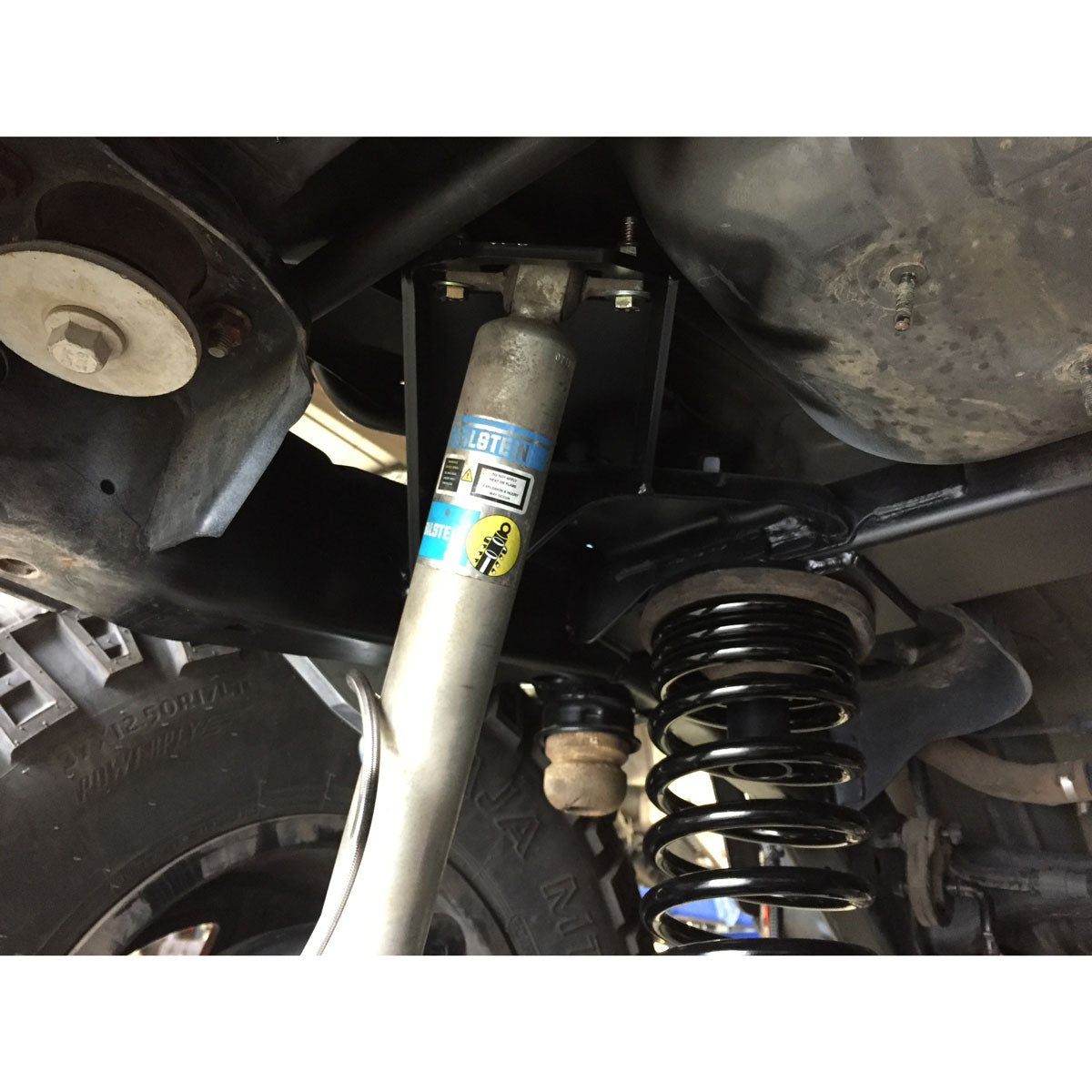

• Coil spring relocation brackets move the upper coil spring mounts back 8 inch

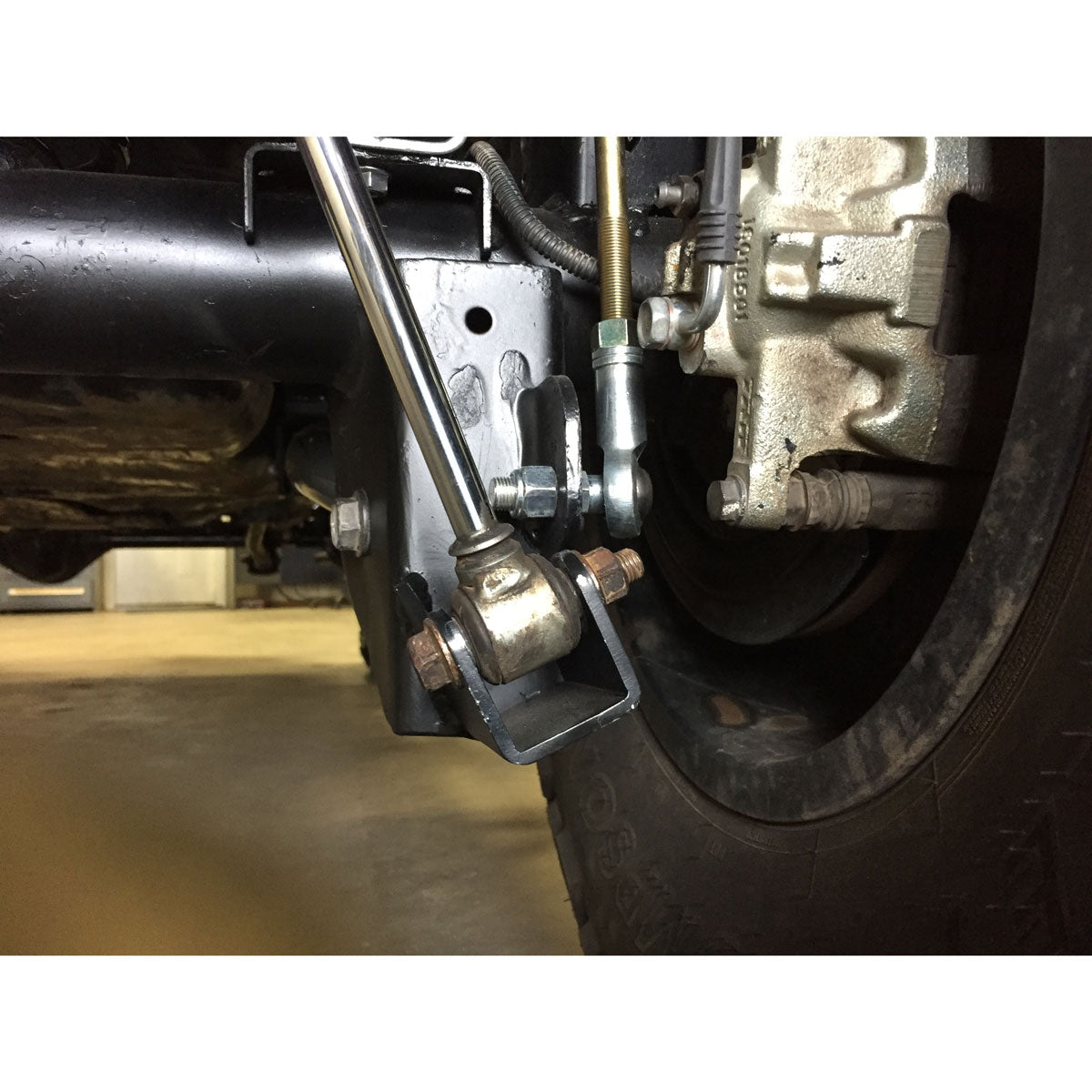

• Shock relocation brackets move the upper shock mounts back 8 inch and move the lower shock mounts for improved clearance
• Progressive wound coil springs manufactured using the latest in CNC hot winding technology keeps springs from coming unbound at full suspension droop
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

Notes:

• Requires a maximum 4-3/4 inch backspace wheel or wheel spacer with factory wheel setup. 4-1/2 inch back spacing is recommended
• This kit cannot be installed using simple hand tools, it requires significant fabrication and welding skills to correctly install
• TNT Customs 8 inch rear stretch corners are designed to work with this kit, part # JCA280 (with rear light pockets) or JCA280NL (no rear light pockets)
• Due to the placement of the rear coil springs, rear coil springs should be two inches shorter than the front coil springs. We recommend 8063-30 front coil springs and 8064-10 rear coil springs for 37-40 inch tires.
• Installation requires basic hand tools, grinder with cut-off wheel or sawzall, floor jack with jack stands or automobile lift, and a welder. Extensive cutting, grinding, welding, and fabrication skills are required to complete installation.

Vehicle fitment: 2007–2017 Jeep Wrangler; 2018 Jeep Wrangler JK

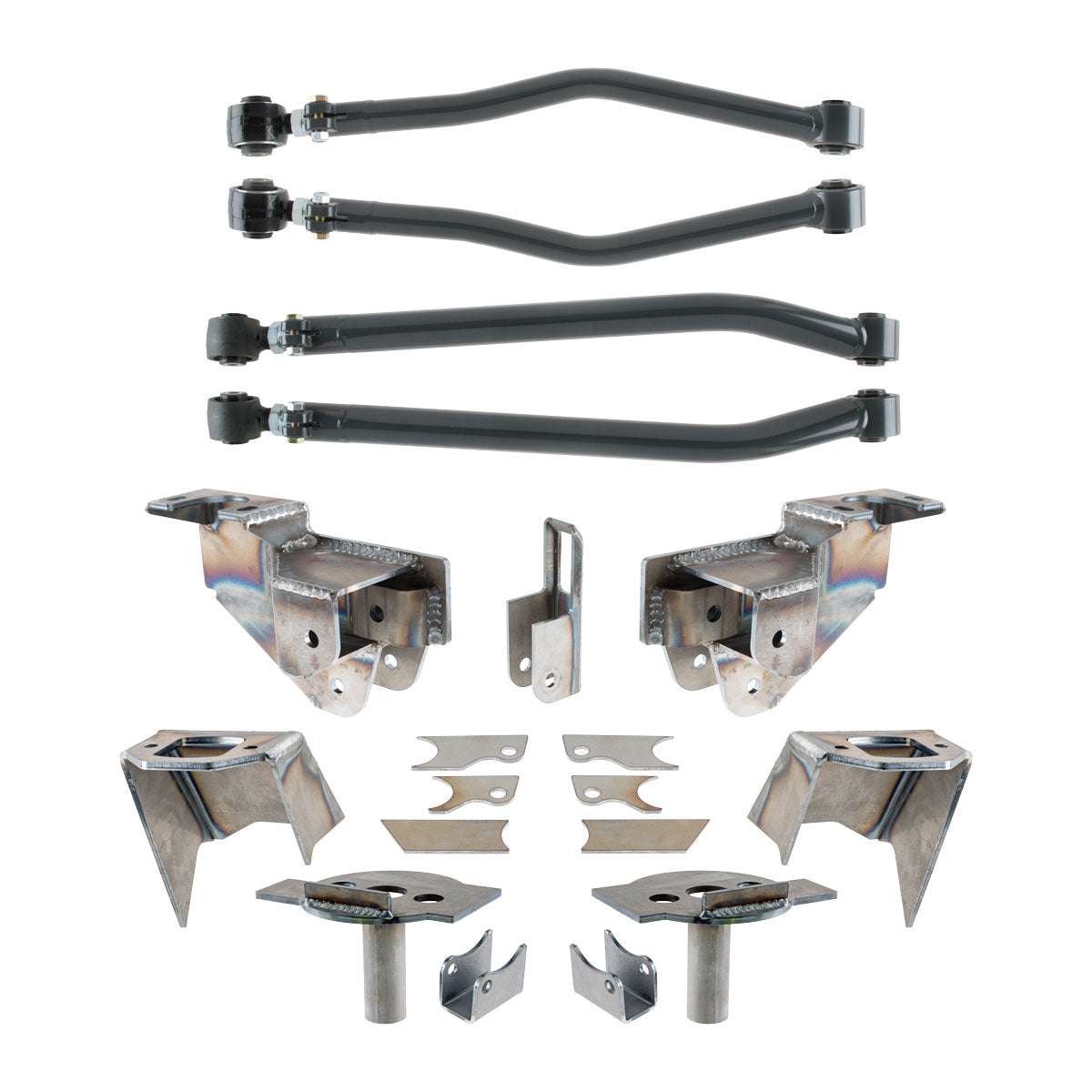

Kit components:

• 8032 (qty 1)
• 8032-06 (qty 1) – JK 2 Door Rear Coil Spring Stretch Kit 07-18 Wrangler JK
• 8036 (qty 1)
• 8038 (qty 1)

Specifications:

• Synergy MFG part number: 8034-03
• Position: Rear
• Vehicle type: Jeep
• Country of origin: USA
• Warranty: Limited lifetime warranty
