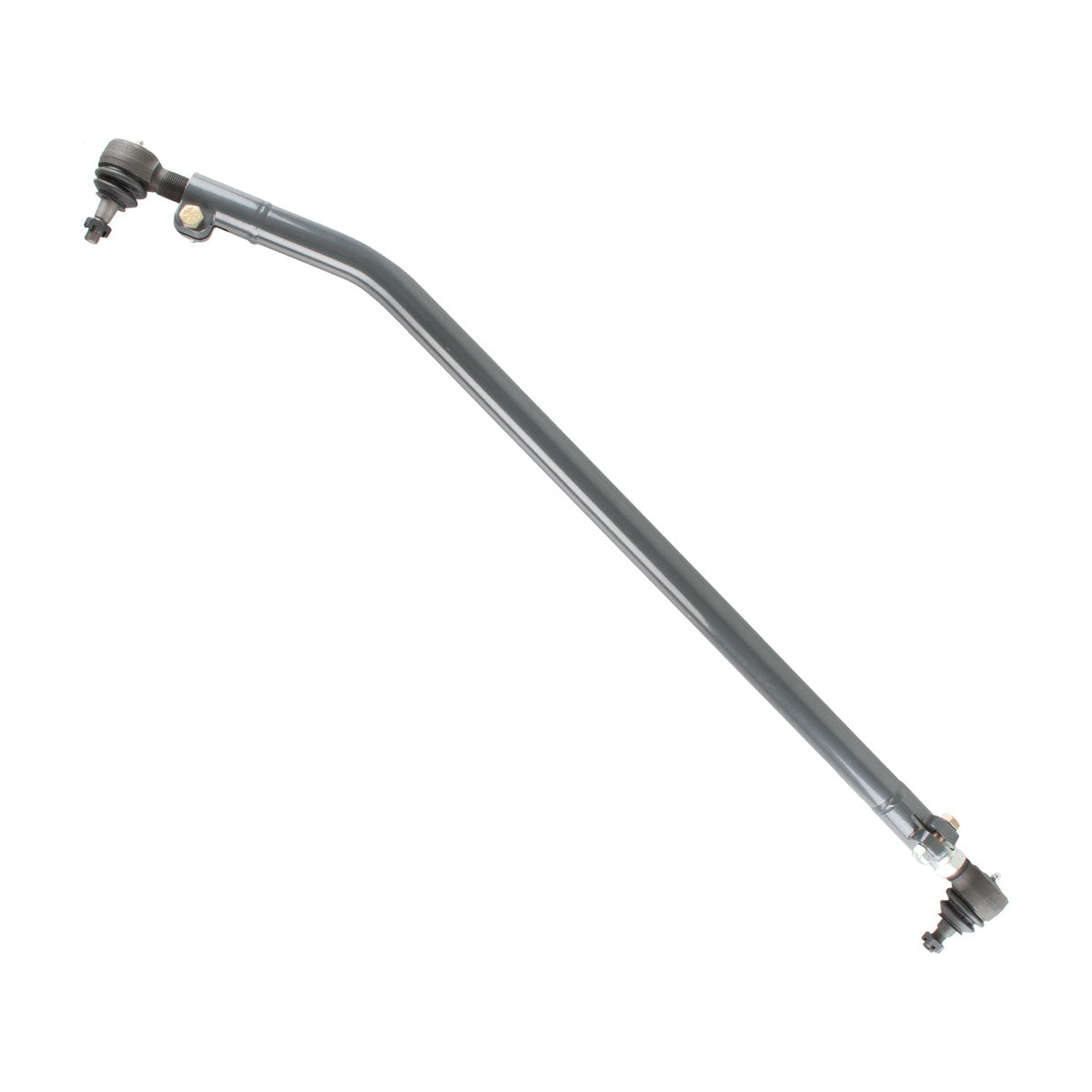

Jeep JL/JT HD Drag Link 18+ Wrangler JL/JLU Synergy MFG

Jeep JL Wrangler Heavy Duty Drag Link Kit. All new design and components specific to the JL platform. Direct bolt-in replacement for the stock drag link for an immediate upgrade in steering feel, stiffness, and strength. Single Plane Tie Rod End eliminates unwanted Drag Link Flop. You will not find a better drag link on the market!

Benefits:

• Drag Link is fully adjustable to fit all JL Wrangler models with different axle widths.
• Increased tubing wall thickness improves drag link strength and steering feel. Offers a more direct connection to the road/trail compared to stock; no more bent drag links and constantly having to re-center your steering wheel.
• Bar is fully welded, unlike the crimped OEM design.

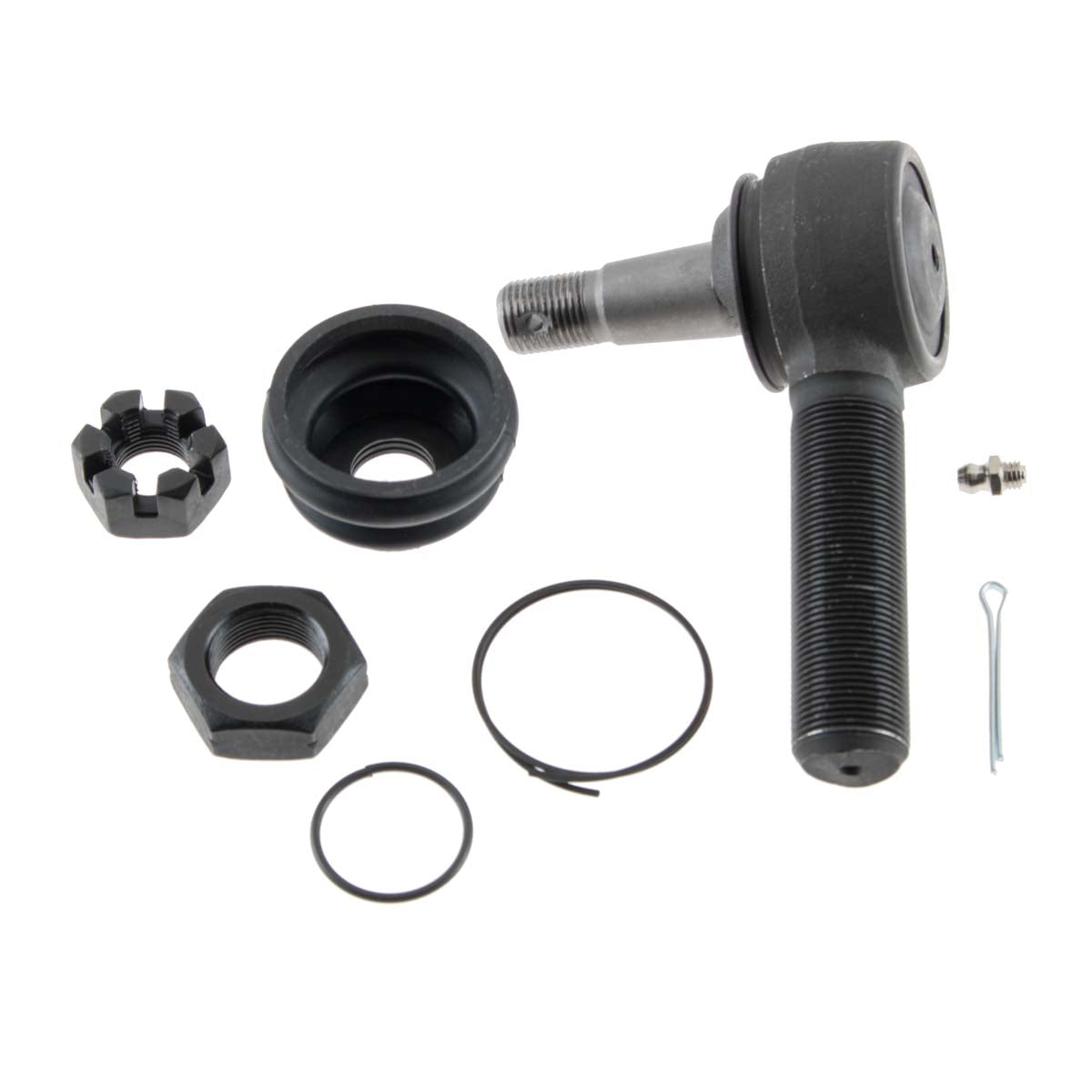

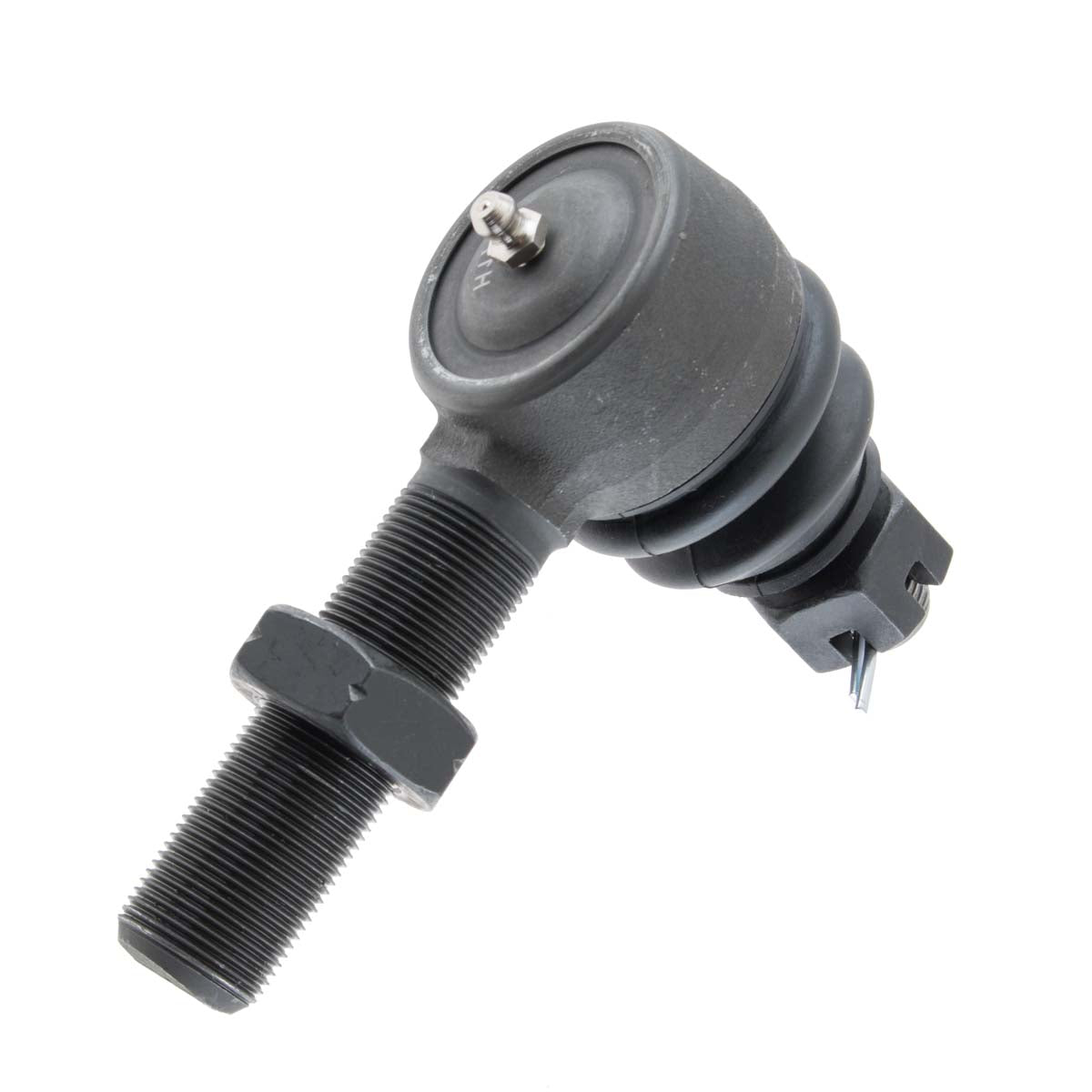

• New Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance. Synergy High Performance Grease recommended (4119).
• Pitman arm side tie rod end is a single plane design to eliminate unwanted drag link flop. Drastically simplifies installation and only allows necessary degree of movement.
• Double Adjuster assembly allows adjustment of drag link length without removing it from the vehicle.
• Drag Link Flip Adapter is included for those who will be converting to high steer. Front Track Bar Relocation Bracket required for high steer conversion.

Features:

• Drag Link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter (See Notes for high steer requirements).
• No factory drag link components need to be reused.

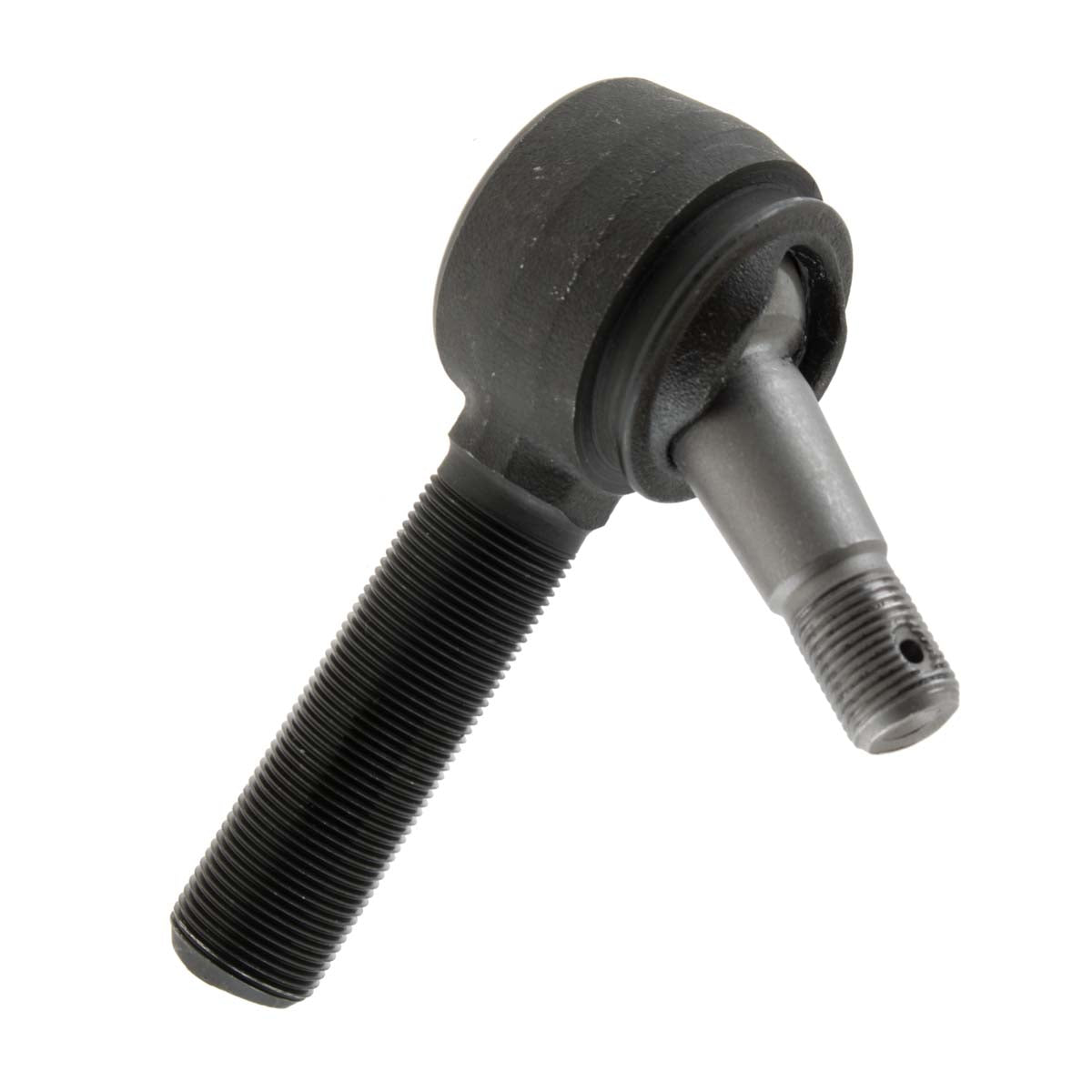

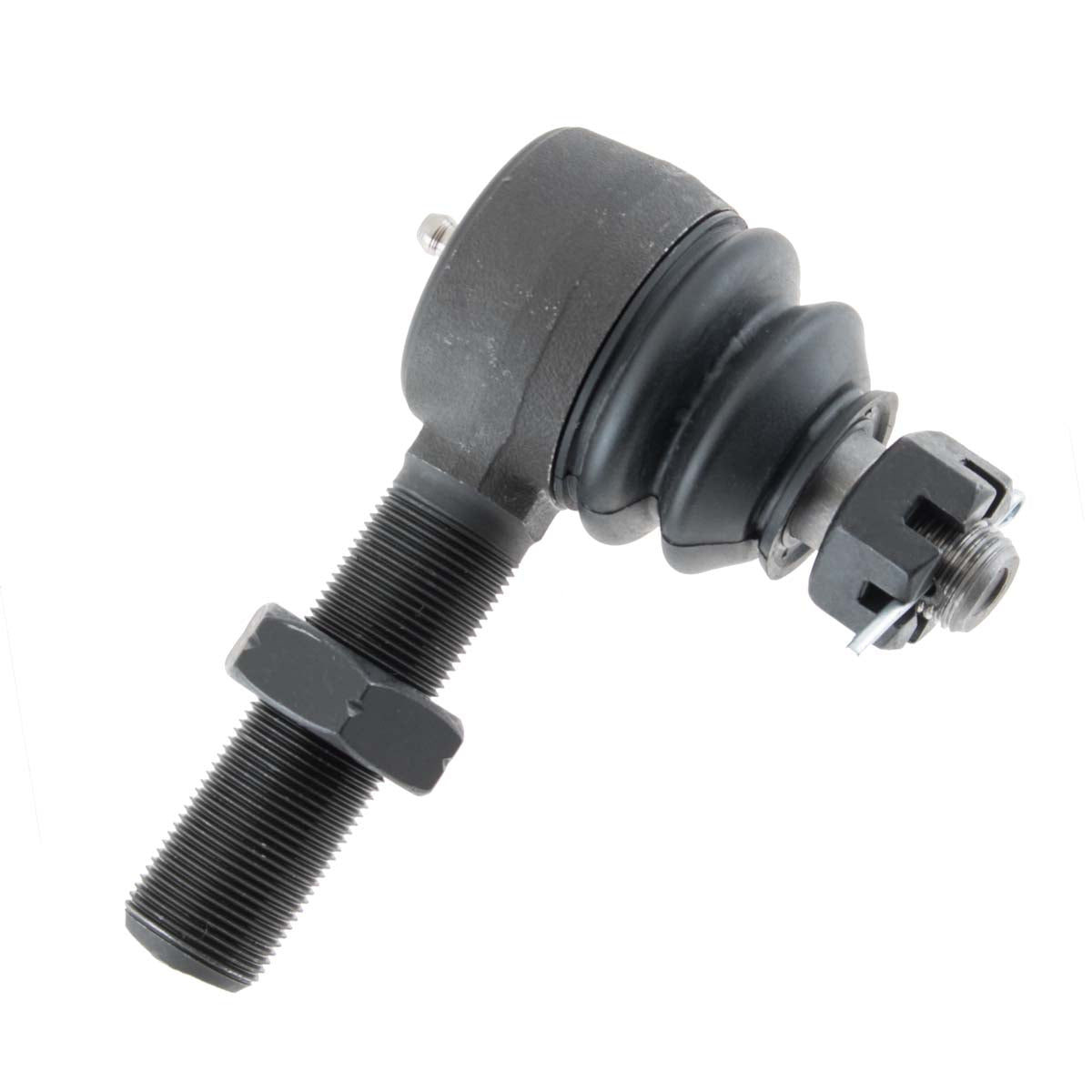

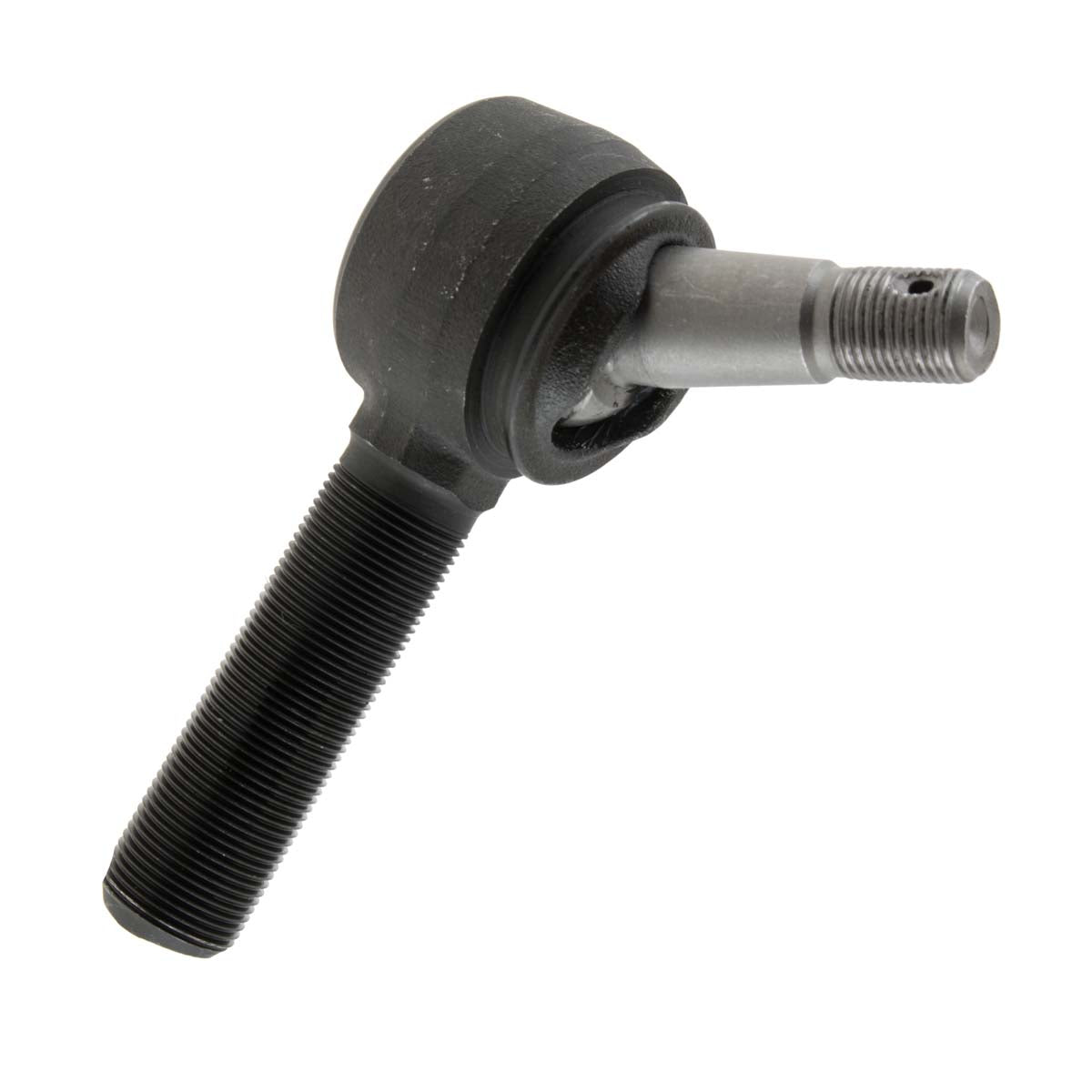

• Includes Synergy HD Metal on Metal Tie Rod Ends with a Single Plane version at the pitman arm side to completely eliminate Drag Link Flop.
• Drag Link is CNC formed from 1.5 inch x .250 wall 1026 DOM tubing
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
• Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment.
• 100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools.

Notes:

• No additional requirements for installation in the stock location.
• Relocation of the drag link to the top of the knuckle for high steer requires 3 inch bump stop spacers, front track bar relocation bracket, and wheels with proper backspacing.
• Replacement tie rod ends: 1x 4162-L, 1x 4163-L.

Vehicle fitment: 2018–2020 Jeep Wrangler; 2020 Jeep Gladiator

Specifications:

• Synergy MFG part number: 8800-01
• Position: Front
• Vehicle type: Jeep
• Country of origin: USA
• Warranty: Limited lifetime warranty
