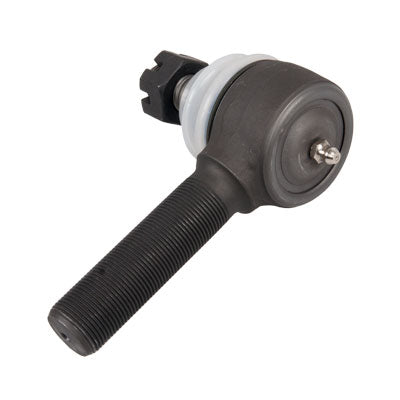

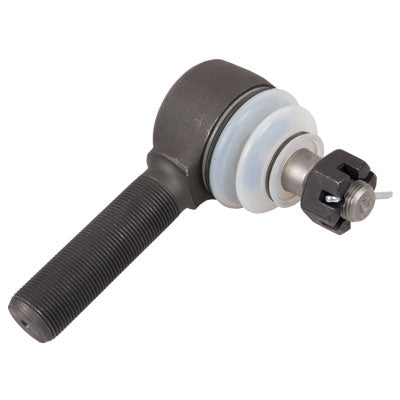

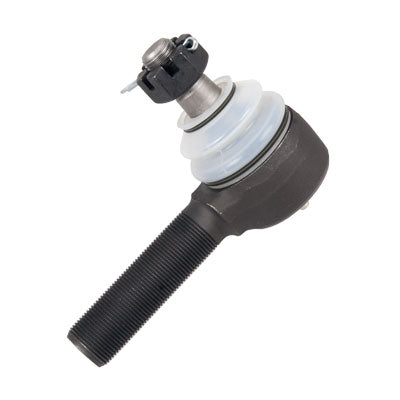

Jeep HD Single Plane Tie Rod End Metal On Metal 7/8-18 LH Jeep TJ/LJ/XJ/ZJ Synergy MFG

Synergy Jeep HD Single Plane Metal-on-Metal Tie Rod End 7/8-18 LH
Fits:

• 97-06 Wrangler TJ
• 04-06 Wrangler Unlimited TJL
• 84-01 Cherokee XJ
• 93-98 Grand Cherokee ZJ

Details:

• Synergy Jeep Heavy Duty Metal-on-Metal Tie Rod Ends
• Fully greasable sintered metal on metal bushing design has high wear resistance
• Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
• Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
• Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
• Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
• Single Plane tie rod ends offer misalignment in one direction of movement only. This eliminates drag link flop on the products they are designed for.

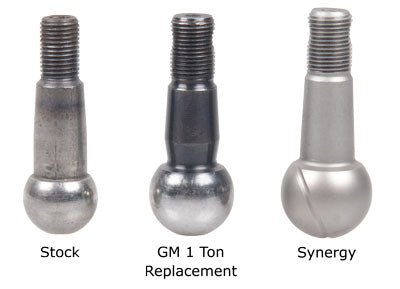

• Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
• Boots are made from tear/wear resistant black NBR and come with retaining springs
• Includes all necessary hardware for installation
• 7/8-18 UNF LH Thread
• Synergy High Performance Grease (4119) is the recommended grease for this product
• Sold Individually

Specifications:

• Synergy MFG part number: 4137-L
• Position: Front
• Vehicle type: Jeep
• Country of origin: India
