HP Billet EFI By Pass Fuel Pressure Regulator Kit

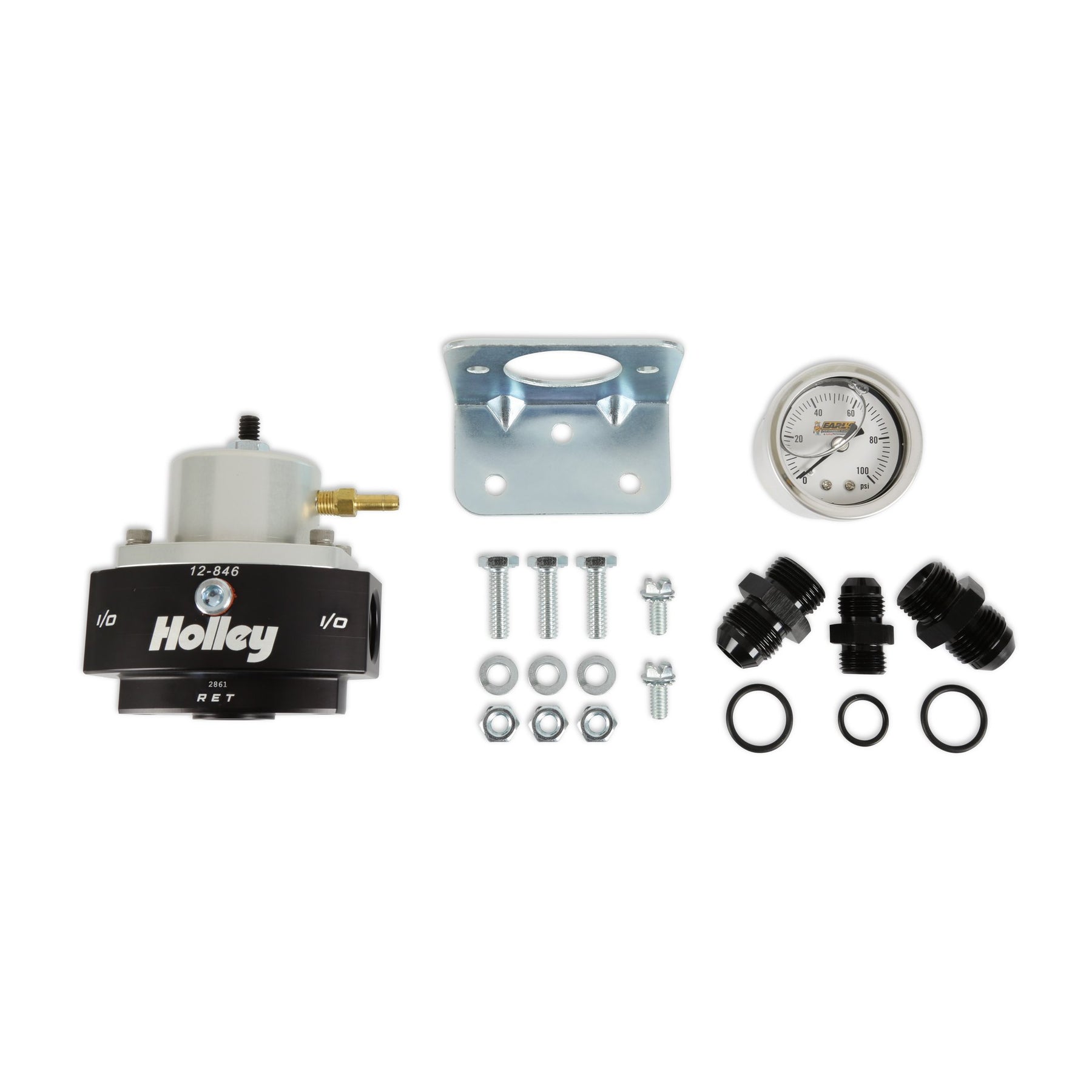

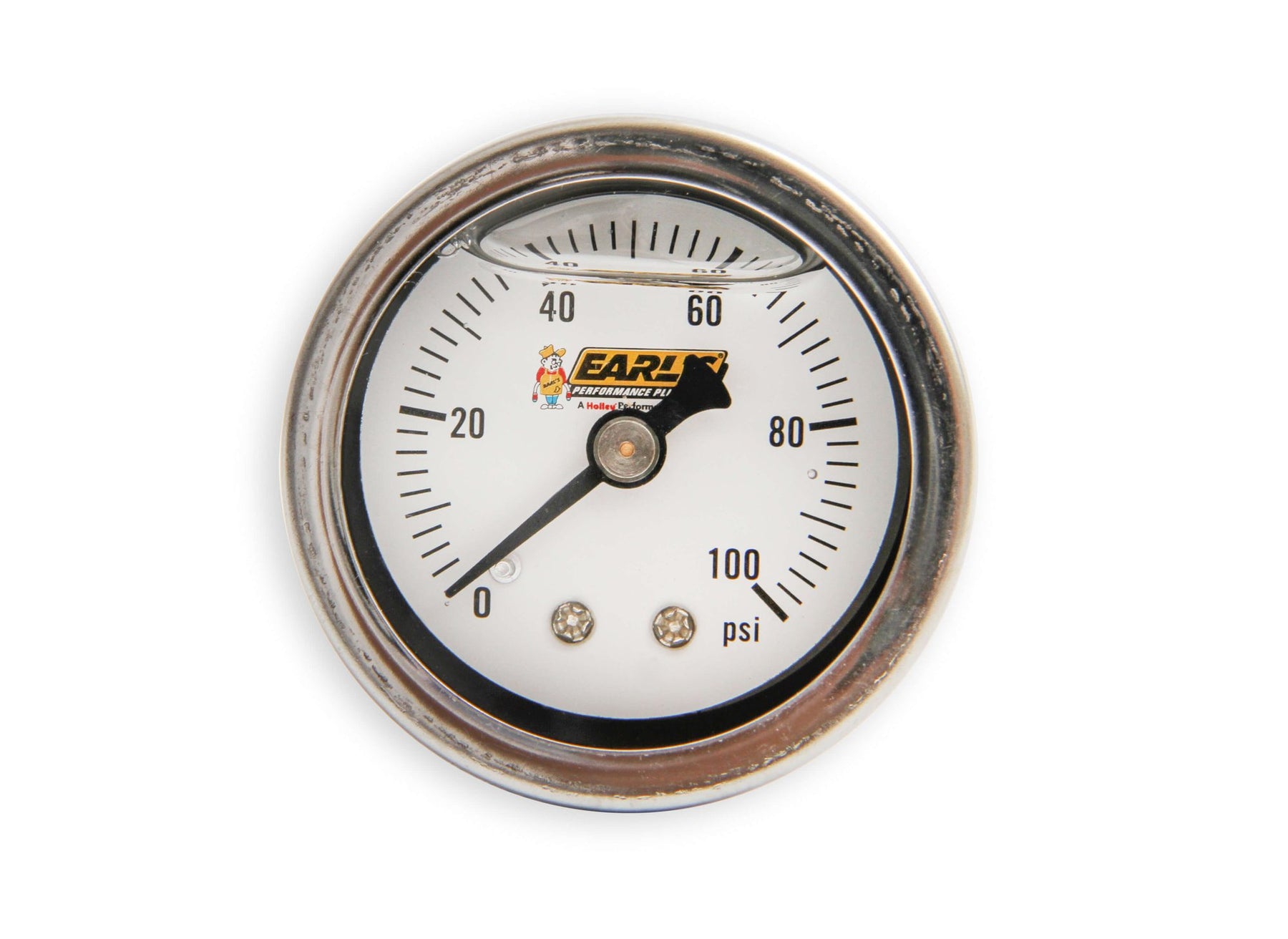

Time saving regulator kits include the regulator, a fuel pressure gauge, and the adapter fittings to get your project started.

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-846 fuel pressure regulator features(1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.

• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems with a return line back to tank

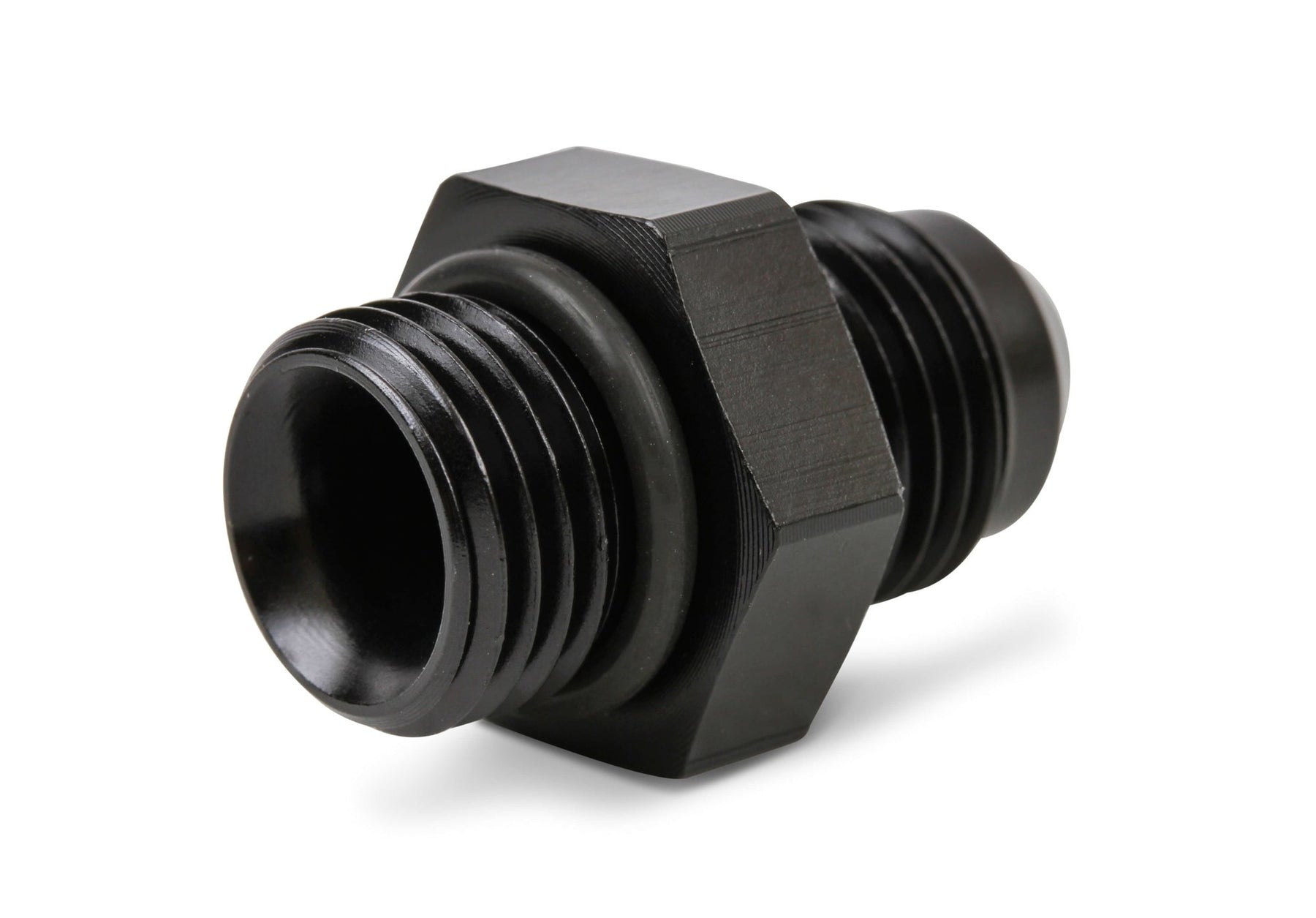

• Includes fitting for manifold reference
• Use with electric pumps only
• (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
• 1/8" NPT gauge port
• Designed for use with the Holley® HP™ in-line fuel pumps or other high pressure electric pumps where return line is needed
• Mounting bracket included

Specifications

• Brand: Holley
• Color: Black Anodized
• Emission Code: 5
• Fuel System: EFI
• Fuel Type: Diesel
• : Gasoline
• Inlet Size: 8 AN O-Ring
• Material: Aluminum
• Outlet Size: 8 AN O-Ring
• Pressure Range: 15-65 PSI
• Product Type: Fuel Pressure Regulator
• Return Size: 6 AN O-Ring
• Style: Bypass
• Warranty: Limited 90 Day
• Part Number: VK060178
