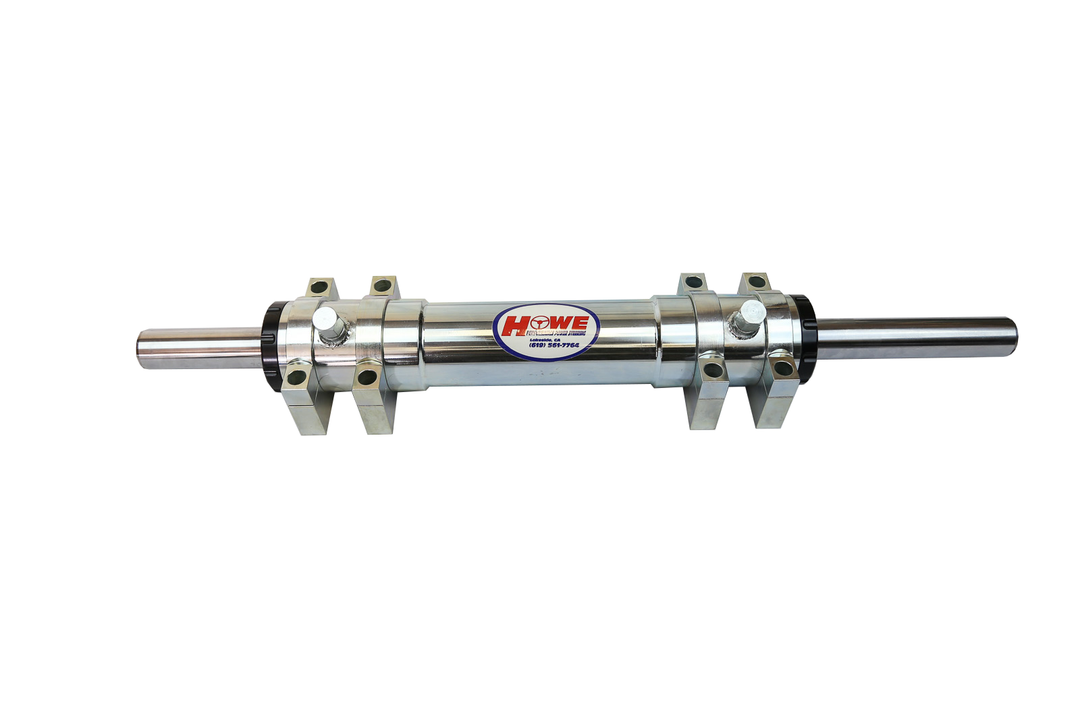

Howe 2.5 x 10 Double-Ended Full Hydraulic Ram, 8" Travel, Dual Piston Seal (436)

This 2.5 x 10 double-ended ram is listed at 8 inches of travel with a dual piston seal. That is what separates it from the standard 2.5 x 10 ram (part 432) on the price list.

• Bore: 2.5 inches
• Size: 10, listed at 8" travel
• Double-ended
• Dual piston seal

Full hydraulic steering has no mechanical link between the wheel and the axle, so the ram has to match your axle. Howe's advice is to measure how far the axle travels side to side, pick the ram first, then the pump, and make sure the ram stops at the same moment the axle does.

Howe Performance part number 436.
