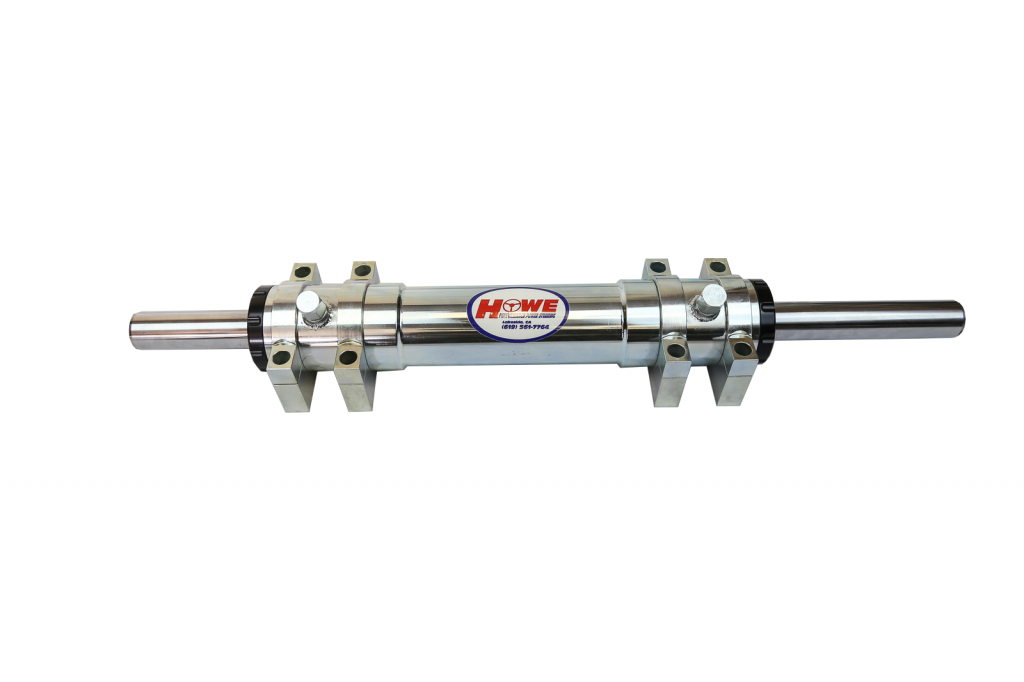

A 2.5-inch bore, 10-inch double-ended ram: big bore and long stroke in one part. Howe lists it for its hi-volume race systems.
- Bore: 2.5 inches
- Size: 10
- Double-ended
- System: hi-volume
Full hydraulic steering has no mechanical link between the wheel and the axle, so the ram has to match your axle. Howe's advice is to measure how far the axle travels side to side, pick the ram first, then the pump, and make sure the ram stops at the same moment the axle does.
Howe Performance part number 432.
