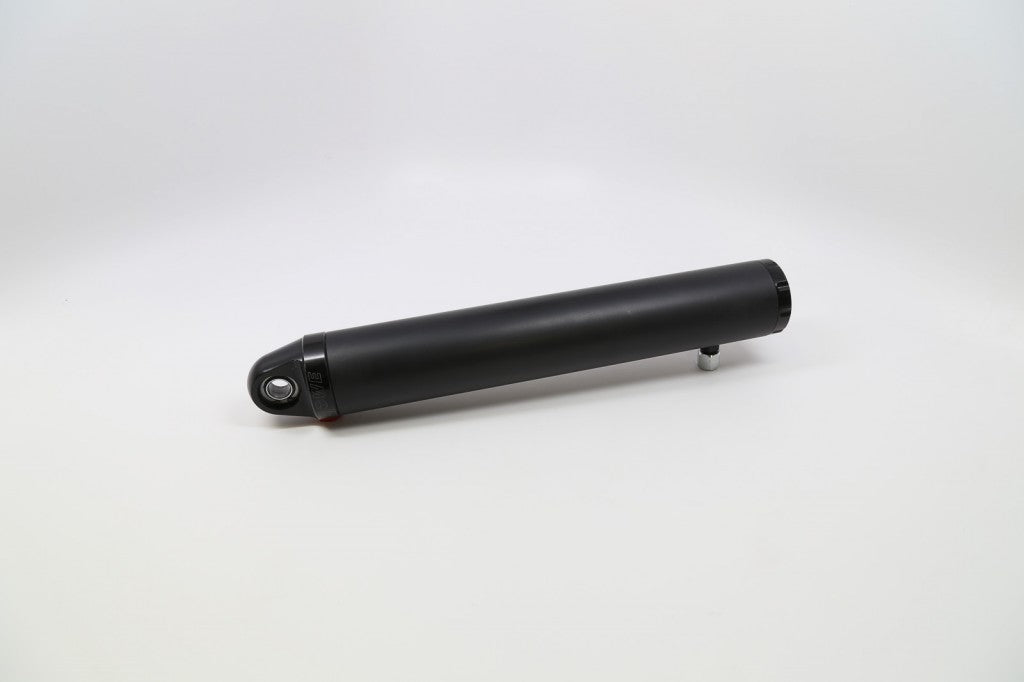

Single-ended instead of double-ended, so the rod comes out one side only, with a 2.25-inch bore and 10-inch size. It's part of Howe's standard (recreation) system.
- Bore: 2.25 inches
- Size: 10
- Single-ended
- Shaft: 1 1/4 inch (per Howe site)
- System: standard
Full hydraulic steering has no mechanical link between the wheel and the axle, so the ram has to match your axle. Howe's advice is to measure how far the axle travels side to side, pick the ram first, then the pump, and make sure the ram stops at the same moment the axle does. Howe's site notes a 1 1/4 inch shaft on this ram.
Howe Performance part number 427.
